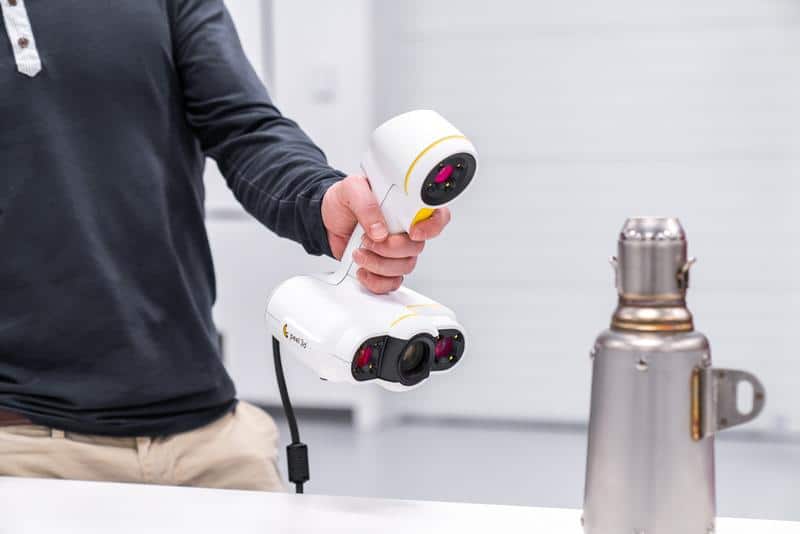

peel2 3D Scanner

From: $13,300.00 NZD +GST

peel 2 is the next-generation of peel 3d scanners that features the same easy, breezy use—all while packing a 1-2 punch of enhanced performance.

Every peel 3d scanner comes with powerful mesh editing software

Thanks to this new 3D scanner, you can tackle more complex projects and take advantage of higher measurement resolution, color capture, enhanced tracking and better geometry capabilities.

Powerful 3D scanning is yours for the taking!

Product Quantity

Peel Rugged Case (optional)

1

SKU: SYS-P3D-PEE2S Category: Brand:

Description

How peel 3d works

1

Scan the object

Both the object and scanner can move freely: you see what you’ve scanned and what you’ve missed in real time.

2

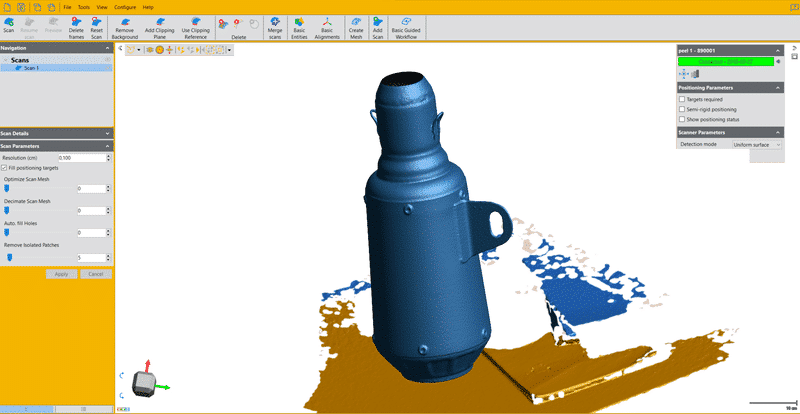

Finalize mesh

Cleanup, improve, align and export like a pro with tools you simply will not find in any other affordable solutions.

3

Export file

Plenty of export formats are available to let you work with the industry’s best reverse engineering or 3D modeling software.

peel1 vs peel2 Scan Quality

peel 3d Technical Specifications

peel 1 peel 2 peel 2 CAD

Part size range (Recommended)

0.3 - 3.0m

Accuracy

Up to 0.250mm
Up to 0.100mm

Mesh Resolution

0.500mm

Measurement Resolution

0.500mm/m
0.250mm

Measurement Rate

550,000 measurements/s

Volumetric Accuracy

0.500mm/m
0.300mm/m

Scanning Area

380 x 380mm

Stand-off Distance

400mm

Depth of Field

250mm

Light Source

White light (LED)

Colours

N/A
24 bits

Texture Resolution

N/A
50 to 150 DPI

Positioning Methods

Geometry and/or targets
Geometry and/or targets and/or texture

What peel 3d scans well

  • Ceramic and Porcelain
  • Clay Models
  • Fabric
  • Human Form
  • Leather
  • Metal Castings
  • Painted Parts
  • Plastic
  • Stone and Masonry
  • Sculptures

What peel 3d is challenged by

  • Translucent, pitch black, mirrored finishes – Putting a bit of spray powder will help to scan these surfaces
  • Objects too small – Works best for objects over 30cm in size (1ft)
  • Hair and fur – There are ways to get a little but it is a challenge

peel3d is available to NZ customers ONLY
