Reverse Engineering Software

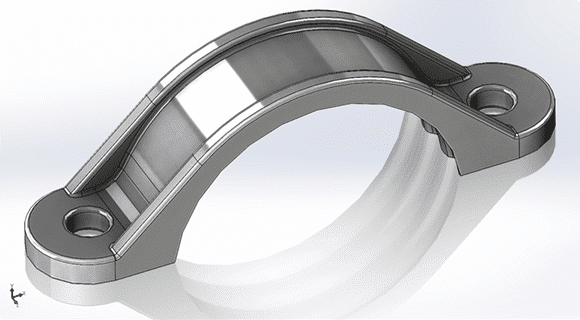

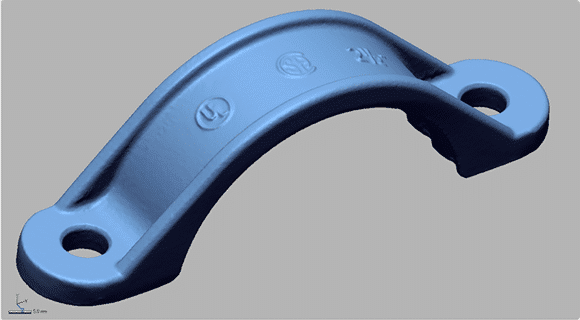

The Fastest Path from 3D Scans to Your CAD Software

3d systems design

What is Geomagic Design X?

Geomagic Design X is purpose-built for converting 3D scan data into high-quality feature-based CAD models. It does what no other software can with its combination of automatic and guided solid model extraction, incredibly accurate exact surface fitting to organic 3D scans, mesh editing and point cloud processing. Now, you can scan virtually anything and create manufacturing-ready designs.

The Ultimate 3D Scan-to-CAD Solution

What's New in Geomagic Design X

Geomagic Design X 2020 delivers new and enhanced features to streamline modeling workflows and expand modeling pathways for complex, revolved parts including:

    • New selective surfacing features by curve or mesh
    • New unrolling, flattening, and rerolling tools
    • New feature preview tool as part of the Geomagic Maintenance Program
    • Enhanced file import capabilities
    • New separate meshes function
    • Enhanced extracted boundary curves

Why Geomagic Design X?

  • Fast and accurate. Unlock new ways to accelerate product development for faster time to market, better fit, and longer product life cycles.
  • Powerful and flexible. Work seamlessly with any CAD software and create the right model for every project with complete toolsets for solids, surfaces, and meshes.
  • Proven and reliable. Don’t leave critical design work to chance with the only software that combines scan processing and CAD plus real-time feedback.
  • Easy to learn and use. Start using it right away—works like your CAD software.
