The new generation peel 2

See what you can accomplish with this handheld 3D scanner
peel 2 CAD

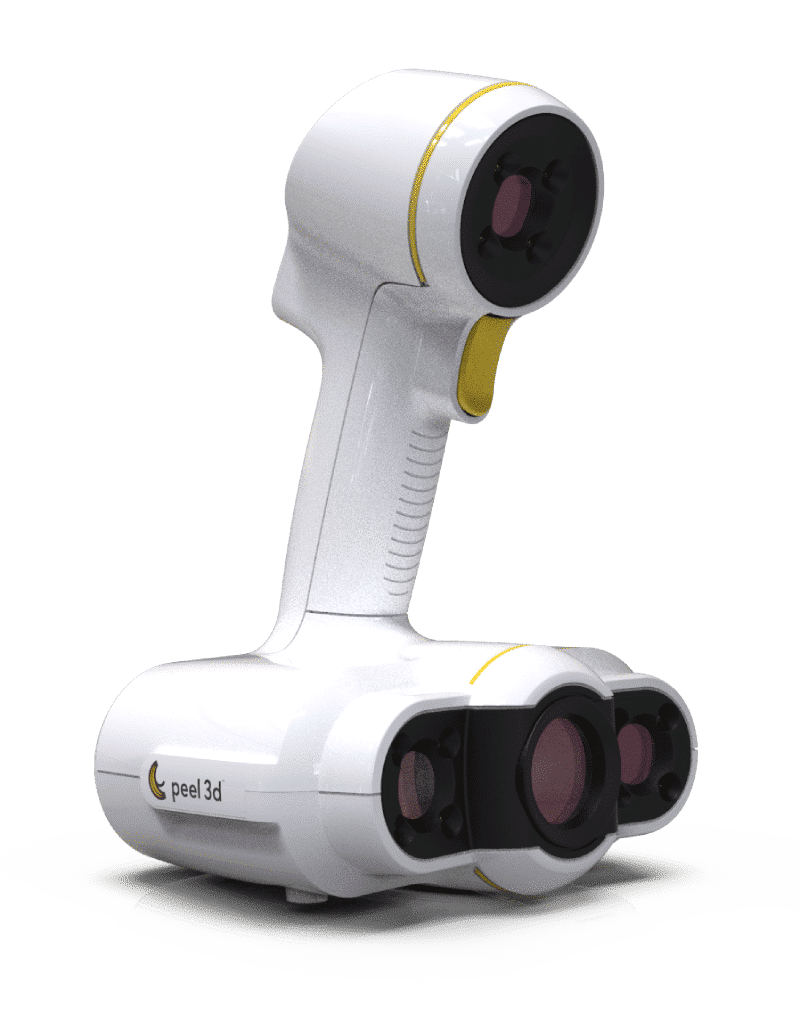

peel2 Scanner

No Gimmicks. Just Scan.

You can directly scan objects of many sizes and surfaces - without any prep work - as the scanner recognizes shapes automatically. peel 2 CAD also comes with a calibration certificate so that you gain peace of mind knowing you are not sacrificing on performance.

 Reverse Engineering

 Superior Accuracy

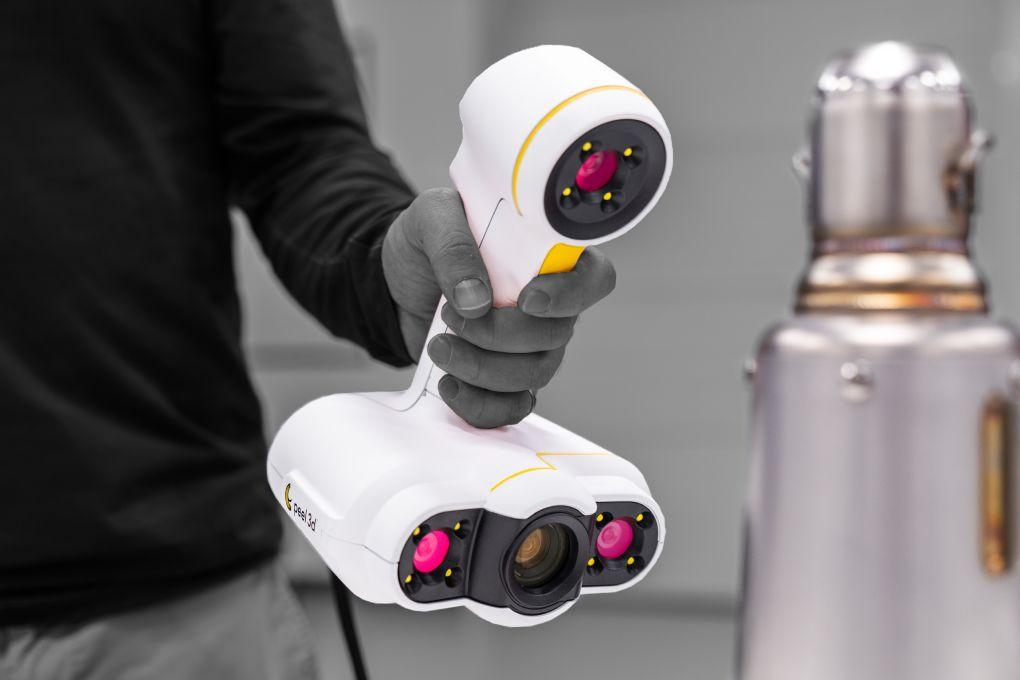

no gimmicks peel2

A simple and affordable 3D scanner to get the job done.

peel 3d logo

peel2 CAD Package

Scan to CAD has never been this fast and easy

Are you spending too much time or struggling with processing your scan files to export them into your favourite CAD software?

Then it’s time to say hello to peel 2 CAD

The perfect integrated solution for all your reverse engineering projects

• All the tools you need to process geometric entities, surfaces, cross sections, etc.)

• Impressive accuracy of up to 0.100 mm and volumetric accuracy 0.300 mm/m

• Export in a variety of output format, including .iges, .step and .dxf

Compatible with CATIA, SOLIDWORKS, Inventor, PTC Creo, Siemens NX/SolidEdge + More!

no gimmicks peel2

Professional 3D Scanning for a variety of applications

peel reverseengineering

Reverse Engineering & Design

Save precious time by starting your design with existing setups or components

peel science

Science & Education

The perfect tool to capture students' attention in your classroom or school lab.

peel art

Art

Digitally immortalise your creations and take them to the virtual realm

peel heritagepreservation

Heritage Preservation

Preserve your cultural heritage for generations to come.

peel humanbody

Human Body Scanning

Capture the complex organic shapes of human anatomy

peel creative

Get Creative

With the peel 3D your imagination will know no bounds!

peel3D Scanner Range

The original peel1 - a 3D scanner for simple scans

peel1 is the original peel 3d scanner, perfect for the human body and organic shapes. Comes with peel software.
Accurate up to 0.5mm

• Human body
• Organic shapes
• Fabric and leather
• Simple geometries

The evolution of the peel1 - ideal for more complex scans

peel2 has improved tracking as well as better geometry and colour capturing capabilities. Comes with peel software.
Accurate up to 0.5mm

• Mechanical parts and assemblies
• Metal castings, plastics
• Ceramic & porcelain
• Textured/coloured objects

Complete scan-to-CAD package for reverse engineering

peel 2 CAD is a fully integrated solution used to extract all the information you need from your 3D scans and send them right to your preferred CAD software. Accurate up to 0.1mm.

• Reverse Engineering
• Superior accuracy
• Scan-to-CAD

The new generation of peel3D - designed for smaller parts

peel 2-S is based on the same proven technology as the peel 2 scanner but has been optimised to scan smaller parts. Comes with peel software.
Accurate up to 0.1mm.

• Smaller parts
• Product Design
• Intricate Geometries

Reverse engineering small parts has never been this easy

Interested in Reverse Engineering smaller components? Check out the peel2 CAD-S, a complete package for bringing small parts directly into CAD. Accurate up to 0.1mm

• Reverse engineering
• Superior accuracy
• Scan-to-CAD

Technical Specifications

peel 1 peel 2 peel 2-S

Part size range (Recommended)

0.3 - 3.0m
0.05 - 0.5m

Accuracy

Up to 0.250mm
Up to 0.100mm

Mesh Resolution

0.500mm
0.250mm
0.100mm

Measurement Rate

550,000 measurements/s
Volumetric Accuracy
0.500mm/m

Scanning Area

380 x 380mm
143 x 108mm

Stand-off Distance

400mm
380mm

Depth of Field

250mm
100mm

Light Source

White light (LED)

Colours

N/A
24 bits

Texture Resolution

N/A
50 to 150 DPI
150 to 250 DPI

Positioning Methods

Geometry and/or targets
Geometry and/or targets and/or texture
Operation Humidity Range
10 - 90%
Certifications
EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE

Looking for higher accuracy?

Check out our Metrology-Grade 3D Scanners
Menu
Call Now Button

peel3D System Requirements

  • Windows: 7, 8 or 10 (64-bit)
    Apple: Mac OS X 10.12+
  • Dedicated Graphics Card with 2GB+ Memory
  • 2.4GHz+ Quad Core Processor
  • 16GB RAM (32GB Recommended)
  • Solid State Drive with 50GB+ Free Space

WARNING: Integrated Intel Graphics found on many laptops & tablets are NOT SUPPORTED !!
