SketchUp + LayOut 2019.2 New Features Update!
We are excited to share some of our favourite features and improvements in the newly released update for SketchUp Pro 2019 and LayOut. This release has made SketchUp more intuitive and fun to use with focus on improvements to imagery exports, usability, and a seamless LayOut connection. Get ready - your professional workflow will greatly benefit!
New in SketchUp
Professional Output Enhancements

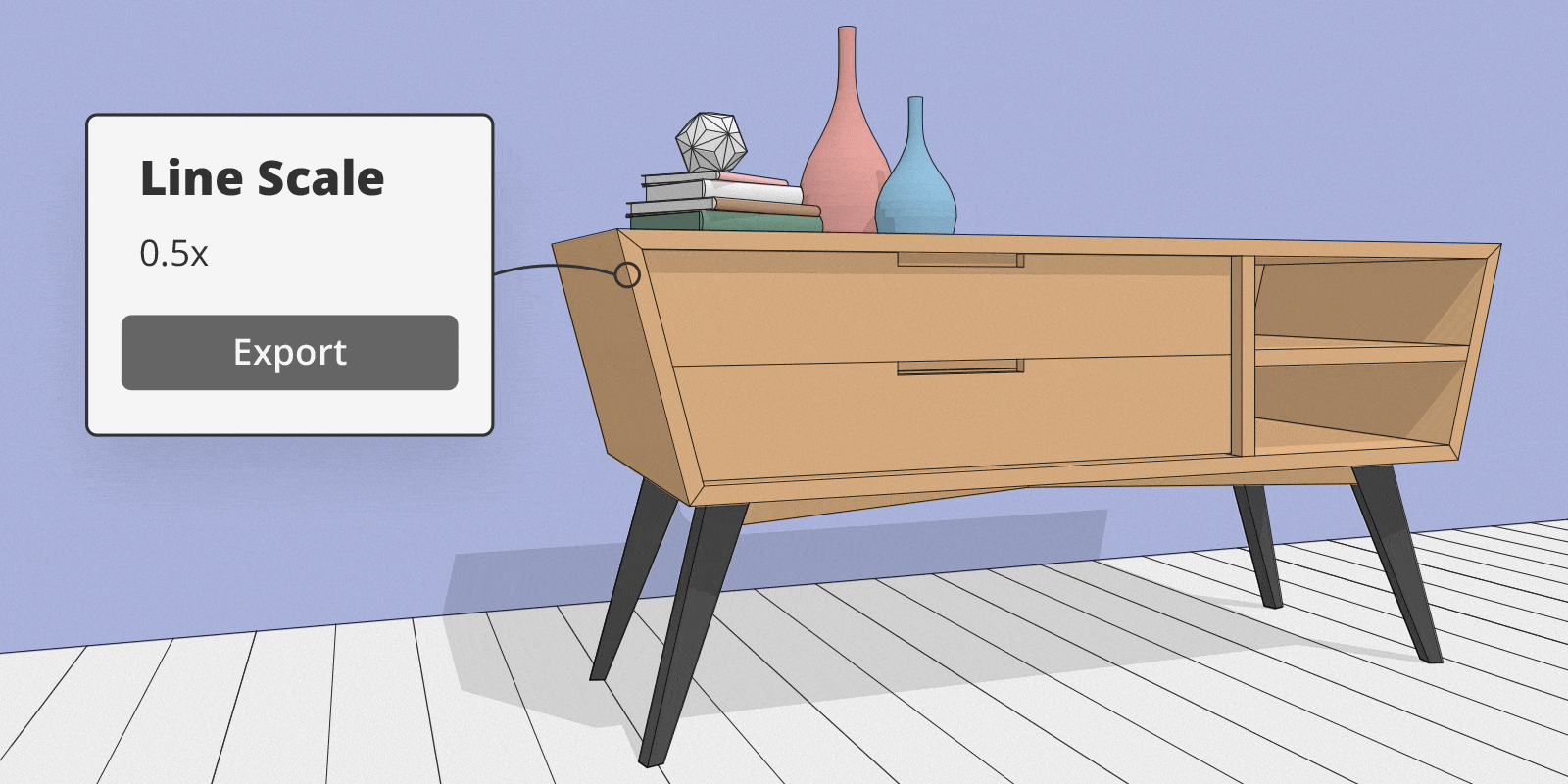

Exporting images

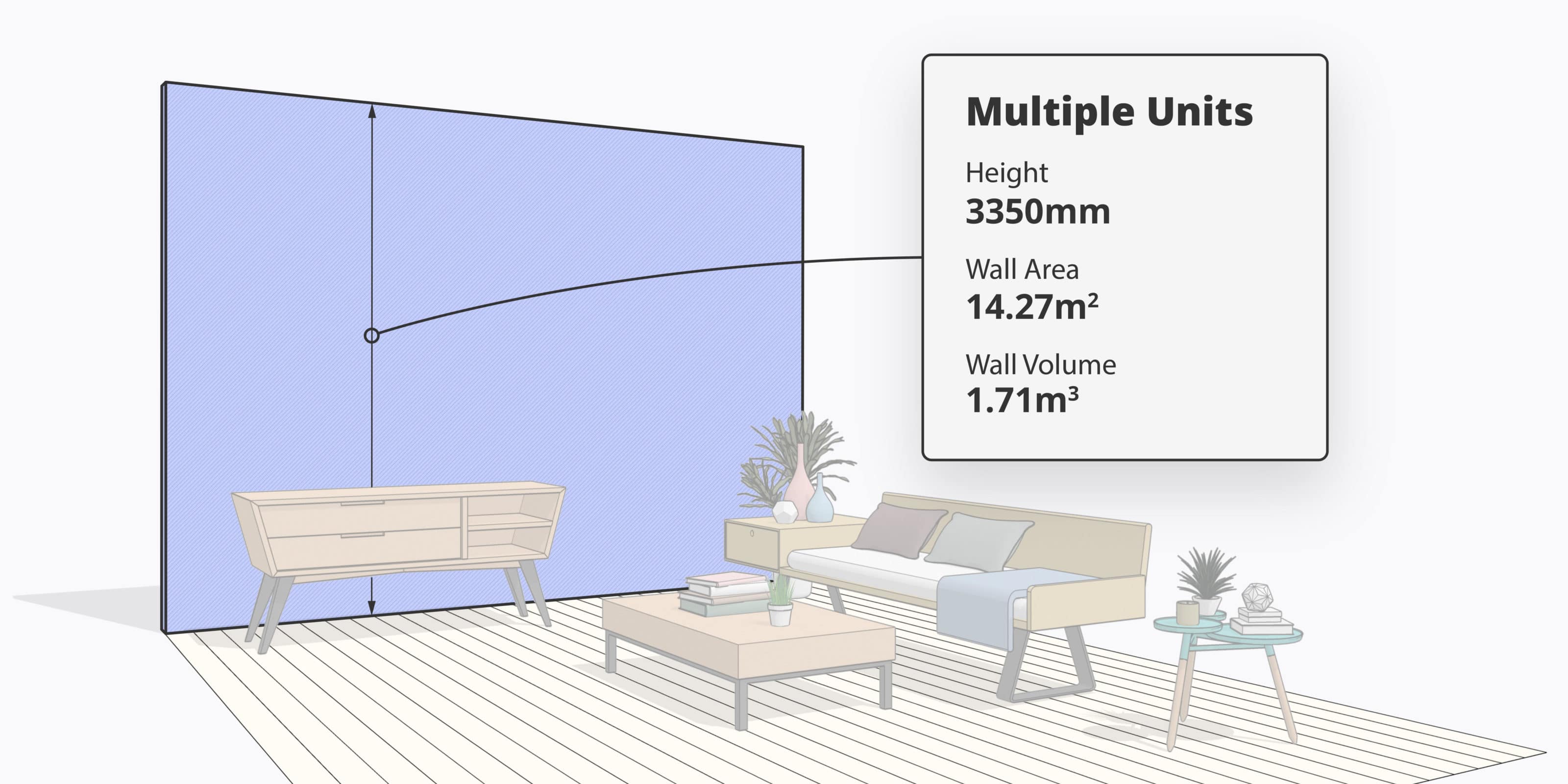

Customisable unit settings
Have you ever needed to use different unit measurements for a model? Now your model can be customised to show different unit measurements for area and volume. For example, in a model of a room, you can use millimetres for the wall and meters for volume. Available unit types: millimetres, centimetres, meters, inches and feet.
Workflow Enhancements

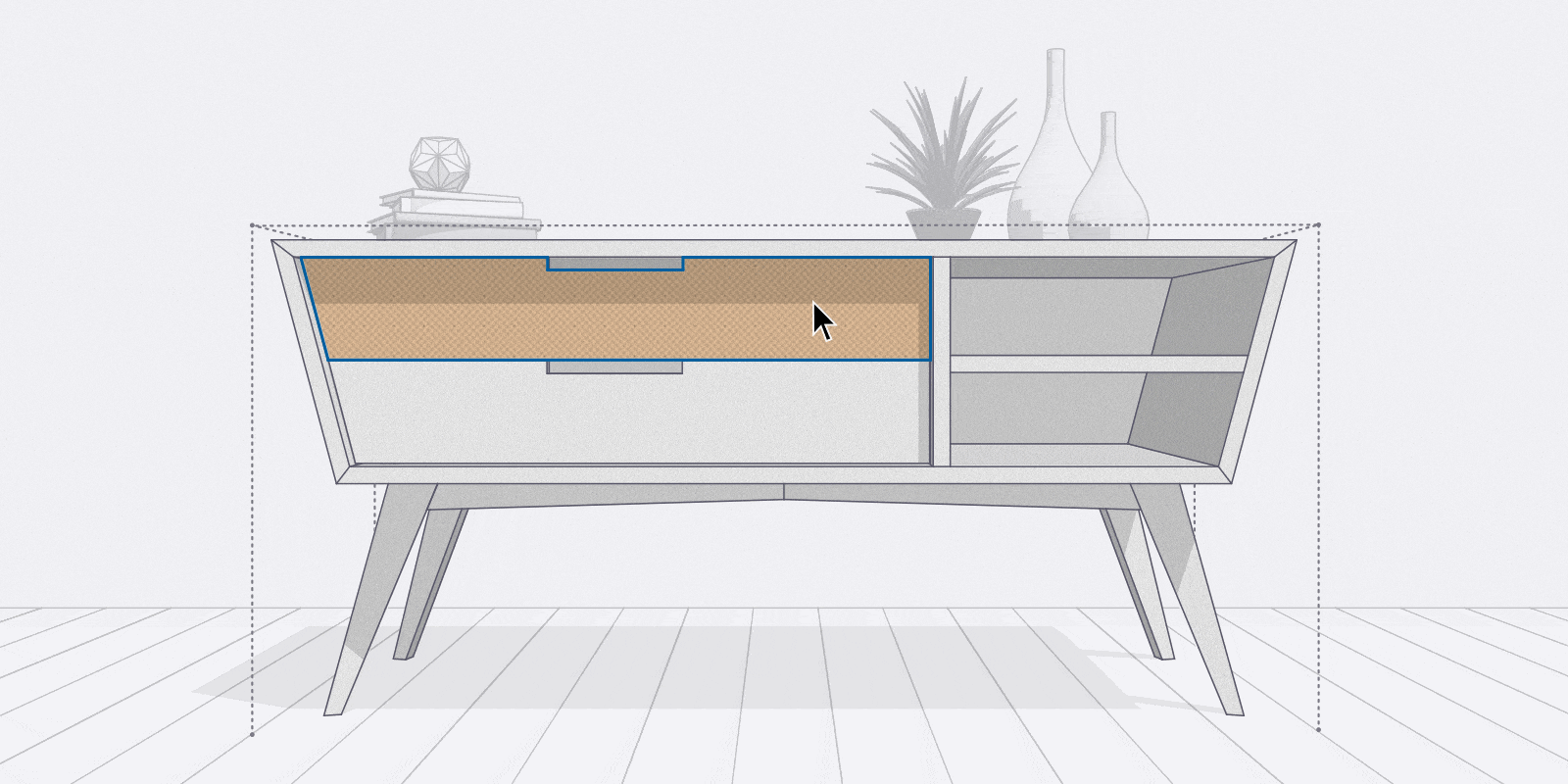

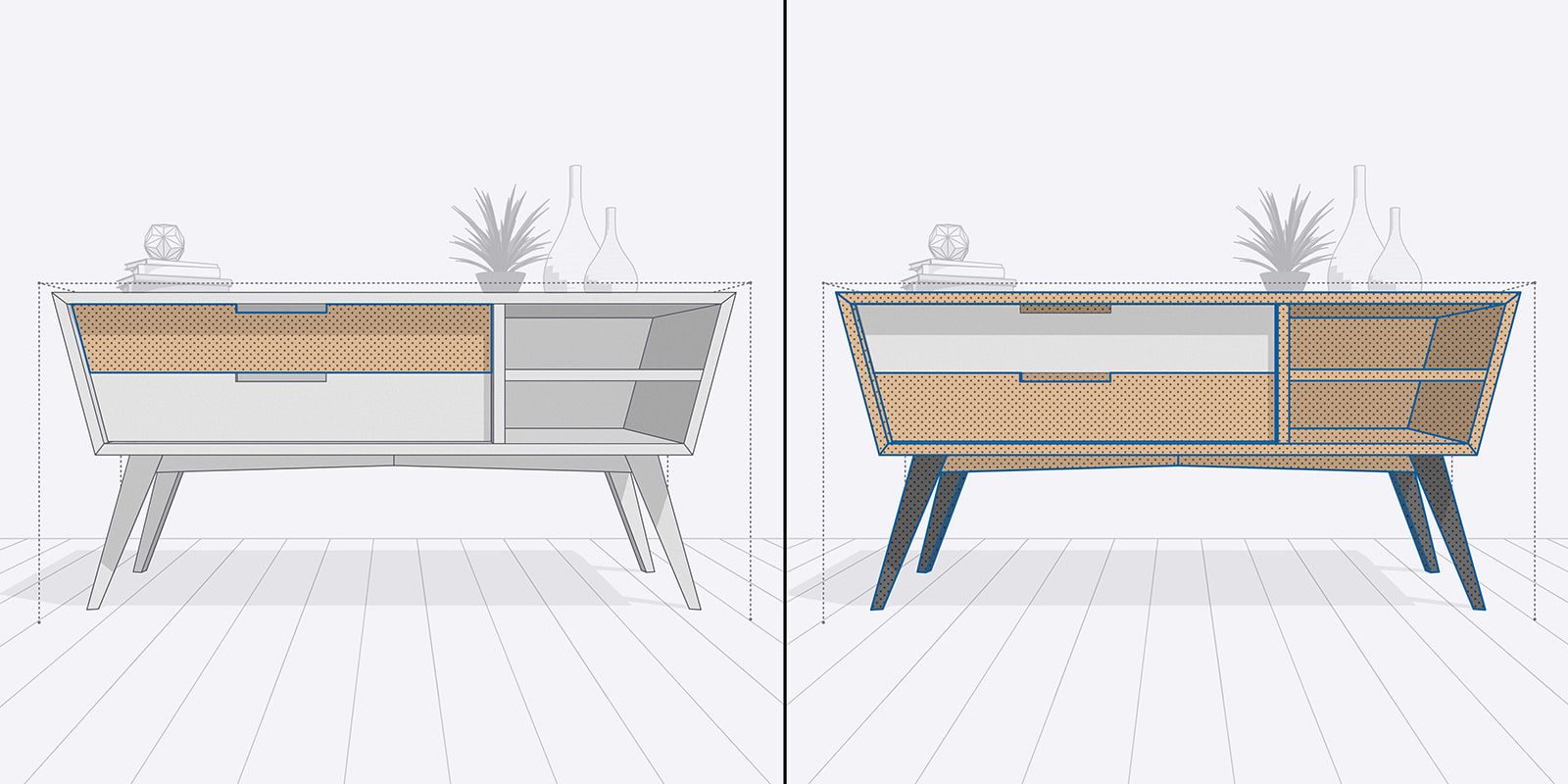

Invert Selection
It really is the small things that help your workflow. This new feature will allow you to select anything, then invert the selection of objects. This makes it simple to select items and then perform actions on their inverse. The keyboard shortcut for this will be: CTRL + SHIFT + I or CMD + SHIFT + I (Mac).
Importing files

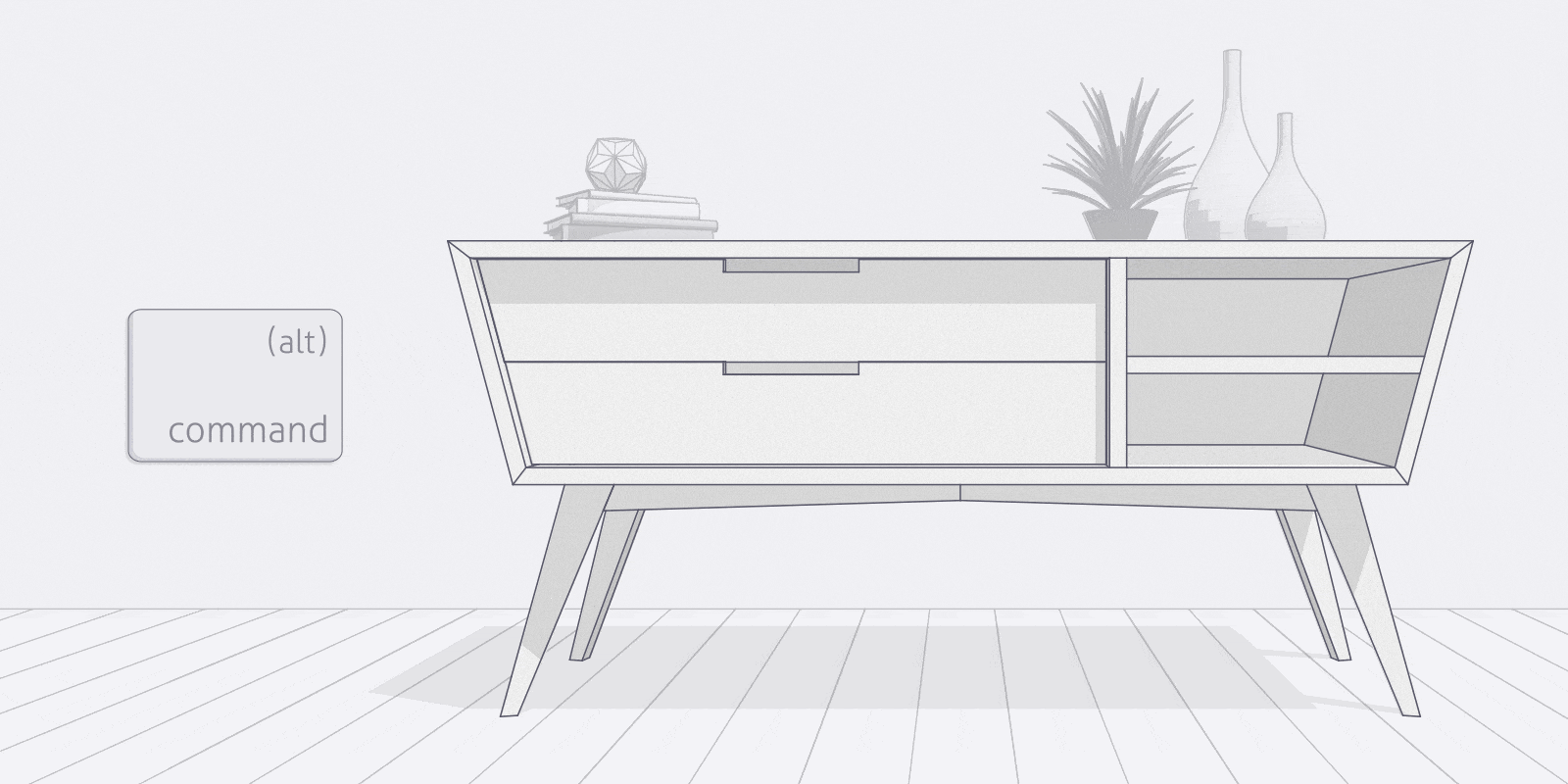

Eraser Tool
Have you ever accidentally erased too much in your model? To make your detailing workflow a little smoother and seamless, we added alt & cmd as modifier keys to remove any unnecessarily highlighted lines that you may have accidentally captured during your modelling efforts.
Section Planes
Cutting a model along a plane so that you can peer inside the model? We just made this way smoother. Section planes now ask the user to name them before placing them in the model. Simply place, then name.
Send to LayOut
Large Area Imports for Add Location
New in LayOut
Professional Output Enhancements

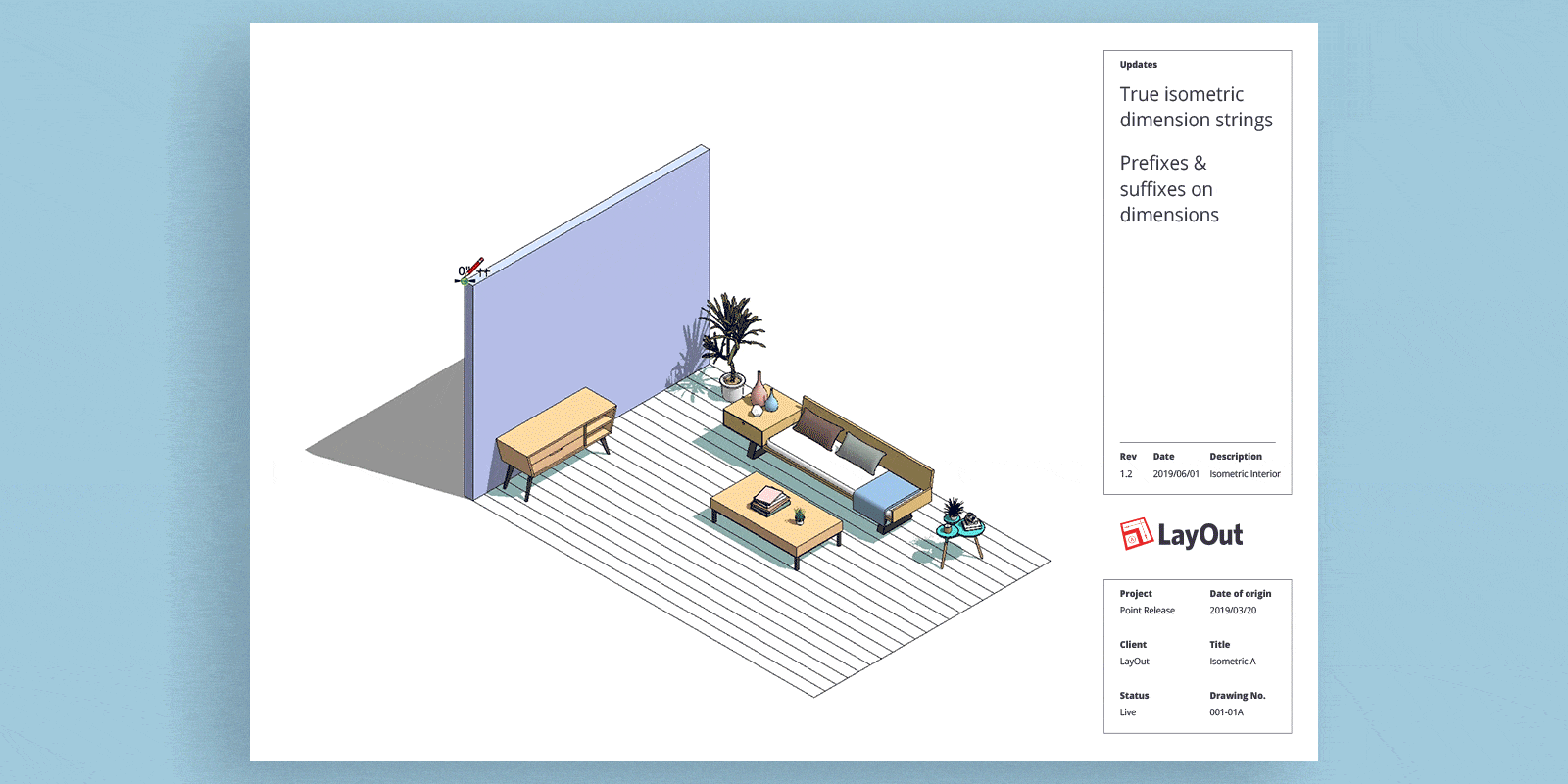

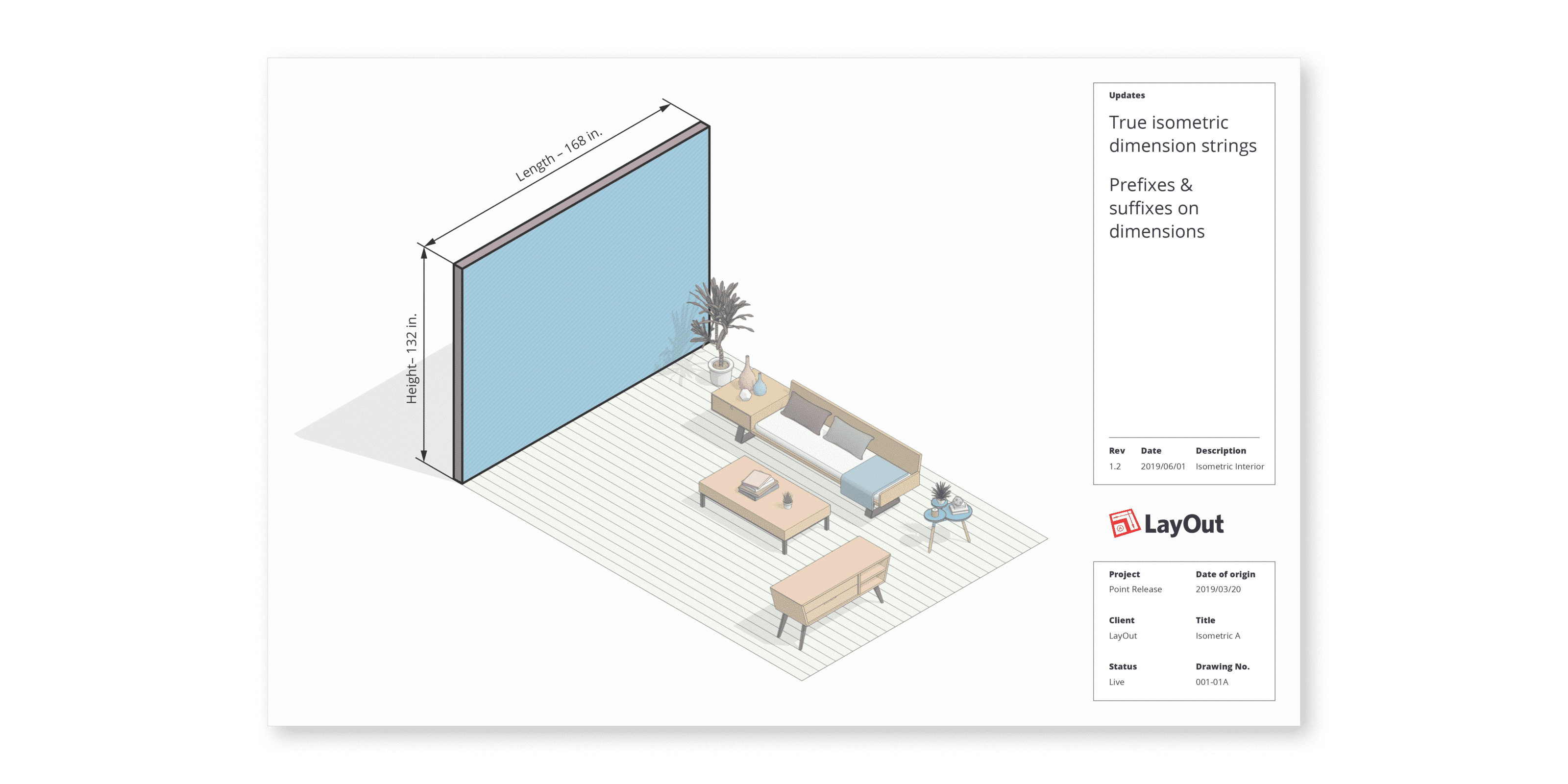

Isometric dimensioning
It is now possible to make linear dimensions align with an isometric viewpoint. This one is huge! Since an isometric drawing is a primary type of drawing in LayOut, we wanted to make it smoother and more straightforward. You can now control extension lines, gap distance, and align dimensions with isometric angles.
Auto-text
Similar to “smart labels”, you can now add text to dimensions without breaking the automatic measurement. For example, let’s say you create a wall dimension. You can dimension a wall, add the word “wall”, and the dimension measurement will still update if the wall’s measurement changes. Pro tip: make sure your string has <> in it. For example, ‘Width <>’ will turn into ‘Wall 1.42m’.
Workflow Improvements
Rotating Dimensions
Quicker editing
Staying consistent with SketchUp usability, in LayOut you can now hit the return key to edit model views, groups, dimensions, or labels! Just select, press return, and start typing!
