Meet the latest generation of complete 3D scanning solutions, including intuitive software for digital 3D objects. Ideal for automotive aftermarket tuning, immersive AR/VR content, education, heritage preservation, product design, healthcare, MRO, and reverse engineering.

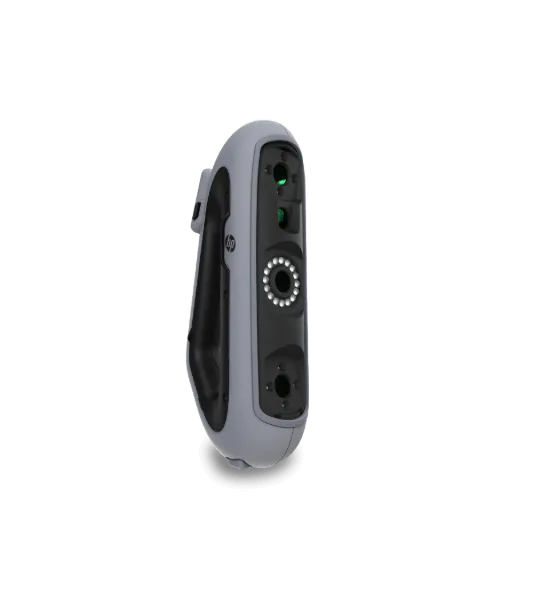

HP DesignScan 3D scanner makes 3D scanning accessible to everyone without compromising quality. Ergonomic, durable, and exceptionally easy to use, it delivers outstanding scanning accuracy and speed, enabling precise virtual representations for diverse applications, from engineering to digital archiving. Plus, it includes the integrated HP 3D Scan.OS software, making advanced 3D scanning simple for seasoned professionals and first-time users alike.
HP DesignScan 3D Scanner comes with Scan.OS, a highly simplified data acquisition software that enables you to process, clean, align, improve and export your 3D scanning data. Thanks to the guided workflows, assisted merge of multiple scans and integrated help, you’ll be scanning with confidence in no time flat!
Adjust scanning parameters quickly to match the distinct qualities of your object for optimal results.
3D scan object’s geometry by smoothly guiding the scanner, following the intuitive on-screen instructions.
Instantly eliminate unwanted data such as background objects or your hands. The software automatically identifies and removes surfaces like your work area. Then, merge and align 3D scans as needed.
Finalize and export your cleaned mesh to your preferred software or archive your scan for future use, streamlining your workflow.

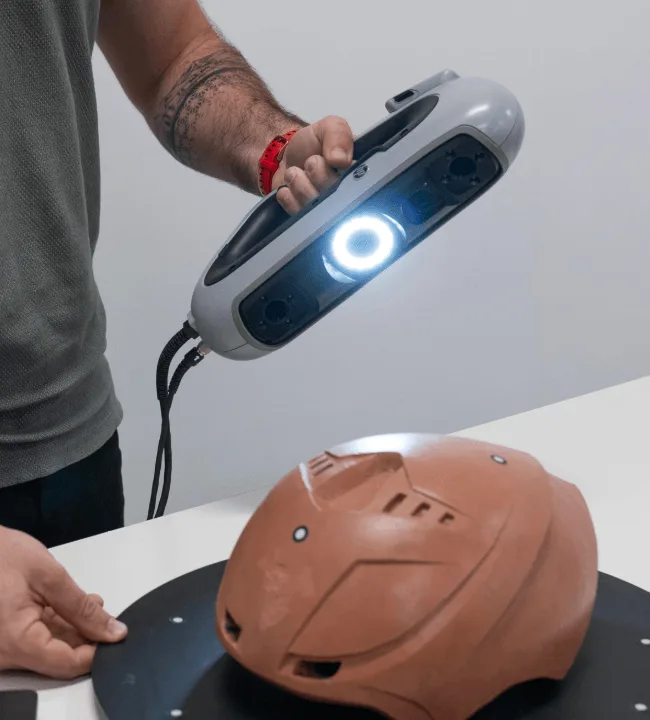

Use intuitive, paintbrush-like movements to precisely scan objects, aided by clear, real-time guidance displayed on-screen.

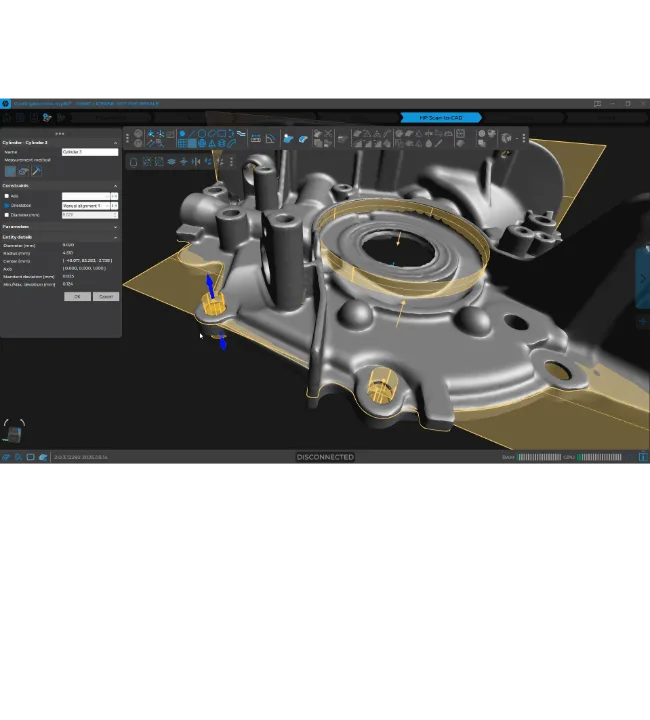

Effortlessly refine your scans with intuitive, automated mesh-editing tools. Quickly remove unwanted elements, merge multiple scans seamlessly, and create clean, detailed meshes in minutes.

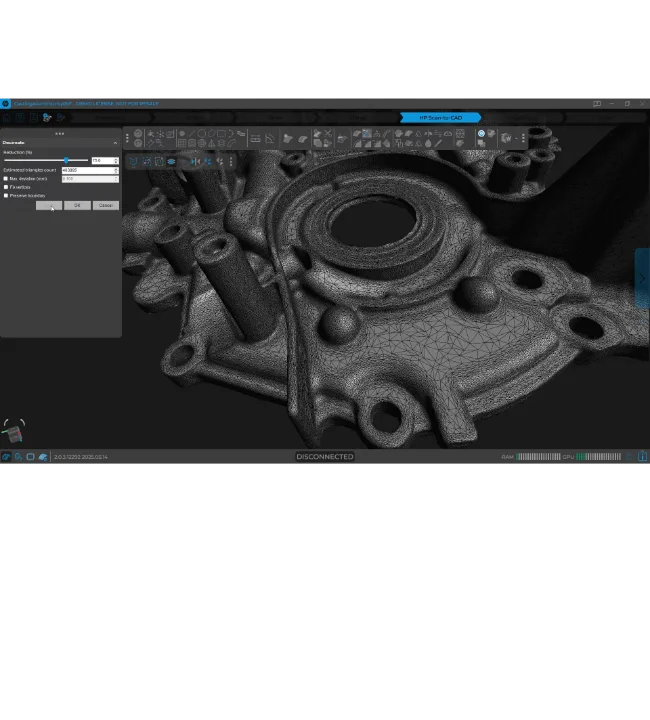

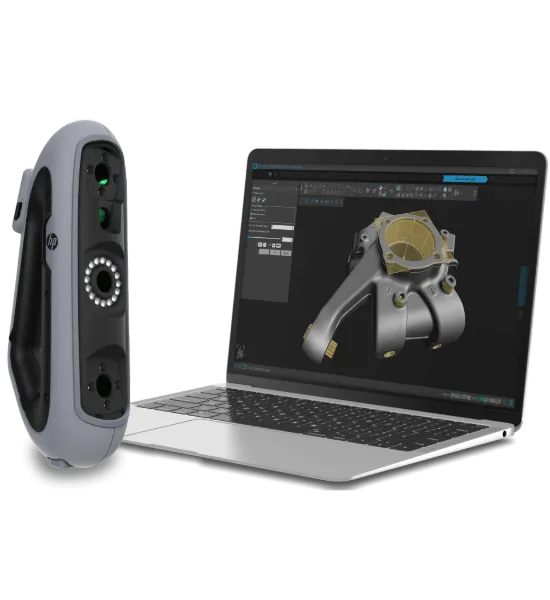

Automatically identify and extract key geometric features, significantly reducing rework in reverse engineering and accelerating your redesign processes.

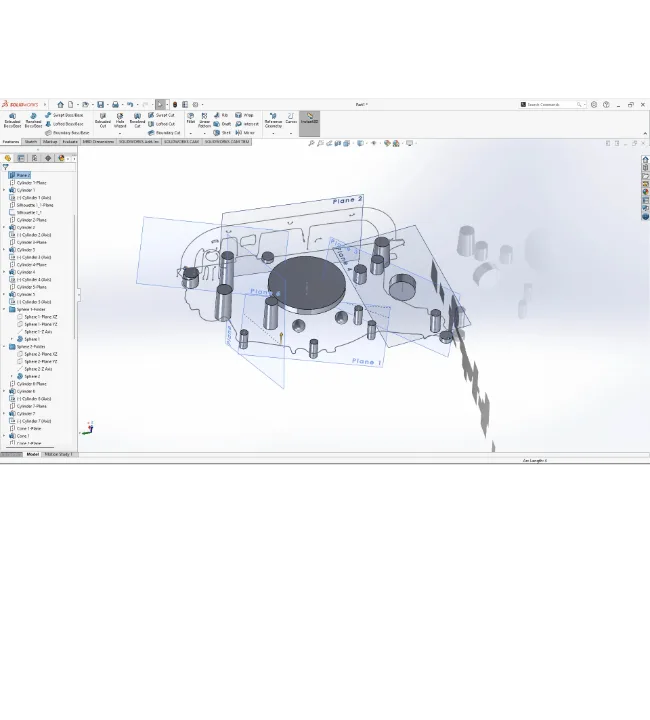

Instantly export your refined scan data into popular CAD software platforms, enhancing productivity and enabling faster, more efficient design workflows.
| HP DesignScan 3D Scanner | ||||
|---|---|---|---|---|
|
Software |
HP Scan.OS(1), HP Scan-to-CAD(2) |
|||
|
Recommended object size range |
0.1 – 3.0m |
|||
|
Accuracy |
up to 0.05mm |
|||
|
Volumetric Accuracy |
0.05mm + 0.1mm/m |
|||
|
Measurement Capabilities |
pin: 1.5mm | hole: 3.0m | step 0.1mm | wall: 1.0mm |
|||
|
Mesh Resolution |
0.25mm |
|||
|
Scanning Area |
340 x 475mm |
|||
|
Scan Speed |
80 sec/m² |
|||
|
Measurement Rate |
1,250,000 measurements/s |
|||
|
Usage Distance (from object) |
250 to 550 mm |
|||
|
Projector Light Source |
IR VCSEL |
|||
|
Scanner Controls |
Touchscreen |
|||
|
Color Resolution (on object) |
50-200 DPI |
|||
|
Dimensions |
304 x 150 x 79mm |
|||
|
Weight |
950 g |
|||
|
Connectivity |
USB 3.0 |
|||
(1) Included with 3D scanner
(2) Included with reverse engineering package
