Peel 3 capture, CAD-focused output
A grip that works around the part
The multi-position handle supports one-handed scanning from the top, side or underside, helping operators stay comfortable as they move around complex geometry.
Keep scan feedback in view
The integrated display keeps distance, coverage and scanner controls close to the object, so the operator can stay focused even when the computer is out of sight.
Feel when the scan needs attention
Recognisable vibration patterns provide immediate guidance on scanning conditions, helping the operator react without breaking their movement around the part.
A practical bridge from mesh to CAD

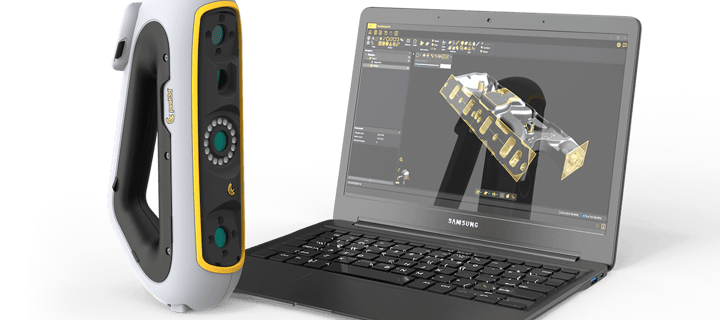

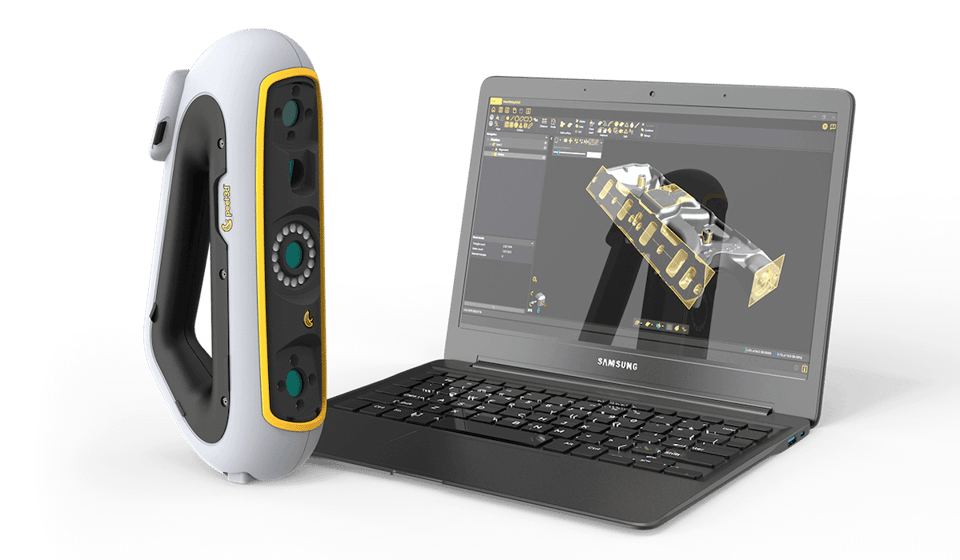

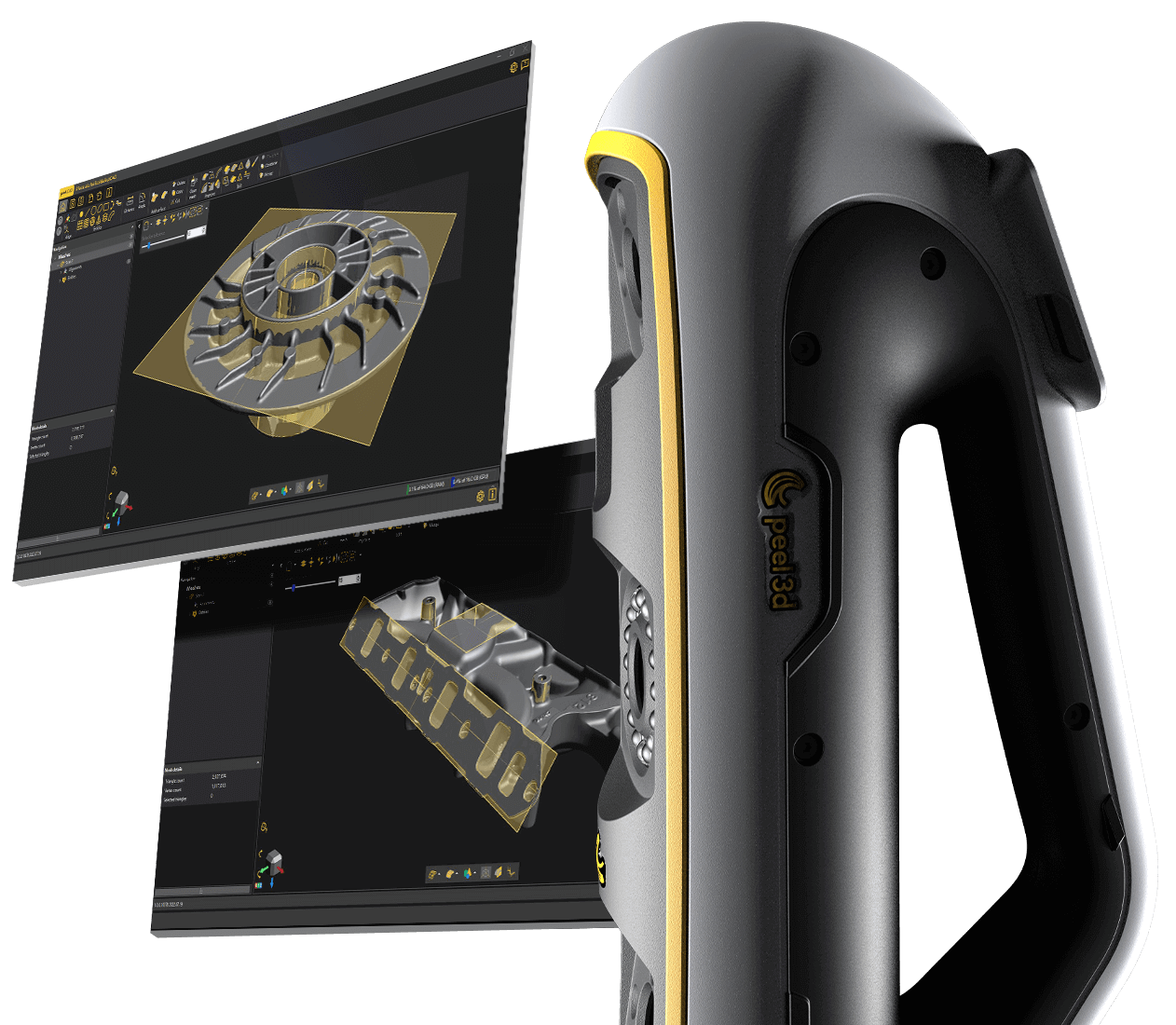

Peel 3.CAD combines the handheld scanner with tools for extracting geometrical entities, surfaces and cross-sections from scan data. Export the useful design information into your preferred downstream CAD package instead of rebuilding every reference from scratch.
Build useful references from the scan rather than treating the mesh as a visual backdrop.
Generate cross-sections and profiles at the locations your design needs.
Create surface references for downstream reverse engineering.
Four connected steps
Keep the reverse engineering hand-off clean
1Scan

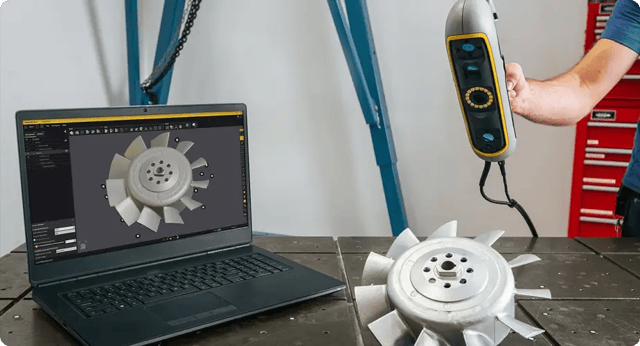

Capture the physical part while Peel.OS shows coverage and tracking in real time.
2Finalise

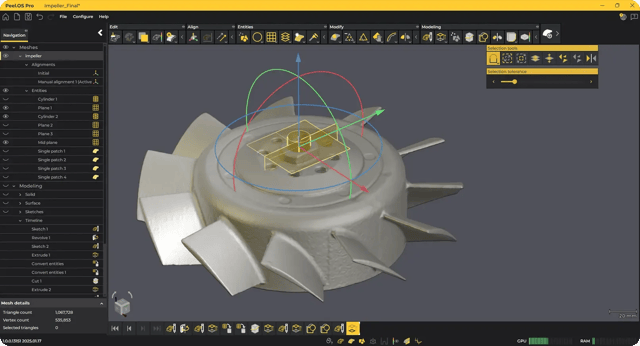

Clean, optimise and align the mesh to the coordinate system required downstream.
3Extract

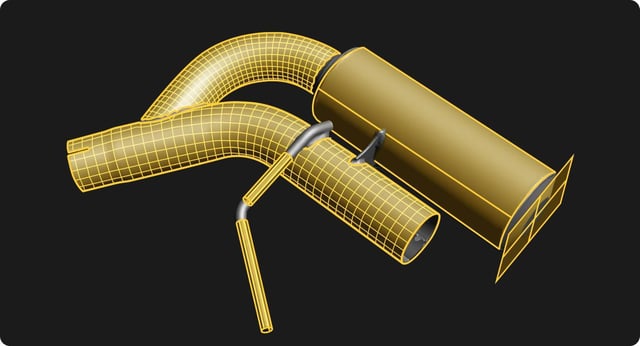

Create geometrical entities, surfaces and cross-sections from the aligned scan.
4Transfer

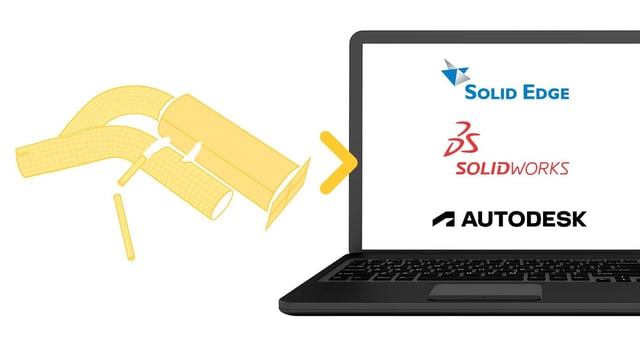

Export the extracted information and continue modelling in your preferred CAD software.

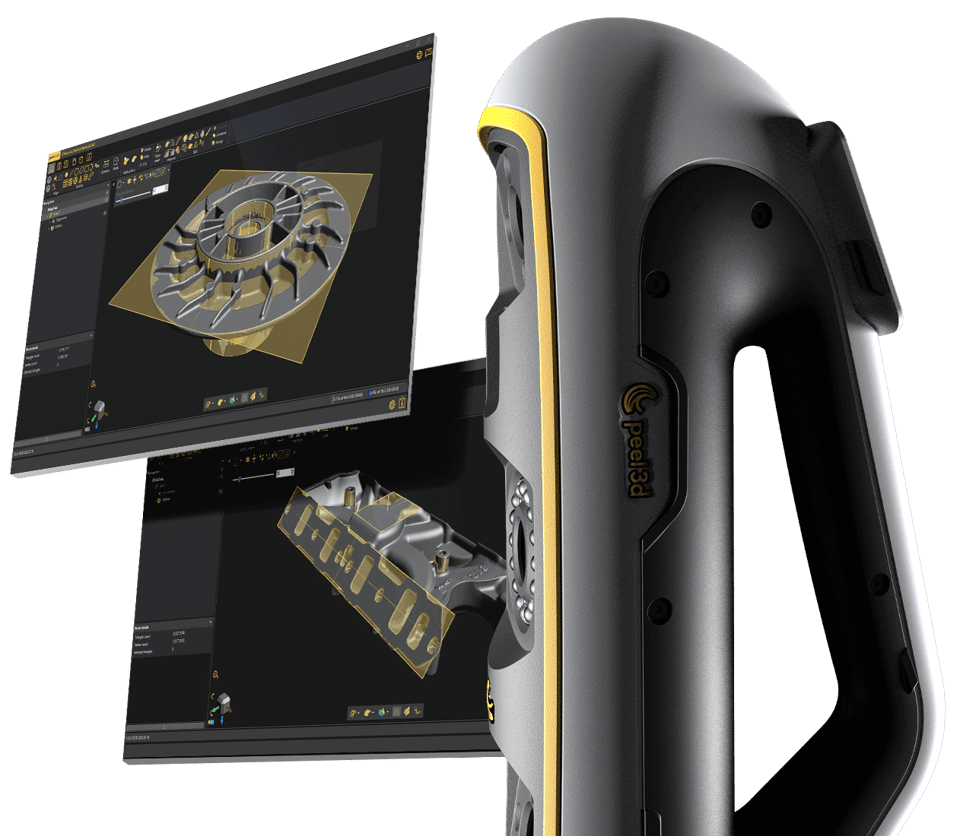

Purpose-built tools around scan data
Work with the mesh in a focused interface, then hand off only the geometry your model needs. This keeps Peel 3.CAD useful across different engineering teams without forcing a wholesale change of CAD platform.
Everything needed for the first scan
The Peel.OS and Peel.CAD software package brings the scanner, protected transport and core workflow tools together, ready for evaluation, setup and operator training.
Choose the Peel package that matches your output
| Feature | peel 3 | peel 3.CAD | peel 3 Pro.CAD |
|---|---|---|---|
| Included software | Peel.OS | Peel.OS and Peel.CAD | Peel.OS and Peel.CAD Pro |
| Main output | Clean mesh | Extracted CAD entities, surfaces and sections | Editable scan-derived CAD model |
| Feature extraction | Not included | Included | Included |
| Sketching and modelling | Use downstream software | Use downstream CAD software | Included |
| Model comparison and refinement | Use downstream software | Use downstream CAD software | Included |
| CAD hand-off | Mesh formats | STP, IGS, CSV and DXF entities | CAD model export and SolidWorks timeline transfer |
| Best fit | Capture, visualisation and mesh workflows | Reverse engineering into an existing CAD tool | Integrated reverse engineering and model creation |
Where 3.CAD fits
For parts that continue into an established CAD process
MRO and spare parts
Capture unavailable components and extract references for replacement, repair or modification.
- Legacy equipment
- Replacement parts
Aftermarket engineering
Digitise vehicle geometry and packaging constraints before designing a retrofit or new component.
- Performance parts
- Component fit-up
Product development
Create measured references from handmade, modified or legacy products for a new CAD design.
- Existing products
- Design iteration
Peel 3 scanner specifications
peel 3.CAD
- Recommended object size
- 0.1 to 3.0 m0.3 to 10 ft
- Accuracy
- Up to 0.050 mm0.0020 in
- Volumetric accuracy
- 0.050 mm + 0.100 mm/m0.0020 in + 0.0012 in/ft
- Mesh resolution
- 0.250 mm0.01 in
- Scanning area
- 340 x 475 mm13.39 x 18.7 in
- Measurement rate
- 1,250,000 measurements/s
- Working distance
- 250 to 550 mm9.8 to 21.7 in
- Positioning methods
- Geometry, targets and texture
- Weight
- 950 g2.1 lb
- Connectivity
- USB 3.0
Pricing
Build your Peel 3 kit
Your kit
Peel 3.CAD
- Peel 3 scanner $10,635.00
- Peel.CAD software $7,105.00
One-off purchase
Peel 3.CAD, $17,740.00 in total.
peel 3.CAD questions
What does Peel.CAD add to Peel.OS?
Peel.OS handles capture and mesh processing. Peel.CAD adds tools for extracting geometrical entities, surfaces and cross-sections for use in downstream CAD software.
What is the difference between Peel.CAD and Peel.CAD Pro?
Peel.CAD prepares entities and references for another CAD package. Peel.CAD Pro adds sketching, modelling, model comparison and a more complete scan-to-CAD workflow inside the Peel environment.
Which CAD formats can it export?
The current official workflow includes STP, IGS, CSV and DXF outputs for extracted geometry. We will prove the required hand-off with your software during evaluation.
Are positioning targets always required?
No. Peel 3 can position from geometry, targets and texture. Targets are useful on flatter or smoother surfaces, or when accuracy is the priority.
Can we test our own part and CAD system?
Yes. Bring a representative part and identify the required downstream output. We will evaluate capture, extraction and transfer as one workflow.
What local support is available?
Professional CAD Systems provides New Zealand-based evaluation, setup, training and technical support. Current hardware, software and protection-plan terms are confirmed with your quote.
Prove the hand-off
Bring us the part and the CAD output you need
We will scan representative geometry, extract the information you need and test the export into your workflow before recommending a package.
