Why teams pick the PRO Series
0.030 mmAccuracy, up to
1.2M/sMeasurement rate
23Blue laser lines
Scan-to-CADSoftware bundled
Carry caseFits in a suitcase
NZ supportLocal training and backupRepeatable results on real-world parts

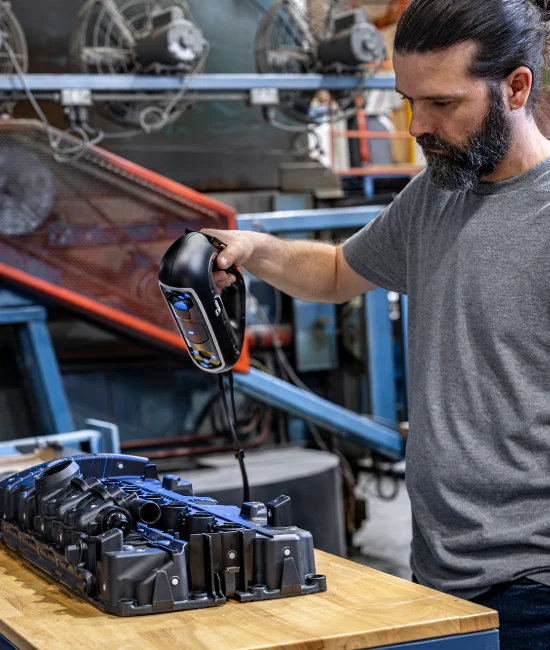

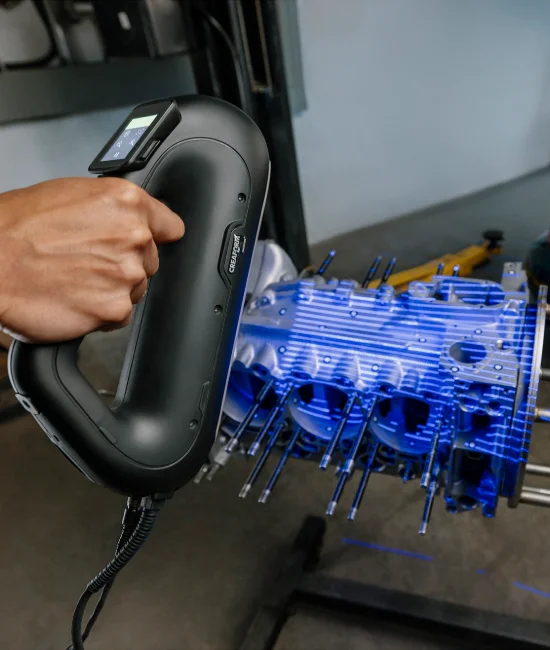

Twenty-three blue laser lines capture complex and difficult surfaces quickly, with high resolution where the detail matters. Repeatability doesn't depend on a perfect setup or a practiced hand.
Up to 0.030 mm, with 0.020 mm + 0.060 mm/m volumetric accuracy.

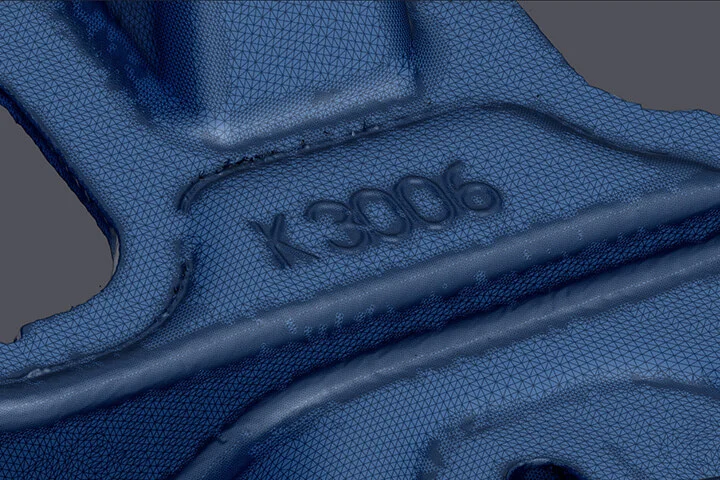

Superior-quality scan data with fine detail at 0.025 mm resolution.

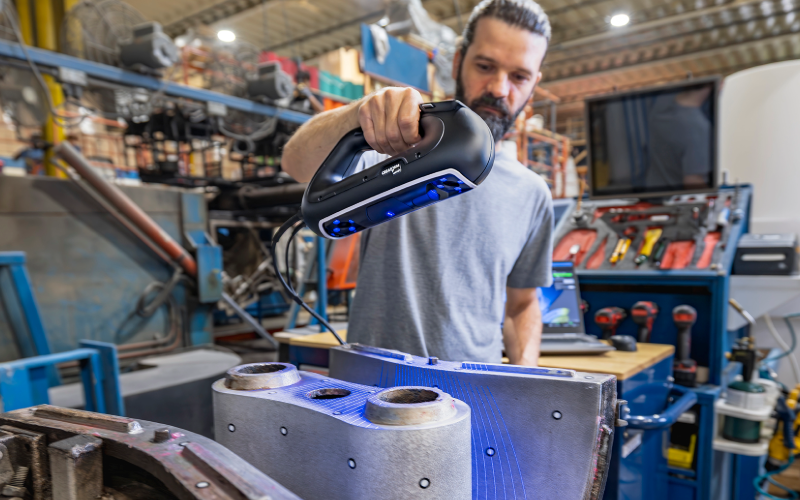

Reliable results on any object, in the lab or on the shop floor.
Scanner and part move freely during measurement - no rigid setup.

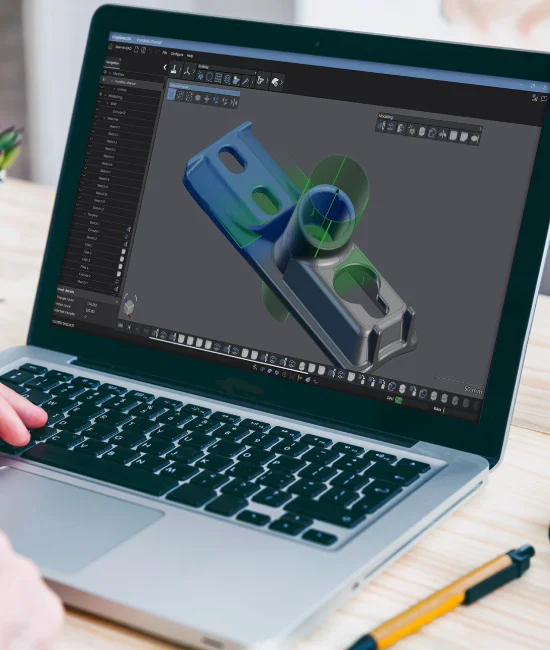

Scan-to-CAD module included
The PRO Series bundles the FARO | CREAFORM Scan-to-CAD module, so the workflow doesn't stop at a mesh. Sketching, modelling and real-time deviation analysis against CAD run in the same environment the scan lands in.
Capture difficult geometry with fewer setup adjustments.
Advanced scan-file processing without leaving the software.
Sketching and modelling tools optimised for 3D scan data.
Real-time comparison against the CAD model while you work.
Trusted by more than 10,000 users
Designed and manufactured in North America and in service with more than 10,000 users worldwide, the PRO Series offers the best price-to-performance ratio in the HandySCAN range.
Trusted by New Zealand engineers
As manual measurement and prototyping became more and more time consuming for us, we decided to take the next step and invest into our companies future with the help of the HandySCAN 3D scanner and VXelements software.
Applications
What teams use it for

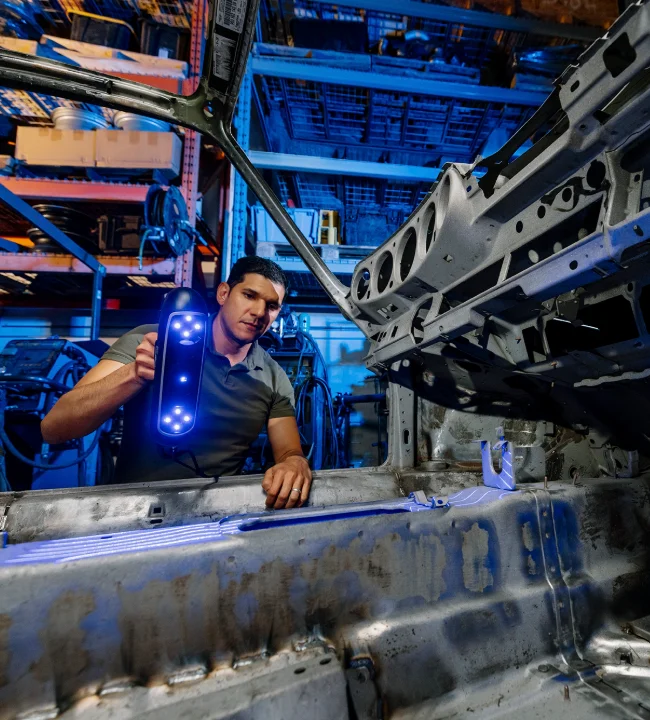

Product development
Capture existing parts and prototypes as reference geometry for new designs.

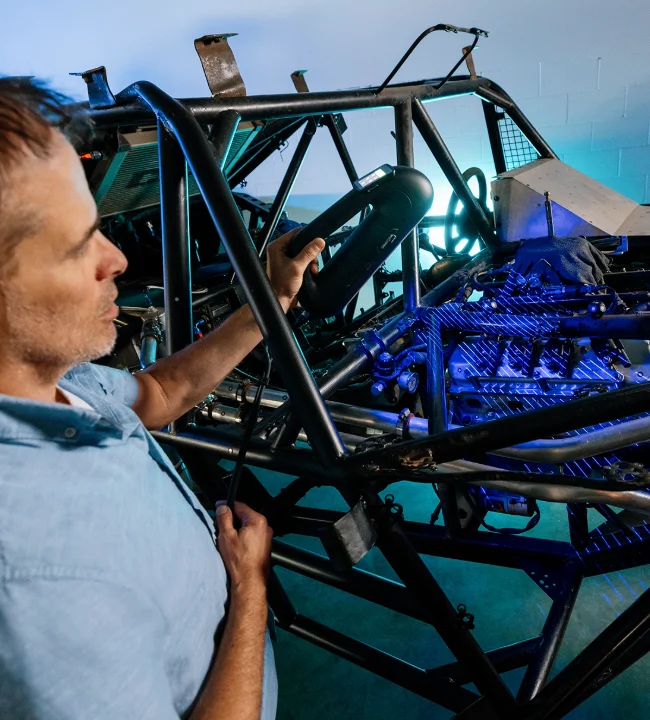

Reverse engineering
Turn legacy and one-off components into clean CAD, ready for manufacture.

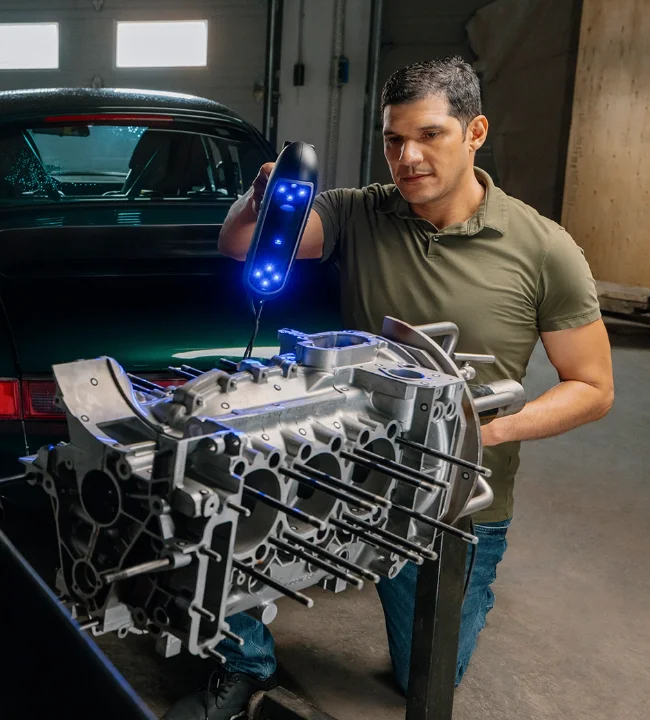

Quality control
Dimensional inspection and first-article checks with reliable accuracy.

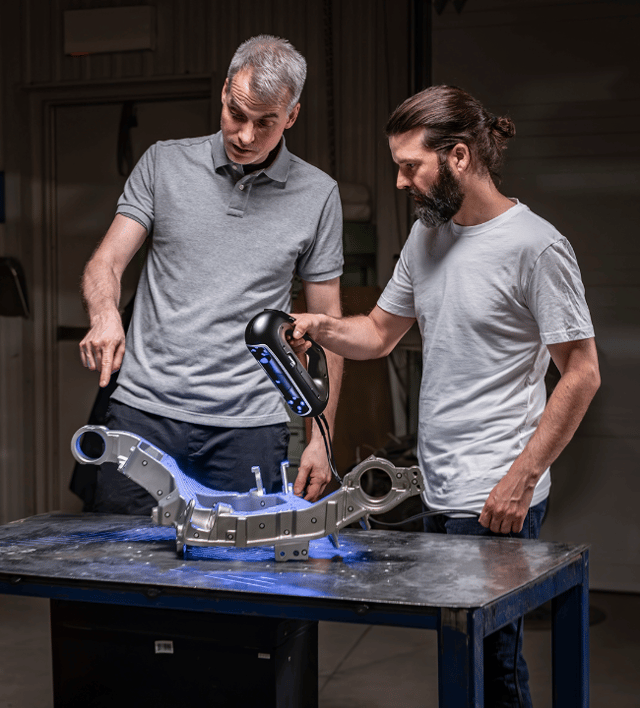

Research and education
Hands-on metrology for engineering programmes and applied research.

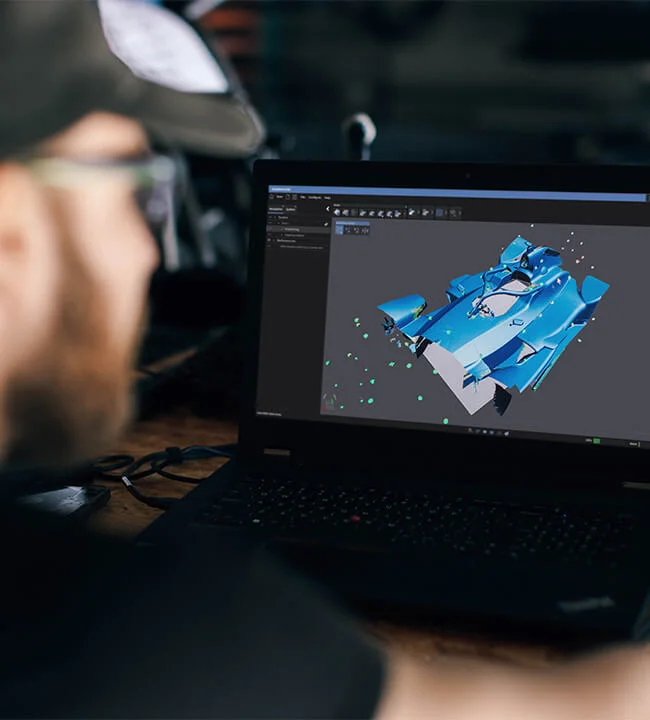

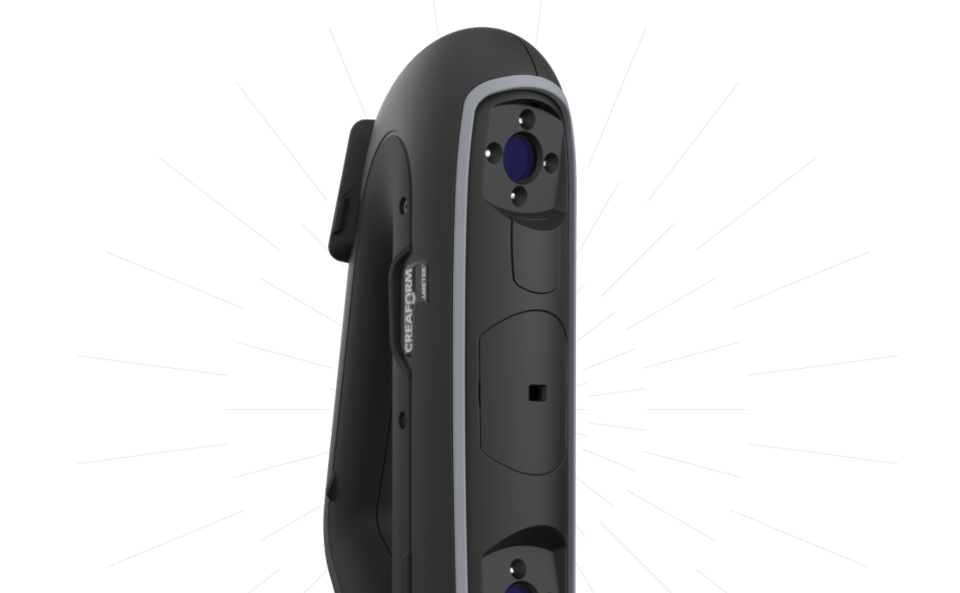

Creaform.OS scanning software

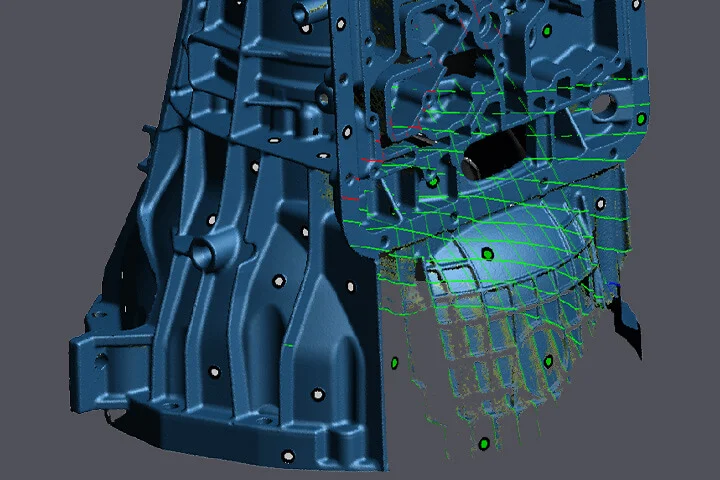

Every PRO Series scanner ships with Creaform.OS, the operating software behind the whole FARO | CREAFORM range. Acquisition, live mesh and cleanup happen in one place, so what leaves the scanner is already usable.
Application modules
Software for what comes after the scan
The range
Compare the FARO | CREAFORM range
HandySCAN 3D EVO Series
Metrology-grade 3D scanner with a built-in touchscreen and wireless scanning.
Certified metrology-grade scanning with a touchscreen, augmented reality and wireless capture.
- Accuracy
- 0.025 mmHandySCAN EVO, HandySCAN EVO Plus
- 0.020 mmHandySCAN EVO Elite
- Resolution
- 0.025 mm
HandySCAN 3D BLACK Series
Metrology-grade portable 3D scanners.
The HandySCAN BLACK Elite is a self-positioning handheld scanner, accurate to 0.025 mm, for shop-floor and lab use.
- Accuracy
- 0.025 mm · 0.0010 in
- Resolution
- 0.025 mm
HandySCAN 3D MAX Series
3D measurement efficiency, scaled for large parts.
Scan large buckets, frames, vessels and assemblies with an EVO-style on-tool display and wireless capture.
- Accuracy
- 0.150 mmHandySCAN MAX EVO
- 0.075 mmHandySCAN MAX EVO Elite
- Resolution
- 0.04 mm
MetraSCAN 3D
ISO-certified optical CMM scanning.
MetraSCAN 3D pairs a handheld scanner with the C-Track optical tracker, so parts are measured where they're made - at CMM-level accuracy, unaffected by vibration, movement or workshop conditions.
- Accuracy
- 0.035 mmMetraSCAN BLACK+
- 0.025 mmMetraSCAN BLACK+ Elite, MetraSCAN BLACK 2
- Resolution
- 0.025 mm
Go!SCAN 3D
White light portable 3D scanner.
The Go!SCAN SPARK is a full-colour white light 3D scanner. Most parts scan without targets or preparation.
- Accuracy
- Up to 0.050 mm · 0.0020 in
- Resolution
- 0.100 mm
Add-ons
Scanner accessories
Services and support
Local support and services
3D scanning services
Need parts scanned rather than a scanner? We scan NZ-wide, on site.
3D scanner hire
Short-term hire with setup guidance and local backup.
Support, maintenance and calibration
Technical helpline, maintenance, calibration, warranty renewals and loaner units, handled from Hamilton.
Technical specifications
Key specifications for the HandySCAN 3D PRO Series. Full datasheets are available on request.

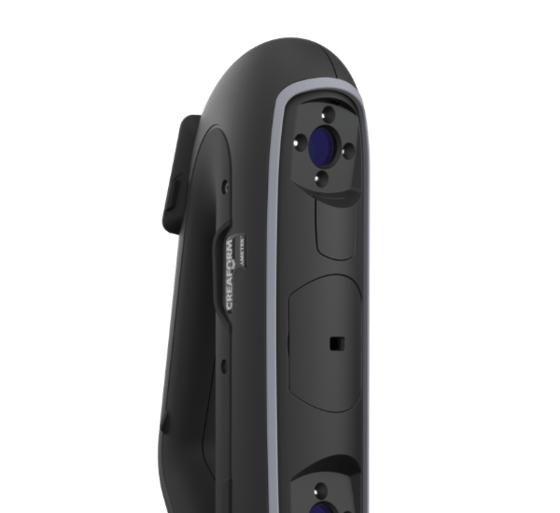

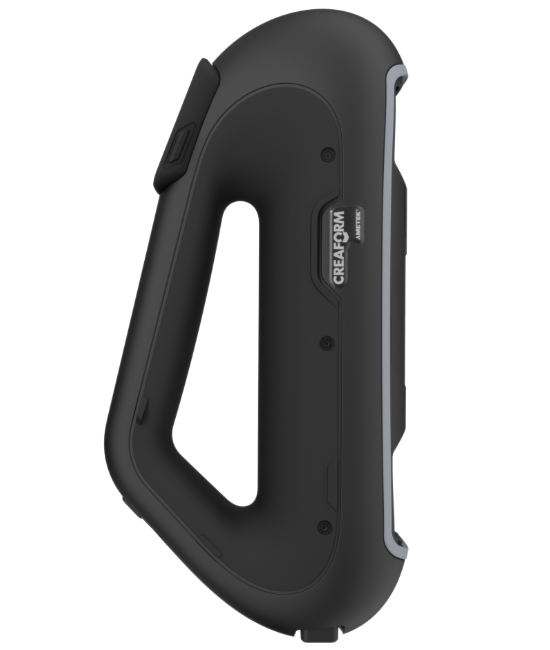

HandySCAN 3D PRO Series
- Accuracy
- 0.030 mm0.0012 in
- Volumetric accuracy
- 0.020 mm + 0.060 mm/m
- Measurement resolution
- 0.025 mm
- Measurement rate
- 1,200,000 measurements/s
- Light source
- 23 blue laser lines
- Part size range (recommended)
- 0.05 - 4 m
Bundled with the FARO | CREAFORM Scan-to-CAD application module.
Frequently asked questions
Who is the PRO Series for?
Teams that want the proven HandySCAN platform at its best value point - reverse engineering, product development and general inspection where 0.030 mm accuracy is enough and budget matters. The bundled Scan-to-CAD module makes it a complete part-to-model workflow out of the box.
How does it compare with the BLACK Elite and EVO Series?
The BLACK Elite and EVO Series measure tighter (0.025 mm and 0.020 mm) at higher rates, and the EVO adds an on-tool touchscreen and wireless scanning. The PRO trades a little accuracy and speed for a significantly lower price with software bundled. We'll help you match the tier to your tolerances.
Do I need targets or spray to scan?
Positioning targets give the scanner its self-positioning ability, which is what keeps hand-held measurement accurate. Most surfaces scan without coating; for the stubborn ones a sublimating spray like AESUB does the job and disappears on its own.
What software is included?
Creaform.OS handles acquisition, and the PRO Series bundles the Scan-to-CAD application module. Data exports to PolyWorks, Geomagic, SOLIDWORKS, CATIA, NX, Creo, Inventor and the other tools engineering teams already use.
Can I try one before buying?
Yes. Tell us about your parts and tolerances for a demo or evaluation, or hire a scanner to test your own jobs.
FARO | CREAFORM - portable metrology
Interested in the HandySCAN 3D PRO Series?
Tell us about your parts, tolerances and budget, and we'll recommend the right scanner and arrange a demonstration or evaluation.
