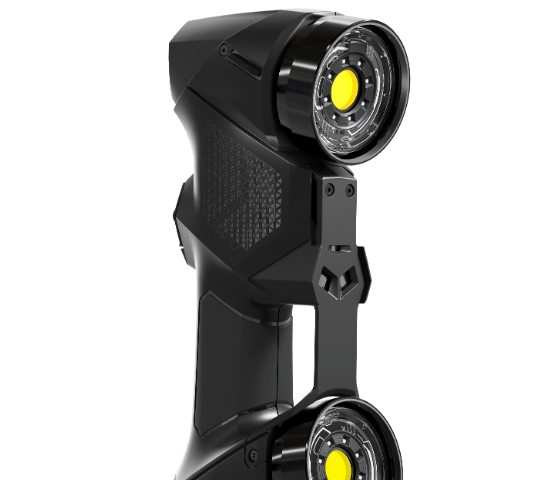

BLACK Elite features
0.025 mmAccuracy
1.3M/sMeasurement rate
22+1Blue laser lines
ISO 17025Accredited calibration
0.94 kgWeight
NZ supportLocal training and backupAccuracy that holds up anywhere

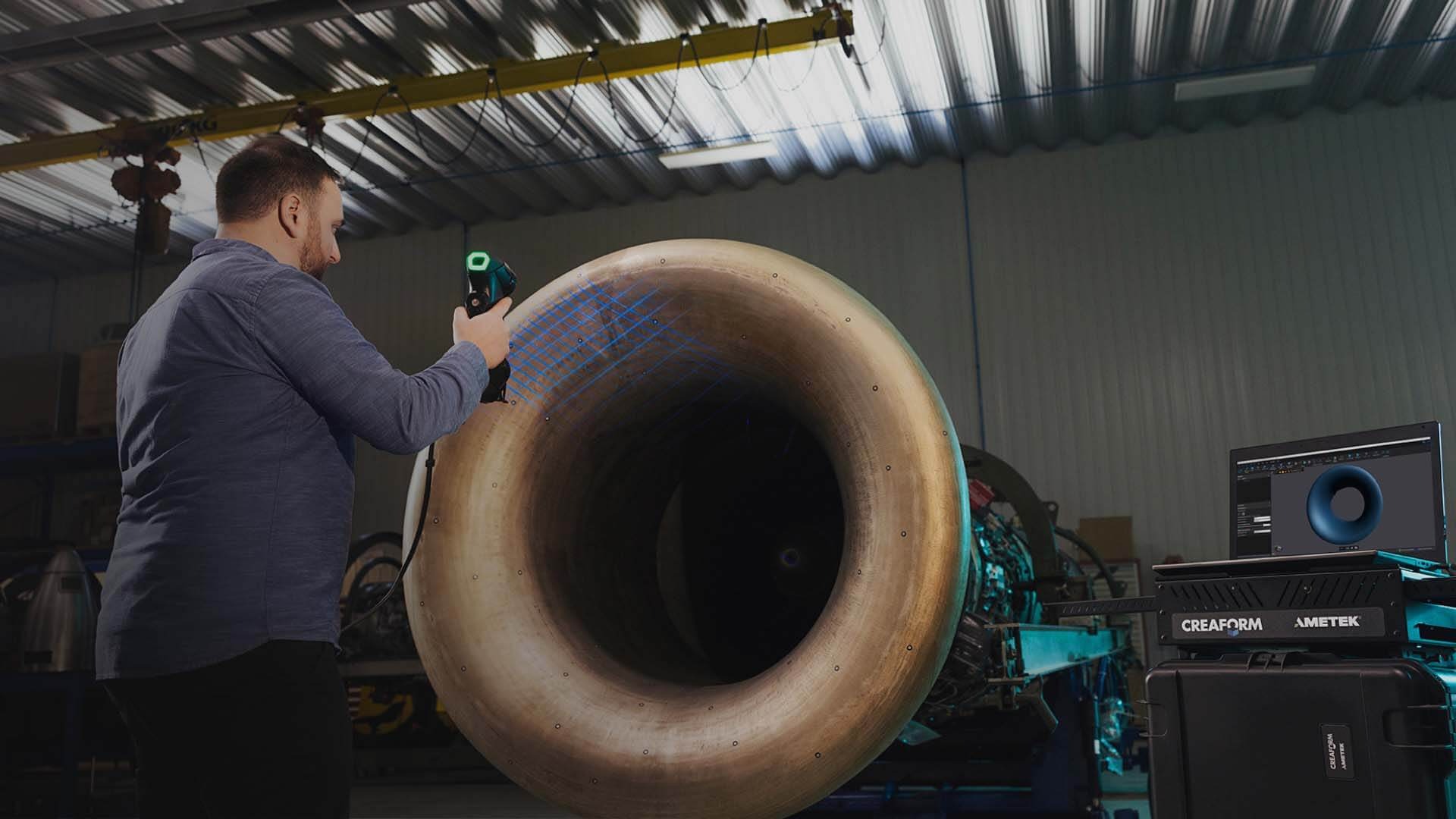

Dynamic referencing means the scanner and the part can both move during measurement and the result stays accurate - regardless of setup quality, vibration or operator experience.
ISO 17025 accredited calibration, on VDI/VDE 2634 part 3 and ISO 10360 acceptance bases.

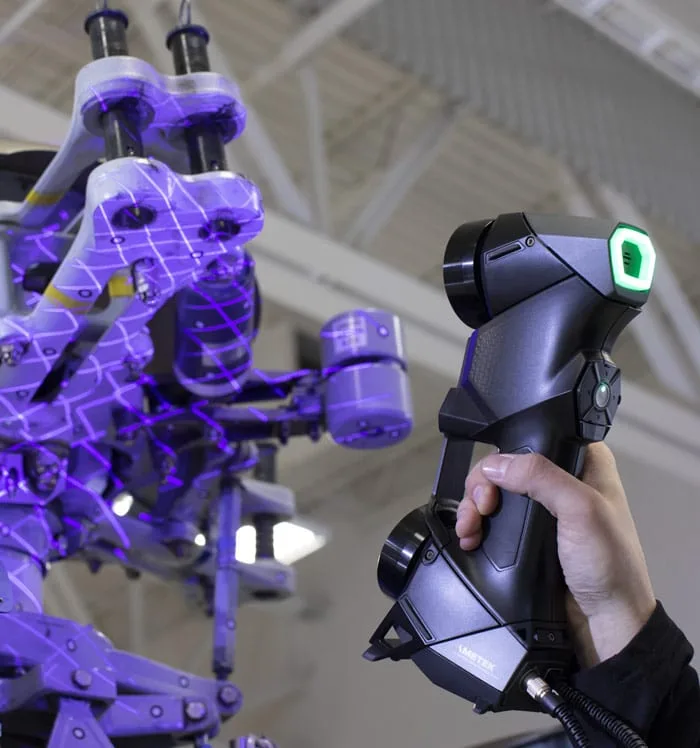

Part and scanner move freely during measurement without losing accuracy.
Fine features resolve directly in the scan at 0.025 mm resolution.
Volumetric accuracy tightens on larger parts without extra equipment.

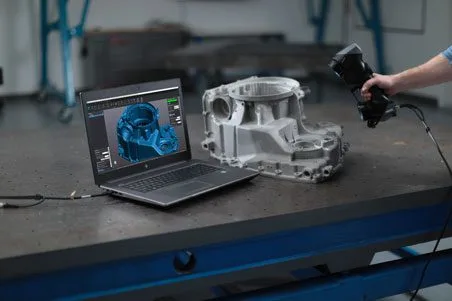

Scanning without a tripod or external tracker
Start handheld measurement in under two minutes, without a tripod, external tracker or rigid setup.
No tripod or external tracking device required.
Light enough for all-day handheld use.

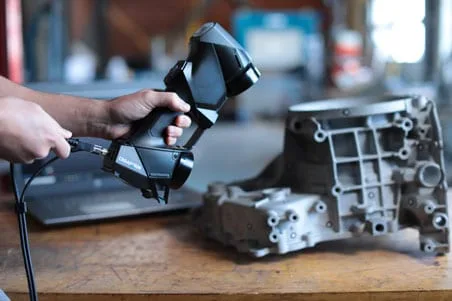

From the case to capturing data in under two minutes.
200 to 450 mm stand-off for easy capture around real parts.
Third-generation and thousands of units strong
Third-generation HandySCAN 3D platform.
Applications
What teams use it for

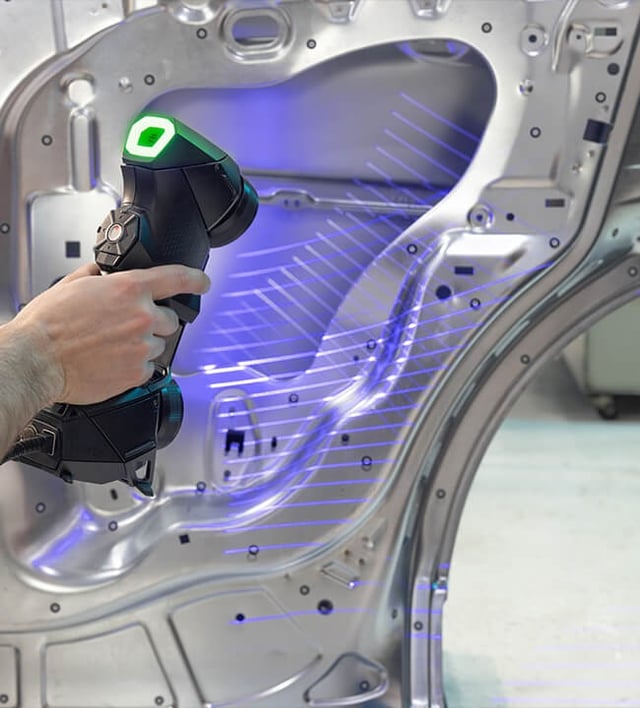

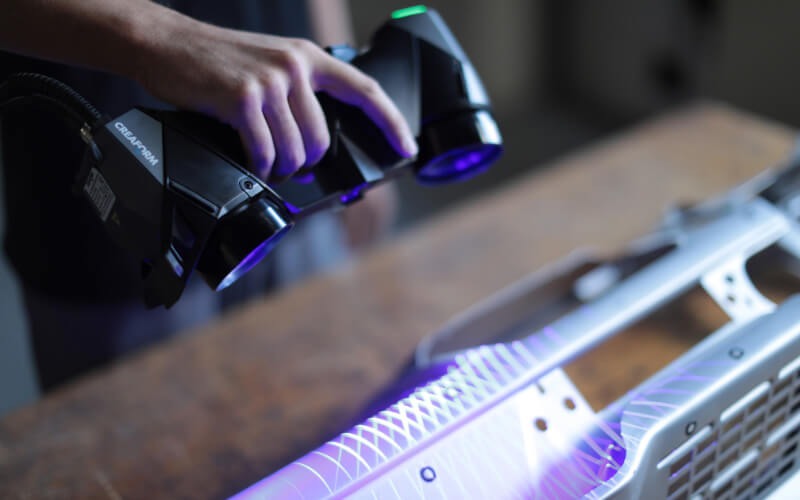

Product development
Capture existing parts and prototypes as reference geometry for new designs.

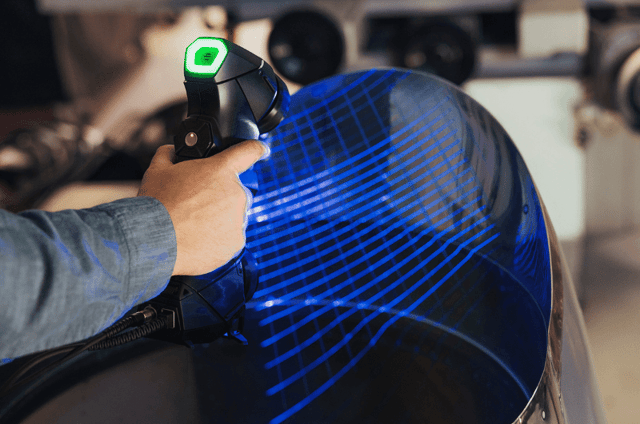

Reverse engineering
Turn legacy and one-off components into clean CAD, ready for manufacture.

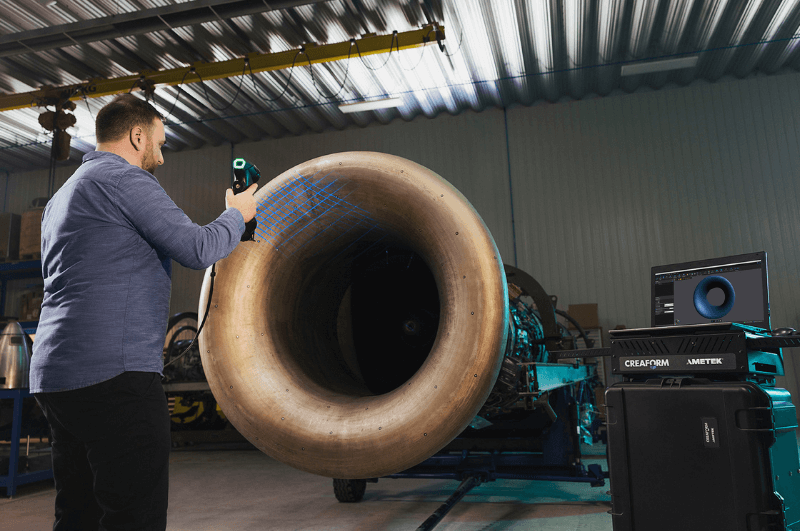

Quality control
Dimensional inspection and first-article checks with traceable accuracy.
Creaform.OS scanning software
The BLACK Elite ships with Creaform.OS, the operating software behind the whole FARO | CREAFORM range. Acquisition, live mesh and cleanup happen in one place, so what leaves the scanner is already usable.
Application modules
Software for what comes after the scan
The range
Compare the FARO | CREAFORM range
HandySCAN 3D EVO Series
Metrology-grade 3D scanner with a built-in touchscreen and wireless scanning.
Certified metrology-grade scanning with a touchscreen, augmented reality and wireless capture.
- Accuracy
- 0.025 mmHandySCAN EVO, HandySCAN EVO Plus
- 0.020 mmHandySCAN EVO Elite
- Resolution
- 0.025 mm
HandySCAN 3D MAX Series
3D measurement efficiency, scaled for large parts.
Scan large buckets, frames, vessels and assemblies with an EVO-style on-tool display and wireless capture.
- Accuracy
- 0.150 mmHandySCAN MAX EVO
- 0.075 mmHandySCAN MAX EVO Elite
- Resolution
- 0.04 mm
HandySCAN 3D PRO Series
Professional-grade 3D scanners.
The HandySCAN 3D PRO Series is a handheld scanner with 0.030 mm accuracy and fine detail, bundled with the FARO | CREAFORM Scan-to-CAD module.
- Accuracy
- 0.030 mm · 0.0012 in
- Resolution
- 0.025 mm
MetraSCAN 3D
ISO-certified optical CMM scanning.
MetraSCAN 3D pairs a handheld scanner with the C-Track optical tracker, so parts are measured where they're made - at CMM-level accuracy, unaffected by vibration, movement or workshop conditions.
- Accuracy
- 0.035 mmMetraSCAN BLACK+
- 0.025 mmMetraSCAN BLACK+ Elite, MetraSCAN BLACK 2
- Resolution
- 0.025 mm
Go!SCAN 3D
White light portable 3D scanner.
The Go!SCAN SPARK is a full-colour white light 3D scanner. Most parts scan without targets or preparation.
- Accuracy
- Up to 0.050 mm · 0.0020 in
- Resolution
- 0.100 mm
Add-ons
Scanner accessories
Services and support
Local support and services
3D scanning services
Need parts scanned rather than a scanner? We scan NZ-wide, on site.
3D scanner hire
Short-term hire with setup guidance and local backup.
Support, maintenance and calibration
Technical helpline, maintenance, calibration, warranty renewals and loaner units, handled from Hamilton.
Technical specifications

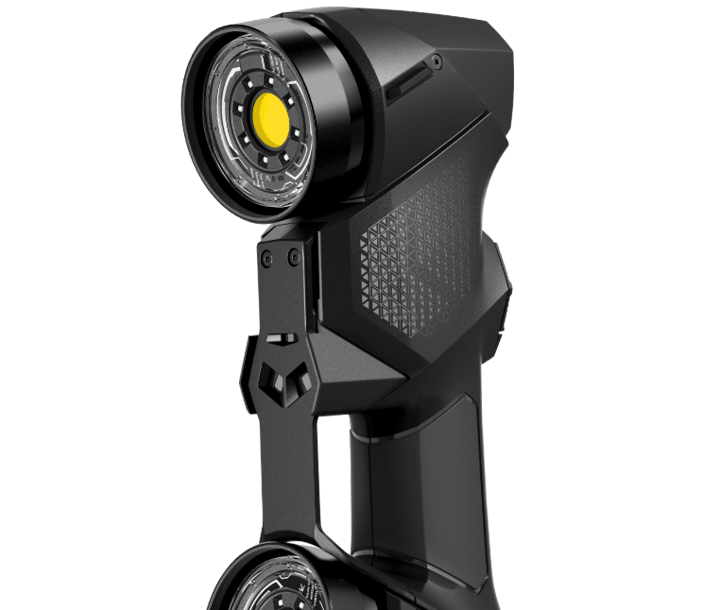

HandySCAN BLACK Elite
- Accuracy
- 0.025 mm0.0010 in
- Volumetric accuracy
- 0.020 mm + 0.040 mm/m
- Measurement resolution
- 0.025 mm
- Measurement rate
- 1,300,000 measurements/s
- Light source
- 22 blue laser lines (+1 extra line)
- Working distance
- 200 - 450 mm
- Part size range (recommended)
- 0.05 - 4 m
- Weight
- 0.94 kg
- Calibration accreditation
- ISO 17025
Acceptance testing on VDI/VDE 2634 part 3 and ISO 10360 bases; calibration by an ISO 17025 accredited laboratory.
Frequently asked questions
How does the BLACK Elite compare with the EVO Series?
Both are metrology-grade at comparable accuracy. The BLACK Elite is the proven third-generation platform with a conventional laptop-driven workflow; the EVO Series adds an on-tool touchscreen, augmented reality and wireless scanning, with higher measurement rates. If you're choosing between them, we'll demo both against your parts.
Do I need targets or spray to scan?
Positioning targets give the scanner its self-positioning ability, which is what keeps hand-held measurement accurate. Most surfaces scan without coating; for the stubborn ones a sublimating spray like AESUB does the job and disappears on its own.
What software is included?
Creaform.OS handles acquisition end to end and exports to the tools engineering teams already use, including PolyWorks, Geomagic, SOLIDWORKS, CATIA, NX, Creo and Inventor. FARO | CREAFORM Inspection and Scan-to-CAD modules are available when you want one integrated workflow.
How steep is the learning curve?
Short. Dynamic referencing forgives imperfect technique, results don't depend on operator experience, and Professional CAD Systems provides local onboarding and support with every system we supply.
Can I try one before buying?
Yes. Tell us about your parts and tolerances for a demo or evaluation, or hire a scanner to test your own jobs.
FARO | CREAFORM - portable metrology
Interested in the HandySCAN BLACK Elite?
Tell us about your parts, tolerances and environment, and we'll recommend the right scanner and arrange a demonstration or evaluation.
