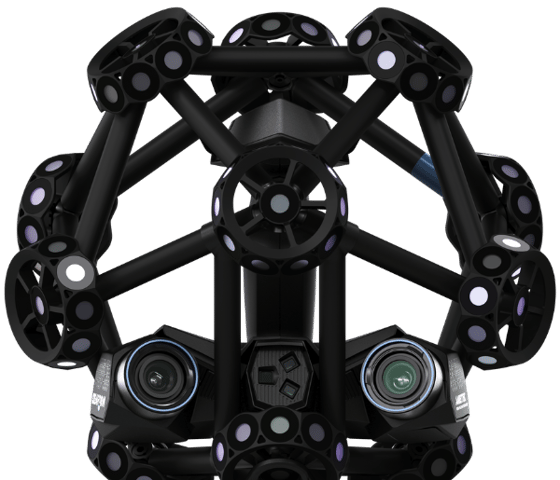

MetraSCAN 3D
Discover the fastest and most accurate 3D scanner and portable CMM for shop floor environments

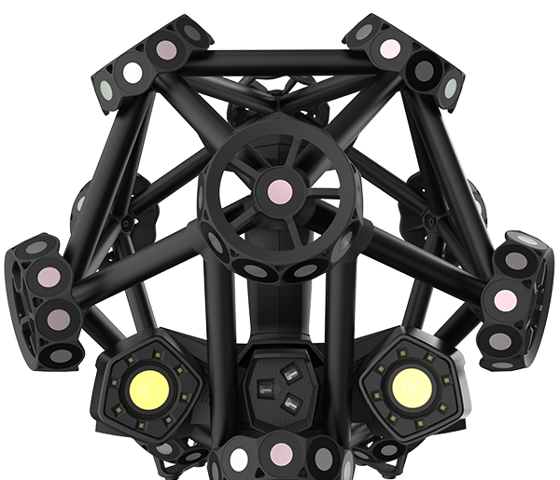

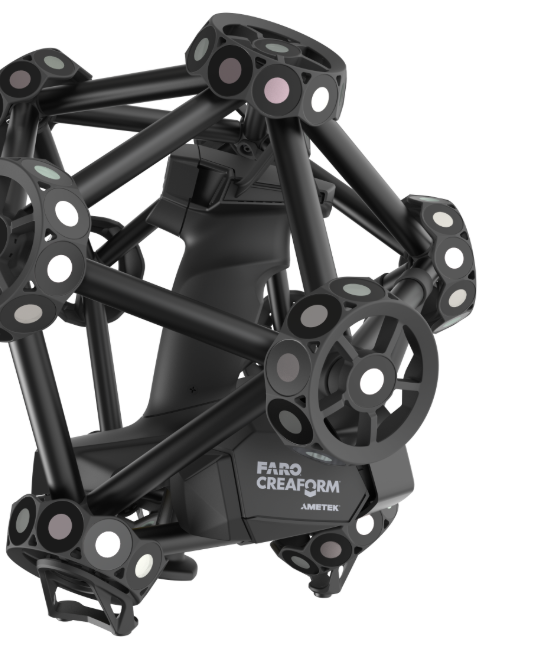

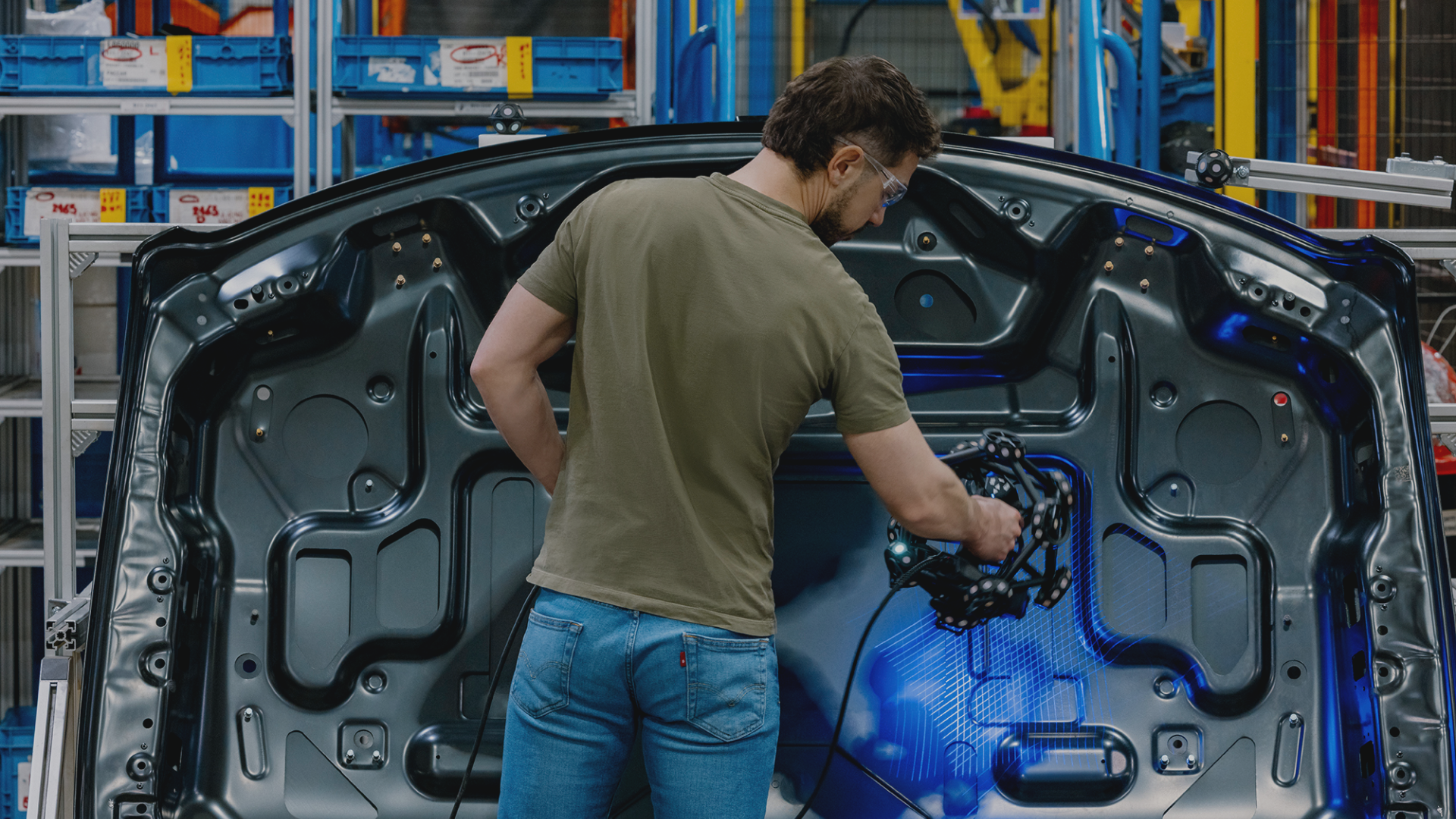

The MetraSCAN 3D optical CMM scanner line-up is specifically designed for manufacturing and metrology professionals who do not want to compromise on quality or efficiency. It can withstand any production environment, including shop floor vibrations, part movements and environmental instability – all while accelerating 3D measurement workflows. This optical CMM scanner has been engineered to perform highly accurate and repeatable metrology-grade measurements and 3D geometrical surface inspections.
Speed and accuracy combined with versatility

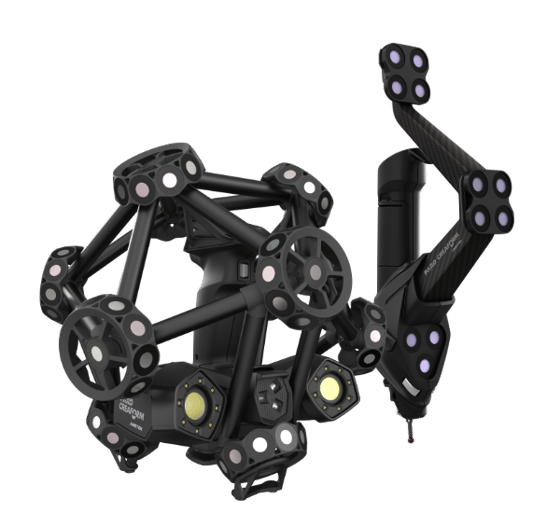

When paired with the HandyPROBE, Creaform’s handheld optical coordinate measuring machine (PCMM) with probing capabilities, users can also harness the power of both 3D scanning and probing for complete, end-to-end inspection processes.
Accuracy of 0.025mm
ISO 17025
Large Scanning Area
Scan-to-Mesh in seconds
Patented Technology
Get the ultimate portable metrology-grade 3D scanner for product development and quality control.
Learn how the MetraSCAN 3D can accelerate your time to market and mitigate costly quality control issues.

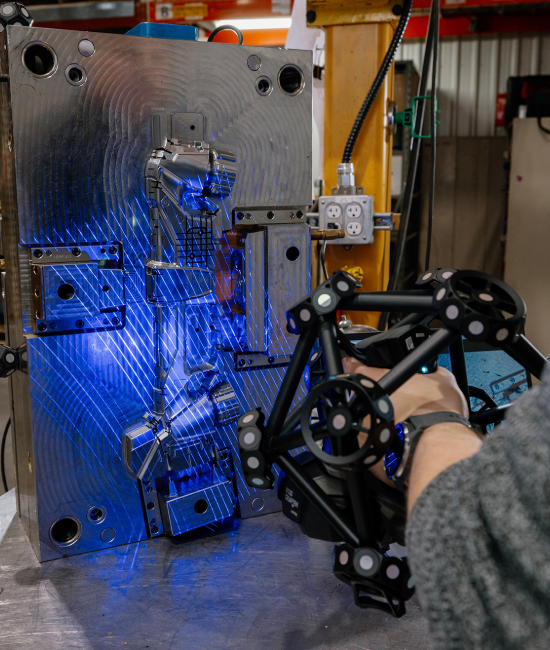

Faster 3D scanning

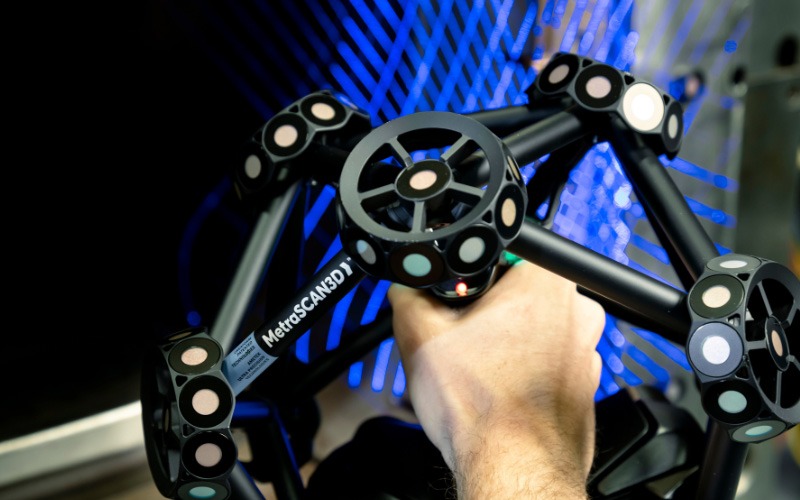

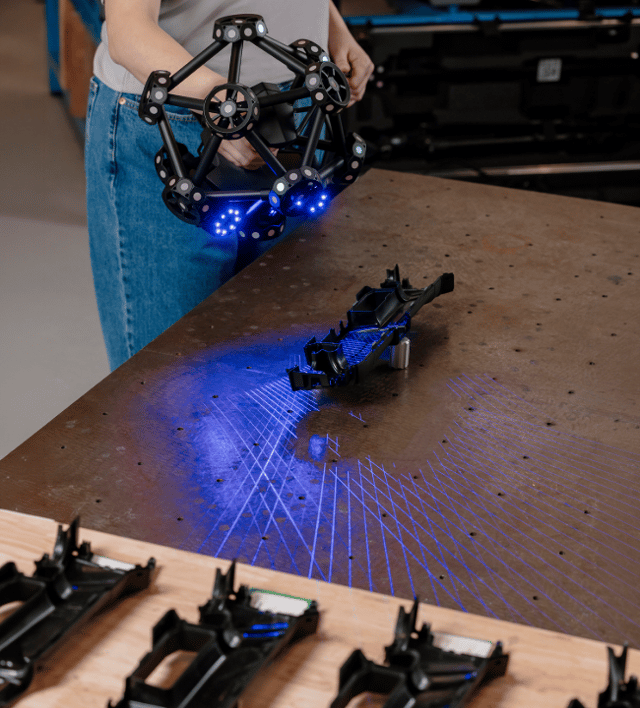

The MetraSCAN 3D features 30 blue laser lines and a high measurement rate to accelerate 3D scanning processes. Thanks to quick setup and onboarding, real-time scans and ready-to-use files, your 3D scanning workflow will never have been faster.
• High measurement rate
1,800,000 measurements/second • Large scanning area for all types of parts
15 laser crosses • Ultra-quick setup
No warm-up time; users can be up-and-running in less than 5 minutes
• 360° Magnetic Targets Quick and easy setups and optimised visibility for dynamic tracking
1,800,000 measurements/second • Large scanning area for all types of parts
15 laser crosses • Ultra-quick setup
No warm-up time; users can be up-and-running in less than 5 minutes
• 360° Magnetic Targets Quick and easy setups and optimised visibility for dynamic tracking
Enhanced Accuracy on Large Parts
The AVE feature allows for automatic acquisition volume extension only by moving the C-Track, without requiring extra measurements. With its advanced integrated photogrammetry and scaling algorithms, the MetraSCAN 3D ensures more accurate, repeatable, and human-error-free measurements on large parts.
• Accuracy
0.025 mm
• Automatic Volume Extension
0.025mm + 0.015mm/m
• Reliable Acceptance Tests
Based on VDI/VDE 2634 Part 3 standard
ISO 17025 accredited laboratory
• Shop floor accuracy with dynamic referencing
Measurement accuracy insensitive to environmental instabilities
• High resolution
Measures all types of complex and highly detailed parts

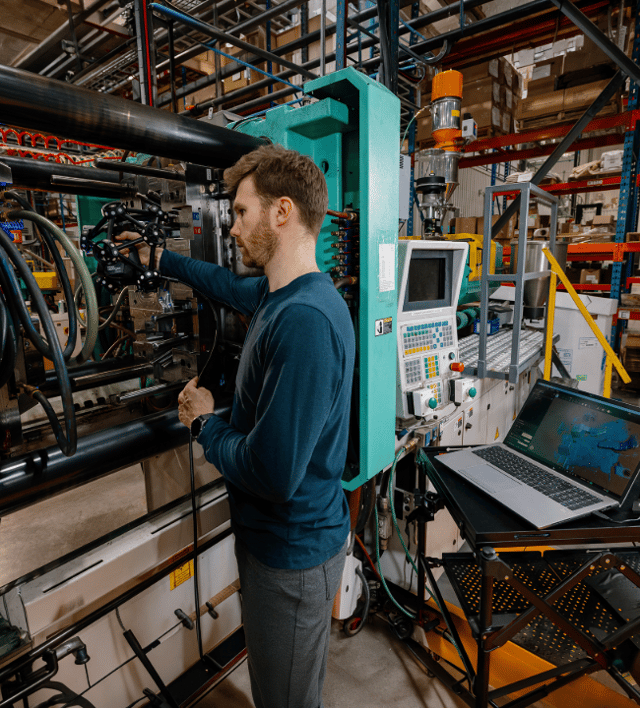

Unmatched versatility

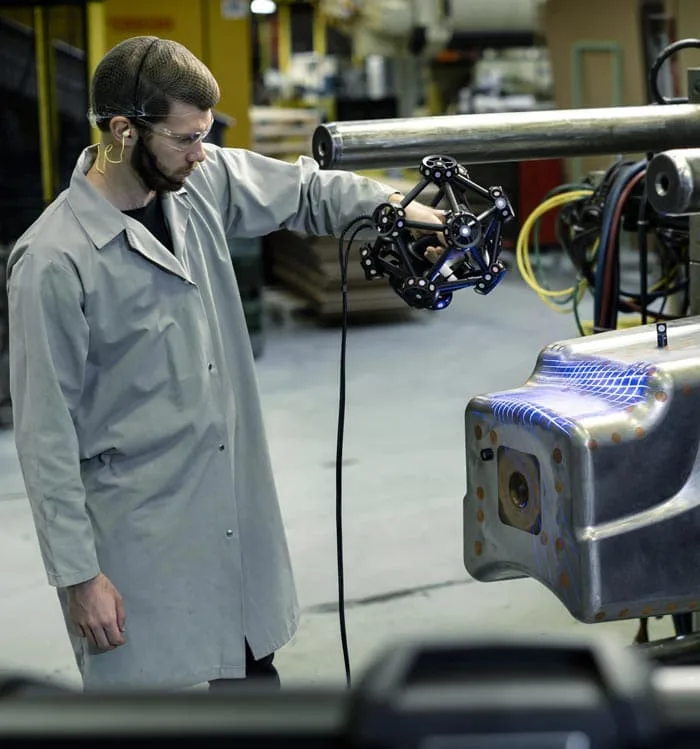

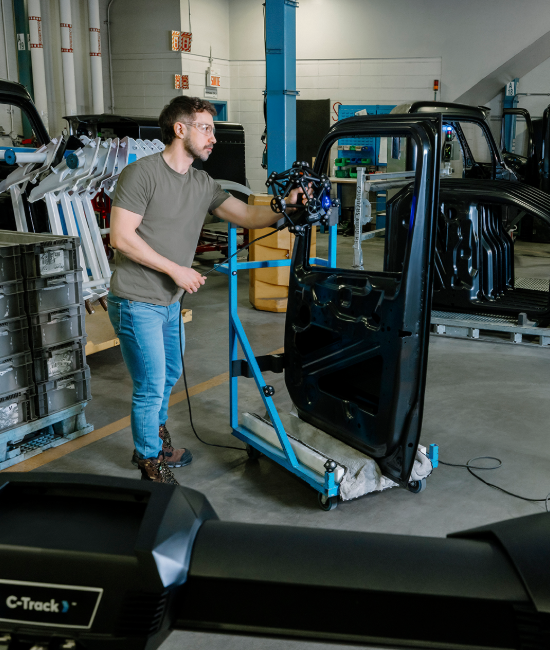

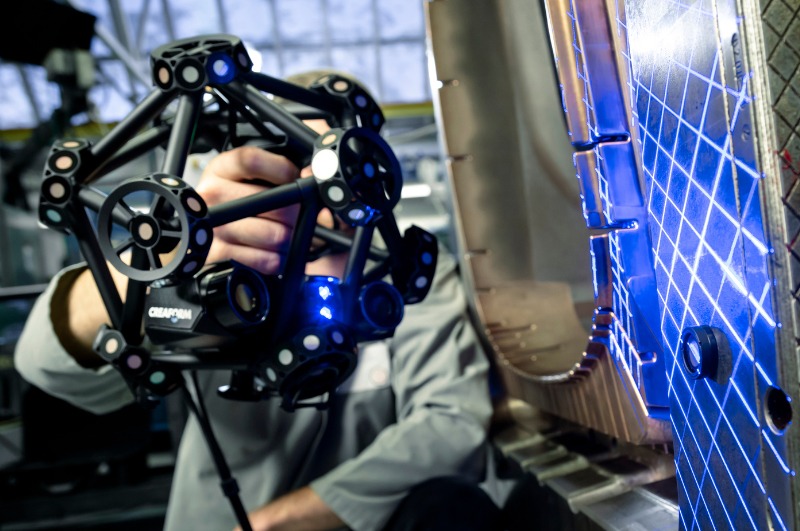

Highly versatile, the MetraSCAN 3D can be used to scan various part sizes and surface finishes in real time—all with the same device.
With its extendable measurement volume, parts of any shape, complexity, and geometry can be measured easily without loss in accuracy or requiring leapfrog.

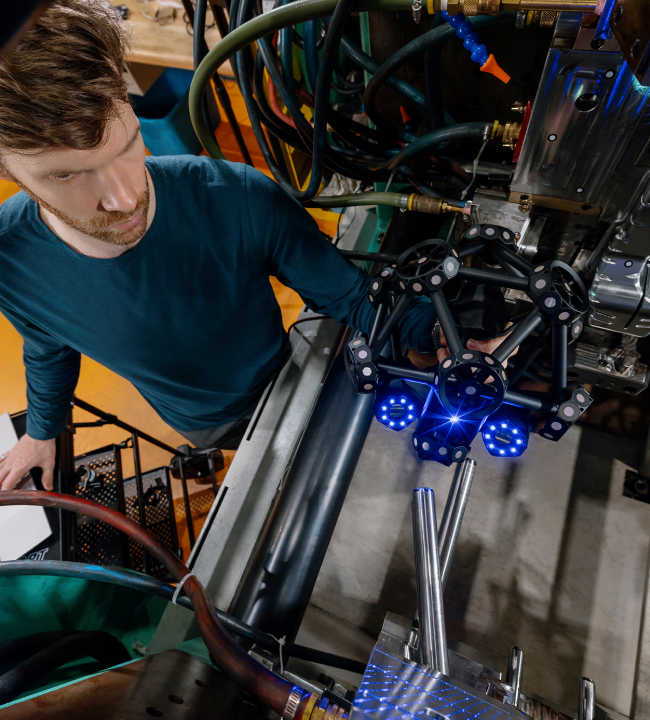

• Blue laser technology
Ideal for shiny and reflective surfaces
• Large and easily extendable measurement volume
Wider than other portable CMMs.
No leapfrog required.
Integrated photogrammetry
• Optional HandyPROBE
Combination of both 3D scanning and probing
No targets required
• New Setup Assistance Tools
Guidance volume display
High-level setup diagnostics

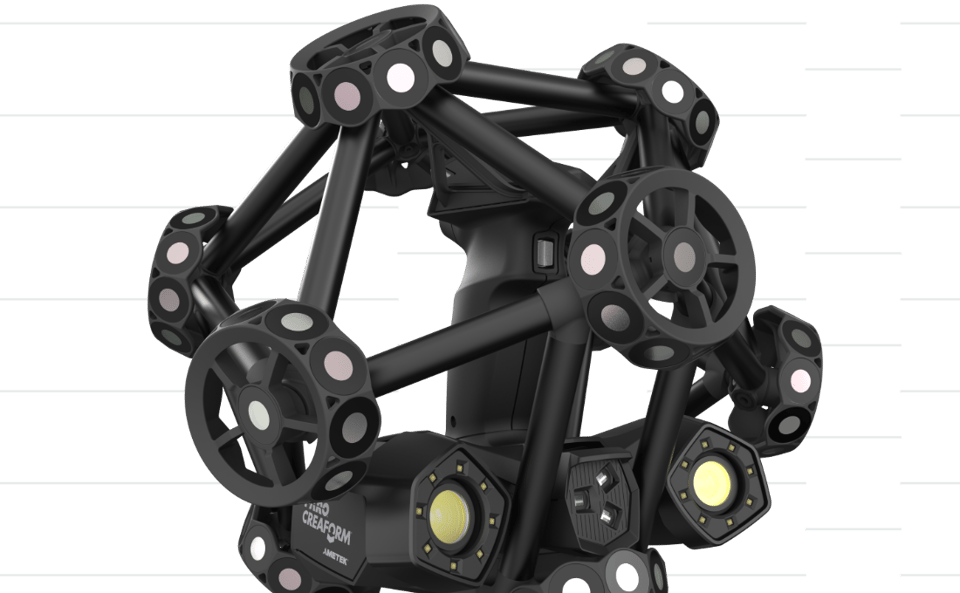

Technical Specifications
MetraSCAN 3D’s innovative technology enables unprecedented accuracy, simplicity, portability, speed and efficiency for 3D inspections in your production environment. 3D measurements of a variety of complex parts, sizes, materials and finishes has never been this easy.
Accuracy
0.025 mm
Volumetric Accuracy
0.064 mm
Measurement Resolution
0.025 mm
Measurement Rate
1,800,000 measurements/s
Part size range (recommended)
0.2 – 6 m
MetraSCAN 3D Software

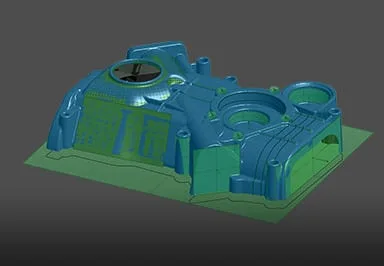

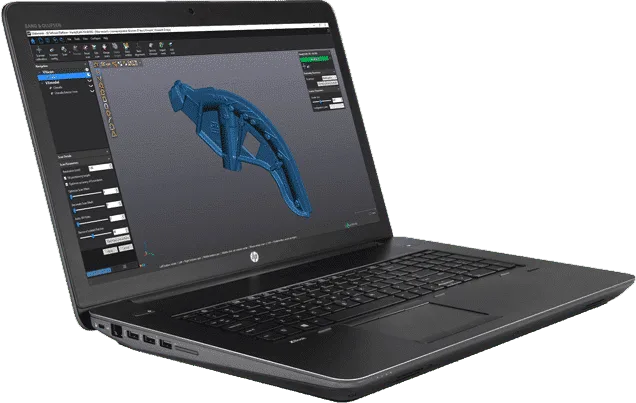

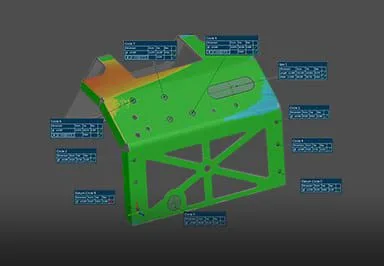

The MetraSCAN 3D seamlessly operates with VXelements, a fully integrated, user-friendly 3D scanning software platform. VXelements’s range of advanced modules let you leverage all the dimensional information captured by MetraSCAN 3D in a simplified, feature-rich data processing environment.
Add-Ons
This portable optical coordinate measuring system provides the accuracy and speed of photogrammetry to a wide range of applications involving large-size parts.

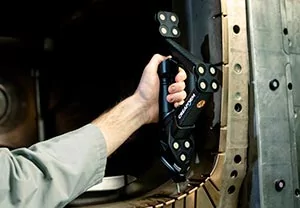

This portable CMM outperforms traditional CMMs right on the shop floor, offering unmatched accuracy and efficiency regardless of the instabilities in any production environment.

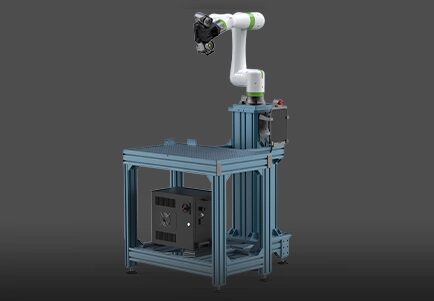

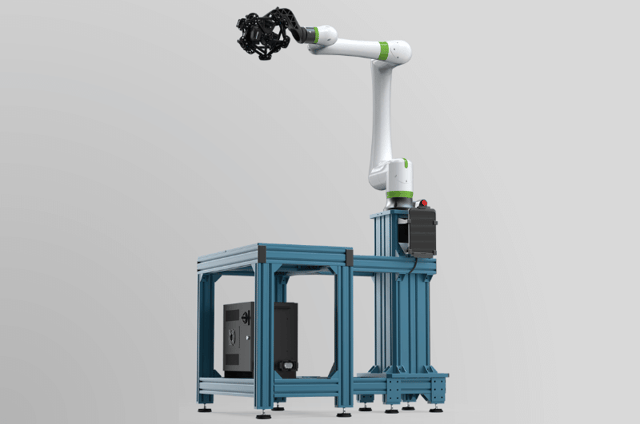

The Automation Kit is the ideal solution for enhancing productivity and adapting to evolving quality control challenges while maintaining the full flexibility of handheld 3D scanning devices.

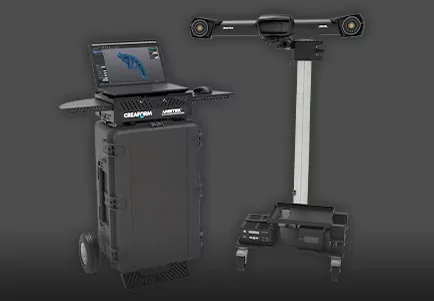

Creaform’s portable workstation and C Track shop-floor stand add flexibility, mobility and reliability to Creaform systems across a production plant. Take advantage of this turnkey solution to perform all your inspections.
Compatible Software
