HandyProbe Coordinate Measuring Machine

HandyPROBE Next

The Next Generation

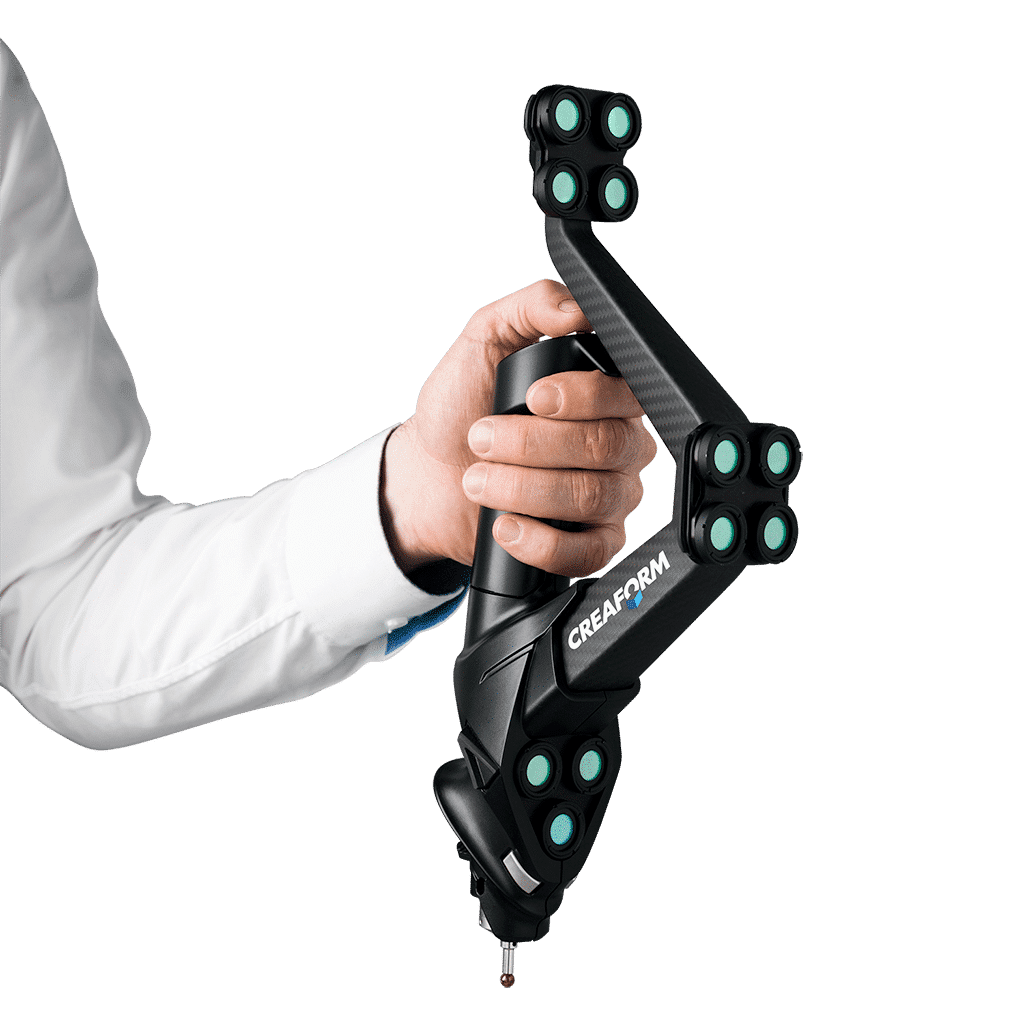

The HandyPROBE Next handheld optical coordinate measuring machine provides excellent measurement accuracy while being resistant to any environmental instabilities. Without a rigid measurement setup, this portable CMM solution outperforms traditional CMMs on the shop floor.

The HandyPROBE Next system has the ability to perform real-time dynamic referencing of its scanning and probing devices, as well as targets on the object being inspected. The optional C-Track and wireless probe can be moved at any point in the measurement process, all while generating the same high quality data.

Designed specifically for today’s manufacturing requirements, the HandyPROBE Next offers versatility that is unmatched by other PCMMs.

New Features

– 1.5x more accurate

– 12x faster with 7 laser crosses

– 25% lighter

– Scan any material, even black, multicolored & shiny surfaces

– Greater volume of 16.6 m3 (586 ft3)

– Sturdy design for shop-floor hardware reliability​

– Multi-function buttons for easier interaction

Inspection & Quality Control

• Part-to-CAD analysis

• First article and supplier Quality Inspection

• Conformity Assessment of 3D models against original parts/production tooling

• Alignment

• Tooling Certification

• Multi-shot measurements (up to 30 points/s)

• Complete free-form inspection and high-density color maps when used with a MetraSCAN 3D

Reverse Engineering

•  Reverse engineering of geometrical entities (spheres, cylinders, planes)

•  Faster and more accurate reverse engineering of mixed parts (geometrical and free-form) when used with a MetraSCAN 3D optical CMM scanner

TRUaccuracy
  • Metrology-grade measurements: accuracy up to 0.03mm, resolution up to 0.05mm, high repeatability and traceable certificate
  • Dynamic referencing: optical reflectors are used to create a reference system that is “locked” to the part, so users can move the object any way they want during the measuring process
  • Volumetric accuracy of 0.064mm
  • Scan any surface, even black, multicolored & shiny
  • Greater volume of 16.6 m3 (586 ft3)
  • Sturdy design for shop-floor hardware reliability​
  • Multi-function buttons for easier interaction
TRUportability

– Optimized for use on the shop floor

– Lightweight: weighs under 0.5 kg (1.1 lbs)

– Portable CMM: the system can be easily moved

 – Arm-free optical scanning syste

TRUsimplicity
  • No rigid setup required: the part and the system can be moved freely at any time during measurement
  • Versatile 3D scanning: can scan any type of color and material, even black, multicolored and shiny surfaces
  • Greater and easily extendable measurement volume
  • Automatic alignment: optical reflectors allows for repetitive inspections without re-alignment
  • Optional probing capabilities by adding the HandyPROBE Next
  • Multi-function buttons for easier interaction with the software
  • Short learning curve and intuitive operation
