Undet for SketchUp

$945.00 NZD +GST / year

Undet is a feature-rich point cloud extension to create 3D models based on scan data. It is the only add-on in the market that will allow you to use any size point clouds directly in SketchUp.

Your subscription will automatically renew in one year – You can prevent this by turning auto renewal off in your account.

SKU: UNDET-4-SU Category: Brand:

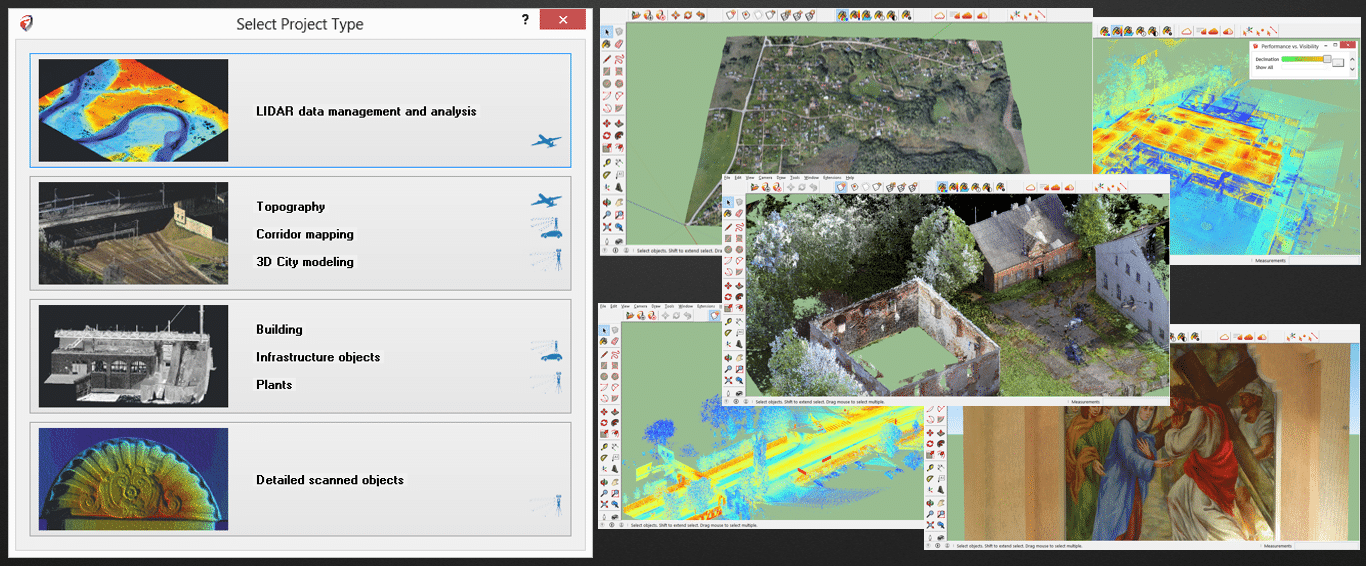

The easiest way to create 3D models with point cloud data in SketchUp.

Undet’s plug-in for SketchUp offers an intuitive workflow that is easy to learn & simple to master. Using the feature-rich interface, you will be able to quickly and accurately model complex interiors and exteriors, extract objects from point clouds, and significantly reduce processing time.

  • Fast and Easy Point Cloud Data Import into SketchUp

    Works with any 3D laser scanner, UAV or photogrammetry software. Supported point cloud formats: *.E57, *.FLS, *.RCP/RCS, *.PTX, *.ZFS,*.LAS, *.LAZ, *.PTS, *.PLY, *.DP, *.FPR, *.LSPROJ, *.FWS, *.CL3, *.CLR, *.RSP, ASCII / NEZ (X,Y,Z/i/RGB) and custom ASCII / TXT file format imports.

  • Advanced Visibility Management Tools

    Clip & slice a 3D point cloud using the clipping box to easily control the information you see in your model view.

  • Texturing & 3D Model Inspection Tools

    Compare your 3D model to the point cloud to check accuracy, enrich the model by adding texture generated from the point cloud view.

  • Auto Feature Extraction Tools

    Extract, extrude, and fit SketchUp planes for highly accurate building geometry or ground surface modeling.

  • Smart Snapping Tools

    These tools will allow you to draw SketchUp objects by snapping to point cloud points. It automatically recognize the orientation of the plane being drawn, whether it is a vertical or horizontal plane, and allow you to snap not only to point cloud point but also to existing geometry.

Undet Browser integration within CAD model

Undet Browser is a point cloud viewer with truly unique features for Undet users. Just one click on an unclear point in the CAD software, and you will AUTOMATICALLY be able to see the same position in the point cloud viewer. So, if you’re looking for something new that will significantly speed up point cloud processing workflow you won’t want to miss this!

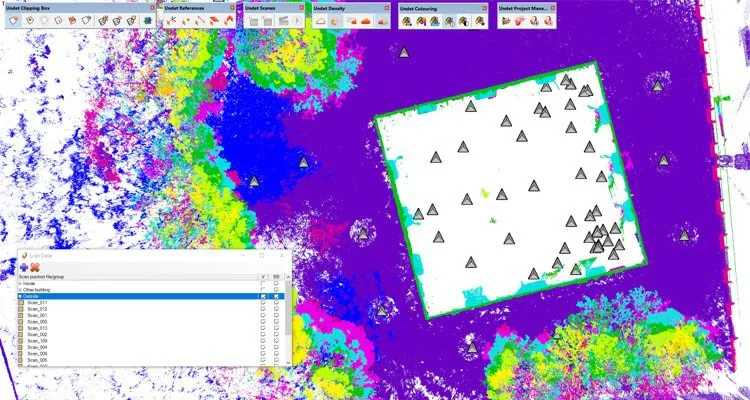

sketchup scan management4

Comprehensive data management

Combine individual scan stations into groups: for each floor/level, outside or separated scans.
Control visibility of created groups or individual scans stations/files.

Interactive coloring management

Use the different color settings to get the clearest possible view:

• RGB | Intensity | By plane or height

• Adjust transparency

• Change point cloud point size

Previous slide
Next slide
Previous slide
Next slide

Interactive visibility management

Use the clipping box to navigate between point clouds. The clipping box can be moved to any area of a point cloud to see a more detailed view by using the arrows attached to the sides of the clipping box.

Create new clipping box: By Line, By Rectangle.

Enrich SketchUp scenes with point clouds

Add point clouds to SketchUp Scenes. All options can be saved for each scene regardless of the different point clouds settings.

Previous slide
Next slide
Previous slide
Next slide

Ground terrain extraction (Surface meshing)

Extract ground terrain mesh model from unclassified point clouds

Undet for SketchUp video overview

How to model in SketchUp from point cloud

Supported SketchUp Pro Versions: 2020, 2021, 2022
