Peel 3 3D scanner
Peel 3 can handle any application in: aftermarket & tuning, AR, VR & digital content, education, heritage preservation and art, product design, healthcare, and engineering.
Ready for some 3D scanning oohs and aahs?

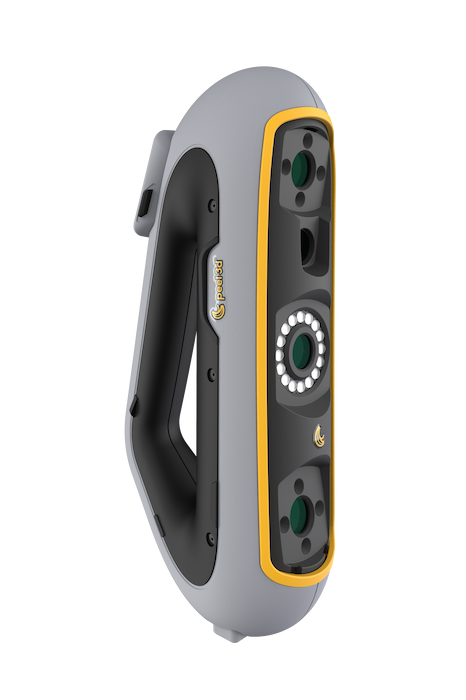

Meet the 3rd Generation Peel 3D Scanner
The new generation peel 3
Peel 3 takes your 3D scanning experience to new heights. Everything about peel 3d scanners has been redesigned, rethought and revamped. For an affordable turnkey professional-grade 3D scanning solution, peel 3 packs a powerful performance punch.
- High Fidelity Objects
- Digital Archiving
- Human Anatomy
- Orthotics and Prosthetics
- Converts handmade objects to digital
Made in Canada

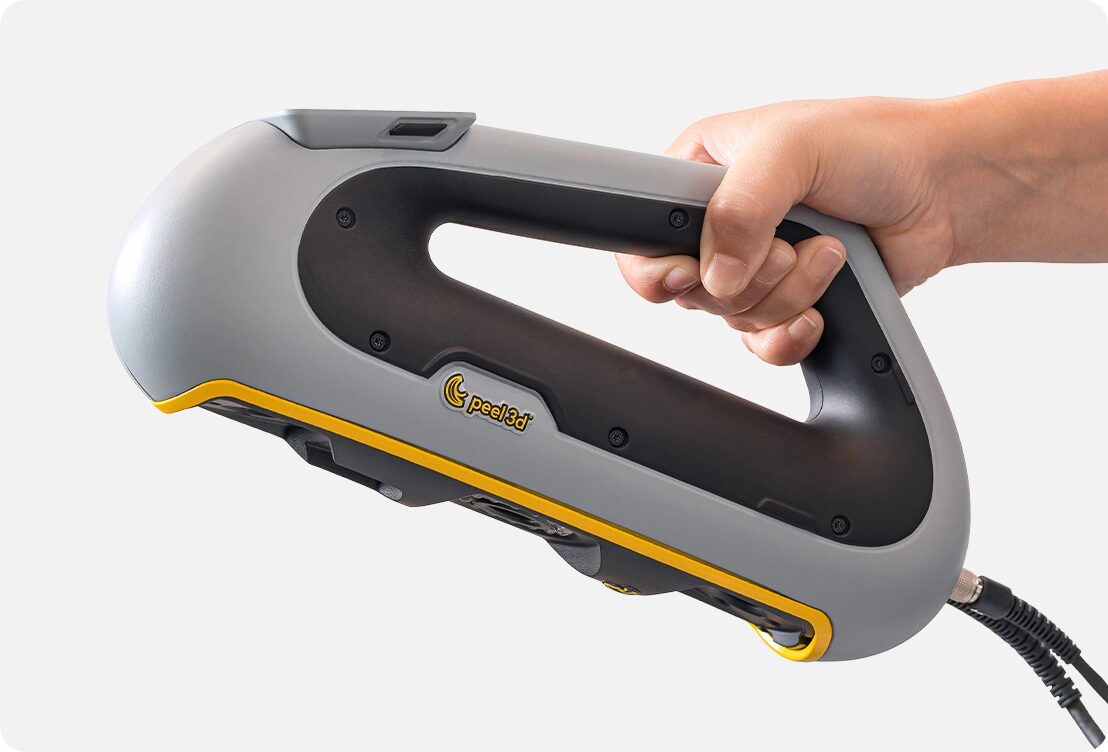

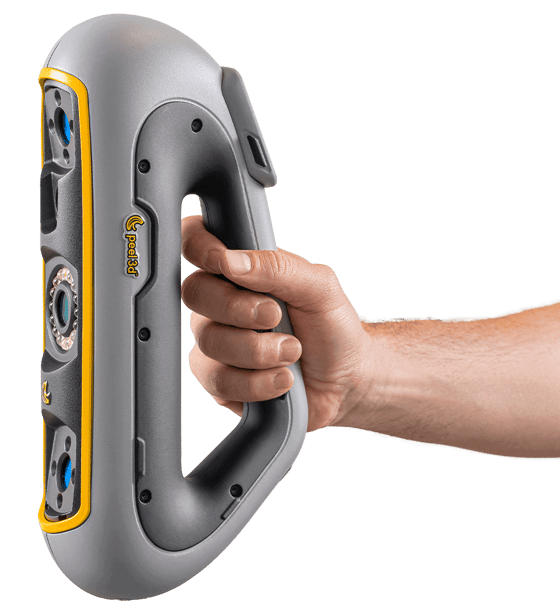

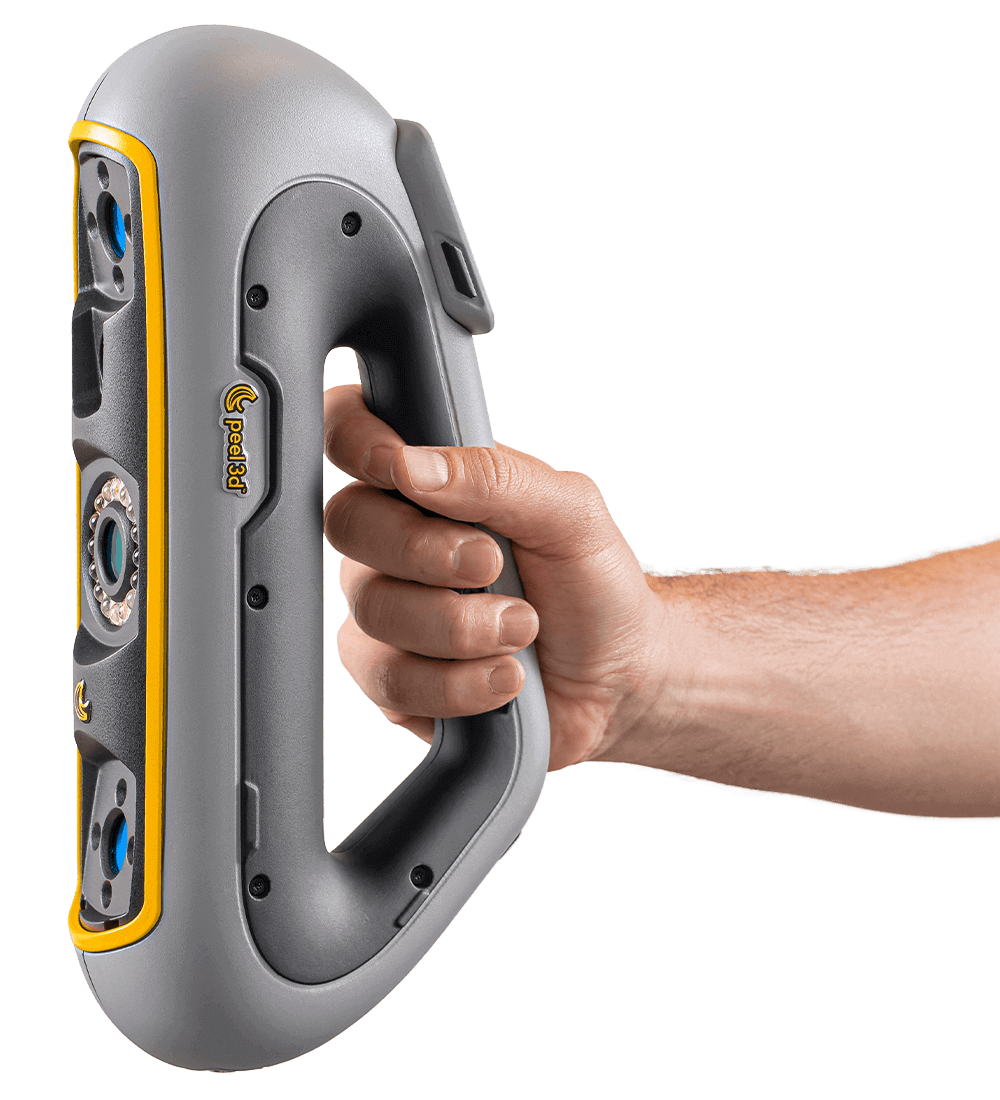

Ultra-ergonomic handle
Peel 3’s unique multi-grip triangulated handle has been designed to be comfortable in most common 3D scanning positions.

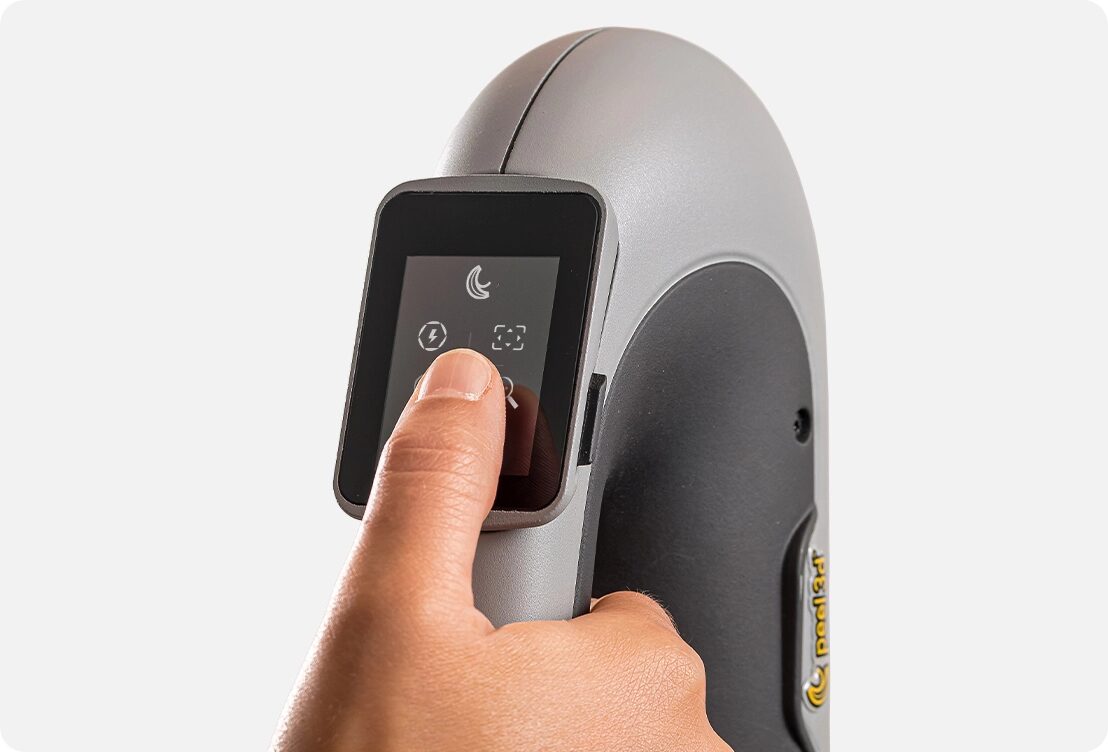

Slick LCD screen

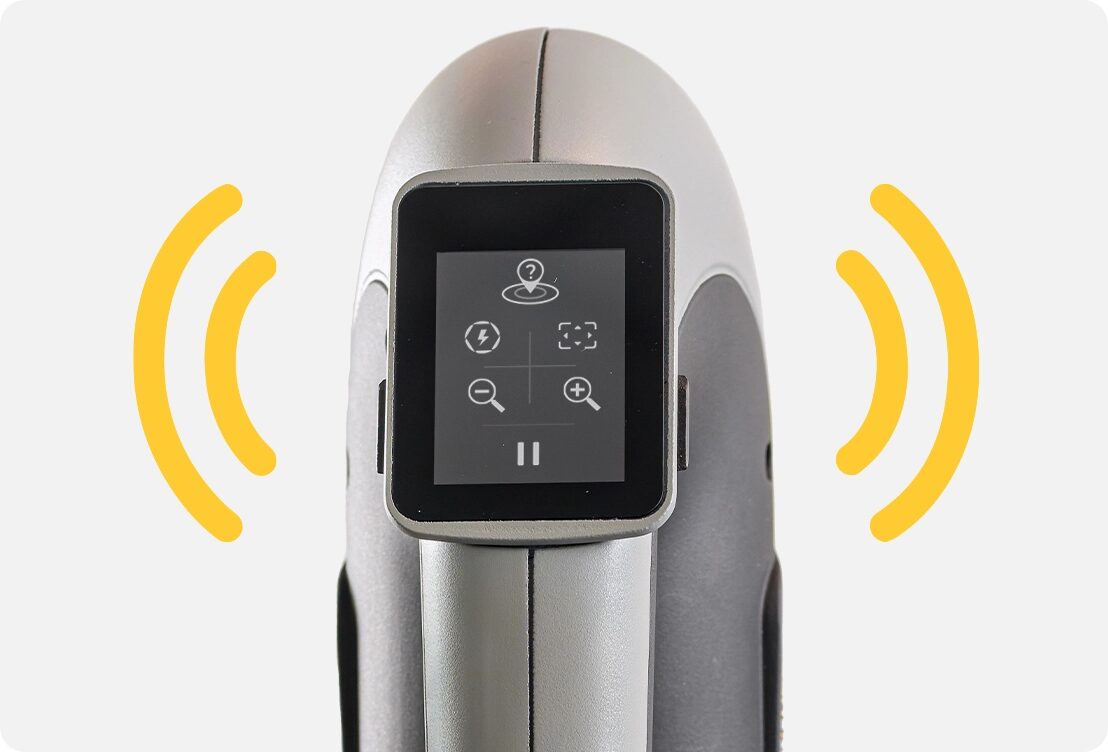

Feel the difference with haptic communication
A world premiere for handheld 3D scanners, Peel 3 features several recognizable vibration patterns to guide you as you scan narrow and hard-to-reach places without a direct line-of-sight. That’s real-time feedback at its best!
Software
You can't go anywhere without good software

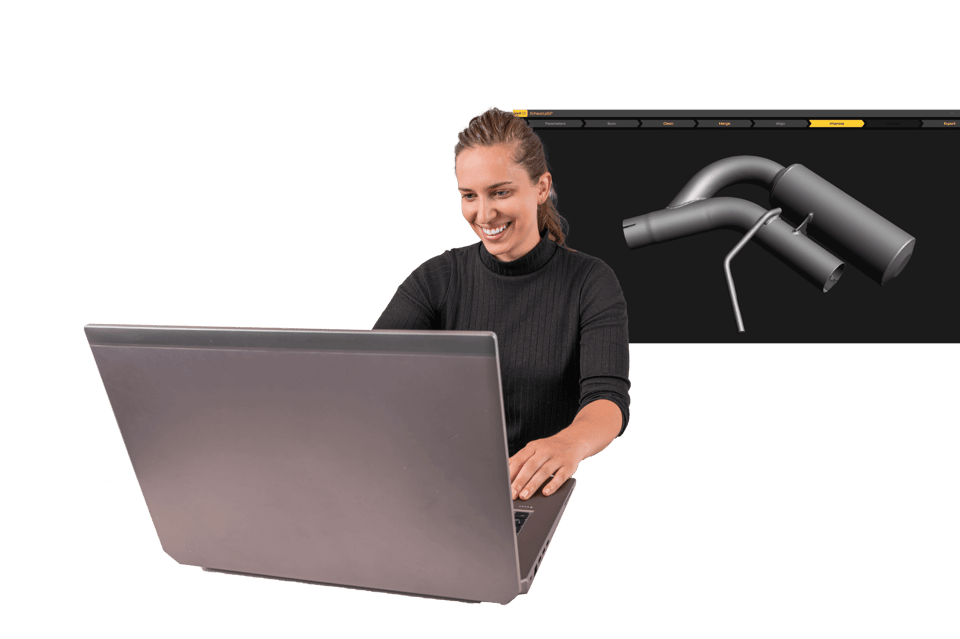

Peel 3 comes with Peel.OS, a highly simplified data acquisition software that enables you to process, clean, align, improve and export your 3D scanning data. Thanks to the guided workflows, assisted merge of multiple scans and integrated help, you’ll be scanning with confidence in no time flat!
New, simpler, design
Guided workflows help you quickly optimise the way you work.
Easy to learn
Connected
Peel.OS Software Included!
How it works
Easy as 1, 2, 3 - literally!

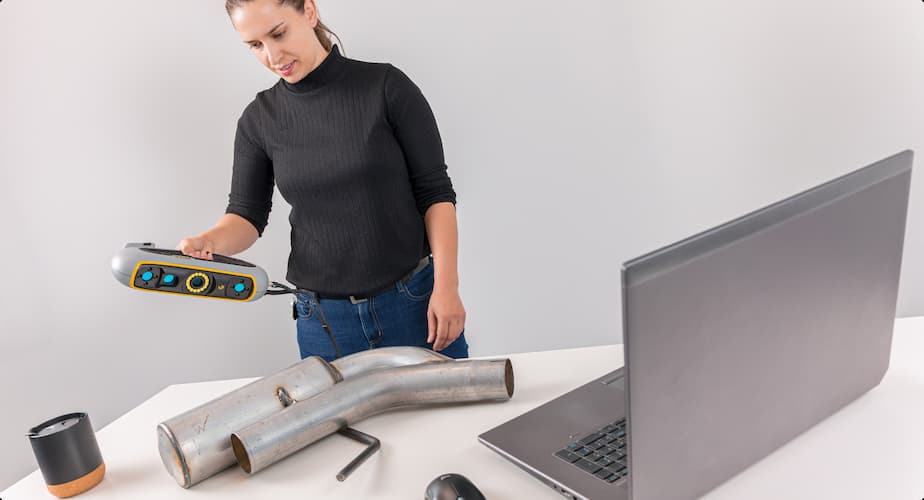

Just point and scan! The Peel 3 scanners triangulated and multi-grip handle makes it easy to maneuver around any object – even narrow and hard-to-reach places.

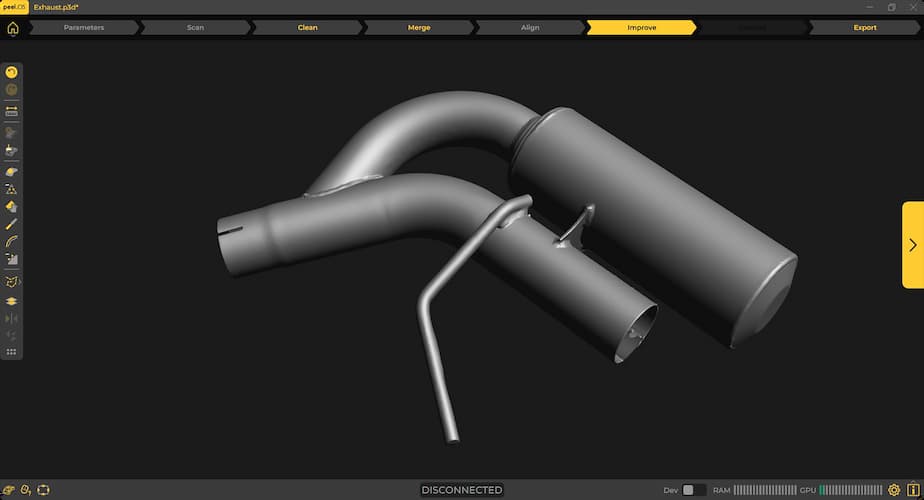

Use the 3D scanning software included with your Peel 3 or Peel 3.CAD to optimise and finalise your meshes for 3D printing or further treatment in CAD.
Export your 3D scanning data to any CAD platform using standard formats (.iges, .setp, .dxf). In just a few clicks, your geometric entities can be transferred to any CAD software.
The best part? It's all included.

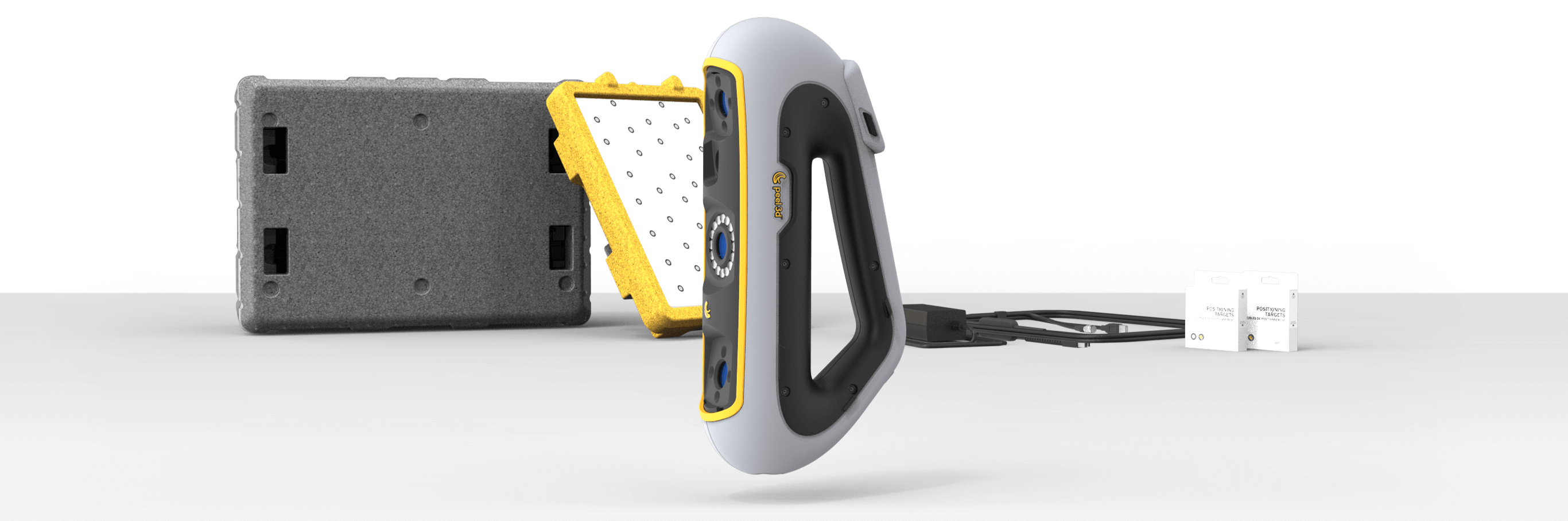

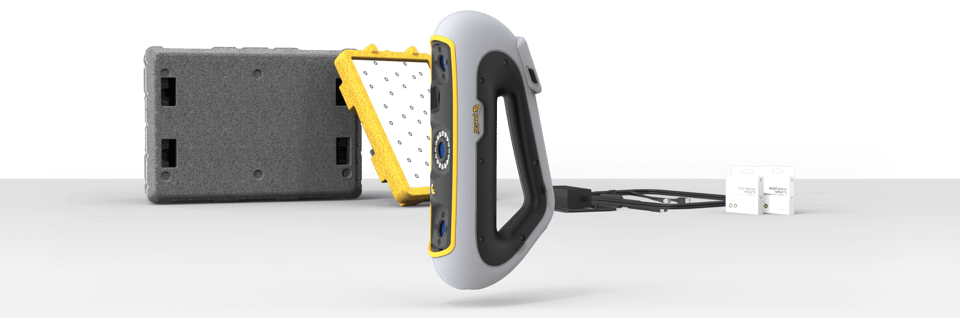

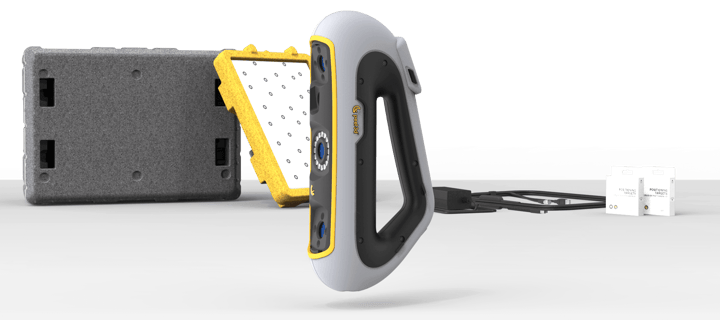

Get our software and some accessories for free when you buy peel 3:
Join the V.I.peel Club
Your investment deserves white-glove service. Safeguard your peel 3 scanner with our exclusive V.I.peel protection plan.
- Free software updates
- Hardware repair coverage (with accident protection)
- 25% off on accessories
- Full exchange value for Creaform technologies
- Only $449 +GST USD/year

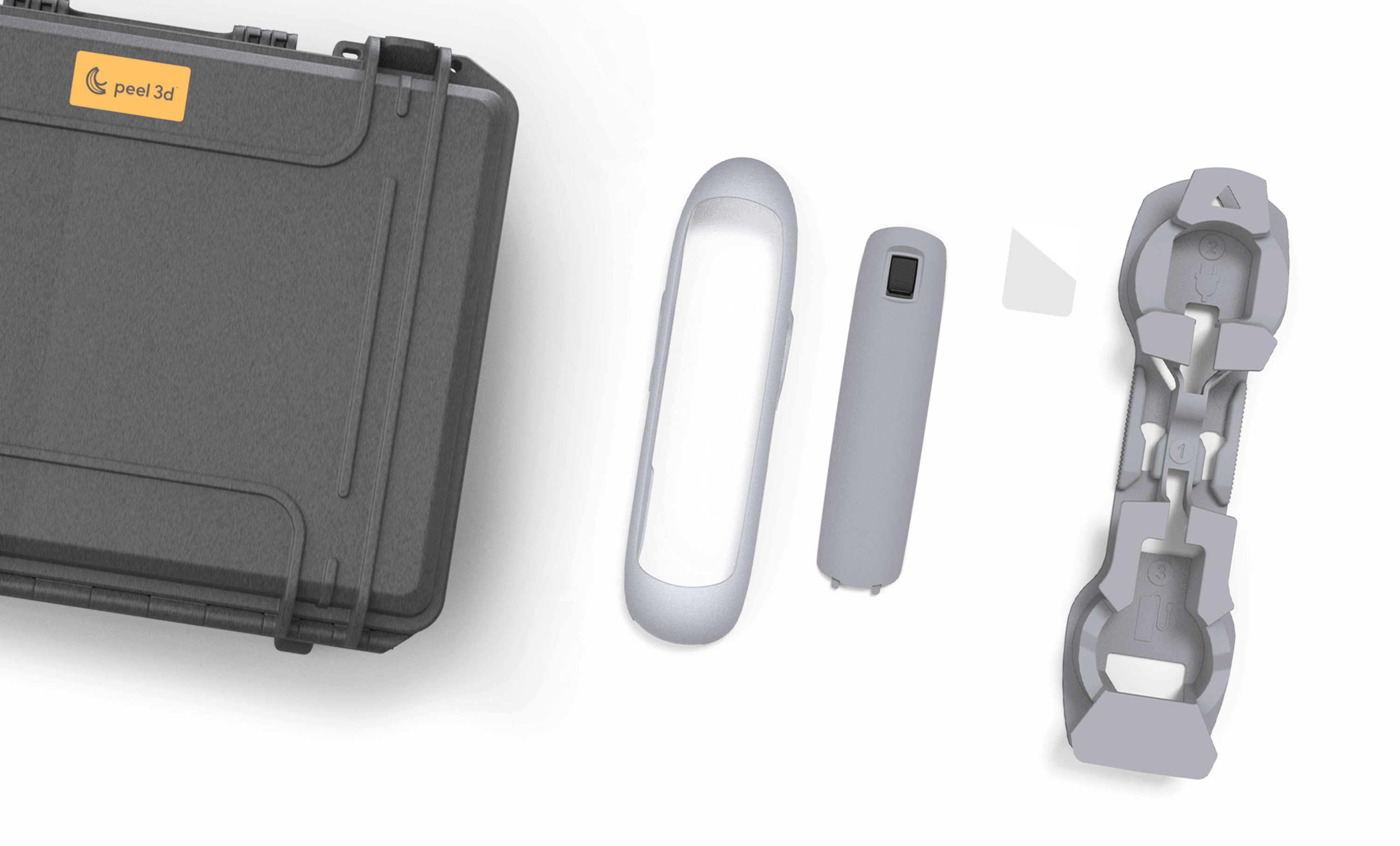

We offer the perfect protection kit for your Peel 3d scanner. It includes a custom silicone sleeve, removable lens cover, a gorilla glass protector and a truly brilliant cable winder! Say goodbye to mechanical degradation!
Carry your Peel 3D scanner with you anywhere with this watertight, crush-proof and dust-proof rugged case. Strong, yet lightweight, it’s small enough to fit inside a plane’s overhead bin!
Discover a range of 3D scanning accessories to accelerate your workflows and productivity.
"Hand-held 3D scanning technology has created new medical device development opportunities for us. "
"We find the Creaform system so easy, stable, and intuitive to use for seamlessly acquiring and editing complex geometry. This scanner is the most used technology in our lab, and I hope for other Creaform systems for new projects.“
"Great performance for the cost! "
"We have found the Peel3D to be easy-to use , even for a first-time scanner. Captures have been fast and accurate, and while a little more guidance / tutorial support for the software would be appreciated, it is easy enough to learn basic functions and processing through trial and error. While the bar for hardware requirements is a little high, we have found the scanner and software to perform very well with systems that meet them."
"Great scanner for body parts."
"The technology is completely new to us but with the peel3D scanner the start in this new promising future technology was much easier than we expected. We mainly scan body parts and it works fine. Our requirement to the scanner was high precision, and the peel3D scanner fulfilled this requirement 100%. Sure we had to test a lot to find the best settings for us, but overall it worked fine from the beginning.
"A Cost Effective 3D Scanner"
"Comparing to other high-end handheld industrial 3D scanners, Peel handheld 3D scanner is affordable yet professional, ideally suitable for our 3D body scanning applications. Indeed, this 3D scanner is compatible with most types of surfaces. It comes with Peel 3D’s data processing software, that is powerful to optimize the 3D capture and export 3D scans for our applications in 3D printing."
"Awesome workflow addition"
"As a sculptor, the ability to move back and forth from the real to virtual is critical in this current (and future) era. The Peel3D scanner makes that transition reasonably straightforward. Like any new tool, there is a learning curve, creating workarounds to achieve desired results, but overall I am pleased with this addition to workflow."
"Great Scanner "
"Purchase was easy. The scanner works well and the software is user friendly. I have already scanned a wide variety of objects with just about every kind of surface you could encounter. With proper surface preparation they all have scanned pretty good. The resolution is acceptable for our operations. We have really expedited the design process using this scanner."
"Intuitive Software"
"I have mainly been using the scanner for capturing general metal loss on pressure equipment for engineering assessments. It doesn't have the highest resolution but is easy to use, has great software and captures geometries fairly quickly. There are cheaper scanners out there with similar hardware specifications, but, where this tool really shines is its software. At the end of the day, the most time spent is in post-processing and data cleanup. I would definitely recommend this scanner for professional use."
We’ve got a 3D scanning solution for your industry

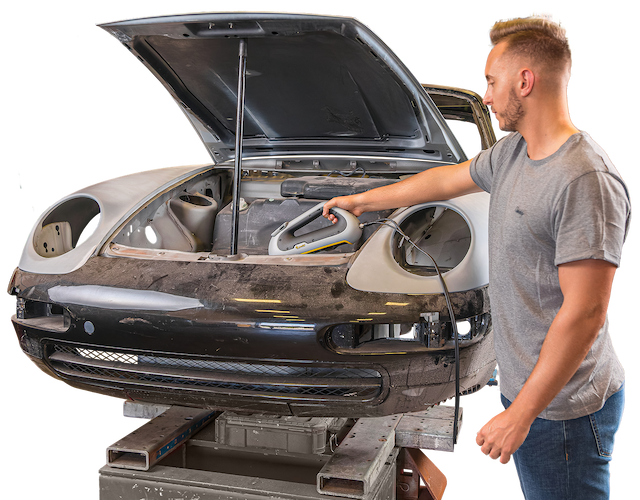

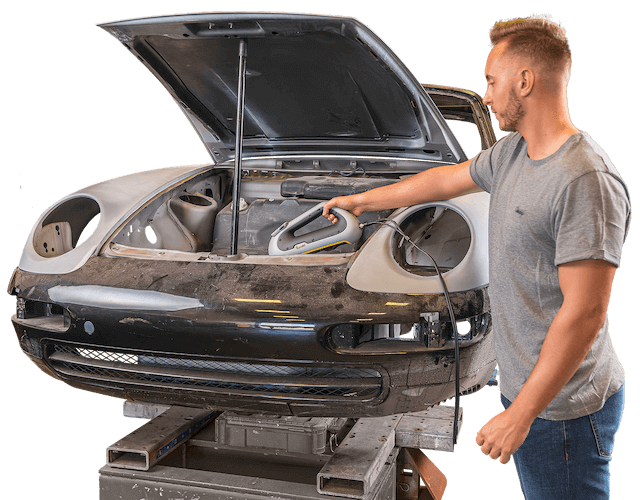

No project can outmatch Peel 3’s performance for aftermarket and tuning applications.
Try this!
- EV conversions
- High-performance parts
- Racing modifications
- Component retrofits
- Vehicle conversions

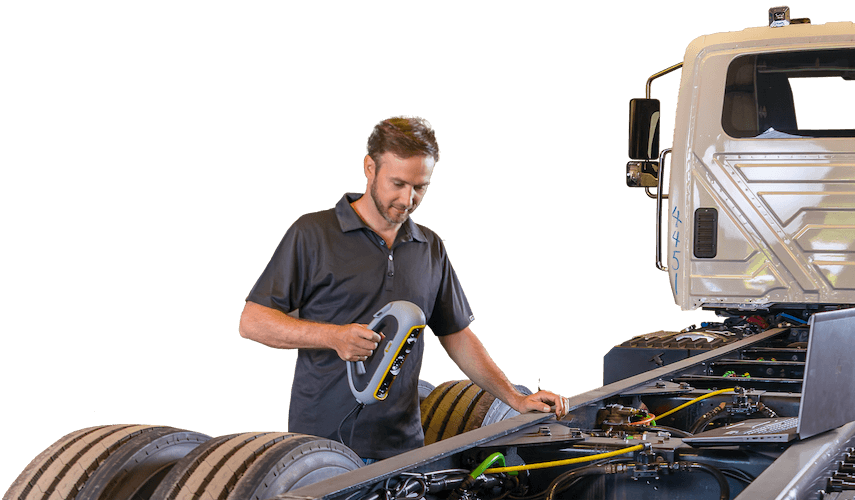

With Peel 3, leverage your ingenuity and facilitate tasks without the grunt work.
Try this!
- Reverse engineering processes
- Mold and cast design
- Repairs
- On-demand spare parts
- Safety and personal protection equipment (PPE)
Take creativity and realism to a whole new level thanks to Peel 3’s unmatched accuracy.
Try this!
- Item-based NFTs
- Custom training and maintenance material
- High fidelity objects
- Custom-made furniture
- SFX & movie production

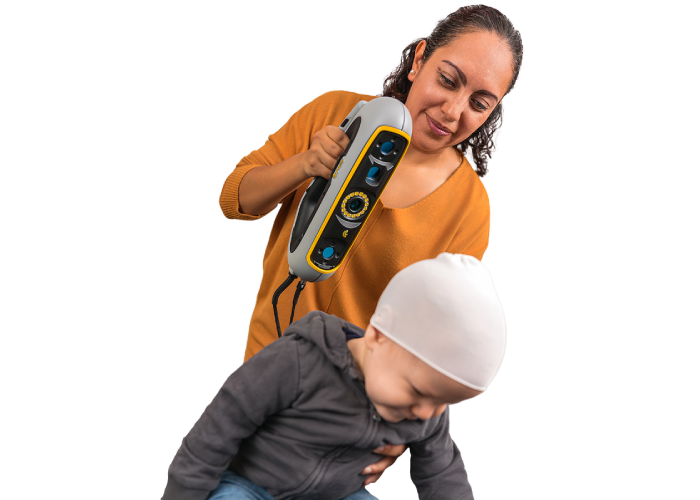

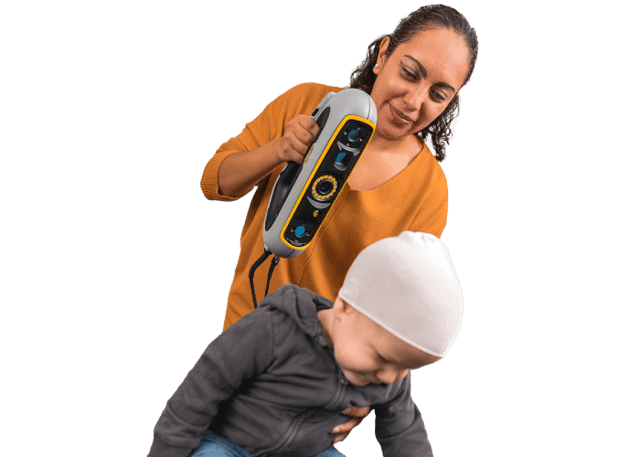

Peel 3d scanners help healthcare professionals achieve better patient outcomes.
Try this!
- Orthotics and prosthetics
- Plastic/esthetic surgery
- Mobility assistance
- Cranial scanning
- Compression garments

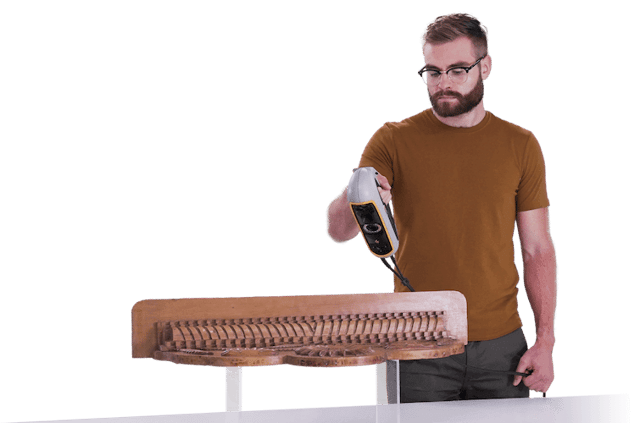

Better understand and preserve the past with the future of professional 3D scanning: Peel 3!
Try this!
- Digital archiving
- Restoration projects
- Scale modifications
- Human anatomy
- Duplication of objects for research

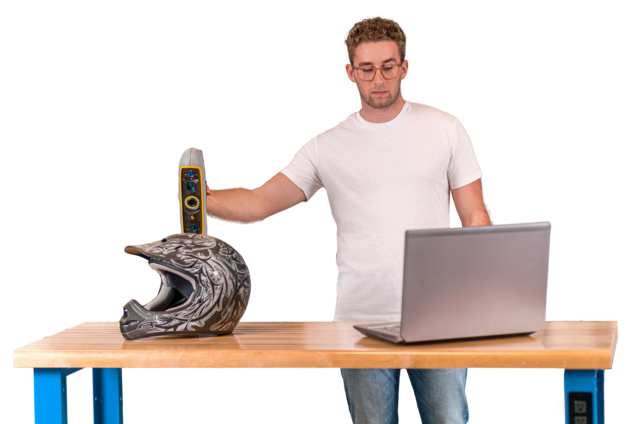

Accelerate the design and improve the quality of your latest innovations with Peel 3.
Try this!
- Design from existing objects
- Modelling of existing components
- Convert handmade models to digital versions
- FEA & CFD
Upskill the engineers and industrial designers of tomorrow with Peel 3’s easy onboarding and simplicity.
Try this!
- Fab lab equipment
- Teaching equipment
- Research Projects
FAQs
Got questions? We got answers!
Peel 3 is a 3D scanner for a variety of applications. Peel 3.CAD is a 3D scanner designed specifically for reverse engineering purposes.
Processor
Operating System
Graphics Card
RAM
Storage
Display Resolution
Available Ports
Minimum Requirements:
Intel Core i7 with 6+ cores @2.3GHz+
NVIDIA GTX/RTX card with 6GB VRAM
16GB
SSD with 200GB+ free space
1920×1080
Recommended Requirements:
Intel Core i7/i9 with 8 cores+ @2.5GHz+
NVIDIA RTX card with 8GB VRAM+
32GB+
500GB+ NVMe SSD
2560×1440+
peel.CAD is perfect to work with SolidWorks, Autodesk, Inventor as well as other popular CAD platforms.
peel.CAD is available as a permanent licence (it will basically work for life) or yearly basis (payment must be renewed on a yearly basis). Software updates are available by subscribing to the V.I.peel club.
Targets are more of a complement; the scanner can use geometry and texture for positioning. They are highly recommended for flatter or smoother surfaces as well as when accuracy is important.
Peel 3 3D scanner
$5990 USD + GST
Peel 3.CAD Package
$8990 USD + GST
Peel 3.CAD Pro Package
$11,990 USD + GST
The Peel 3 Pro.CAD package simplifies 3D scanning and CAD modellng. Turn your scan data into accurate, ready-to-use models with ease. Ideal for reverse engineering, product design, and MRO projects, the Pro package adds advanced sketching and modeling tool features. Accessible to all skill levels, it offers real-time analysis to compare models with original scan data, saving time and reducing rework.
Technical Specifications
| peel 3 | ||||
|---|---|---|---|---|
|
Software |
Peel.OS, Peel.CAD(1), Peel.CAD Pro(2) |
|||
|
Recommended object size range |
0.1 – 3.0m |
|||
|
Accuracy |
up to 0.05mm |
|||
|
Volumetric Accuracy |
0.05mm + 0.1mm/m |
|||
|
Measurement Capabilities |
pin: 1.5mm | hole: 3.0m | step 0.1mm | wall: 1.0mm |
|||
|
Mesh Resolution |
0.25mm |
|||
|
Scanning Area |
340 x 475mm |
|||
|
Scan Speed |
80 sec/m² |
|||
|
Measurement Rate |
1,250,000 measurements/s |
|||
|
Usage Distance (from object) |
250 to 550 mm |
|||
|
Projector Light Source |
IR VCSEL |
|||
|
Scanner Controls |
Touchscreen |
|||
|
Color Resolution (on object) |
50-200 DPI |
|||
|
Dimensions |
304 x 150 x 79mm |
|||
|
Weight |
950 g |
|||
|
Connectivity |
USB 3.0 |
|||
(1) With Peel 3.CAD
(2) With Peel 3.CAD Pro only
(2) With Peel 3.CAD Pro only
The Peel 3D Scanner offers unprecedented performance levels for any object, regardless of complexity and color. Accelerate your workflows thanks to great 3D scanning speeds. Comes with data acquisition software.
The Peel 3.CAD package is a turnkey solution for reverse engineering applications, giving you the versatility to work with your preferred CAD solution and optimise your day-to-day workflows with user-friendly technology.
Peel.CAD Pro includes enhanced sketching and modeling functionalities. This innovative software enables users to transform scan data into accurate, ready-to-use CAD models effortlessly, saving time and reducing rework.
