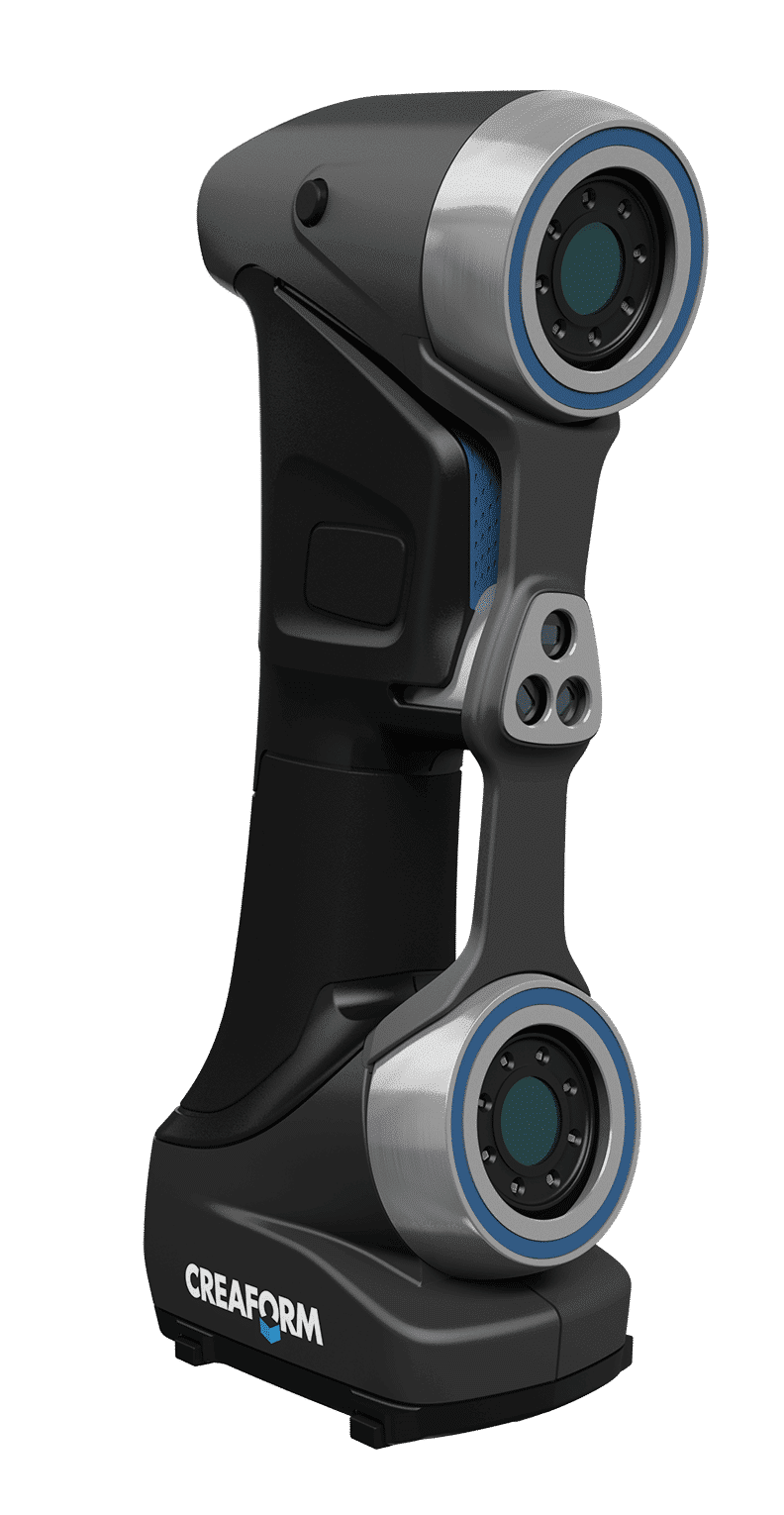

Also known as Pipecheck, the NDT Pipeline Inspection Module delivers accurate results and in-depth analyses directly onsite, enabling pipeline owners to establish valid diagnoses and quickly make appropriate repair decisions.
Aircraft is the first dedicated 3D visualisation software designed for aircraft assessment and the characterisation of dent damage on aircraft surfaces, providing OEMs with comprehensive data on issues requiring further analysis.
Pressure Equipment delivers absolute measurements of thickness loss – with no possibility of human error – on curved and complex geometries that plant owners can fully trust when deciding to shut down their plant or refinery for maintenance work.
The Analysis Toolkit combines powerful inspection and reverse engineering features to streamline maintenance operations. It supports damage assessments without CAD, blend analysis, cross-sections, and key dimensional inspections like bend bending radius and ovality.
Creaform’s pipeline inspection software delivers complete 3D visualisation and automatic defect detection for corrosion, denting, and wrinkle analysis in pipeline integrity assessments.
Unlike the pit gauge, pipeline measures both internal and external corrosion and provides complete 3D visualisation for in-depth analyses. Once corroded surfaces are digitalised, the algorithm simulates a virtual pit gauge that covers the whole surface. Extraction is measured as with the manual tool but with higher accuracy. This ensures 100% surface inspection coverage, better repeatability, and traceability over time.
Pipeline provides key NDT pipeline inspection functionalities, including the automatic detection of maximum depth and size – difficult to find with traditional measuring methods. Once the surface is digitalised, pipeline computes the pipeline’s diameter, curvature, and circumference for automatic defect detection and measurement.
Pipeline’s wrinkle analysis module is programmed to calculate the crest-to-trough depth of the ripple in addition to the wavelength, circumferential extent, and diameter restriction – enhancing the quality of pipeline inspection analyses and reporting. By fitting a perfect cylinder on the damaged pipe, pipeline finds the highest and lowest points of the wrinkle and extracts the depth wavelength of the damaged area.
Creaform’s burst pressure simulation generates a 3D visual report of the digitised surface. It calculates stress, displacement constraints, and burst pressure (with its location) based on triaxial strain analysis. This allows asset owners and service companies to clearly visualise the constraints and limits on their operating pipelines.
3D visualisation of maximum burst pressures and their locations on the pipeline
