Layout is designed for the creation of 2D documentation from your 3D SketchUp models. Drawings in Layout are linked to your SketchUp model so that when you update your model in SketchUp the change also reflects in Layout.
LayOut is included with SketchUp Pro & Studio versions.

Take your 3D model
into 2D space.

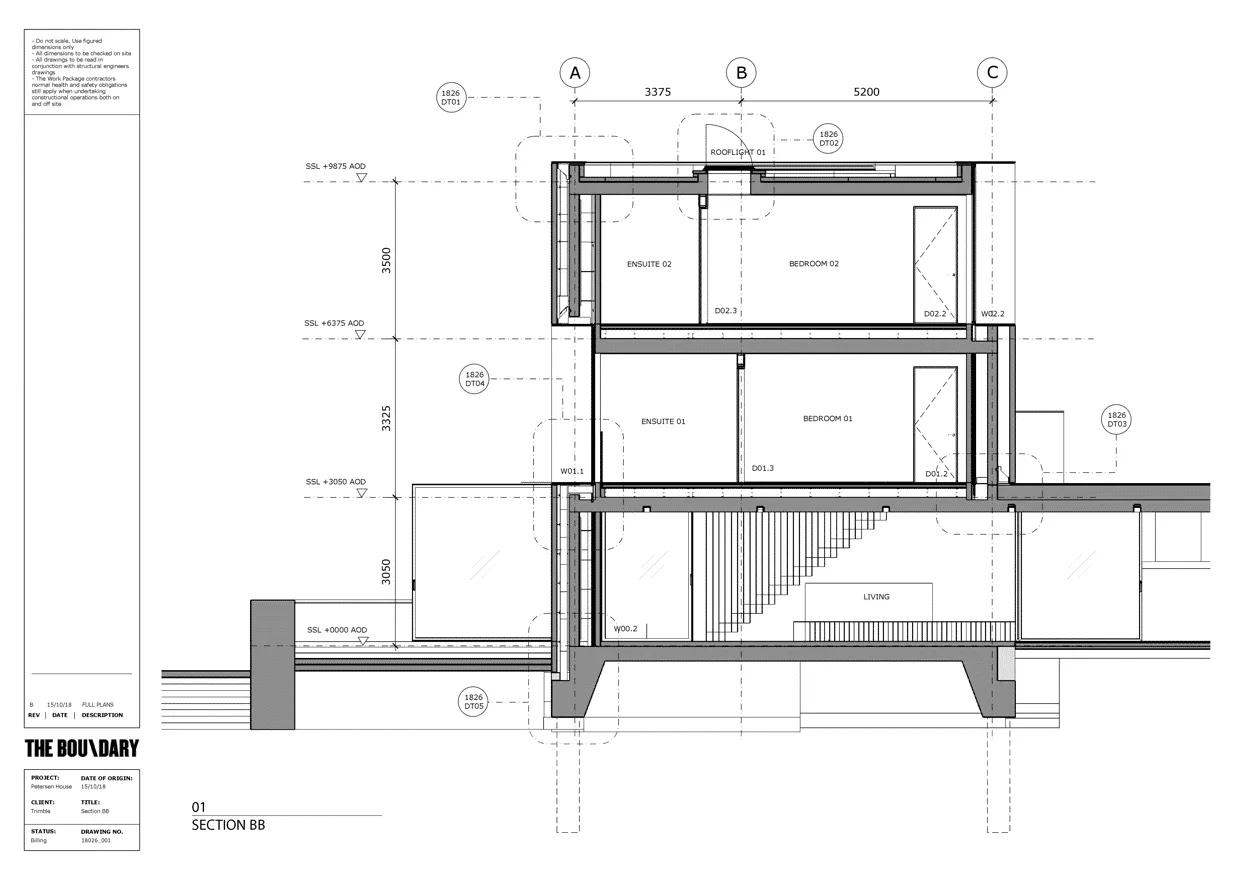

SketchUp LayOut Design Doucmentation

Communicate clearly

  Annotate

LayOut helps you show your client or partner that you’ve captured what you have discussed, and move the project forward confidently.

  Context and details

Never wonder if your drawings are clearly communicating what your intentions are. Clearly call out materials, lengths and details to your contractor, builder, or interior designer.

  Real–world scale

Easily explain the intricate detail of one model, and show real-world scale… all on one page.

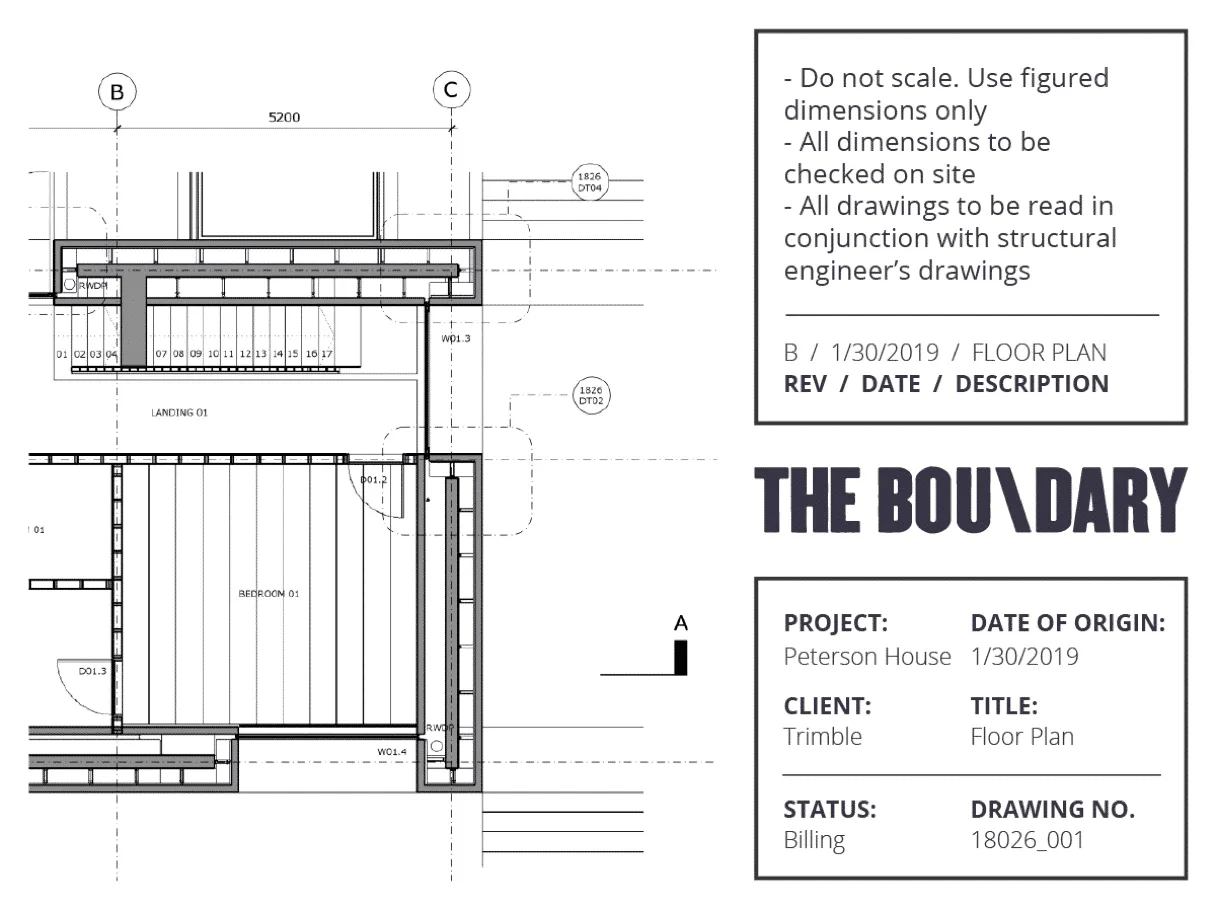

Custom title blocks

Make your drawings yours with a selection of professional title block templates.
SketchUp LayOut Title Blocks

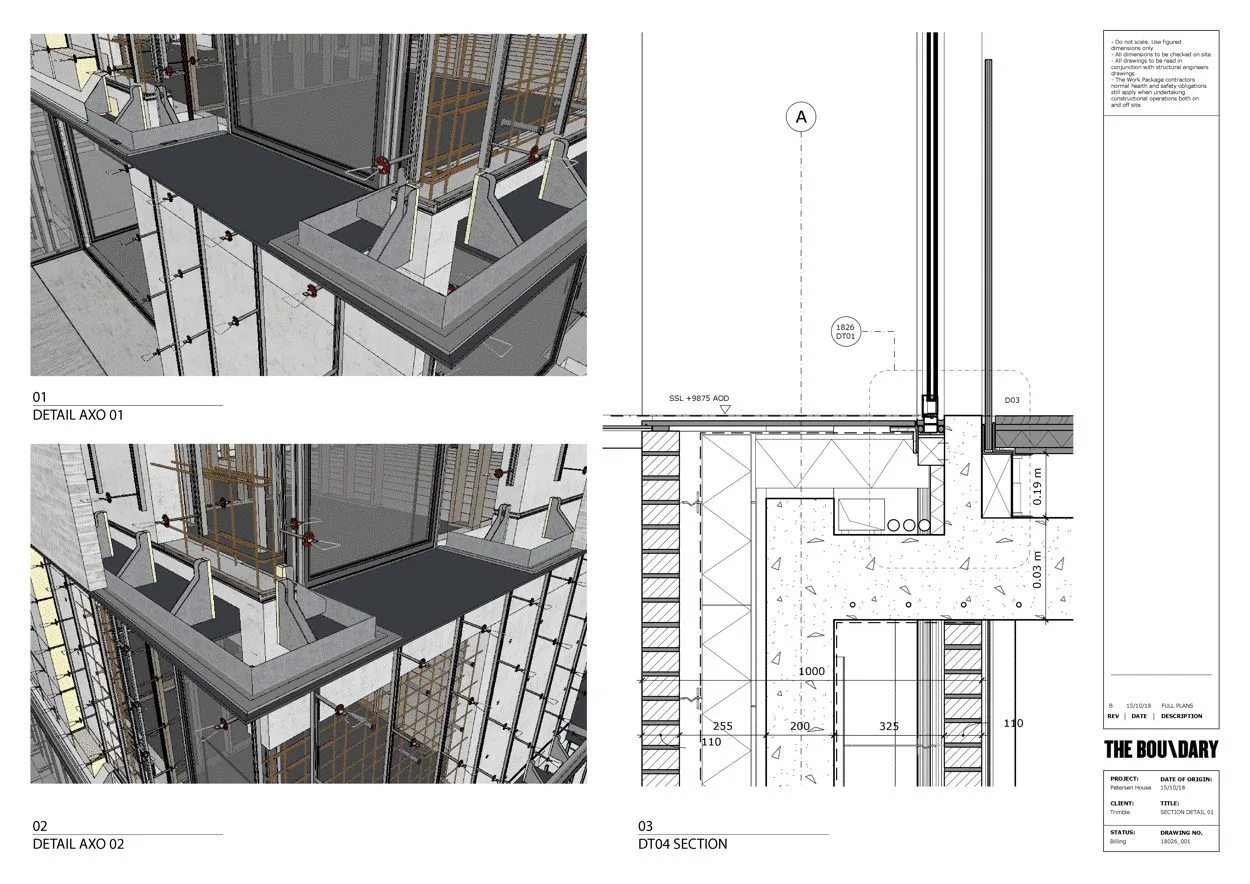

SketchUp LayOut Multiple Views

Multiple views

Get buy–in faster. Communicate it all in one place: all the angles, all the details, all the context.

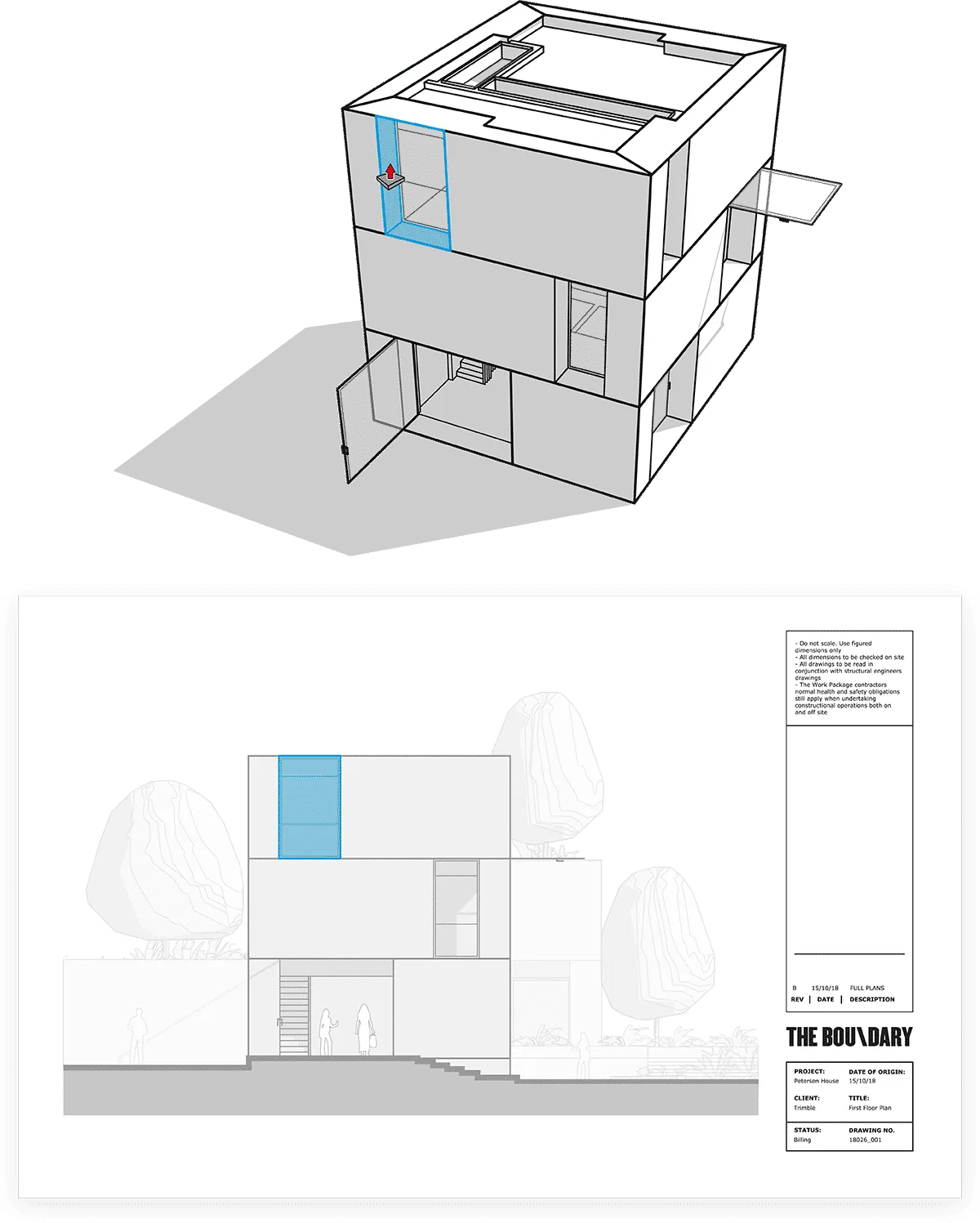

Associative dimensions

Need to make a change to your model? LayOut instantly updates dimensions, labels, and model geometry when you make the change in SketchUp. Easy.
SketchUp LayOut Associative Dimensions
