Portable 3D Scanning Services

Professional CAD Systems provides portable 3D scanning services for reverse engineering and inspection purposes. We can take your part and transform it into a 3D CAD model.

3D Scanning Locations

We can provide our Portable 3D Laser Scanning Service wherever you are in NZ. Fast and accurate scanning of parts, processes and equipment on site at your facility.

OR

You can send the parts through to be scanned at our office in Hamilton.

Why use 3D Scanners?

  • You need to measure very complex parts

    3D scanners measure every surface at millions of points, making it easy to measure very complex shapes.

  • You need to remeasure parts you don’t have

    When an object is 3D scanned it creates a complete digital record that can be re-measured at any time.

  • You need to measure things in difficult areas

    Creaforms portable scanner and software range are easy to setup and use in any environment.

3D Scanning Applications

Bridging Physical & Digital Worlds

3D Scanners are used to get complete or partial 3D measurements of any physical real-world part or object so that they can be remodelled or analysed for:

• Reverse Engineering of Existing Parts

• Quality Control and Inspection

• Parametric 3D Modelling

• Preparation for Prototyping

• 3D Scanning for Product Libraries

• 3D Achieving

3D Scanning Industries

• Manufacturing

• Industrial Design

• Healthcare

• Film & Stage

• Gaming & Virtual Reality

• Heritage Preservation

3D Scanning Accuracy

The scan data acquired is very high resolution and highly accurate.

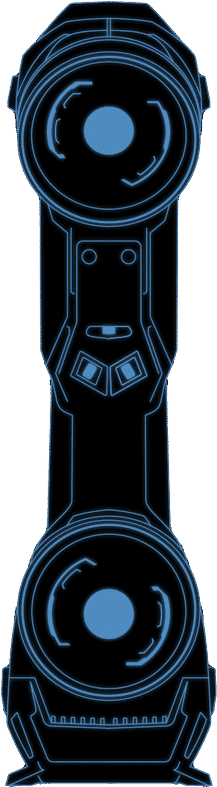

These are the specifications of the scanner we use to do the majority of our scans with;

3d scanning,reverse engineering,3d scanning services nz

Accuracy

0.025 mm (0.0009 in)

Volumetric Accuracy

0.020 mm + 0.040 mm/m
(0.0008 in + 0.0005 in/ft)

Measurement Resolution

0.025 mm (0.0009 in)

Measurement Rate

1,300,000 measurements/s

Part size range

0.05 – 7m (0.15 – 23 ft)

3D Scanning Services Quote Form

request_quote

3D Scanning Hireage

Our 3D Scanners are up and running in less than 5 minutes and require no rigid set-up nor particular experience from the user. You can scan parts in virtually any size, material or color in a straight-forward data acquisition process that generates extra fast results, with real time visualization and direct mesh output.
3dscanning_how-it-works

3D Scanning Hireage Request Form

request_quote
3dscanning_how-it-works2

Need more info?
