The most intuitive way to design, document, and communicate your ideas in 3D

Graphics Pipeline 2.0

What matters more than how fast, smoothly, and reliably SketchUp renders your models?

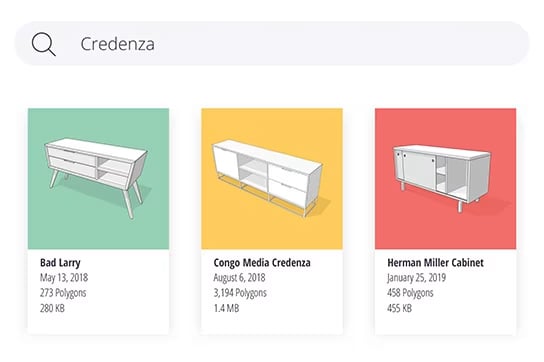

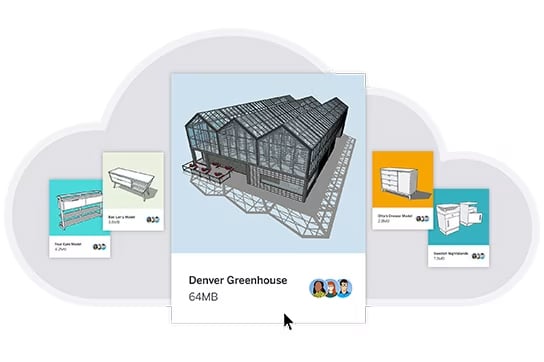

In this release, we've made major improvements to our graphics pipeline, allowing for performance improvements everywhere you see a .SKP. Now, SketchUp, 3D Warehouse, LayOut, my.SketchUp, and Trimble Connect all render models using the same under-the-hood algorithms—all tuned for buttery 3D orbiting.

See (Through) That?

Along with our graphics pipeline overhaul, we’ve made big improvements to transparency, which should now render faster and at higher quality too. SketchUp is also now much better at displaying multiple transparencies to provide a more realistic sense of depth across several see-through faces. And for good measure, we’ve added the ability to fine-tune the opacity level in X-ray mode.n this release, we've made major improvements to our graphics pipeline, allowing for performance improvements everywhere.

DPI High DPI Modeling

We’ve tuned snapping and inferencing for high definition monitors (like Apple’s Retina Display). Edge weights have also been smart-scaled. You can back away from your screen now...

offset Smart Offset

Our new Offset tool avoids overlapping and self-intersecting geometry. Clean offsets, every time you hit ‘F’ (even in LayOut!)

perp Perpendicular Face Inferencing

Have you mastered parallel inferencing? We’ve added a ‘Perpendicular to Face’ inference. Hover a face; SketchUp will helpfully snap to its perpendicular.



Introducing... Tables!

Great documents often feature important information, so we built Tables; a great way to manage spreadsheets in LayOut. Create a Table from scratch, or import a .CSV or Excel file. Tables behave just like other spreadsheets: edit text, style cells, modify columns and rows… you get the gist. LayOut references your original spreadsheet, so updating every Table in your document is as simple as… click!

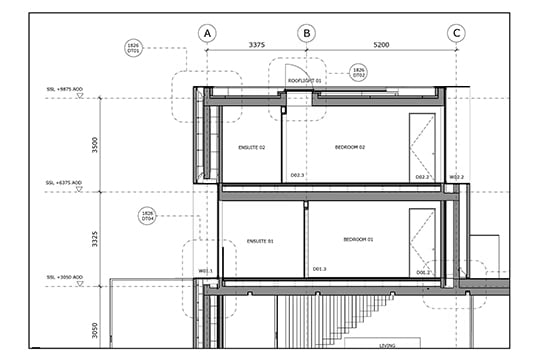

High Fidelity .DWG

Many people use linework from SketchUp in other CAD applications. We've rewritten LayOut’s .DWG/.DXF exporter to make their lives a lot easier. Learn more about the new .DWG/.DXF exporter



dwg One .DWG

Previously, a ten page LayOut file would export as ten separate .DWGs. Now you’ll get just one .DWG with ten separate tabs for each page.

entities Native Entities

In the old days, LayOut entities like dimensions, clipping masks, and labels would explode into raw geometry upon export. Now, they’ll import smartly into AutoCAD and behave just as expected.

scaling Smart Scalings

LayOut exports are now smart enough to self-scale for paper size or model space. Drawing entities like labels and polygons scale to paper size. Model linework scales to model space. Voilà!

Colour Colour by Layer

We’ve added an oft-requested ‘Color-by-Layer’ option to CAD exports, so all entities on a given layer may export as one color. By default, black linework exports so that it renders as black on a white background and white on a black background. That’s like candy for CAD fiends.

Persistent IDs

Now, when you make a change to your SketchUp model, any LayOut dimensions associated with the model update to reflect your edit. This is possible thanks to a new feature across the SketchUp platform called Persistent IDs. These are identifiers for geometry that help SketchUp (and its extensions) manipulate individual entities, like a specific edge or face. Basically, every sliver of your model just got smarter.



persistent

Extension Manager

A new utility, Extension Manager is a one-look view of your SketchUp extensions. From here, it’s easy to toggle on and off custom tools (or uninstall them entirely). Extension Manager also displays an extension’s Digital Signature, the indication it meets our standard for quality and security.



extension
