HandySCAN 3D | Black Series
PROFESSIONAL METROLOGY-GRADE 3D SCANNER
The HandySCAN 3D Black Scanner is the industry standard & reference model in portable metrology‑grade 3D scanning.
Now in its 3rd generation, the HandyScan has been optimised to meet the needs of design, manufacturing and metrology professionals looking for the most effective and reliable way to acquire accurate 3D measurements of physical objects and parts.
When accuracy meets versatility and portability

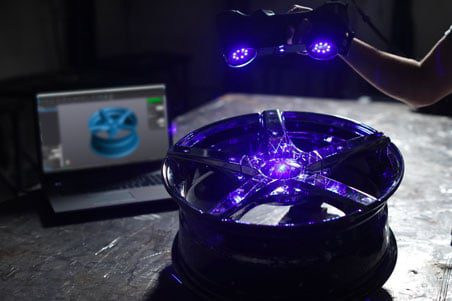

This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.
Accuracy of 0.025mm
ISO 17025
Large Scanning Area
Scan-to-Mesh in seconds
Patented Technology
“This incredible piece of equipment has enabled us to dimensionally inspect countless features that were previously not possible or extremely difficult to measure, here on site. It has become the staple inspection tool for new product introduction and is currently being utilised almost daily. From verifying new or old raw castings, including any pattern changes, to fully measuring some of our most complex geometric tolerances on machined parts, this astounding piece of kit can do it all. Once the initial scanning of a part is done, we can quickly extract complex measurements from the data to create easy-to-read inspection reports. These reports ultimately become the backbone of decisionmaking for the recipient.“
Accurate, Reliable & High-Resolution 3D Measurements
The HandySCAN 3D delivers accurate, high-resolution and repeatable results, regardless of the measurement setup quality and no matter the user experience. Featuring dynamic referencing, both the scanner and part can move during measurement and still provide an accurate and high‑quality scan.
- Accuracy
0.025 mm (0.0009 in) 0.012 mm (0.0005 in) with Limited Edition - Volumetric accuracy
0.020 + 0.040 mm/m
0.020 mm + 0.015 mm/m with Accu+ Kit
0.012mm + 0.020 mm/m with Limited Edition - Reliable acceptance test
Based on VDI/VDE 2634 Part 3 standard
Based on ISO 10360 standard
ISO/IEC 17025: 2017 accredited laboratory - High resolution for fine details
- Integrated photogrammetry
High accuracy on large measurements with volumetric accuracy optimisation
Portability

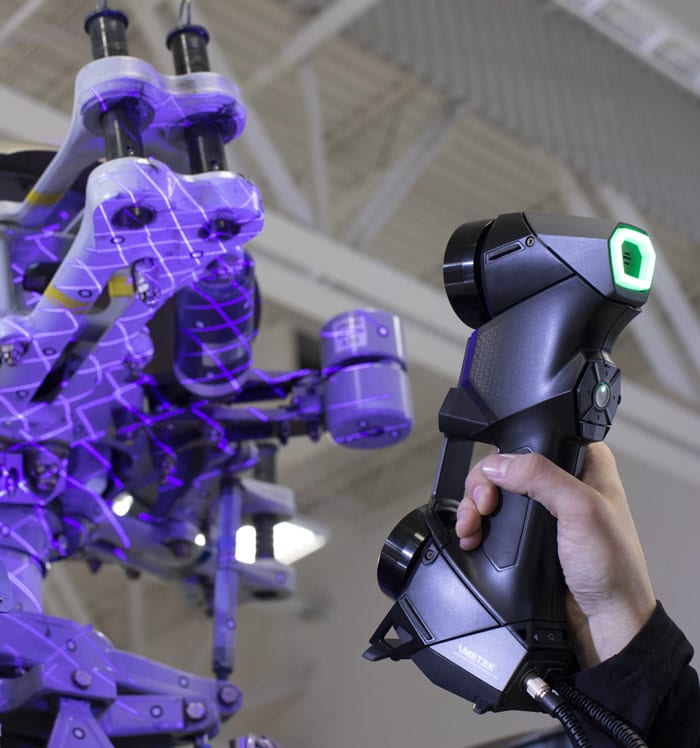

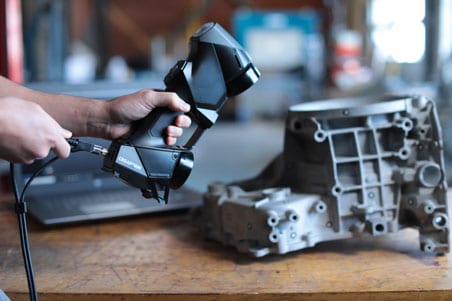

This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.
- Lightweight
0.94 kg - Self-positioning with dynamic referencing
- Fits into a suitcase
- Take it anywhere you need
Faster 3D Scanning Process
- Flexible working distance
200mm to 750mmm for faster acquisition - High measurement rate
Up to 1,800,000 measurements/s - Large scanning area of 30 blue laser lines
- Quick setup
Up-and-running in less than 2 minutes

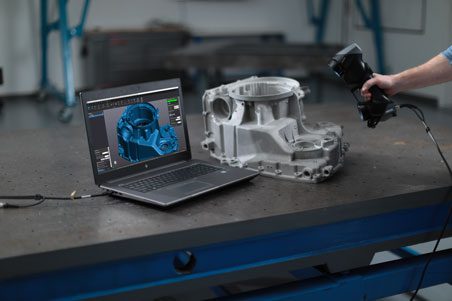

Simplicity and Versatility
Technical Specifications
A brief look at technical specifications of this innovative technology that provides accuracy, simplicity, portability as well as real speed to your applications.
Accuracy
0.025 mm
0.012 mm with Limited Edition
Volumetric Accuracy
0.020 mm + 0.015 mm/m
with Accu+ Kit
Measurement Resolution
0.025 mm
Measurement Rate
1,800,000 measurements/s
Part size range (recommended)
0.05 – 4 m
Looking for the portable 3D scanner that offers the most value for your money?
Our experts will find the perfect 3D measurement solution for your needs!
HandySCAN 3D Scanning Applications
With its user-friendly interface and ergonomic design, this 3D measurement solution is easy-to-use and has a short learning curve.
Its versatility gives the opportunity to scan various object sizes and surface types in real time – all with the same device.

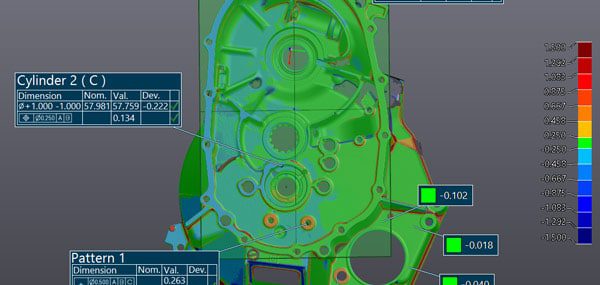

Quality Control
• First article inspection (FAI)
• Part-to-CAD inspection
• Supplier quality inspection

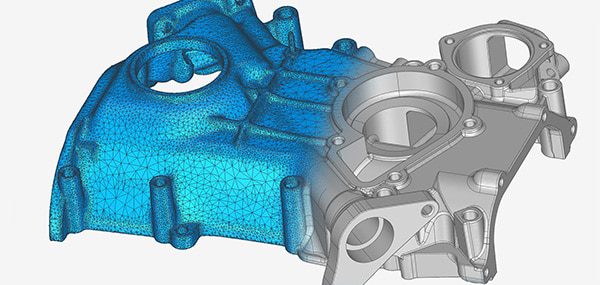

CAD Design
• 3D Scan-to-CAD
• Reverse Engineering (Extracting design intent)
• Packaging design

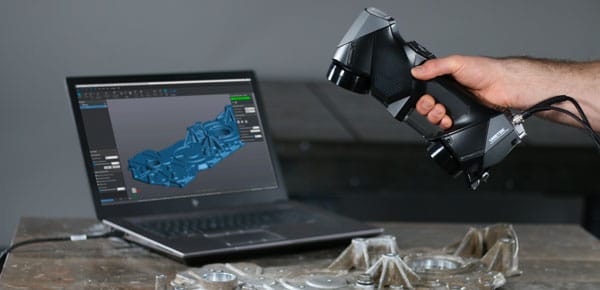

Replacement/Recycling
• Reverse Engineering for developing replacement / restoration parts
• Planning of complex assemblies disassembly / dismantling

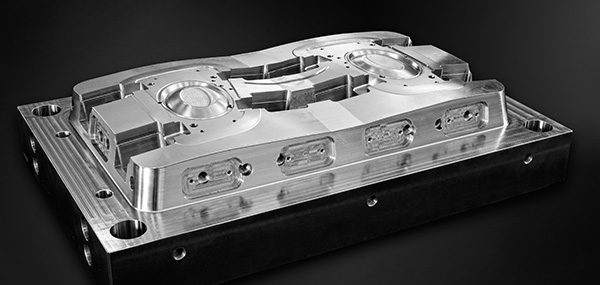

Tooling Design
• Reverse Engineering of casts, dies, molds, fixtures, jigs and patterns
• Update of CAD file to reflect as-built tooling measurements
• Tooling validation/Inspection

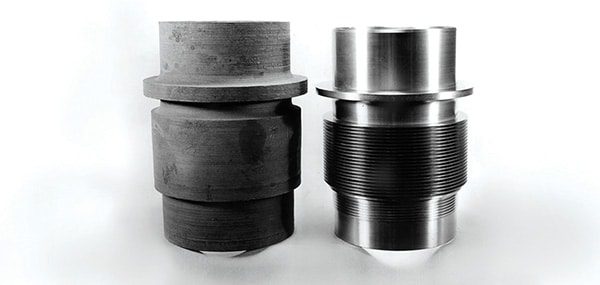

Assembly/Production
• Virtual Assembly
• Tool/Robot path programming
• Part assessment before machining

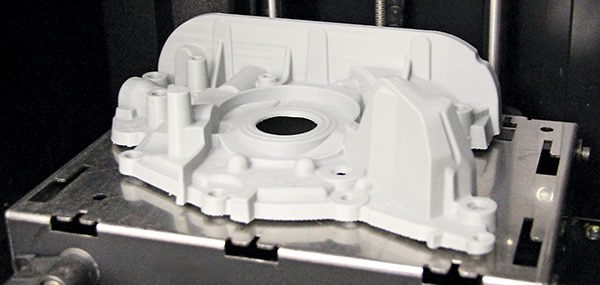

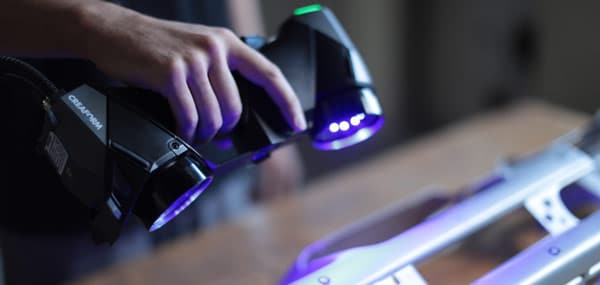

Prototyping
• Rapid prototyping / Manufacturing
• Integration of prototype modifications into CAD file
• Prototype inspection

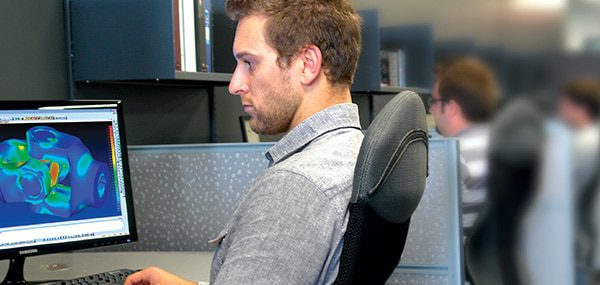

Testing, Simulation & Analysis
• Finite element analysis (FEA)
• Interference analysis
• Deformation, geometry analysis

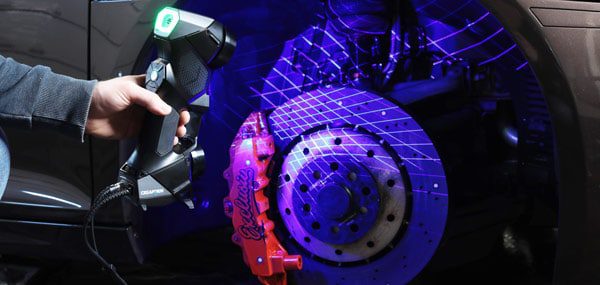

Requirements & Specifications
• Competitive product analysis
• Measurement of product environment or connecting/surrounding parts
• Measurement of existing parts for aftermarket or custom equipment

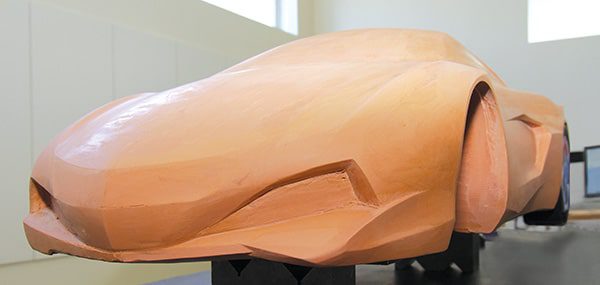

Concept Design
• Clay model measurement/Reverse Engineering
• Models & mock-ups measurement/Reverse Engineering
• Styling & aesthetics
Concept Prototyping
• Integration of prototype modifications into CAD file
• Form study, proof-of-concept prototypes
• Ergonomy prototypes
Documentation

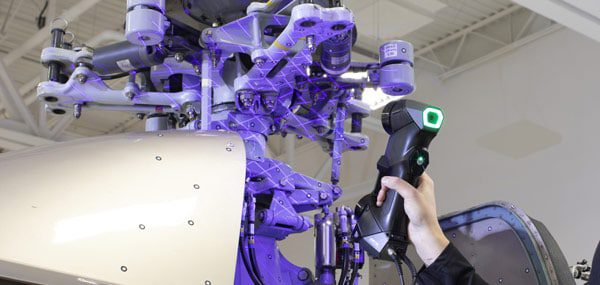

• As-built documentation of parts / Tooling before maintenance
• Digital archiving, marketing presentations, 3D training systems, professional gaming

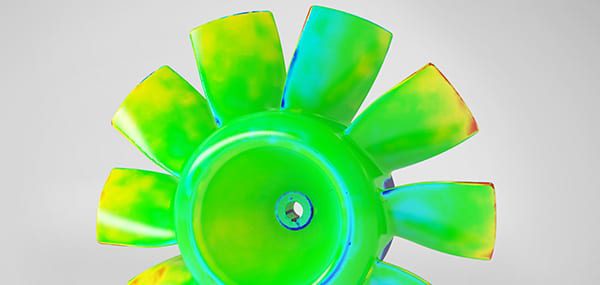

Maintenance, Repair & Overhaul
• Wear & Tear Analysis
• Custom repairs/Modification
• As-built documentation of parts / Tooling before maintenance
HandySCAN 3D Software

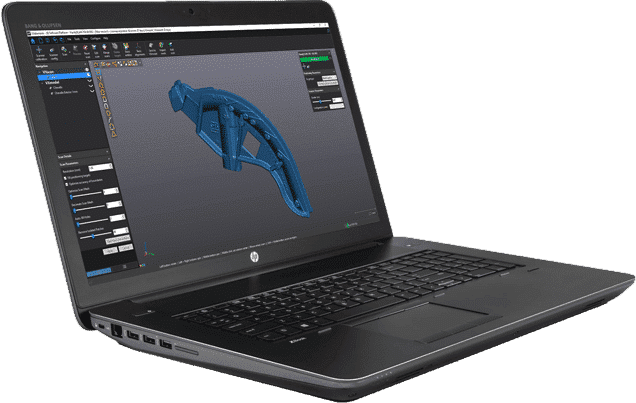

The HandySCAN 3D comes with VXelements, which powers our entire suite of 3D scanning and measurement technologies. It combines all the essential tools you need from data acquisition to CAD Software, in a user-friendly, simplified and sleek working environment.
Software Modules
Compatible Software
AESUB Blue - Subliminating 3D Scanning Spray
SPRAY | SCAN | DONE
- Disappearing state of the art scanning spray
- No cleaning required
- Thin and homogeneous coating
- Free of pigments
- Developed and approved by scanning experts
Ask our Experts
Professional CAD Systems is a Senior Creaform Partner. We offer the following services:
- Software and Hardware Technical Support Helpline
- Equipment Maintenance, Tuning and Calibration
- 3D Scanner Fault Dagnosis and Basic Repairs
- Creaform 3D Scanner Warranty Renewal
- Creaform 3D Scanner Loaner Services
Request a Quote/More Info
