Sun Sky

In this chapter we'll cover a peculiar form of lighting - the sun and sky system in V-Ray. The goal of the plugin is to represent precise physical model of the sunlight. It simulates parallel rays. One can achieve soft shadows by modifying the intensity and the dimension of the rays. The color of the simulation is a...

Last updated 1 September 2026

Introduction

One can also use Sphere light to simulate sunlight, as this type of light contributes to the IrradianceMap, as opposed to SunLight. Despite, we'll talk only about SunLight in this chapter.

Goal

The ideal goal of a sun-sky system will be to find a function of the form:

(view location, date, time, conditions) → spectral radiance (sun direction, conditions) → spectral radiance

(view direction, view location, date, time, conditions) → spectral radiance (view direction, sun direction, conditions) → spectral radiance

Sun

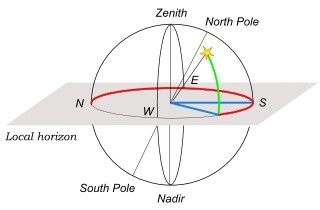

The following picture illustrates common terms around the topic of sun:

Green - altitude
Red - azimuth

We'll talk a little bit about sun's physical properties, because they affect its light spectrum:

Radius - 695000 km
Distance to Earth - 149140000 km
Total Solar Irradiance upon Earth - 1366 (1413 – 1321) W/m2
Solid Angle - 6x10-5 steradians

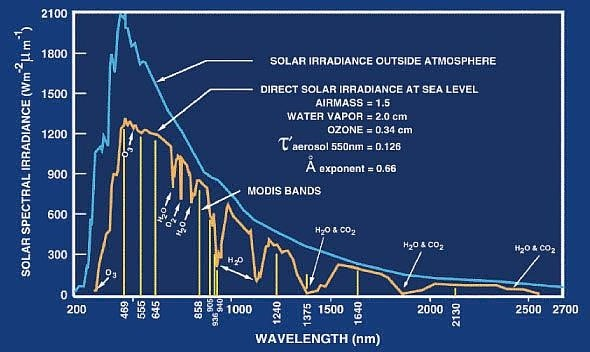

Here's a picture of the Solar Spectrum. The blue line represents the light coming to the Earth, the orange is what is left from it after passing through the atmosphere:

Atmospheric Phenomena

Scattering

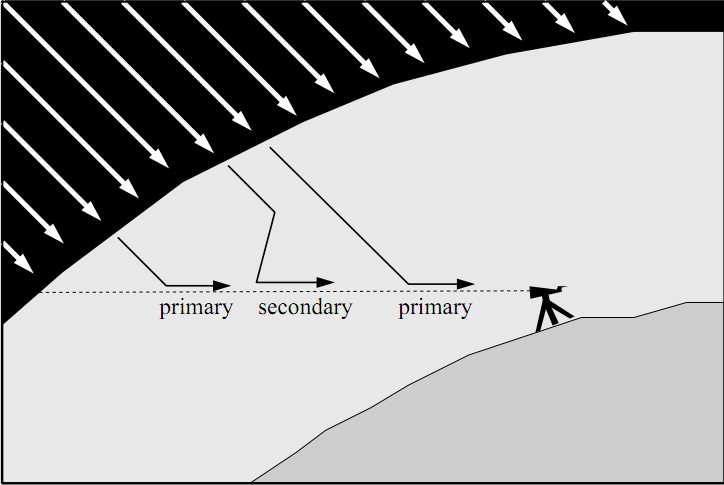

Light may scatter several times on the way to the viewer, although primary scattering typically dominates. Scattering is related to the particle size. Without the scattering in the atmosphere the sky would be black, as on the Moon.

Scattering

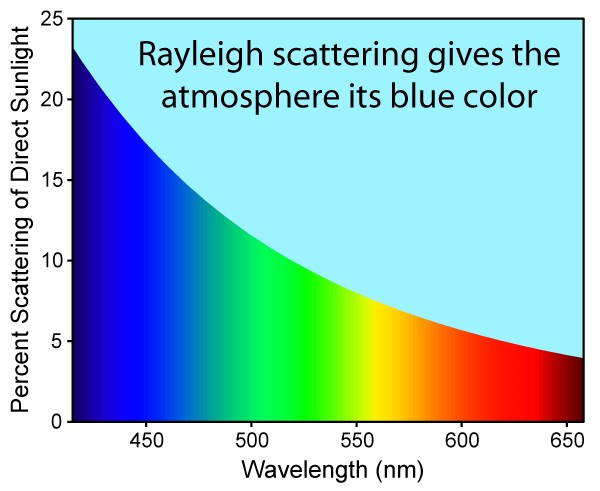

Reyleigh scattering

For particles (atoms and molecules) much smaller than the wavelength of the light (< 0.1λ). Basically the scattering is proportinal to λ−4

Scattering

Mie scattering
For particles bigger than molecules, but smaller than fog (haze, haze aerosol)
Scattering is more uniform with the wave length and causes whitening of the sky.
Sources - volcanic eruptions, forest fires, cosmic bombardment, oceans.

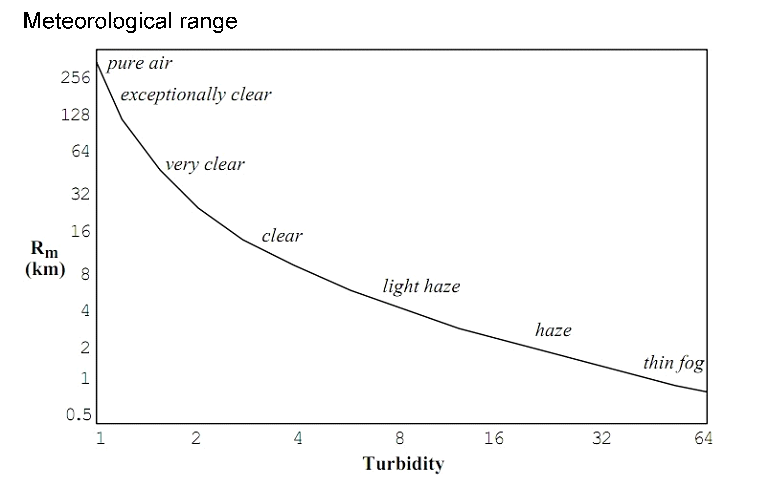

Parametrization - turbidity. In the following formula tm is the turbidity from the molecules, th is from the humidity.

Spectral Absorbtion

Different gases in the atmosphere have different frequencies of absorption. Here we see the different elements - oxygen, ozone, vapor, carbon dioxide.

Sky models

Use measured sky data directly - International Daylight Measurement Program; has no spectral data
Full simulation - One has to work with arbitrarily complex atmospheric conditions and the simulation is very slow
Analytic model - Faster to calculate and controlled via a small number of parameters

Model Types

Hosek et al – When selected, the Sky procedural texture is generated based on the Hosek et al. method and uses a different ground and sky gradient.

Preetham et al. – When selected, the Sky procedural texture is generated based on the Preetham et al. method.

CIE Clear – When selected, the Sky procedural texture is generated based on the CIE method for clear sky.

CIE Overcast – When selected, the Sky procedural texture is generated based on the CIE method for cloudy sky.

PRG Clear Sky – The Sky procedural texture is generated based on the PRG Clear Sky method, which has enhanced sunrise and sunset sky.

Example: Sky Models

The examples below show the different sky model types, in these examples default values for the Sky have been used.

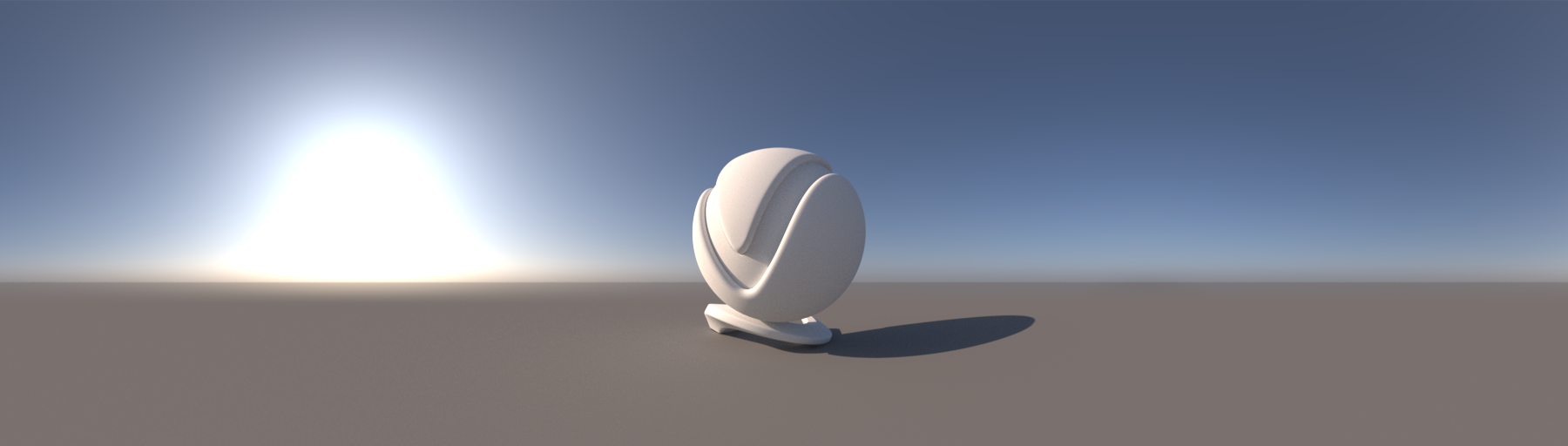

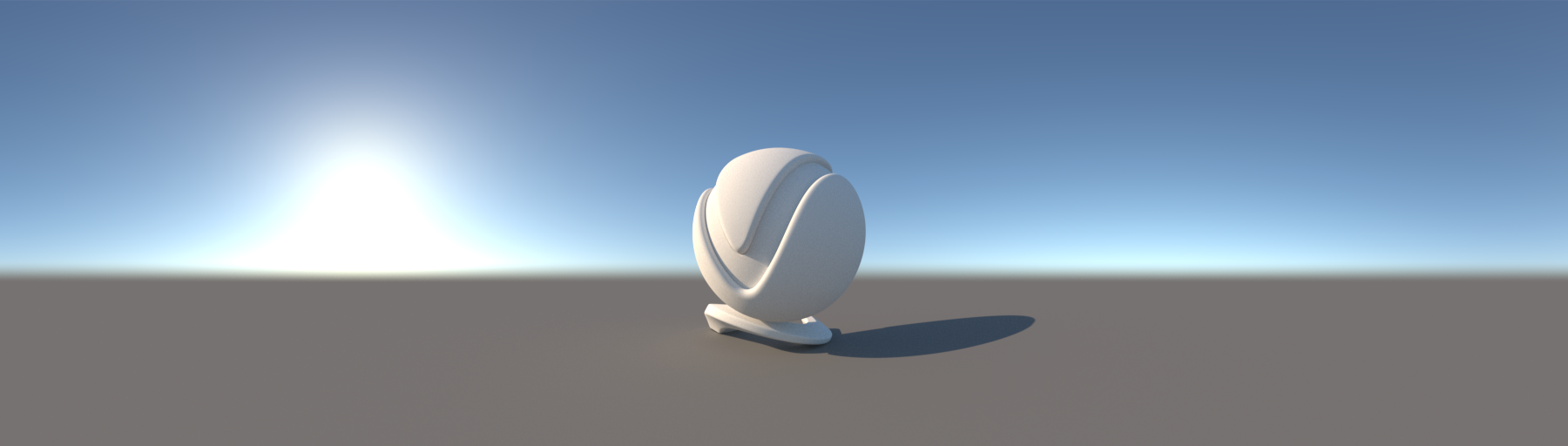

Hosek et al.

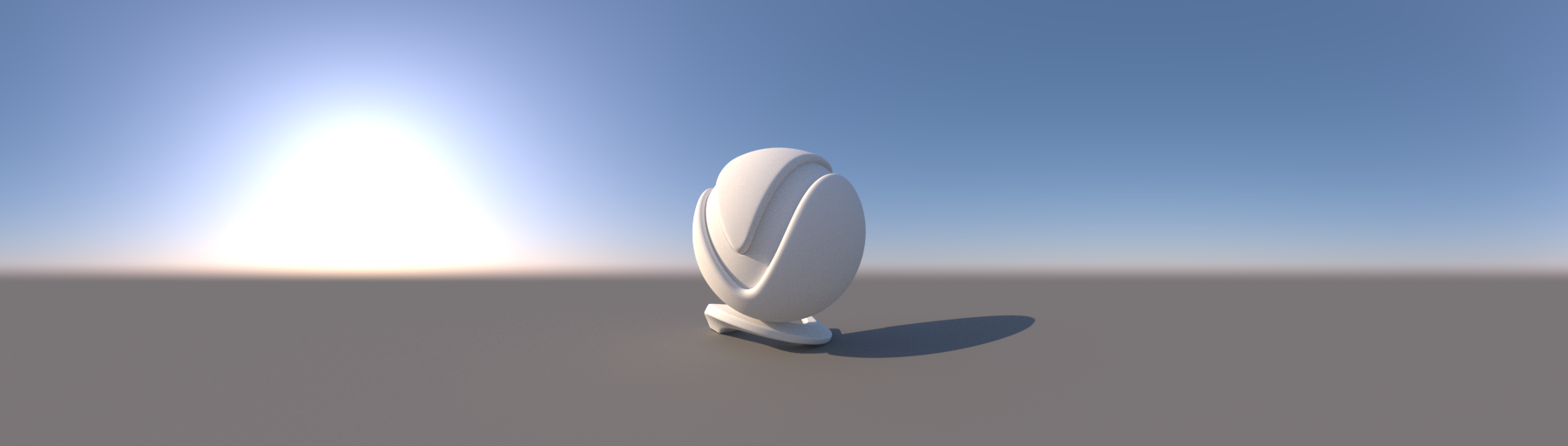

Preetham et al.

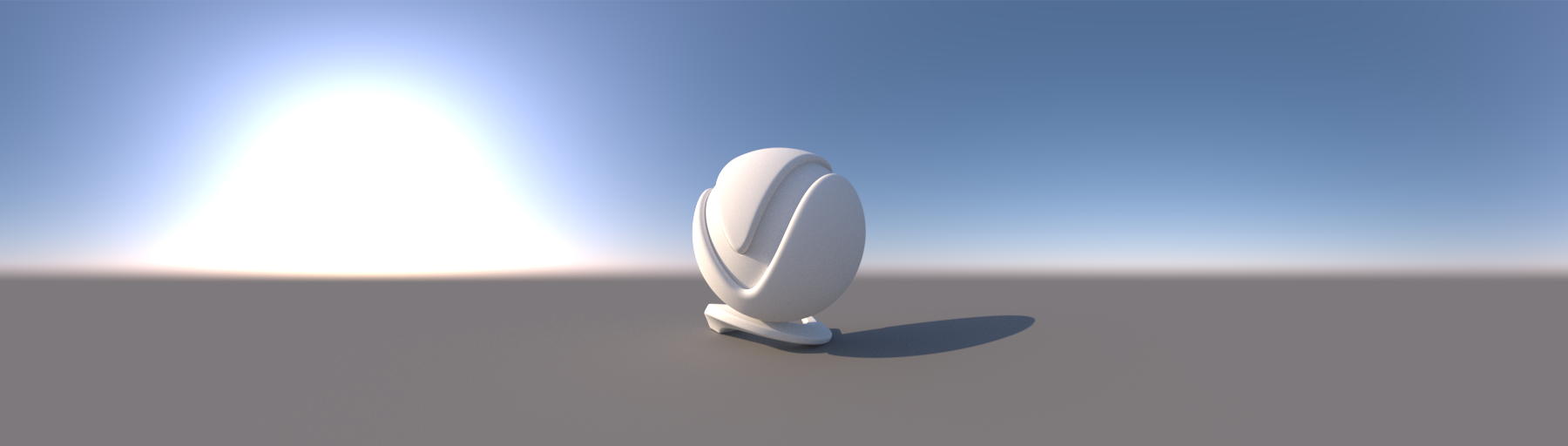

CIE Clear

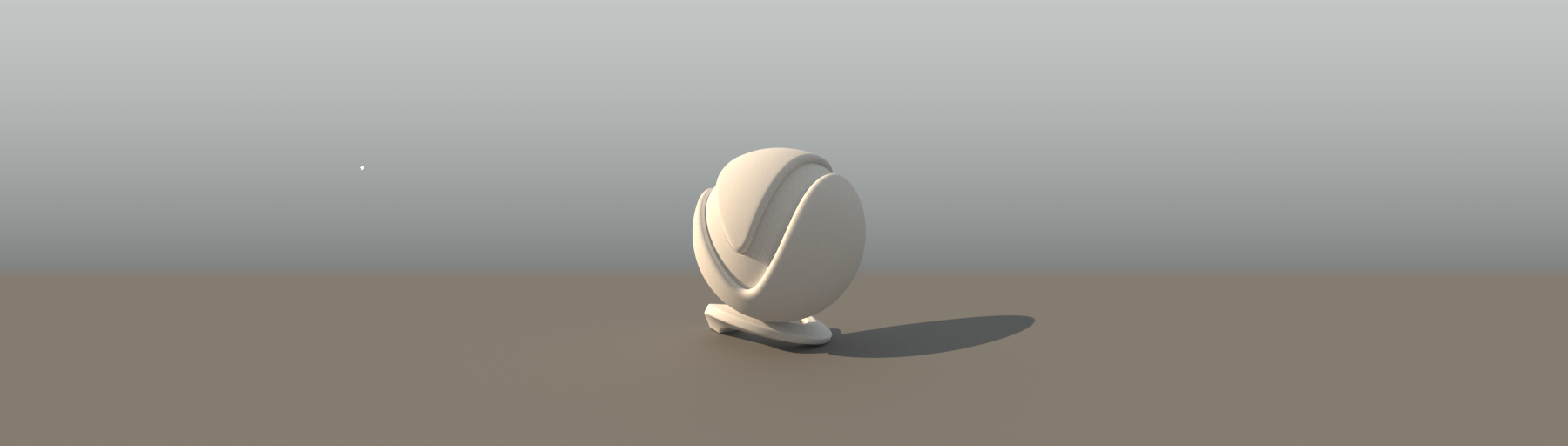

CIE Overcast

PRG Clear Sky

Luminance

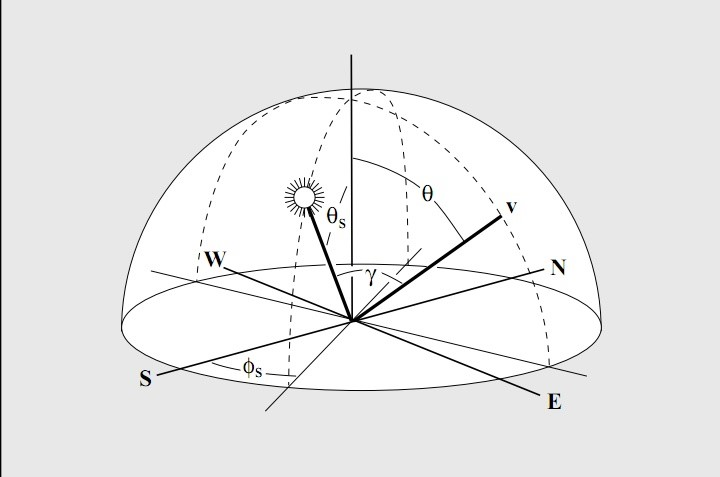

Here's illustration of the Perez et al. Parameter model for luminance:

v - input view direction
Θ and Θs - the azimuth angles
γ - angle between the view and the sun directions With these input parameters our goal is to find the spectrum in a given point.

The model takes into account the following parameters: * Darkening or brightening of the horizont * Luminance gradient near the horizont * Relative intensity of the circumsolar region * Width of the circumsolar region * Relative backscattering light

Chromacity

There are also models for calculating the color of the sun light, which we won't cover in detail

Transmissivity

Final step of the simulation is to determine the amount of direct extraterrestrial light transmitted to the earth surface, taking into account:

Reyleigh scattering
Aerosol scattering (turbidity)
Ozone absorbtion
Mixed gases absorbtion
Water vapor absorbtion

Aerial perspective model

In V-Ray we also take atmospheric perspective effects into account, but we won't cover them here.

Code Example

Python

<code data-v-c2b1f83f=""># Compatibility with Python 2.7.from __future__ import print_function# The directory containing the vray shared object should be present in the PYTHONPATH environment variable.# Try to import the vray module from VRAY_SDK/python, if it is not in PYTHONPATHimport sys, osVRAY_SDK = os.environ.get('VRAY_SDK')if VRAY_SDK: sys.path.append(os.path.join(VRAY_SDK, 'python'))import vraySCENE_PATH = os.path.join(os.environ.get('VRAY_SDK'), 'scenes')# Change process working directory to SCENE_PATH in order to be able to load relative scene resources.os.chdir(SCENE_PATH)# Create an instance of VRayRenderer with default options.# The renderer is automatically closed after the `with` block.with vray.VRayRenderer() as renderer: # Register a simple log callback. Always useful for debugging. def dumpMsg(renderer, message, level, instant): if level == vray.LOGLEVEL_ERROR: print("[ERROR]", message) elif level == vray.LOGLEVEL_WARNING: print("[Warning]", message) elif level == vray.LOGLEVEL_INFO: print("[info]", message) # Uncomment for testing, but you might want to ignore these in real code #else: print("[debug]", message) renderer.setOnLogMessage(dumpMsg) # Load scene from a file. renderer.load(os.path.join(SCENE_PATH, 'lighting.vrscene')) # Remove original light source from the scene. del renderer.plugins["VRayLightDomeShape1"] # Add a physical camera and allowed it to affect exposure. # Otherwise the Sun produces overbright values if not using a physical # setup and without changing its intensity. camera = renderer.classes.CameraPhysical.getInstanceOrCreate() camera.exposure = 1 # The V-Ray Sun light together with the Sky texture plugin provides a # realistic outdoor illumination system that can be tuned to a specific # time of day and athmospheric contents (without clouds). The Sun is # represented as a light source at "infinity" similar to a directional # light, but with a real radius causing soft shadows. sun = renderer.classes.SunLight() # Specify the sun rotation. # The rotation matrix defines the direction vector of the light. Even # though it should be an omni light very far away, it's set as a directional light. # Note: The translation vector does NOT affect position as the Sun light # source is positioned at "infinity". It is only used by some 3D # applications to represent the Sun within the scene with an OpenGL gizmo. sun.transform = vray.Transform( vray.Matrix( vray.Vector(0.9563327, 0, 0.2922803), vray.Vector(0.2010161, 0.7259465, -0.6577188), vray.Vector(-0.2121799, 0.6877511, 0.6942464)), vray.Vector(-94.70224040070444, 306.9639183671097, 309.8629632135933)) # Initialize the target position. # It is used only for caustic effects. Only the translation vector matters. sun.target_transform = vray.Transform( vray.Matrix( vray.Vector(1, 0, 0), vray.Vector(0, 1, 0), vray.Vector(0, 0, 1)), vray.Vector(0, 0, 0)) # Specify the amount of dust in the air. # This property affects the color of the sun and the sky. Smaller values # produce a clear and blue sky and sun as you get in the country, while # larger values make them yellow and orange as, for example, in a big city. sun.turbidity = 2.5 # Specify the reflective property of the "ground". # This property affects sky-dome brightness and color. sun.ground_albedo = vray.Color(0.5, 0.5, 0.5) # Specify the rotation of the sky texture based on a up vector. sun.up_vector = vray.Vector(0, 1, 0) # Specify the procedural model that will be used to generate the V-Ray Sky texture. # Possible values are: # 0 (Preethem) # 1 (CIE Clear) # 2 (CIE Overcast) # 3 (Hosek) sun.sky_model = 3 # Specify shadow offset from the surface. Helps to prevent polygonal shadow artifacts on low-poly surfaces. sun.shadowBias = 0.02 # Specify a color texture for shadows. Overrides the 'shadowColor' parameter. sun.shadow_color_tex = vray.AColor(0, 0, 0, 1) # The Sky texture emits blue (or warm around dusk and dawn) light from all # directions and it is used as an environment texture. texture = renderer.classes.TexSky() # The Sky texture takes its parameters from a SunLight through this connection. # If you don't want a Sun you can set the same parameters on this plugin. texture.sun = sun # Environment plugin with the V-Ray Sky texture used as an input. # It is recommended to use the 'getInstanceOrCreate' method when a settings # plugin is needed because there should be at most one instance of its type in the scene. environment = renderer.classes.SettingsEnvironment.getInstanceOrCreate() environment.bg_tex = texture environment.gi_tex = texture environment.reflect_tex = texture environment.refract_tex = texture # Start rendering. renderer.startSync() # Wait for rendering to end. renderer.waitForRenderEnd()</code>

C++

<code data-v-c2b1f83f="">#define VRAY_RUNTIME_LOAD_PRIMARY#include "vraysdk.hpp"#include "vrayplugins.hpp"#include "utils.h"using namespace VRay;using namespace VRay::Plugins;using namespace std;const char *BASE_PATH = getenv("VRAY_SDK");string SCENE_PATH = (BASE_PATH ? string(BASE_PATH) : string(".")) + PATH_DELIMITER + "scenes";int main() { // Change process working directory to SCENE_PATH in order to be able to load relative scene resources. changeCurrentDir(SCENE_PATH.c_str()); // Load V-Ray SDK library. VRayInit init(NULL, true); // Create an instance of VRayRenderer with default options. // The renderer is automatically closed at the end of the current scope. VRayRenderer renderer; // It's recommended to always have a console log renderer.setOnLogMessage(logMessage); // Load scene from a file. renderer.load("lighting.vrscene"); // Remove original light source from the scene. renderer.deletePlugin("VRayLightDomeShape1"); // Add a physical camera and allowed it to affect exposure. // Otherwise the Sun produces overbright values if not using a physical // setup and without changing its intensity. CameraPhysical camera = renderer.getInstanceOrCreate<CameraPhysical>(); camera.set_exposure(1); // The V-Ray Sun light together with the Sky texture plugin provides a // realistic outdoor illumination system that can be tuned to a specific // time of day and athmospheric contents (without clouds). The Sun is // represented as a light source at "infinity" similar to a directional // light, but with a real radius causing soft shadows. SunLight sun = renderer.newPlugin<SunLight>(); // Specify the light rotation. // The rotation matrix defines the direction vector of the light. Even // though it should be an omni light very far away, it's set as a directional light. // Note: The translation vector does NOT affect position as the Sun light // source is positioned at "infinity". It is only used by some 3D // applications to represent the Sun within the scene with an OpenGL gizmo. sun.set_transform(Transform( Matrix( Vector(0.9563327, 0.0, 0.2922803), Vector(0.2010161, 0.7259465, -0.6577188), Vector(-0.2121799, 0.6877511, 0.6942464)), Vector(-94.70224040070444, 306.9639183671097, 309.8629632135933))); // Initialize the target position. // It is used only for caustic effects.Only the translation vector matters. sun.set_target_transform(Transform( Matrix( Vector(1.0, 0.0, 0.0), Vector(0.0, 1.0, 0.0), Vector(0.0, 0.0, 1.0)), Vector(0.0, 0.0, 0.0))); // Specify the amount of dust in the air. // This property affects the color of the sun and the sky. Smaller values // produce a clear and blue sky and sun as you get in the country, while // larger values make them yellow and orange as, for example, in a big city. sun.set_turbidity(2.5); // Specify the reflective property of the "ground". // This property affects sky-dome brightness and color. sun.set_ground_albedo(Color(0.5, 0.5, 0.5)); // Specify the rotation of the sky texture based on a up vector. sun.set_up_vector(Vector(0.0, 1.0, 0.0)); // Specify the procedural model that will be used to generate the V-Ray Sky texture. // Possible values are: // 0 (Preethem) - default // 1 (CIE Clear) // 2 (CIE Overcast) // 3 (Hosek) sun.set_sky_model(3); // Specify shadow offset from the surface. Helps to prevent polygonal shadow artifacts on low-poly surfaces. sun.set_shadowBias(0.02f); // Specify a color texture for shadows. Overrides the 'shadowColor' parameter. sun.set_shadow_color_tex(AColor(0.0, 0.0, 0.0, 1.0)); // The Sky texture emits blue(or warm around dusk and dawn) light from all // directions and it is used as an environment texture. TexSky texture = renderer.newPlugin<TexSky>(); // The Sky texture takes its parameters from a SunLight through this connection. // If you don't want a Sun you can set the same parameters on this plugin. texture.set_sun(sun); // Environment plugin with the V-Ray Sky texture used as an input. // It is recommended to use the 'getInstanceOrCreate' method when a settings // plugin is needed because there should be at most one instance of its type in the scene. SettingsEnvironment environment = renderer.getInstanceOrCreate<SettingsEnvironment>(); environment.set_bg_tex(texture); environment.set_gi_tex(texture); environment.set_reflect_tex(texture); environment.set_refract_tex(texture); // Start rendering. renderer.startSync(); // Wait for rendering to end. renderer.waitForRenderEnd(); return 0;}</code>

<code data-v-c2b1f83f="">using System;using System.IO;using VRay;using VRay.Plugins;namespace _11_sun{ class Program { static void Main(string[] args) { string SCENE_PATH = Path.Combine(Environment.GetEnvironmentVariable("VRAY_SDK"), "scenes"); // Change process working directory to SCENE_PATH in order to be able to load relative scene resources. Directory.SetCurrentDirectory(SCENE_PATH); // Create an instance of VRayRenderer with default options. The renderer is automatically closed after the `using` block. using (VRayRenderer renderer = new VRayRenderer()) { // Add a listener for any type of log message. renderer.LogMessage += new EventHandler<MessageEventArgs>((source, e) => { // You can remove the if for testing, but you might want to ignore Debug in real code if (e.LogLevel != LogLevelType.Debug) { Console.WriteLine(String.Format("[{0}] {1}", e.LogLevel.ToString(), e.Message)); } }); // Load scene from a file. renderer.Load("lighting.vrscene"); // Remove original light source from the scene. renderer.DeletePlugin("VRayLightDomeShape1"); // Add a physical camera and allowed it to affect exposure. // Otherwise the Sun produces overbright values if not using a physical // setup and without changing its intensity. CameraPhysical camera = renderer.GetInstanceOrCreate<CameraPhysical>(); camera.Exposure = 1; // The V-Ray Sun light together with the Sky texture plugin provides a // realistic outdoor illumination system that can be tuned to a specific // time of day and athmospheric contents (without clouds). The Sun is // represented as a light source at "infinity" similar to a directional // light, but with a real radius causing soft shadows. SunLight sun = renderer.NewPlugin<SunLight>(); // Specify the sun rotation. // The rotation matrix defines the direction vector of the light. Even // though it should be an omni light very far away, it's set as a directional light. // Note: The translation vector does NOT affect position as the Sun light // source is positioned at "infinity". It is only used by some 3D // applications to represent the Sun within the scene with an OpenGL gizmo. sun.Transform = new Transform( new Matrix( new Vector(0.9563327, 0, 0.2922803), new Vector(0.2010161, 0.7259465, -0.6577188), new Vector(-0.2121799, 0.6877511, 0.6942464)), new Vector(-94.70224040070444, 306.9639183671097, 309.8629632135933)); // Initialize the target position. // It is used only for caustic effects. Only the translation vector matters. sun.TargetTransform = new Transform( new Matrix( new Vector(1, 0, 0), new Vector(0, 1, 0), new Vector(0, 0, 1)), new Vector(0, 0, 0)); // Specify the amount of dust in the air. // This property affects the color of the sun and the sky. Smaller values // produce a clear and blue sky and sun as you get in the country, while // larger values make them yellow and orange as, for example, in a big city. sun.Turbidity = 2.5F; // Specify the reflective property of the "ground". // This property affects sky-dome brightness and color. sun.GroundAlbedo = new Color(0.5, 0.5, 0.5); // Specify the rotation of the sky texture based on a up vector. sun.UpVector = new Vector(0, 1, 0); // Specify the procedural model that will be used to generate the V-Ray Sky texture. // Possible values are: // 0 (Preethem) // 1 (CIE Clear) // 2 (CIE Overcast) // 3 (Hosek) sun.SkyModel = 3; // Specify shadow offset from the surface. Helps to prevent polygonal shadow artifacts on low-poly surfaces. sun.ShadowBias = 0.02F; // Specify a color texture for shadows. Overrides the 'shadowColor' parameter. sun.ShadowColorTex = new AColor(0, 0, 0, 1); // The Sky texture emits blue (or warm around dusk and dawn) light from all // directions and it is used as an environment texture. TexSky texture = renderer.NewPlugin<TexSky>(); // The Sky texture takes its parameters from a SunLight through this connection. // If you don't want a Sun you can set the same parameters on this plugin. texture.Sun = sun; // Environment plugin with the V-Ray Sky texture used as an input. // It is recommended to use the 'GetInstanceOrCreate' method when a settings // plugin is needed because there should be at most one instance of its type in the scene. SettingsEnvironment environment = renderer.GetInstanceOrCreate<SettingsEnvironment>(); environment.BgTex = texture; environment.GiTex = texture; environment.ReflectTex = texture; environment.RefractTex = texture; // Start rendering. renderer.StartSync(); // Wait for rendering to end. renderer.WaitForRenderEnd(); } } }}</code>

Node.js

<code data-v-c2b1f83f="">var path = require('path');var vray = require(path.join(process.env.VRAY_SDK, 'node', 'vray'));var SCENE_PATH = path.join(process.env.VRAY_SDK, 'scenes');// Change process working directory to SCENE_PATH in order to be able to load relative scene resources.process.chdir(SCENE_PATH);// Create an instance of VRayRenderer with default options.var renderer = vray.VRayRenderer();// It's recommended to always have a console log callbackrenderer.on("logMessage", function(message, level, instant) { if (level == vray.LOGLEVEL_ERROR) console.log("[ERROR] ", message); else if (level == vray.LOGLEVEL_WARNING) console.log("[Warning] ", message); else if (level == vray.LOGLEVEL_INFO) console.log("[info] ", message); // Uncomment for testing, but you might want to ignore these in real code //else console.log("[debug] ", message);});// Load scene from a file asynchronously.renderer.load("lighting.vrscene", function(err) { if (err) throw err; // Remove original light source from the scene. delete renderer.plugins["VRayLightDomeShape1"]; // Add a physical camera and allowed it to affect exposure. // Otherwise the Sun produces overbright values if not using a physical // setup and without changing its intensity. var camera = renderer.classes.CameraPhysical.getInstanceOrCreate(); camera.exposure = 1; // The V-Ray Sun light together with the Sky texture plugin provides a // realistic outdoor illumination system that can be tuned to a specific // time of day and athmospheric contents (without clouds). The Sun is // represented as a light source at "infinity" similar to a directional // light, but with a real radius causing soft shadows. var sun = renderer.classes.SunLight(); // Specify the sun rotation. // The rotation matrix defines the direction vector of the light. Even // though it should be an omni light very far away, it's set as a directional light. // Note: The translation vector does NOT affect position as the Sun light // source is positioned at "infinity". It is only used by some 3D // applications to represent the Sun within the scene with an OpenGL gizmo. sun.transform = vray.Transform( vray.Matrix( vray.Vector(0.9563327, 0, 0.2922803), vray.Vector(0.2010161, 0.7259465, -0.6577188), vray.Vector(-0.2121799, 0.6877511, 0.6942464)), vray.Vector(-94.70224040070444, 306.9639183671097, 309.8629632135933)); // Initialize the target position. // It is used only for caustic effects. Only the translation vector matters. sun.target_transform = vray.Transform( vray.Matrix( vray.Vector(1, 0, 0), vray.Vector(0, 1, 0), vray.Vector(0, 0, 1)), vray.Vector(0, 0, 0)); // Specify the amount of dust in the air. // This property affects the color of the sun and the sky. Smaller values // produce a clear and blue sky and sun as you get in the country, while // larger values make them yellow and orange as, for example, in a big city. sun.turbidity = 2.5; // Specify the reflective property of the "ground". // This property affects sky-dome brightness and color. sun.ground_albedo = vray.Color(0.5, 0.5, 0.5); // Specify the rotation of the sky texture based on a up vector. sun.up_vector = vray.Vector(0, 1, 0); // Specify the procedural model that will be used to generate the V-Ray Sky texture. // Possible values are: // 0 (Preethem) // 1 (CIE Clear) // 2 (CIE Overcast) // 3 (Hosek) sun.sky_model = 3; // Specify shadow offset from the surface. Helps to prevent polygonal shadow artifacts on low-poly surfaces. sun.shadowBias = 0.02; // Specify a color texture for shadows. Overrides the 'shadowColor' parameter. sun.shadow_color_tex = vray.AColor(0, 0, 0, 1); // The Sky texture emits blue (or warm around dusk and dawn) light from all // directions and it is used as an environment texture. var texture = renderer.classes.TexSky(); // The Sky texture takes its parameters from a SunLight through this connection. // If you don't want a Sun you can set the same parameters on this plugin. texture.sun = sun; // Environment plugin with the V-Ray Sky texture used as an input. // It is recommended to use the 'getInstanceOrCreate' method when a settings // plugin is needed because there should be at most one instance of its type in the scene. var environment = renderer.classes.SettingsEnvironment.getInstanceOrCreate(); environment.bg_tex = texture; environment.gi_tex = texture; environment.reflect_tex = texture; environment.refract_tex = texture; // Start rendering. renderer.start(function(err) { if (err) throw err; // Wait for rendering to end. renderer.waitForRenderEnd(function() { renderer.close(); }); });});</code>

Night Sky

Simulates a realistic procedural night sky, complete with the Moon, stars, and the Milky Way. Night Sky allows users to create accurate nighttime environments based on real-world positioning.

moon_on (boolean) – Enables the appearance of the Moon in the night sky.
moon_size_multiplier (float) – Controls the visible size of the Moon. Affects the appearance of the Moon disc as seen by the camera and reflections, as well as the blurriness of the Moon shadows.
moon_direct_intensity_multiplier (float) – Controls the brightness of the Moon as seen directly in the sky or in perfect mirror reflections/refractions.
moon_indirect_intensity_multiplier (float) – Controls the intensity of the scene illumination cast by the Moon.
moon_glow_multiplier (float) – This is a multiplier for the glow around the Moon. A value of 0 disables the glowing effect.
moon_filter_color (Color) – Filter color is a color tint for the appearance and illumination cast by the Moon. The default white (1, 1, 1) color means no change of color.
moon_override_azimuth (boolean) : Overrides the azimuth of the moon
moon_azimuth (float) – Specifies the Moon azimuth angle measured from the scene North to Eastward. A value of 90 aligns with the X-axis in 3ds Max or East.
moon_override_elevation (boolean) – Overrides the elevation of the Moon.
moon_elevation (float) – Controls the angle between the Moon and the ground. A value of 0 makes the Moon to be exactly at the horizon, and a value of 90 makes the Moon in the zenith.
moon_override_phase (boolean) – Overrides the moon phase.
moon_phase (float) – Specifies the phase of the Moon, where a value of 0 is full Moon, 90 is first quarter, 180 is new Moon, and 270 the last quarter.
moon_override_rotation (boolean) – Overrides the rotation of the Moon disc.
moon_rotation (float) – Rotates the Moon disc in the sky, where 0 makes it match the Moon appearance in its highest point when observed in the Northern hemisphere, and 180 corresponds to the Southern hemisphere.
stars_on (boolean) – Enables the appearance of stars in the night sky.
stars_size_multiplier (float) – Controls the size of the stars. A default value of 1 renders the stars with radius of 1 pixel, a value of 2 makes the stars twice as large. If set to 0 the stars are rendered with the minimum size possible.
stars_size_difference (float) – Controls the size difference between faint and bright stars. When set to 0, all stars have the same size, and a value of 1 makes the brightest stars twice as large, the second magnitude stars (e.g. Polaris) keep their size, and the faintest stars disappear.
stars_direct_intensity_multiplier (float) – Controls the brightness of the stars as seen directly in the sky or in perfect mirror reflections/refractions.
stars_indirect_intensity_multiplier (float) – Controls the intensity of the scene illumination cast by the stars.
stars_milkyway_multiplier (float) – This is a multiplier of the brightness of the Milky Way.
stars_latitude (float) – Determines the Night Sky latitude, where -90° means the sky shows over the South Pole, and 90° means the sky shows over North Pole.
stars_longitude (float) – Determines the Night Sky longitude, where 0 is the Prime Meridian, and 90 is 90° to the East of the Prime Meridian.
stars_date_day (int) – Day part of the date used to position the stars.
stars_date_month (int) – Month part of the date used to position the stars.
stars_date_year (int) – Year part of the date used to position the stars.
stars_time_hours (int) – Hours part of the time used to position the stars.
stars_time_minutes (int) – Minutes part of the time used to position the stars.
stars_time_seconds (int) – Seconds part of the time used to position the stars.
stars_time_zone (int) – Time zone applied to the time used to position the stars.
stars_time_dst (boolean) – Specifies whether Daylight Saving Time applies to the time used to position the stars.
stars_north_vector (Vector) – Specifies the direction to the North.

Result

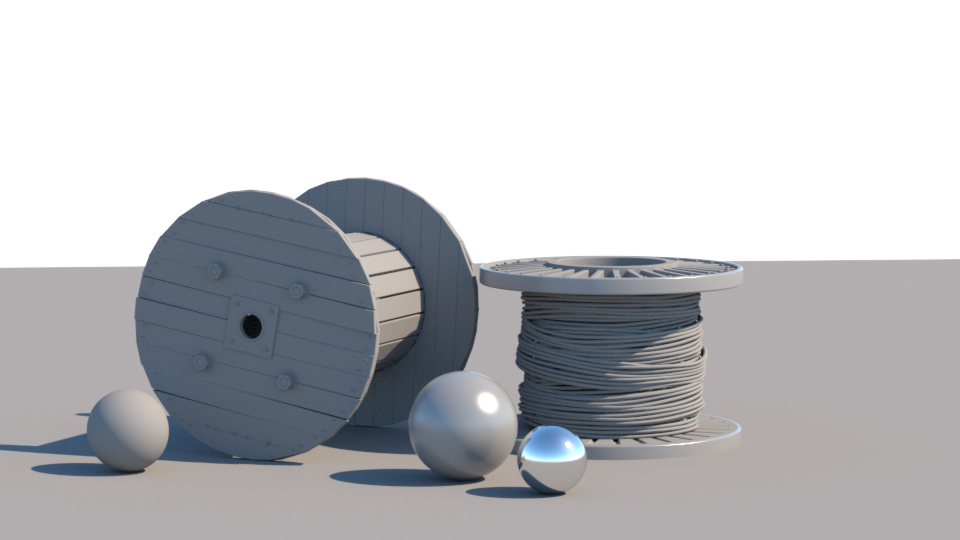

The scene used for this render is called "Lighting_Sun.vrscene" and can be found in the scene bundle (comments to the different parameters available inside).
