Grid

This page provides details about the Grid texture in Chaos Vantage.

Overview

The Grid texture map generates a procedural grid texture using custom colors. The Grid texture parameters are grouped into several tabs: TexGrid, Common and Mapping Properties, UVW Coordinates, and UVW Randomize.

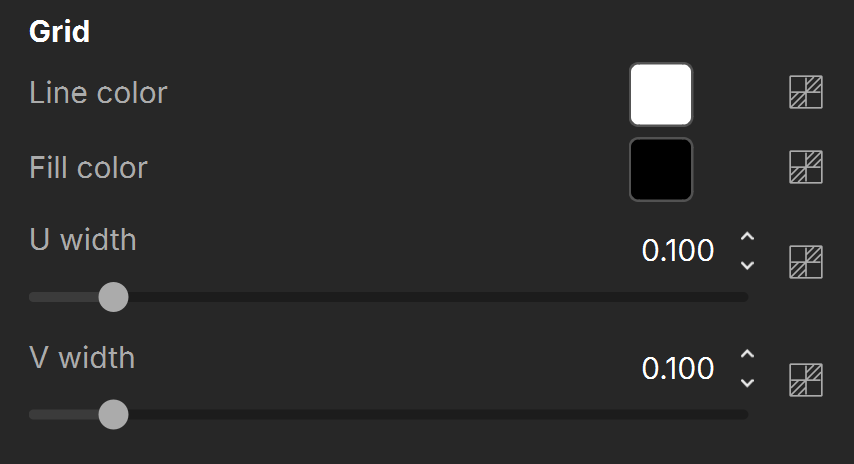

Settings

Line color – Controls the color of the lines in the grid procedural texture.

Fill color – Controls the main non-line color of the procedural grid texture.

U width – Controls the horizontal line width.

V width – Controls the vertical line width.

For information about the parameters in the Common and Mapping Properties, UVW Coordinates, and UVW Randomize tabs, see the Textures page.
