V-Ray Material Preview Settings

The Preview Settings tab is part of the V-Ray Material parameters.

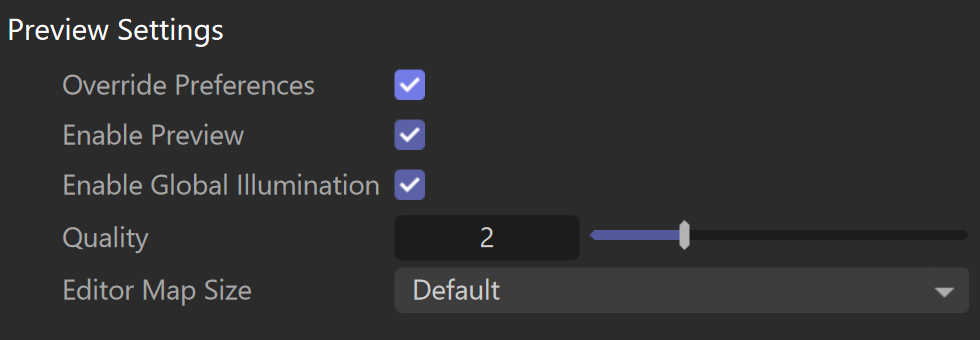

Preview Settings

Override Preferences – When enabled, the parameters in this tab override the global preferences of the scene for the selected material.

Enable Preview – When disabled, the previews of the material in the Viewport and the Material Editor are disabled. The material is displayed in all black. This saves on processing power.

Enable Global Illumination – When disabled, global illumination is not calculated for the material previews of the current material.

Quality – Determines the quality of the material previews. Higher values give more detail but slow down processing.

Editor Map Size – Determines the resolution of the material preview. If you have extra-detailed textures applied to the material, this option would allow you to preview those textures in higher resolution at the preview step, without needing to render.

Default
64×64 (16 KB)
128x128 (64 KB)
256x256 (256 KB)
512x512 (1 MB)
1024x1024 (4 MB)
2048x2048 (16 MB)
4096x4096 (64 MB)
