Infinite Plane

This page provides information about the V-Ray Infinite Plane.

Overview

The V-Ray Plane is a very simple option that implements a procedural infinite plane primitive for V-Ray.

UI Paths

||V-Ray Asset Editor|| > Geometry (right-click) > Infinite Plane

||V-Ray Asset Editor|| > Create Asset (left-click) > Geometries > Infinite Plane

Rhino Menus Ribbon

||V-Ray|| > Objects > Infinite Plane

||V-Ray Objects Toolbar|| > Infinite Plane

Parameters

The V-Ray Infinite Plane does not have any V-Ray specific parameters.

Rhino Ground Plane

The Rhino Document Ground Plane is a unique asset present in the V-Ray Asset Editor. Its options are accessible on Rhino side (command _GroundPlane), whereas in the V-Ray assets list it serves as an alternative method of toggling the Ground Plane on/off - just like a standard V-Ray Infinite Plane.

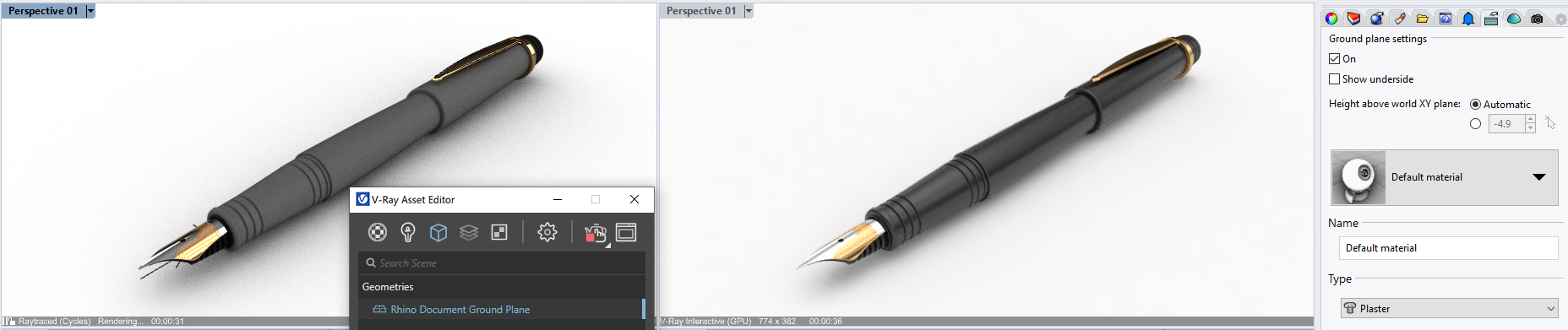

An illustration of the Rhino Ground Plane feature in Raytraced (left) and V-Ray Interactive (right) viewport display modes.

Notes

• Infinite Plane can be created via the _vrayInfinitePlane command in the Rhino Command Line.
