V-Ray Asset Editor

This page provides details on the Asset Editor in V-Ray for Rhino.

Overview

The V-Ray Asset Editor is the place where you can create, save, open assets, and adjust their settings. These include materials, textures, geometry, and lights. You can also manage the Render Channels from the Asset Editor. From its Settings tab, you can choose the render engine, set up the camera, optimize the render process, or render with Swarm. You can also start the render or submit a scene to Chaos Cloud as well as open the VFB.

UI Paths

||V-Ray Toolbar|| > Asset Editor (left-click) > Shows the Asset Editor window

||V-Ray Toolbar|| > Asset Editor (right-click) > Shows the File Path Editor

||V-Ray|| > Asset Editor...

Functionalities

Categories

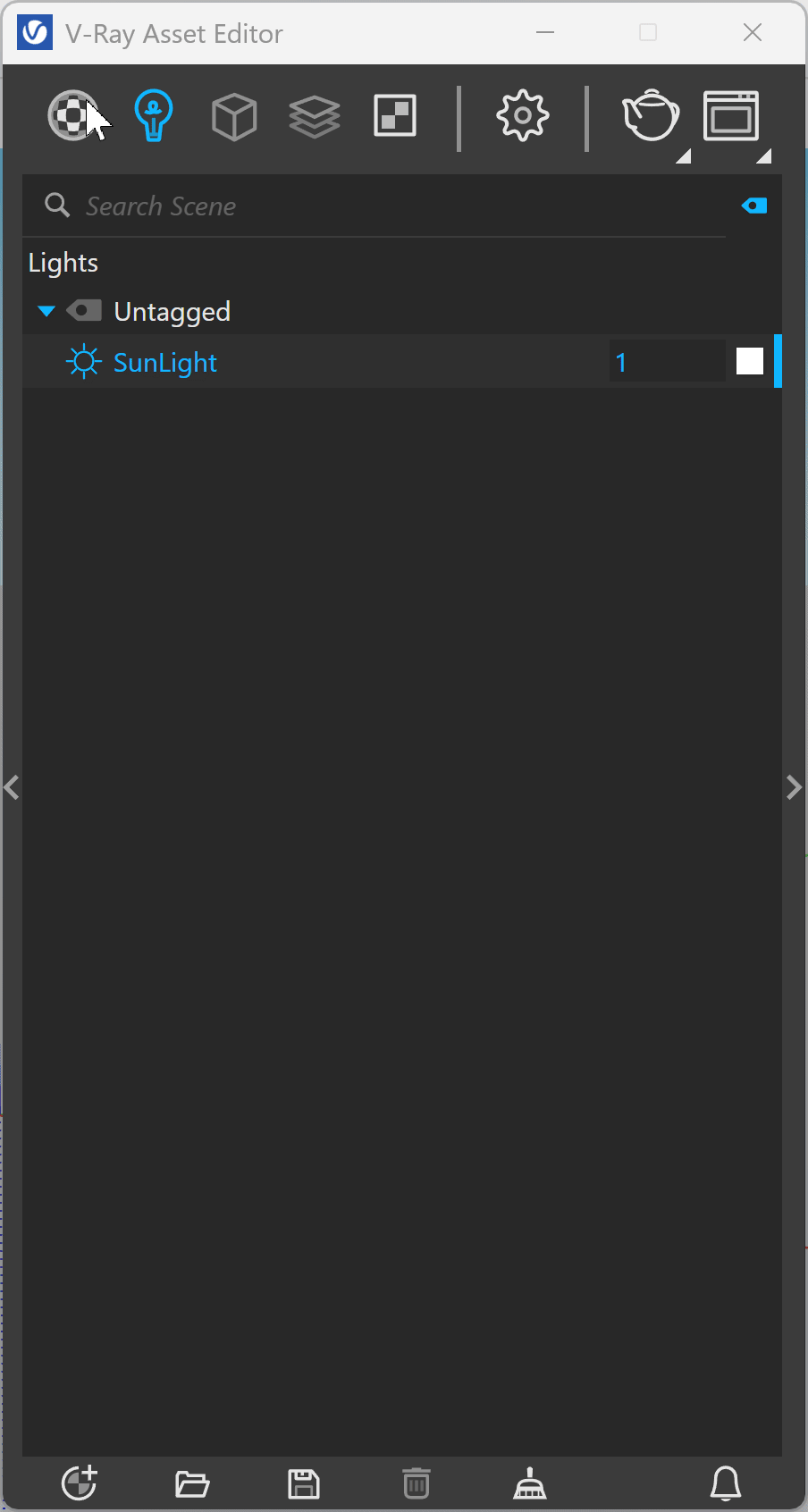

Assets are grouped in Categories for ease of access and use. On top of the central Asset Editor's panel you can find the Materials, Lights, Geometry, Render Elements, and Textures categories.

You can create an asset in the respective category by Left- or Right-click if the category is empty. If there are already items in it Left-click will select the directory, while a Right-click always opens a list of available assets to choose from in order to create them. The Asset creation dropdown lists remain active when the Ctrl key is held, allowing the creation of multiple assets in quick succession.

Each Category has a Search Scene tab on the top of the list. You can search for assets from the category selected. You can select more than one category or asset at a time with Ctrl+select(Cmd+select) or Shift+select.

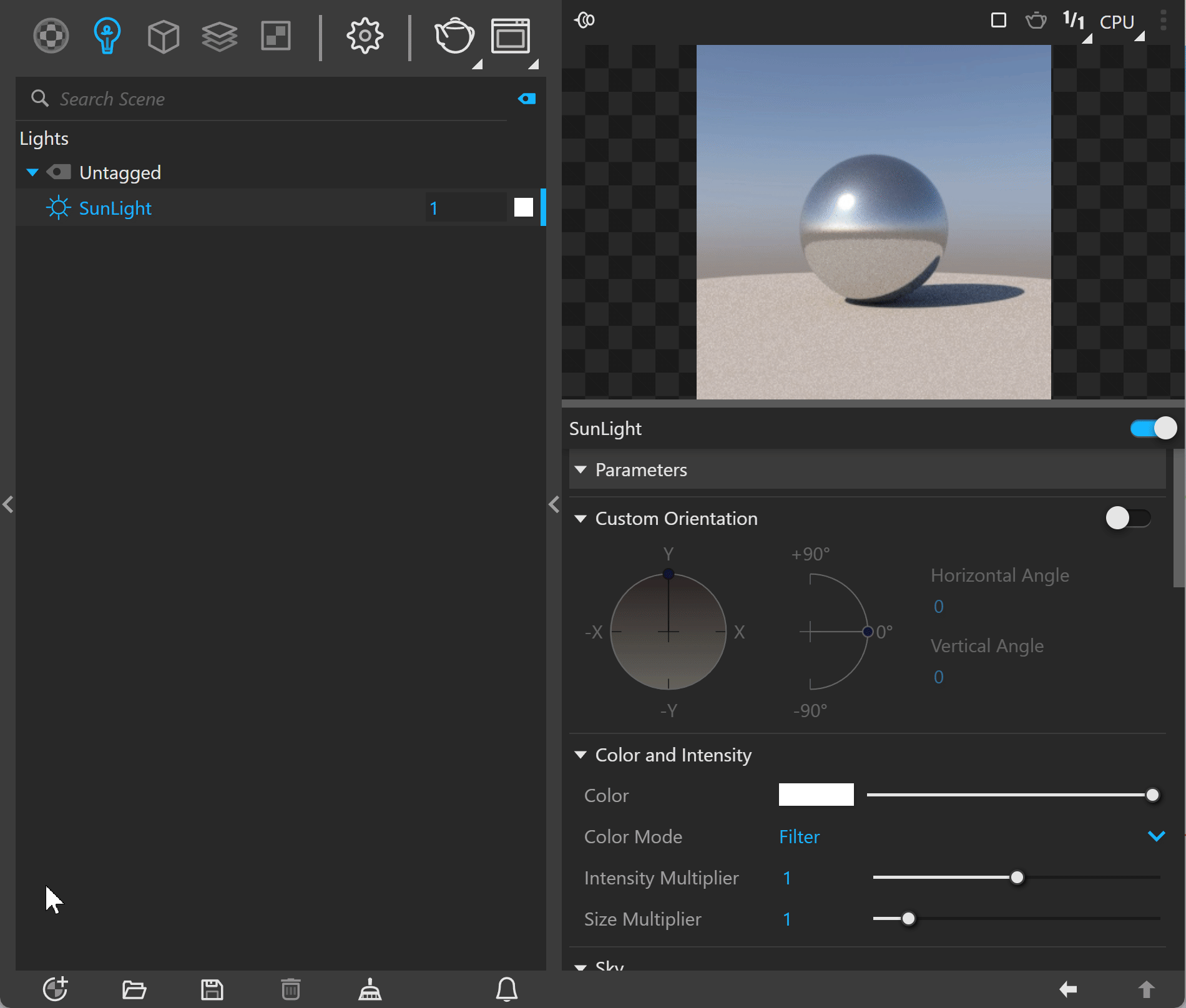

Buttons

The utility buttons are located at the bottom of the Asset Editor.

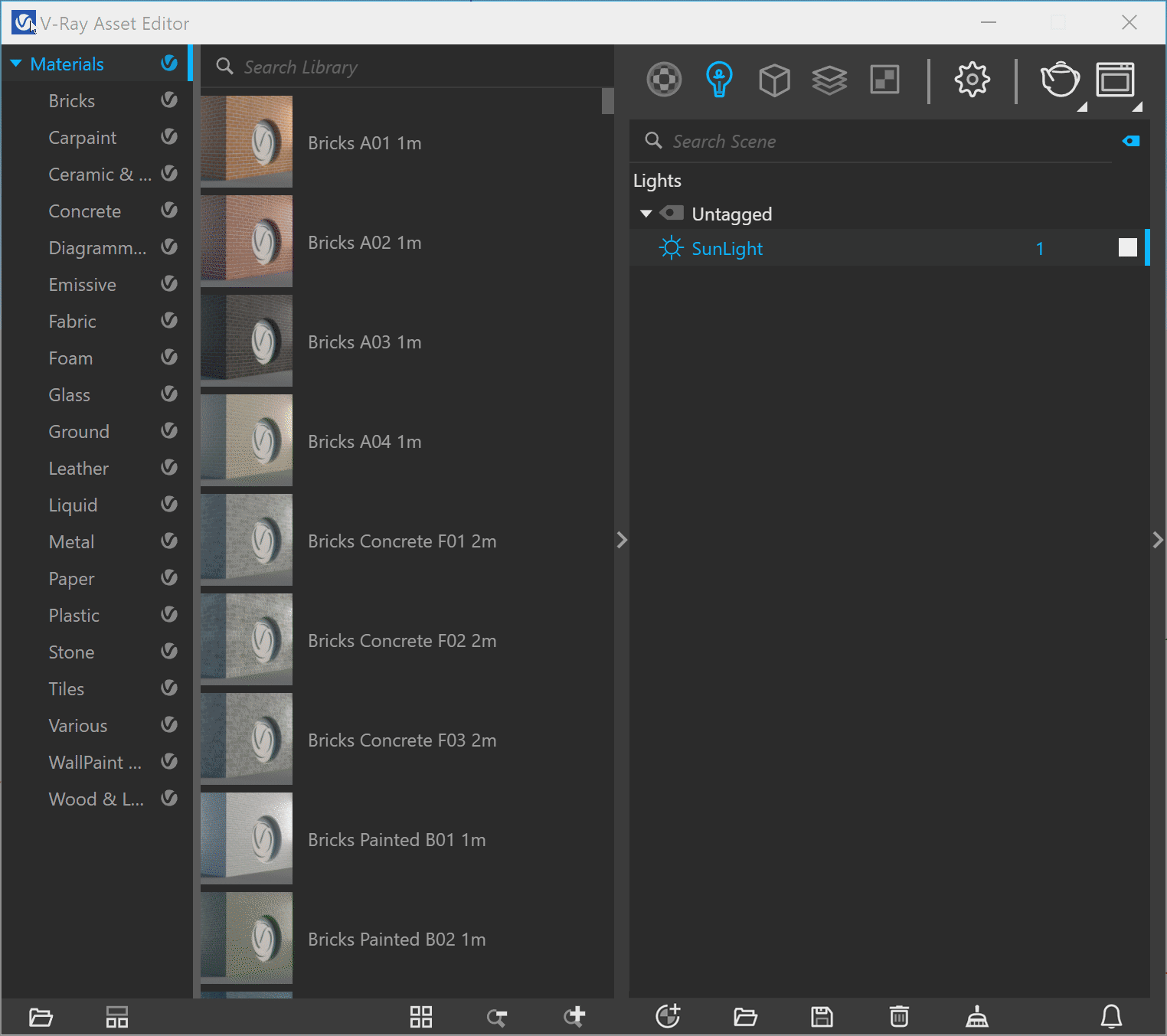

Preset Material Library Buttons

In earlier V-Ray versions, the V-Ray Material Library is called Preset Material Library and it resides in the Asset Browser. It has some functionality buttons at the bottom of the Asset Editor.

For more information about all the functionalities that the V-Ray Material Library offers, follow the link.

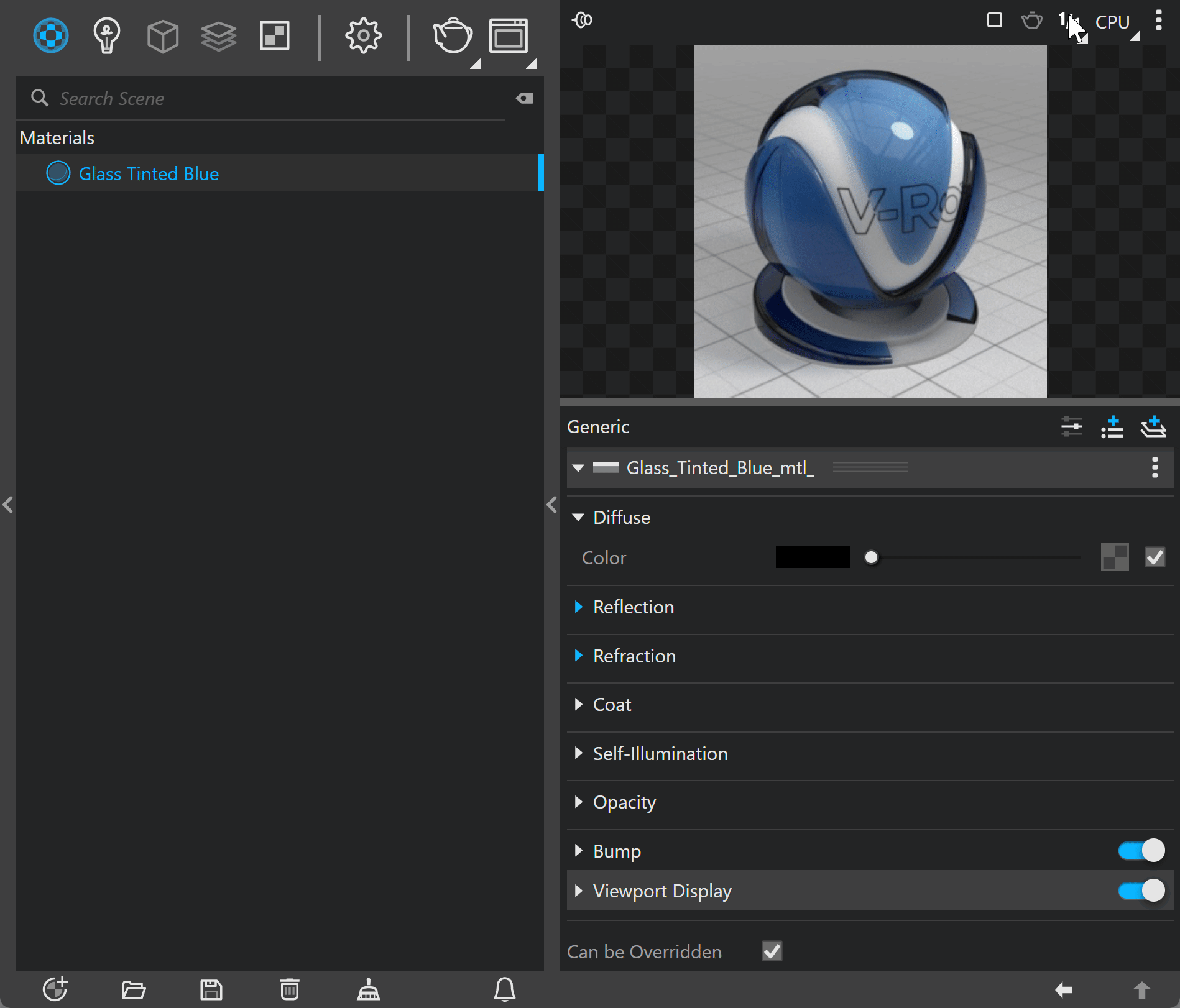

Preview Swatch

The Preview Swatch is located in the right panel of the Asset Editor, rendering all changes made to the currently selected asset. This is a quick preview of materials, textures, and lights. It has several controls that can be customized for your workflow. As the Preview Swatch is an actual render, it might require some additional computing power.

Asset Tagging

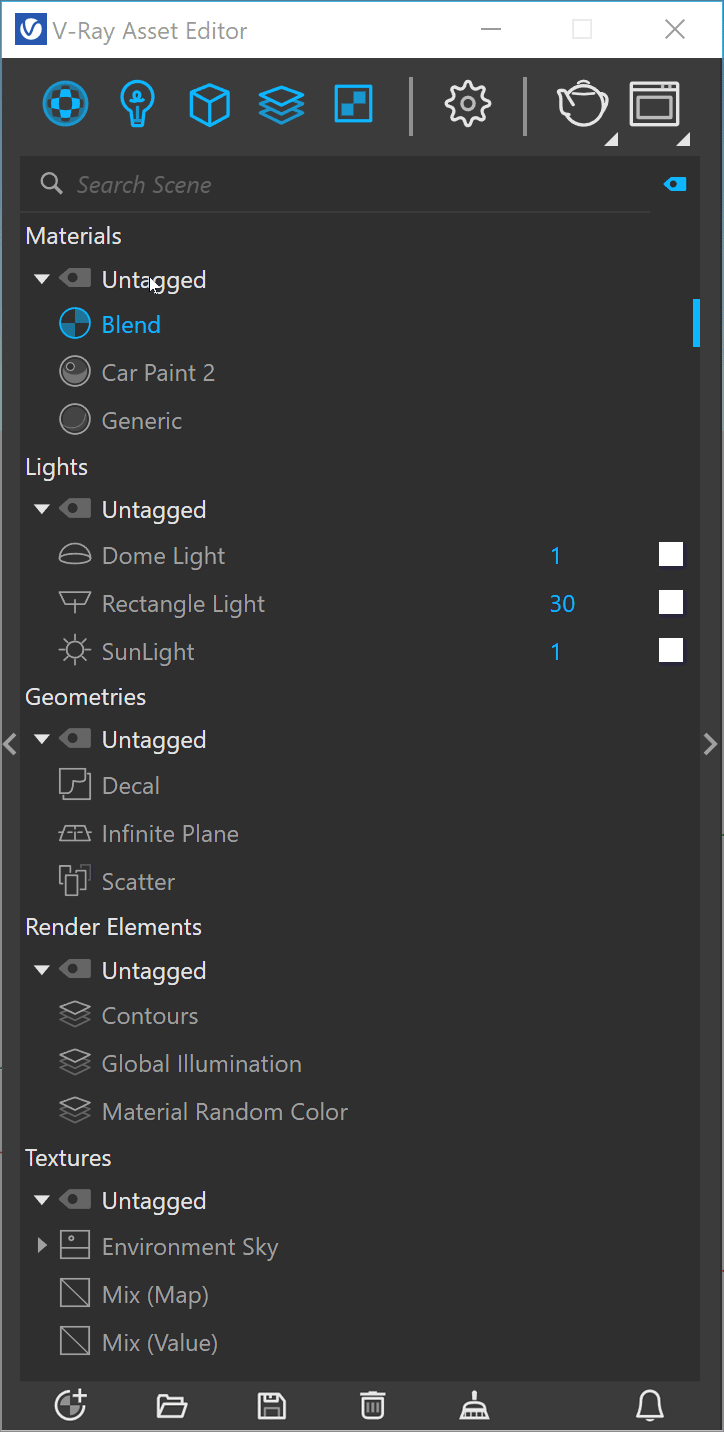

Custom grouping scene assets of any type is now possible in the V-Ray Assets Outliner. Tags help to organize and work more efficiently in complex projects.

Each tag can be assigned to multiple assets all at once via the context menu and one asset can be assigned multiple tags.

Tags can be assigned to assets of all categories - materials, textures, lights, etc. When a tag is assigned to assets of different types, the tag indicator will appear in each category.

Right-clicking on a tag allows its renaming or deletion. Alternatively, double-clicking a tag name allows its renaming directly.

Drag & dropping an asset over a tag assigns the tag to this asset.

Upon creation each tag is assigned a random color.

A new Tag View button, located at the top-right corner of the Asset Outliner, next to the search field, allows toggling tags visibility on or off.

Right-clicking on any asset and hovering over its "Tag" context menu entry displays a list of all available tags in the scene, as well indicators which tags are currently assigned to the asset.

Tags are considered scene-specific, meaning they are serialized in each project file and they cannot be transferred between scenes.

Saving any asset as a .vrmat does not write its tags to the file keeping it clean of any scene-specific data.

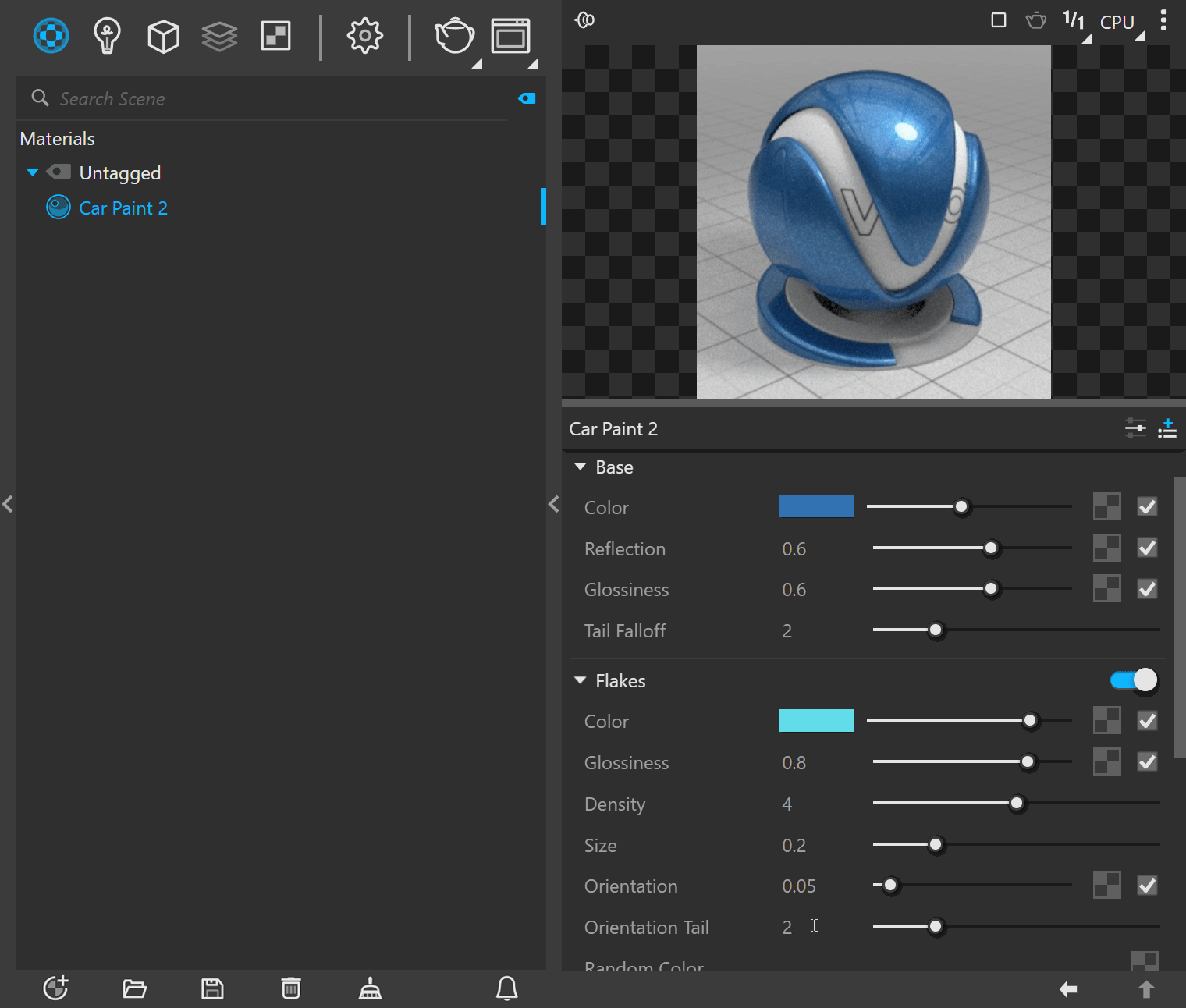

Mathematical Expressions

Entering mathematical expressions as text in the input number fields of the asset editor is also allowed. Find some useful examples below.

If a non valid mathematical expression is written in the input field, it is ignored and the value of the input remains the same.

Examples of supported operations:

Trigonometric functions are supported such as "cos", "sin", "tan" are also supported.

The following mathematical constants are supported as well.

• pi = 3.1415...
• e = 2.71...

Parenthesis are also supported which allows for complex mathematical expressions such as: (3*2)^2/4 = 9. Parenthesis are not necessary for some of the operators: e.g.

• root2 = root(2)
• ln2 = ln(2)
• sin60 = sin(60)

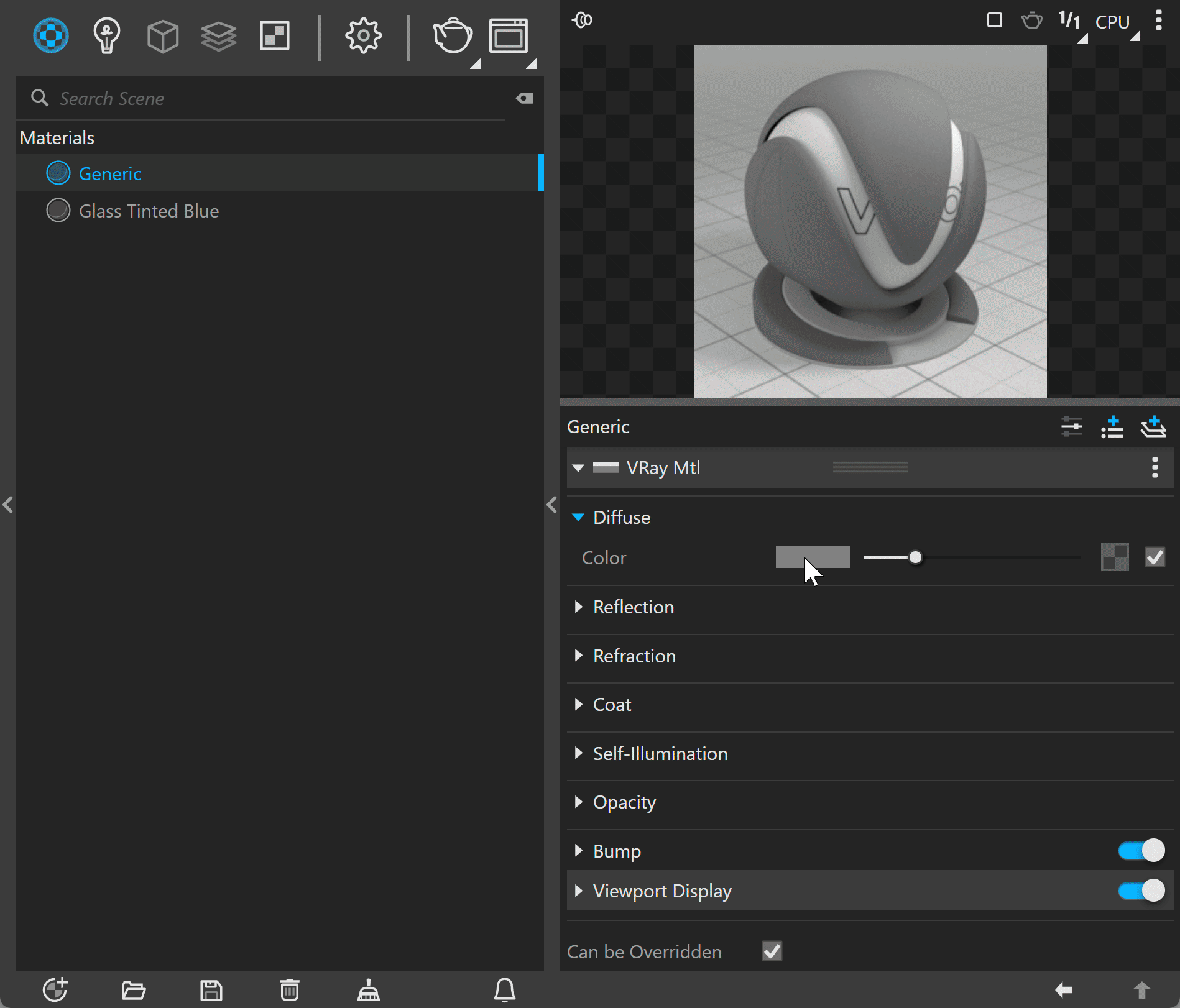

Color Picker

The V-Ray Color Picker can be accessed by clicking on any color slot in the Asset Editor. It is a color manager that allows numeric color value selection in Screen (sRGB) and Rendering (RGB) Color spaces, options to regulate RGB, HSV and temperature. V-Ray Color Picker automatically converts Kelvin to RGB values, as well as RGB to Kelvin whenever possible.

Left-click on the current color to save it in the palette. Alternatively, right-click on an empty slot in the palette. Right-click on a saved color in the color slot to replace it with a new one.

The V-Ray Color Picker has a Color Assistant that can be opened by clicking on the side bar at the bottom of V-Ray Color Picker window. The Color Assistant provides color palettes to pick a color from.

Left-click on a color from the Color Assistant to pick the current color. Right-click on it to use as a base for a color palette.

Render Menu

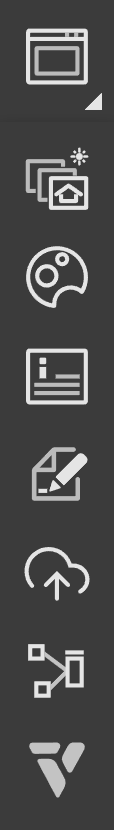

Select the render method from the Render menu. The available options are Render with V-Ray, Render with V-Ray Interactive, Render with Chaos Cloud and Export V-Ray Scene File.

Shortcuts Menu

The following buttons are available:

Notes

1 - Sliders are allowed to be focused and controlled by the keyboard. The visual indication that a slider is focused is the same as if you had hovered over it

2 - The default theme of the V-Ray Asset Editor can be changed to a lighter one in the Configuration rollout.

3 - Most numeric V-Ray parameters come with a slider to make fine-tuning easier. Each slider is set to a default range of recommended or commonly used values. If a value above that range is used, the slider adapts by increasing its range accordingly (2x the input value) to maintain usability. If a value below the current slider range is used, the slider again adjusts its range by shrinking it to twice the amount of the input value.

4 - The slider range does not indicate the parameter's total minimum and maximum input values. The absolute minimum and maximum values of each parameter can be found by hovering over its spinbox.
