V-Ray for Grasshopper

This section contains information on the V-Ray for Grasshopper plug-in.

Overview

V-Ray for Grasshopper adds a number of components for use with Grasshopper's graphical algorithm editor that enable direct rendering as part of the Rhino scene without baking geometry.

Since version 3.06.02 V-Ray's installer for Rhinoceros 6 will automatically install V-Ray Grasshopper without showing it as an opt-out in the installer. If you have Grasshopper for Rhinoceros 5 installed, V-Ray for Rhino's installation will automatically detect it and proceed with installing V-Ray for Grasshopper as well.

youtu.be

V-Ray Components in Grasshopper

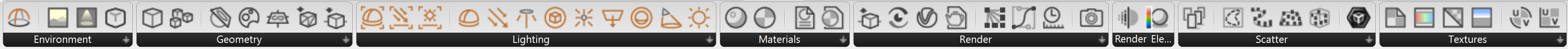

There are seven tabs in the V-Ray toolbar in Grasshopper: Environment, Geometry, Lighting, Materials, Render, Render Elements, Scatter and Textures.

Many of the V-Ray components in Grasshopper have a Show Controls option in their context menu. The Show Controls option extracts a V-Ray components parameter controls such as toggles, file path inputs, and color swatches.

V-Ray Script Access in Grasshopper

Rendering in Grasshopper can be initiated through Grasshoppers C# Script and/or GHPython Script components. For more information, see V-Ray Script Access in Grasshopper.
