Studios

Studios can be enabled in order to change preset Cameras, Environments Image Styles and prop/scene geometry created as Model Sets.

Last updated 3 August 2026

Studios can be enabled in order to change preset Cameras, Environments Image Styles and prop/scene geometry created as Model Sets.

Select which Studios you want included in the presentation by checking/unchecking them or add a new studio if necessary.

If no studios are selected, the Studios tab in presentation mode will not be displayed and the presentation will use the current environment and camera position.

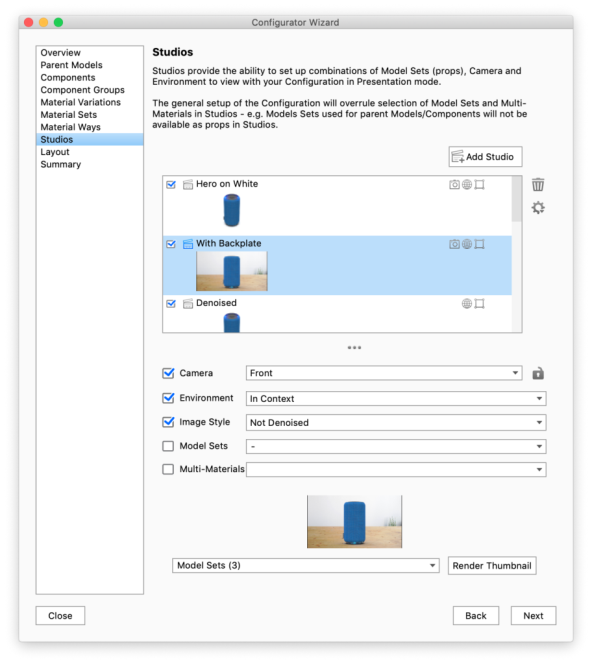

Configurator studios

Camera
You can lock/unlock the Camera by clicking the lock icon next to the camera drop-down. If a Studio contains a locked camera, it will also be locked in presentation mode and the user will not be able to tumble/pan/dolly. In Presentation mode this is shown by a small lock icon in the top right corner.

Model Sets and Multi-materials
Any Model Sets/Multi-Materials that can be set as a part of the configuration will be ignored when you switch Studio in the presentation, even if they are set up to belong to a Studio. This means that only “prop” Model Sets/Multi-Materials can be displayed/hidden/changed with Studio switch.

Thumbnails
If the default thumbnail that is generated does not contain the elements you want displayed, you can select witch Model Sets to include in the drop-down at the bottom of the page and re-render the thumbnail.

Components

If you wish to present part or accessory variations you will need to add Component Model Sets. These will be the options in subsequent choices once the user has selected a parent model in the Configurator. Once again you can select existing Model Sets if you have already separated them in the Scene tab or select geo...
