Marble Simple

This page provides details about the Marble simple texture in Chaos Vantage.

Overview

The Marble simple texture is Vantage's implementation of the Marble texture in 3ds Max. The Marble simple texture can be used to generate a marbled surface with colored veins against a colored background.

The Marble simple texture parameters are grouped into several tabs: Marble simple, Common and Mapping properties, UVW coordinates, and UVW randomize.

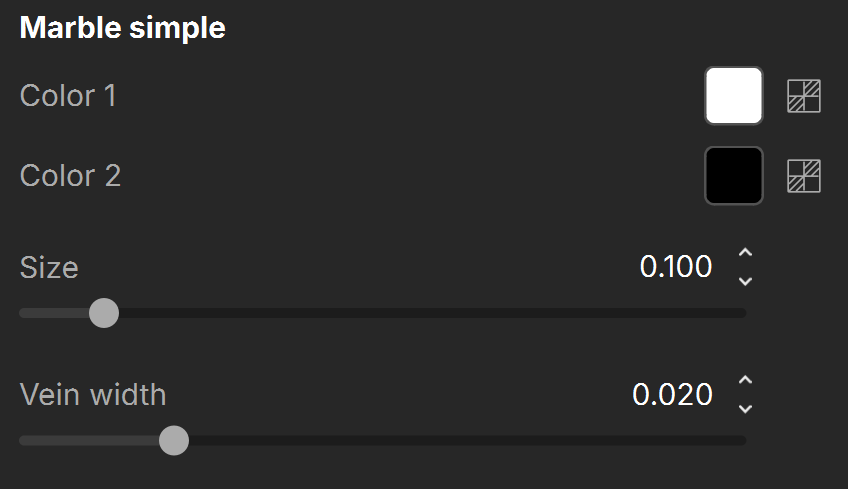

Settings

Color 1 – Specifies the main color of the marble. This channel can also be connected to a texture map.

Color 2 – Specifies the color of the marble's veins. This channel can also be connected to a texture map.

Size – Controls the spacing between the veins.

Vein width – Controls the thickness of the marble veins.

For information about the parameters in the Common and Mapping properties, UVW coordinates, and UVW randomize tabs, see the Textures page.
