Rock

This page provides details about the Rock texture in Chaos Vantage.

Overview

The Rock texture generates a procedural rock pattern using two colors or texture maps. The Rock texture parameters are grouped into several tabs: Rock, Common and Mapping Properties, UVW Coordinates, and UVW Randomize.

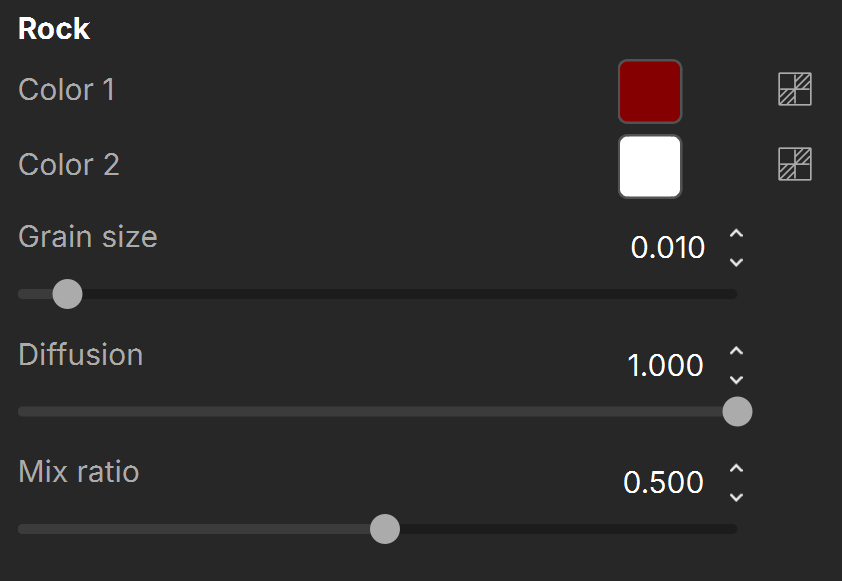

Settings

Color 1 – Controls the first of the two colors used by the Rock procedural.

Color 2 – Controls the second of the two colors used by the Rock procedural.

Grain size – Controls the size of the fine grain features.

Diffusion – Lower values make the resulting texture sharper, while higher values blur the texture details more.

Mix Ratio – Controls the mix between Color 1 and Color 2.

For information about the parameters in the Common and Mapping Properties, UVW Coordinates, and UVW Randomize tabs, see the Textures page.
