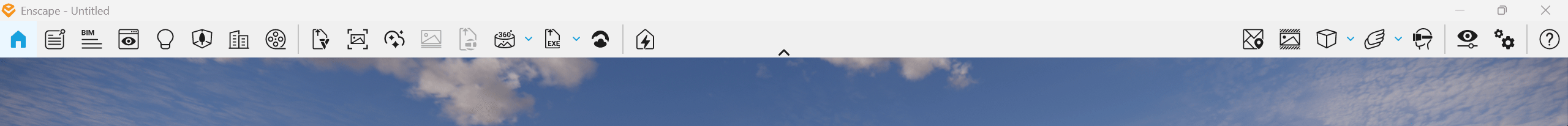

User Interface

Start Enscape – Starts Enscape in separate Window.

Live Updates – Starts Live Updates.

Synchronize Views – Synchronize CAD view to Enscape.

Enscape Object – Creates/Edits special Enscape objects in the model.

Asset Library – Browse through the “Enscape Asset Library” and place asset in CAD application.

Enscape Material Library – Imports Predefined materials.

Enscape Material Editor – Tune Materials in the project.

Upload Management – View and Management your uploaded panoramas and web standalones.

General Settings – Open the Enscape General Settings window.

Support – Open a feedback window to send feedback regarding user experience with Enscape or to report issue.

About – Opens the about window where you can see the version information.

Escape Store – Visit the Enscape store.

Chaos Account – Opens the Chaos Account window to log in, manage license and redeem promo codes.

Home Mode – Return to the main Enscape toolbar view, closing/hiding any currently open tool panels.

Collaborative Annotation – Create and manage project issues/annotations directly in the Enscape view, so you can capture feedback and share it with your team.

BIM Mode – Display BIM-related information in the Enscape view (e.g., element metadata) to support model review and coordination.

View Management – Create, organize, and switch between saved views for navigation and features like Batch Rendering and Scene Export.

Light Management – Adjust and control artificial lights in the scene (enable/disable, modify intensity and color) for quick lighting iteration.

Asset Library – Browse, search, and place Enscape assets (people, vegetation, furniture, etc.) into your project to populate the scene.

Site Context – Import surrounding buildings, streets, and topography from OpenStreetMap to place your project in its real-world context.

Video Editor – Create and edit camera path animations by adding keyframes and adjusting timing and movement settings.

Veras – Generate AI-powered rendering variations of your project for creativity and inspiration.

Screenshot – Create a rendering of the current Enscape view.

AI Enhancer – Create a rendering with higher realism of the current Enscape view.

Batch Rendering – Create a view within a CAD software or the Enscape view Management to enable Batch Rendering.

Scene Export – Create a view within a CAD software or the Enscape view Management to enable Scene Export.

Mono Panorama – Create a 360° image of your current position.

Stereo Panorama – Create a 360° stereo image for Google Cardboards.

Exe Standalone – Export the current project as an executable standalone. This way you can share it with others, even if they don’t have Enscape or the CAD software installed.

Web Standalone – Export the current project to the Web. This way you can share it with others, even if they don’t have Enscape or the CAD software installed.

3D Streaming – Upload an Enscape Scene to Chaos Claud for sharing.

Enscape Impact – Opens Enscape Impact window.

Minimap – Toggle the interactive minimap.

Safe Frame – Limit the visible area to the projected rendering results.

Perspective – Select the projection mode “Perspective” (disabled for Synchronizing View and the Video Editor, perspective projection only)

Two-points – Select the projection mode “Two Points” (disabled for Synchronizing View and the Video Editor, perspective projection only)

Orthographic – Select the projection mode “Orthographic “ (disabled for Synchronizing View and the Video Editor, perspective projection only)

Navigation Mode: Fly Mode – Choose whether to walk or fly through your scene.

Navigation Mode: Walk Mode – Choose whether to walk or fly through your scene.

VR Headset – Enable your Virtual Reality (VR) Headset. Enscape supports Meta Quest 3 and HTC Vive Pro 2.

Visual Settings – Opens the Enscape Visual Settings window.

Enscape Window Settings – Opens the Enscape Window Settings.

Help Panel – Toggle a sidebar containing contextual help information.
