Running V-Ray Autodesk app packages from Arbitrary Location

This page provides information on running V-Ray on a machine that does not have it locally installed.

Overview

It is possible to run V-Ray from an arbitrary location, rather than installing it locally. To do so, follow these steps:

• Run the V-Ray for 3ds Max installer.

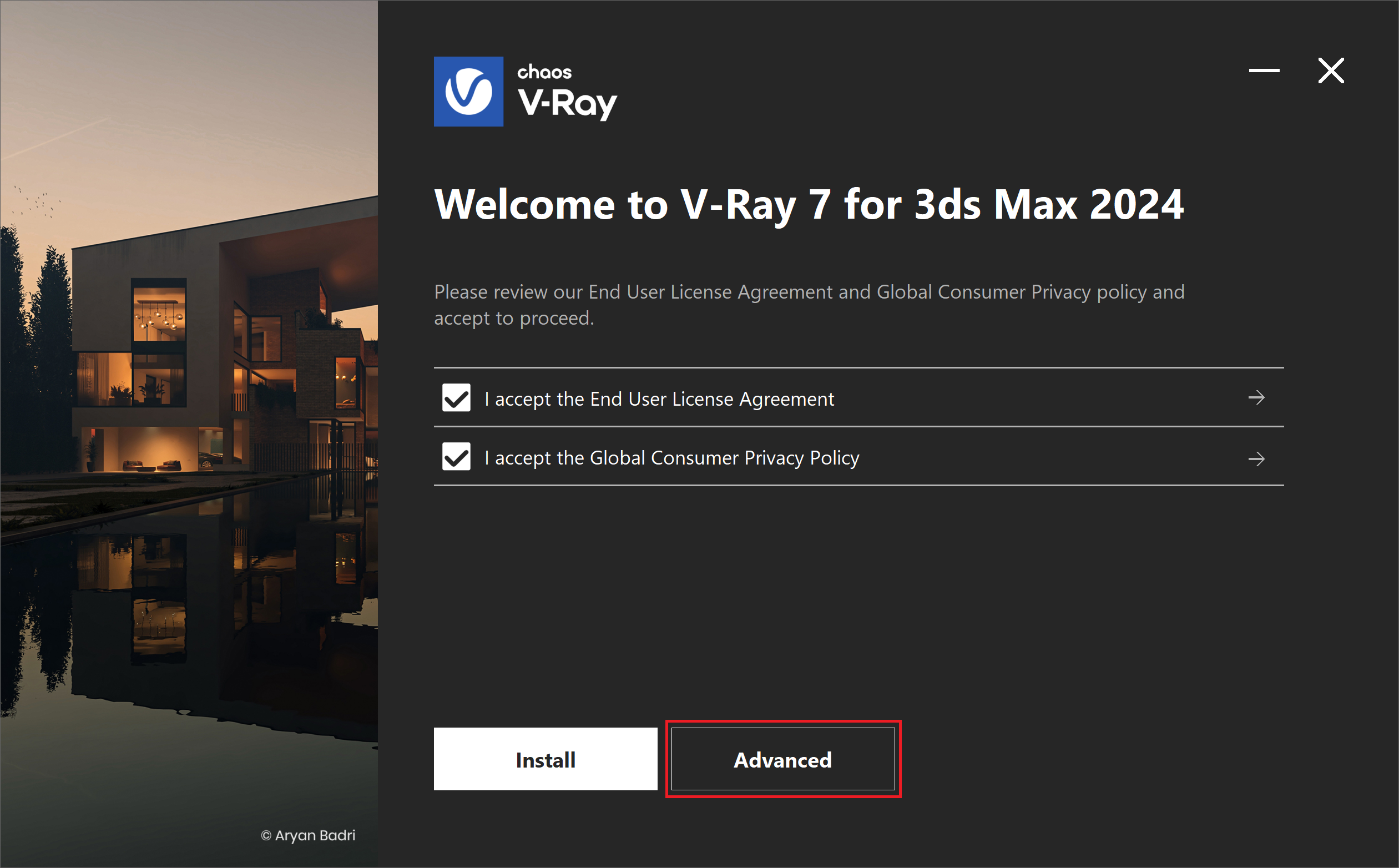

• Click the Advanced button to access additional options.

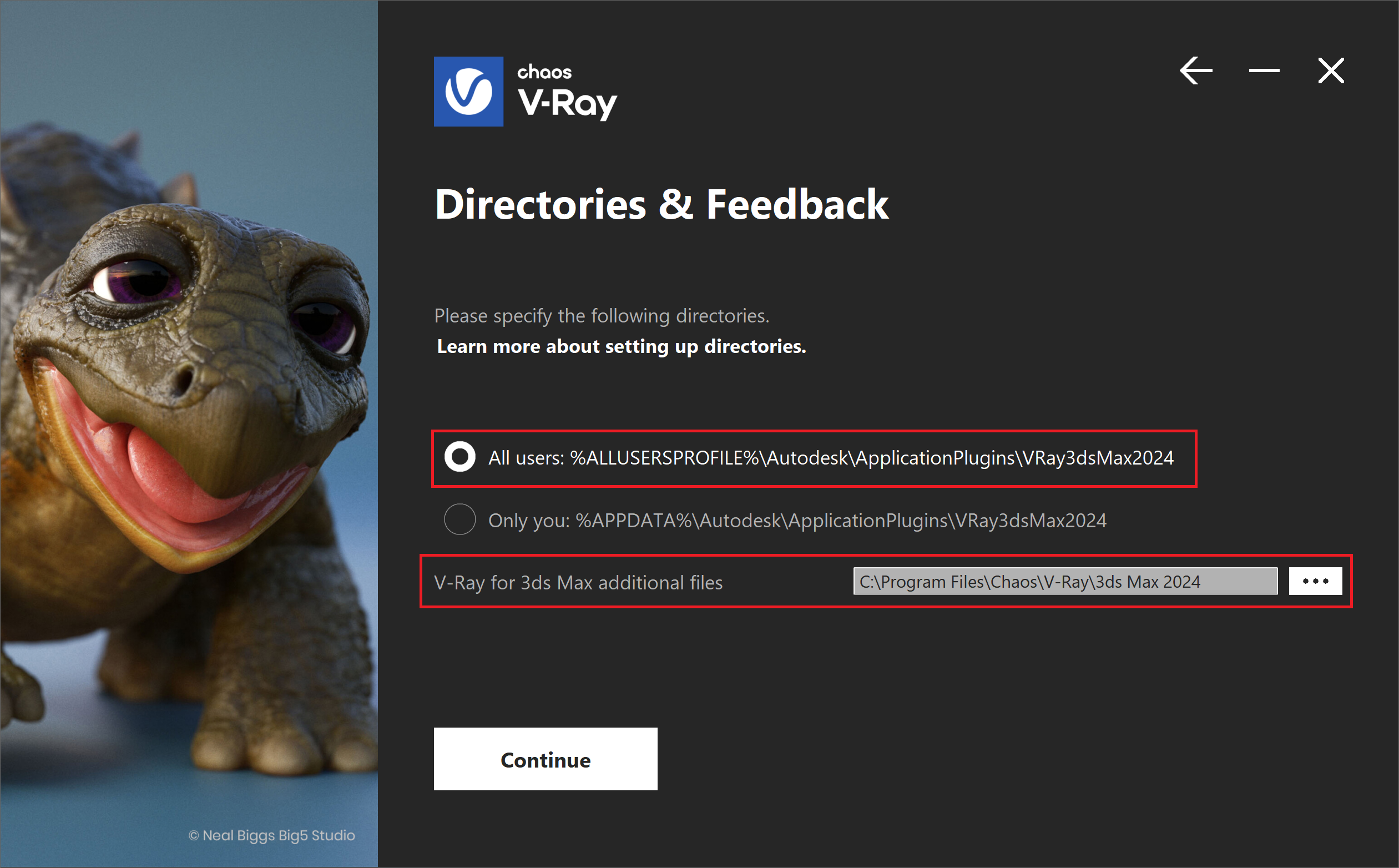

• At the Directories & Feedback step, select the following options:

• Complete the installation process. The Autodesk application package of V-Ray for 3ds Max is now installed in a single directory, e.g. if using 3ds Max 2024, the default directory is C:\ProgramData\Autodesk\ApplicationPlugins\VRay3dsMax2024.
• Create a new folder to store the V-Ray files, e.g. D:\VRayCustomInstallation\
• Create a new subfolder called ApplicationPlugins inside the D:\VRayCustomInstallation\
• Copy the VRay3dsMax20xx folder from C:\ProgramData\Autodesk\ApplicationPlugins\VRay3dsMax20xx to:

<code data-v-c2b1f83f=""><span data-v-c2b1f83f="" class="line">D:\VRayCustomInstallation\ApplicationPlugins\</span></code>

• Copy the 3ds Max 20xx folder from C:\Program Files\Chaos\V-Ray\3ds Max 20xx to:

<code data-v-c2b1f83f=""><span data-v-c2b1f83f="" class="line">D:\VRayCustomInstallation\ </span></code>

• Uninstall V-Ray for 3ds Max.
• Set the Autodesk ADSK_APPLICATION_PLUGINS environment variable to:

<code data-v-c2b1f83f=""><span data-v-c2b1f83f="" class="line">D:\VRayCustomInstallation\ApplicationPlugins\</span></code>

• V-Ray needs its own environment variables setup to run properly. Set the following environment variables:

Environment Variables setup

<code data-v-c2b1f83f=""><span data-v-c2b1f83f="" class="line">VRAY_FOR_3DSMAX20xx_MAIN = D:\VRayCustomInstallation\ApplicationPlugins\VRay3dsMax20xx\bin</span><span data-v-c2b1f83f="" class="line">VRAY_FOR_3DSMAX20xx_PLUGINS = D:\VRayCustomInstallation\ApplicationPlugins\VRay3dsMax20xx\bin\plugins</span><span data-v-c2b1f83f="" class="line">VRAY_MDL_PATH_3DSMAX20xx = D:\VRayCustomInstallation\3ds Max 20xx\mdl</span></code>

Note that for Custom folder cases such as in this example, the root path D:\VRayCustomInstallation\ApplicationPlugins\VRay3dsMax20xx\ is the location where the packages are deployed and it should match the ADSK_APPLICATION_PLUGINS path. For more information about running V-Ray from a custom location, please refer to the 'Custom folder' section of Autodesk SDK documentation.

The preceding steps explain just one of the methods for packaging Autodesk plugins provided by Autodesk, for more information go to: Autodesk SDK documentation.

Notes

• The VRAY_MDL_PATH_3DSMAX20xx is pointing to files deployed by the V-Ray installer, they could be deployed in the custom location too, but they are MDL shader sample files and are considered auxiliary to the plugin package and thus are not in it by default.
• The plugin.ini file is not to be modified with the Autodesk application package format.
