V-Ray for Cinema 4D
Color Channel Node
This page provides information about the Color Channel node in V-Ray for Cinema 4D.
Last updated 19 September 2025
This page provides information about the Color Channel node in V-Ray for Cinema 4D.
Overview
The Color Channel node is a utility node that extracts only one color channel out of a given texture.

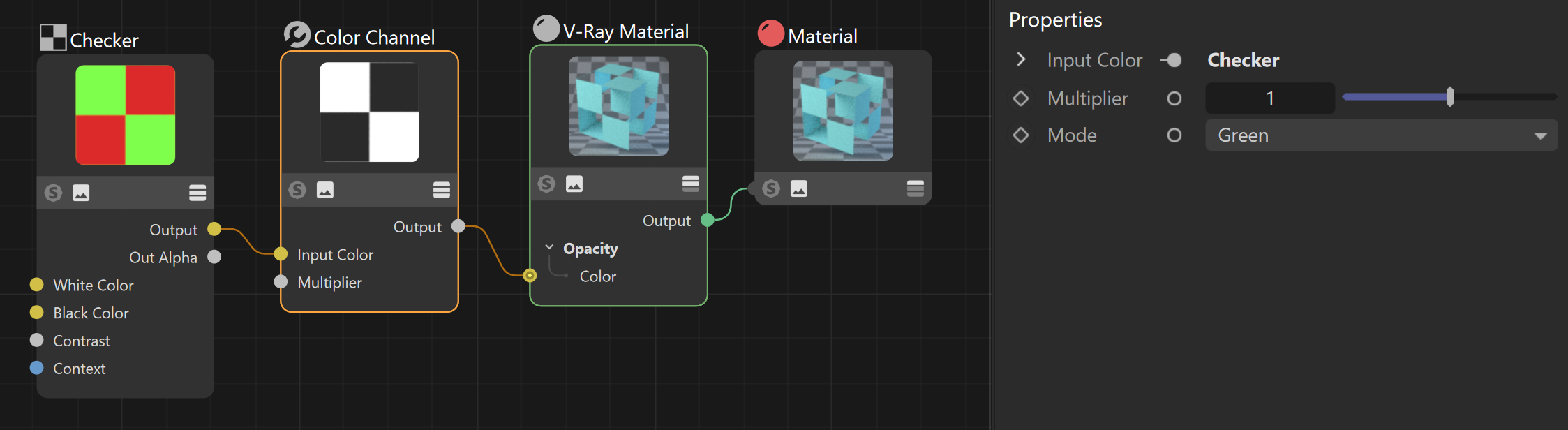

Click on the image to view it in full size
Properties
Input Color – Specifies a color, from which the channel is extracted.
Multiplier – A multiplier for the color intensity after extraction.
Mode – Specifies which channel is extracted from the texture: Red, Green, Blue, Alpha, Intensity.
