V-Ray for Cinema 4D
Color to UVW Node
This page provides information about the Color to UVW Node in V-Ray for Cinema 4D.
Last updated 19 September 2025
This page provides information about the Color to UVW Node in V-Ray for Cinema 4D.
Overview
The Color to UVW node helps adjust the pattern of various maps according to the UVW of other maps.
Color to UVW node has the same function as the native Cinema 4D Colorizer Shader.
Click on the image to view it in full size

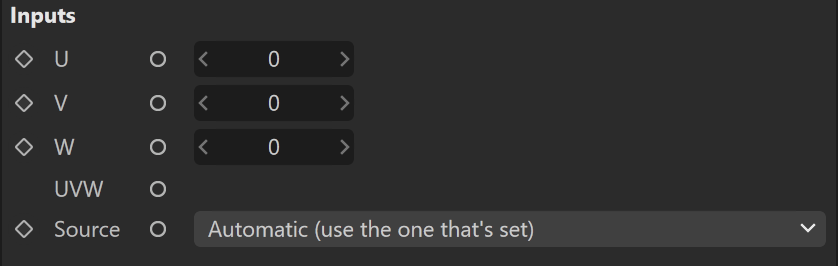

Properties
The U, V, and W inputs control the respective axis channels of the input map.
Source – Specifies the map channel:
Automatic (use the one that's set)
Use the single uvw parameter
Use separate u, v, w parameters

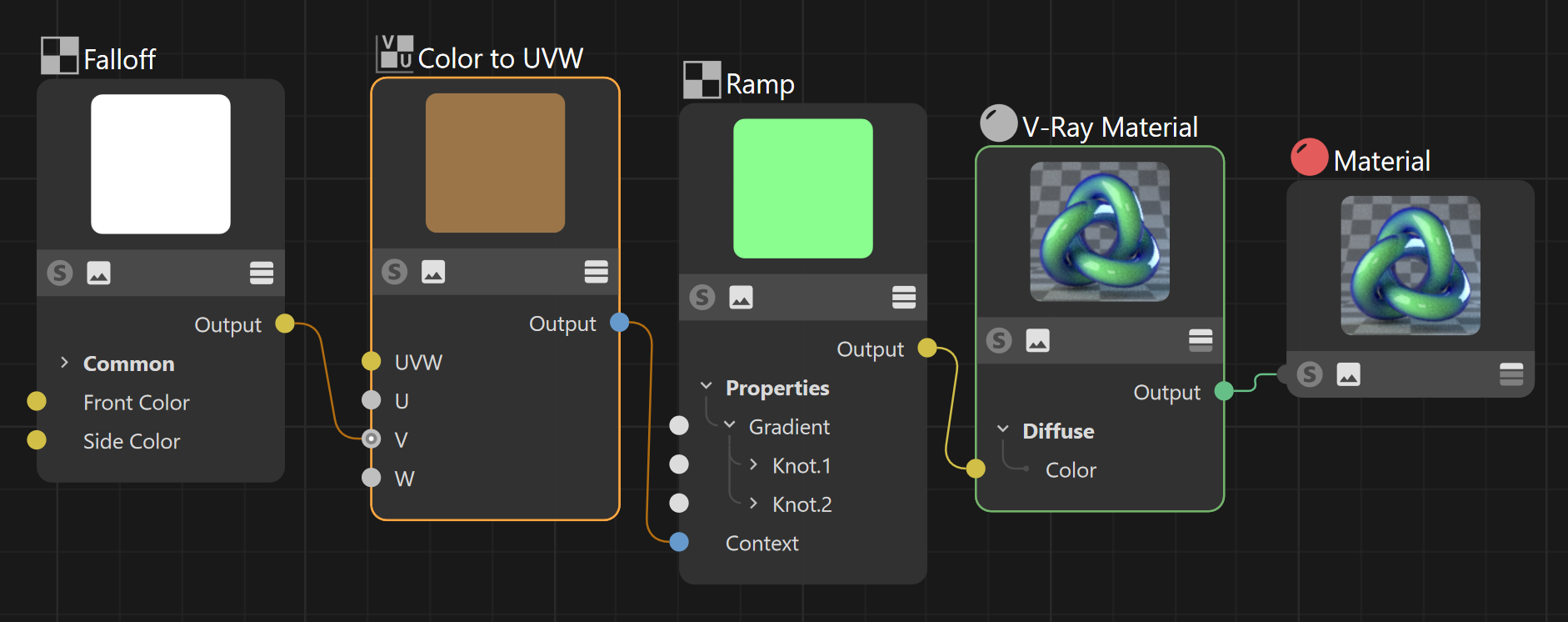

Example: Falloff and Color to UVW
In this example, a Ramp node is used along with a Color to UVW node to map a Falloff node across the V direction of the image.
Click on the image to view it in full size

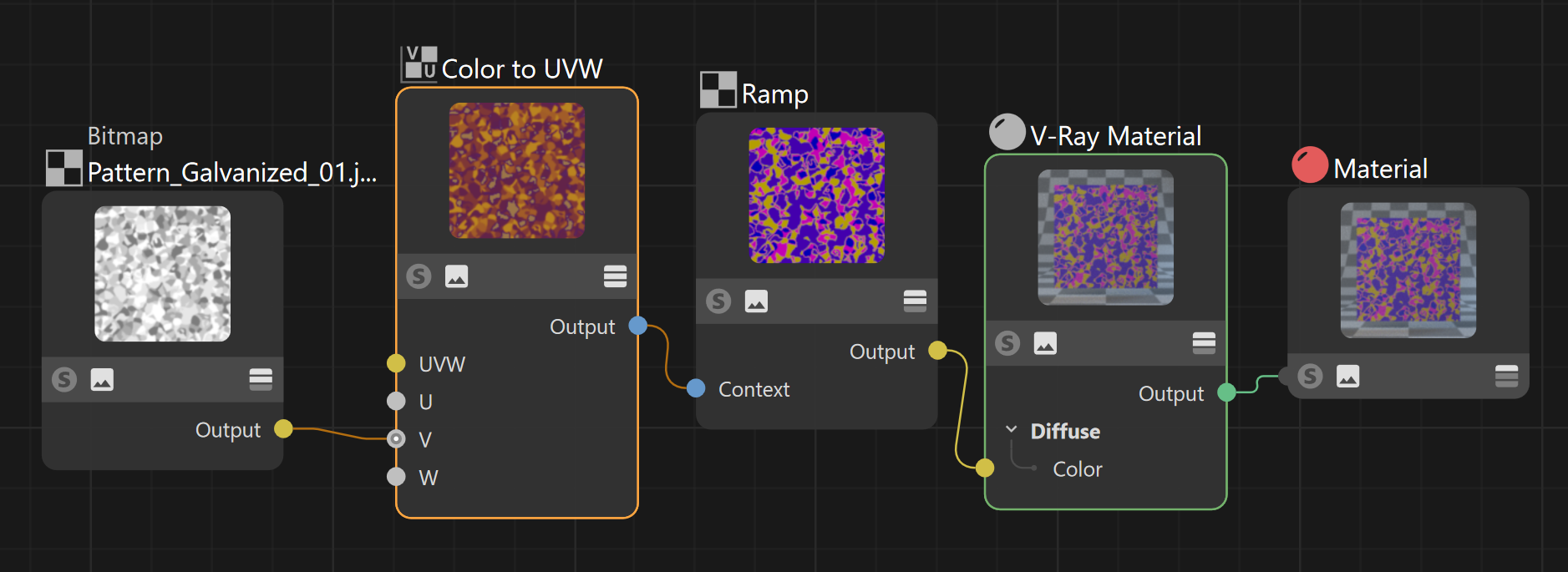

Example: Colorize a Bitmap with Color to UVW and Ramp
This example shows a Ramp node that colors a Bitmap image using the Color to UVW node.
Click on the image to view it in full size
