DR Bucket RE

This page provides information about the Distributed Rendering Bucket Render Element in V-Ray for Cinema 4D.

Overview

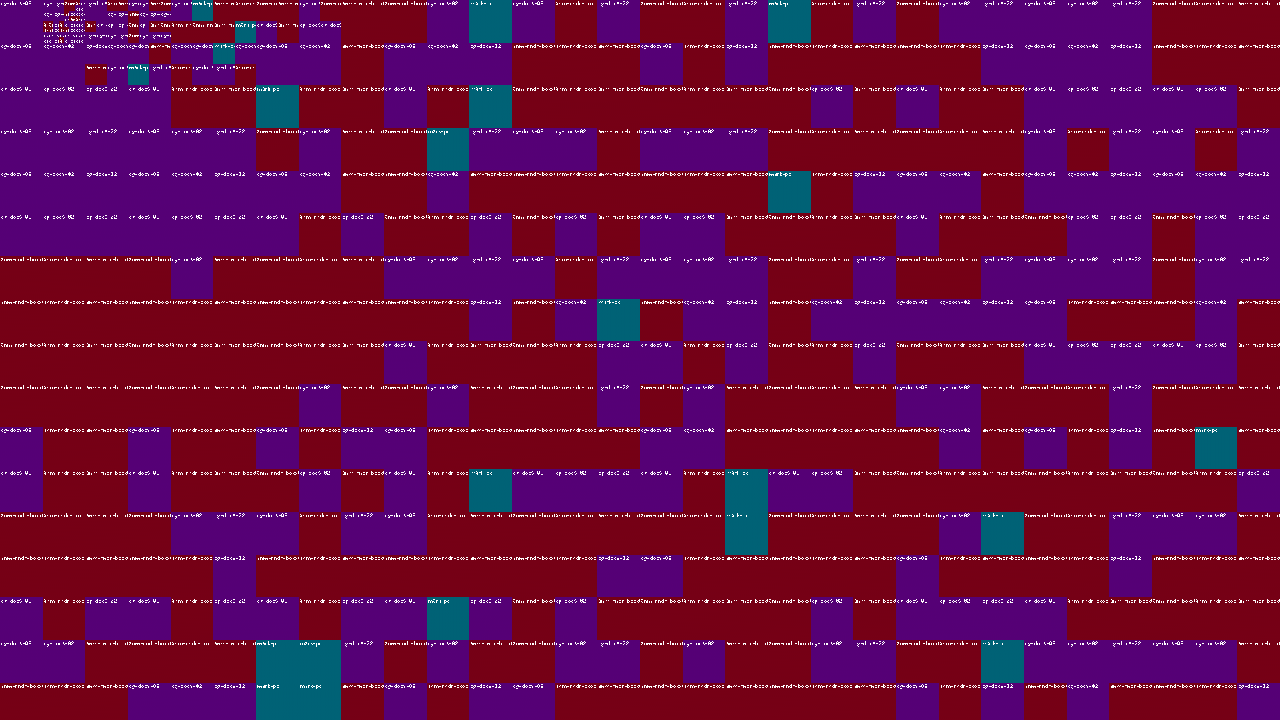

The Distributed Rendering Bucket Render Element renders an image with each bucket shown in a different color, and a short text on each bucket naming the machine that rendered it. A bucket is a region of an image that is being rendered. The render setup must be set to use the Bucket image sampler, which divides the rendering process into render buckets. This render element is useful for assessing machine performance or for troubleshooting a distributed rendering process.

UI Path: ||V-Ray|| > Render Elements > DR Bucket

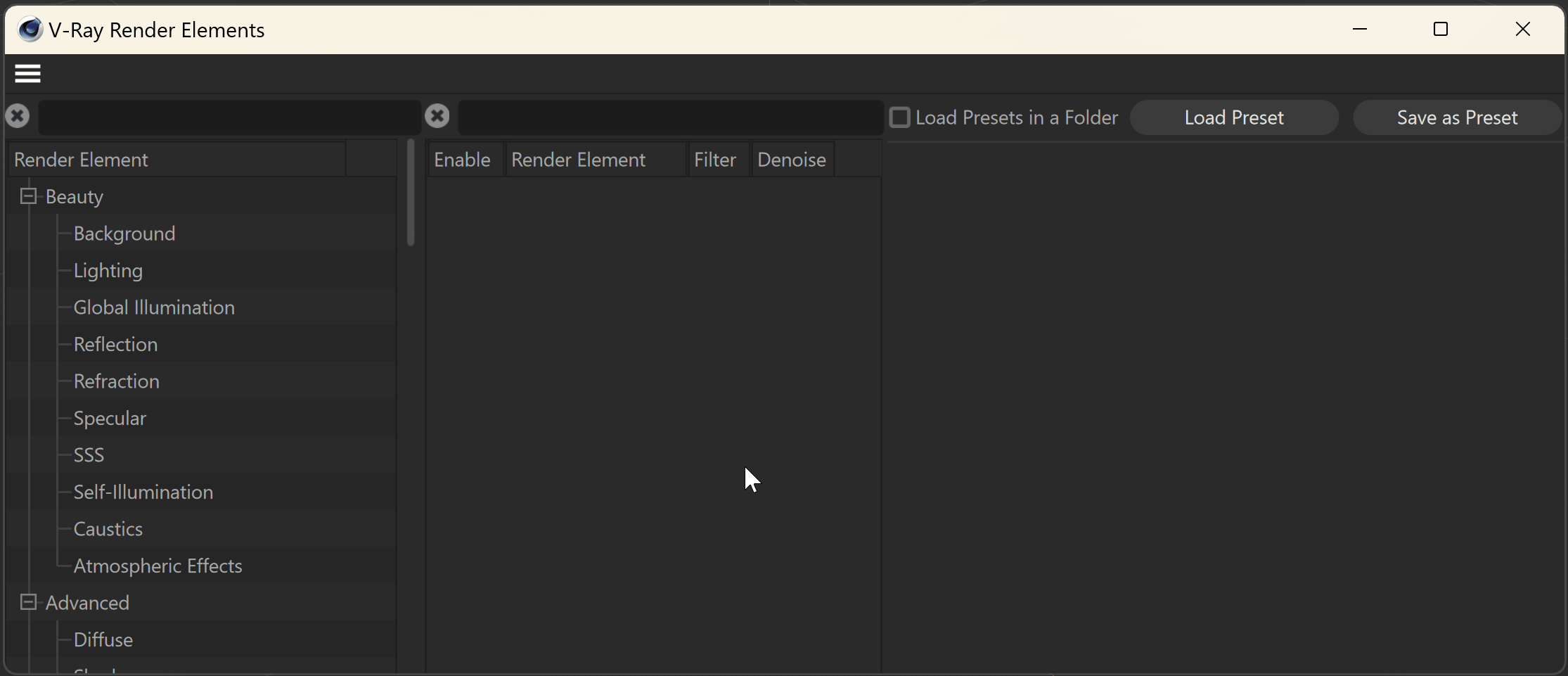

Example: How to add a render element to a scene

Properties

Enable Deep Output – Specifies whether to include this render element in deep images.

Text Alignment – Sets the alignment of the machine name that displays on each bucket.
