Raw Coat Filter RE

This page provides information on the Raw Coat Filter Render Element.

Overview

The Raw Coat Filter Render Element is similar to the Coat Filter Render Element, except it is not affected by Fresnel falloff. The result is a solid mask showing the areas of reflection.

UI Path: ||V-Ray|| > Render Elements > Raw Coat Filter

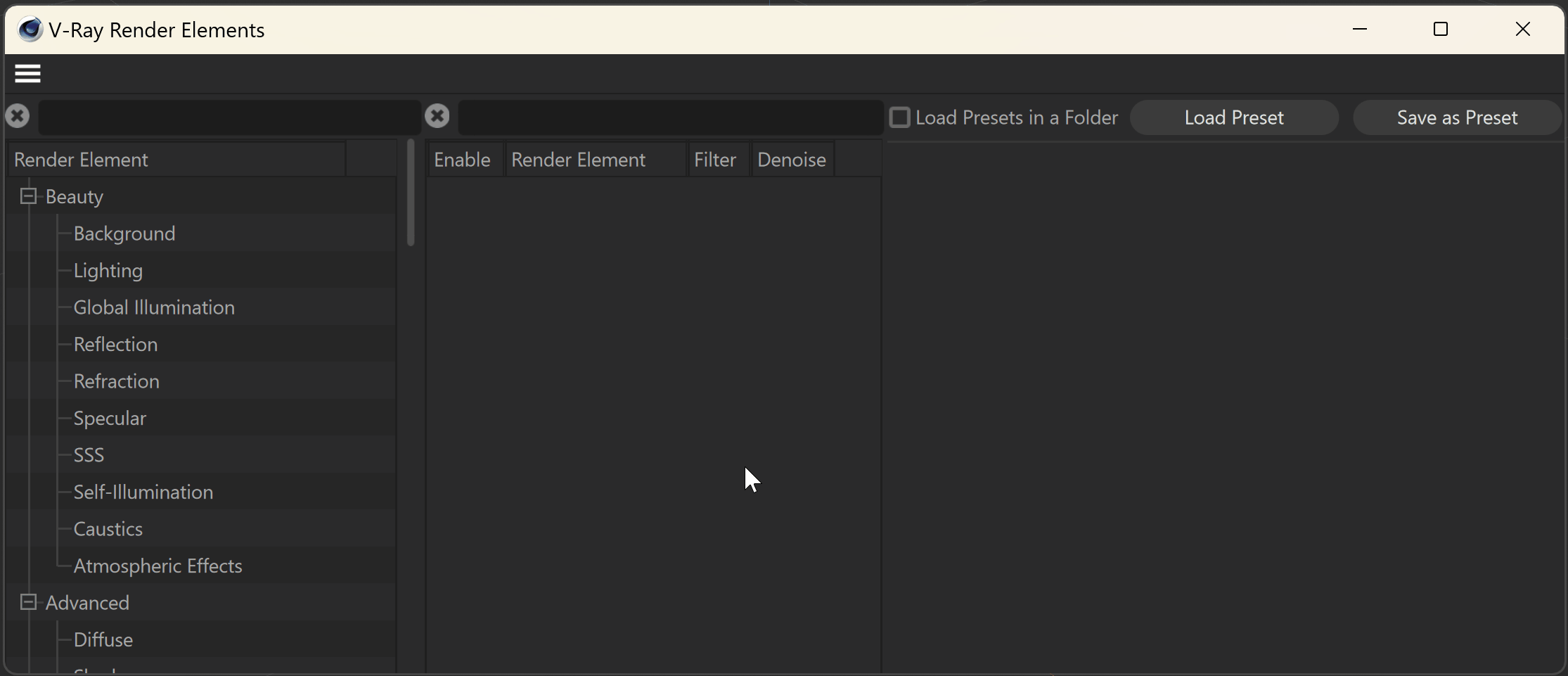

How to add a render element to a scene

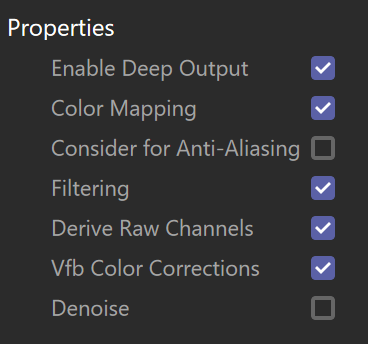

Properties

Enable Deep Output – Specifies whether to include this render element in deep images.

Color Mapping – Applies the color mapping options specified in the Color Mapping rollout of the V-Ray tab in the Render Settings window to this render element. This option is enabled by default.

Consider for Anti-Aliasing – When enabled, anti-aliasing is used where possible.

Filtering – Applies an image filter to this channel.

Derive Raw Channels – Generates data in the raw channels by combining the respective color and the filter color channels.

Vfb Color Corrections – Applies the post-render color adjustments made from the VFB.

Denoise – Enables the render element's denoising, provided the Denoiser render element is present.
