Raw GI

This page provides information about the Raw GI render element in V-Ray for Rhino.

Overview

Stores indirect lighting information with no diffuse component.

UI Paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Raw GI
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Raw GI

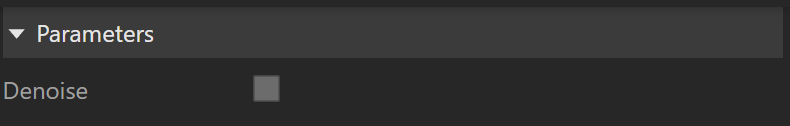

Parameters

Denoise – Specifies whether to denoise this render element.

Common Uses

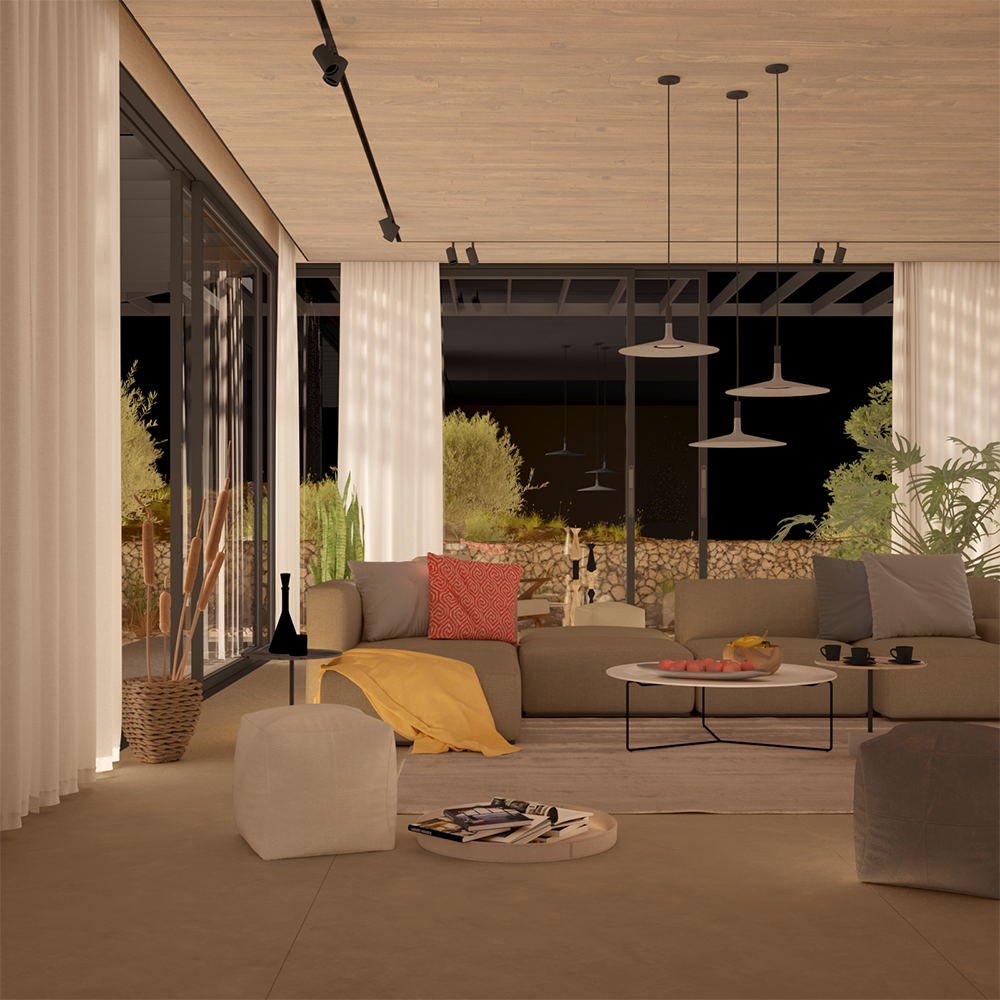

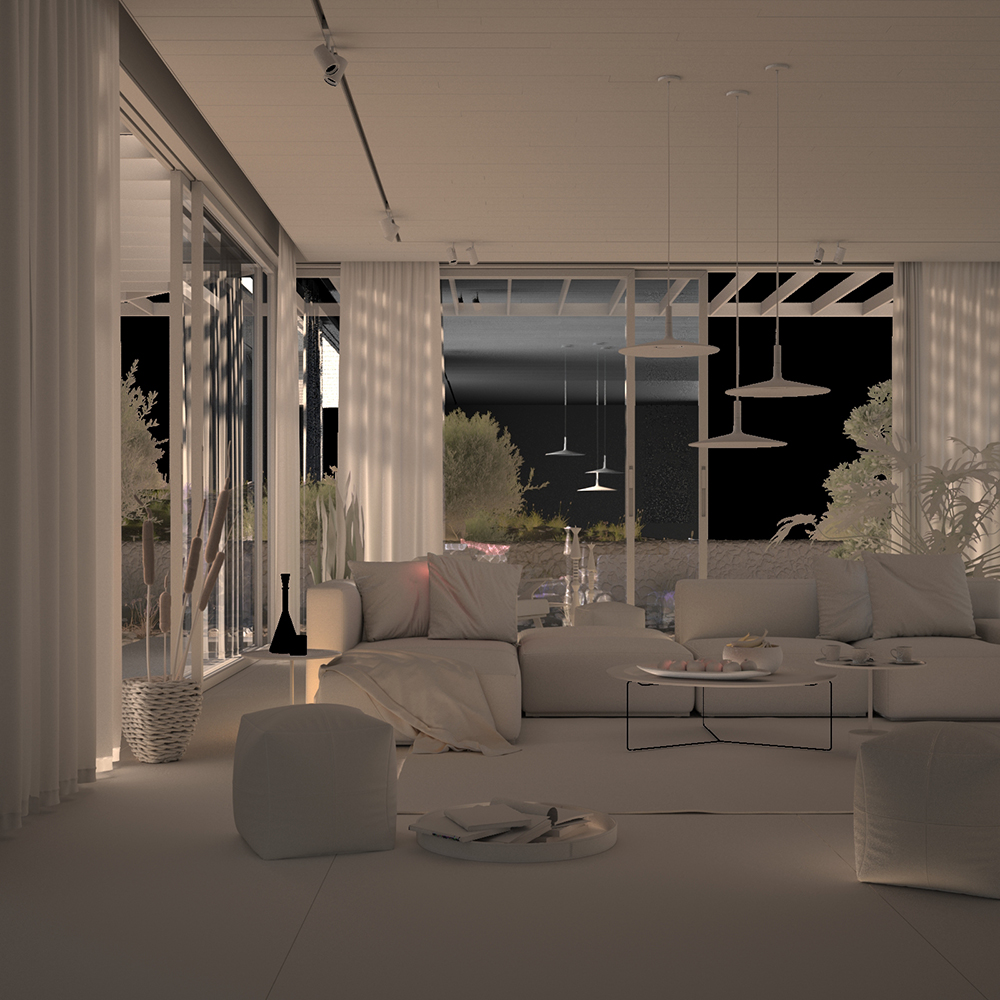

V-Ray Raw Global Illumination

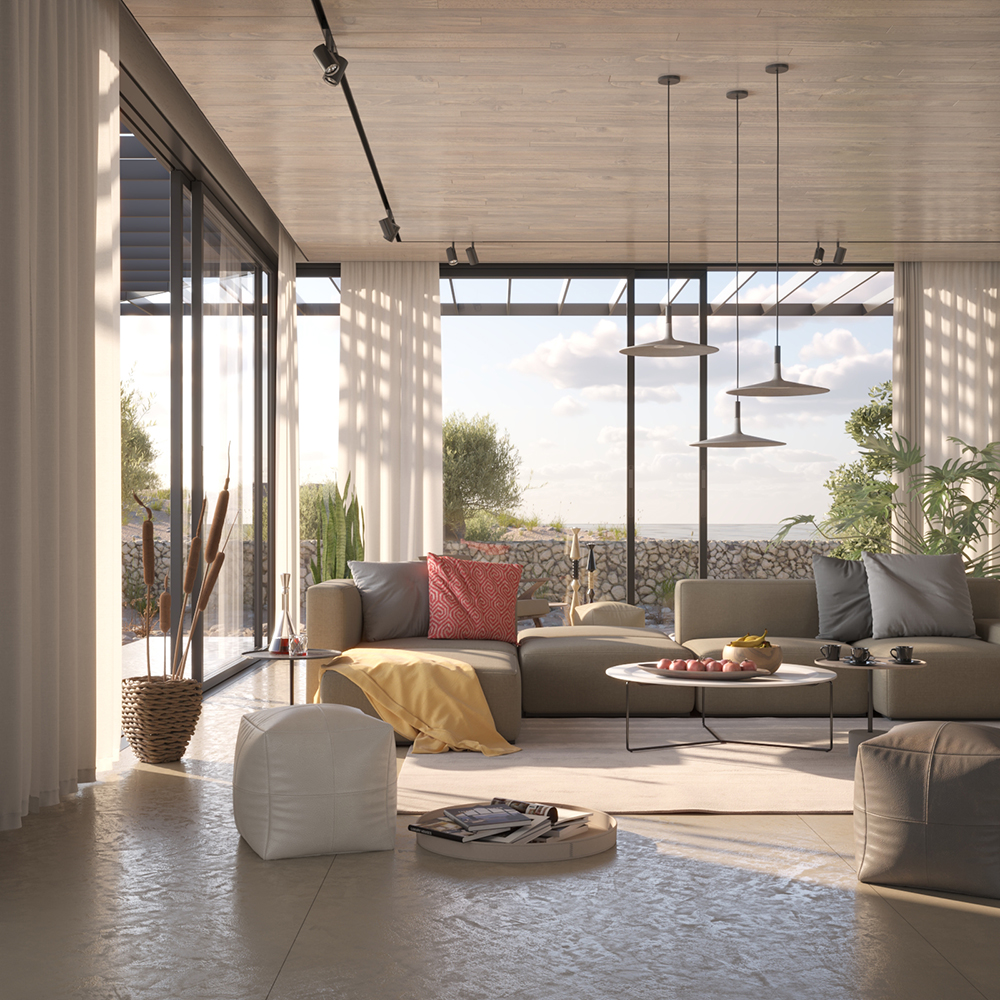

Original Beauty composite

V-Ray Raw Global Illumination edited

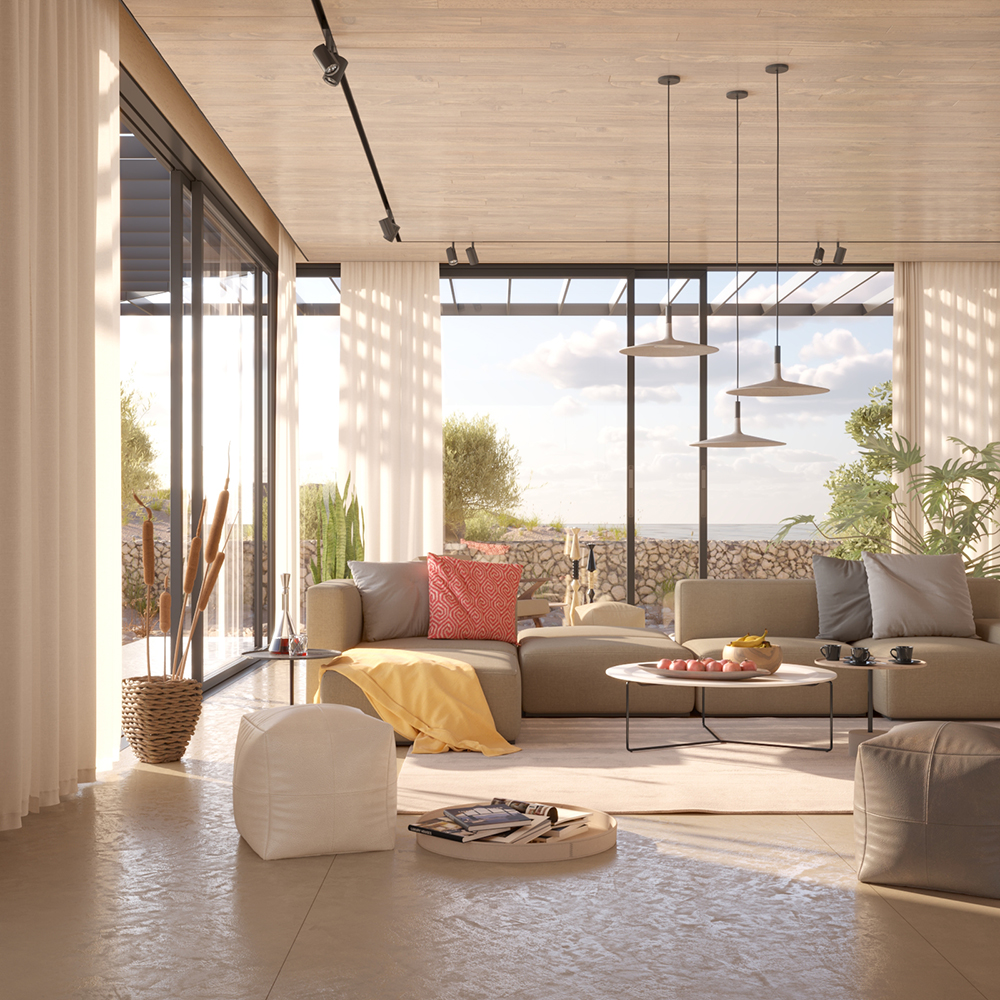

Beauty composite edited

Compositing

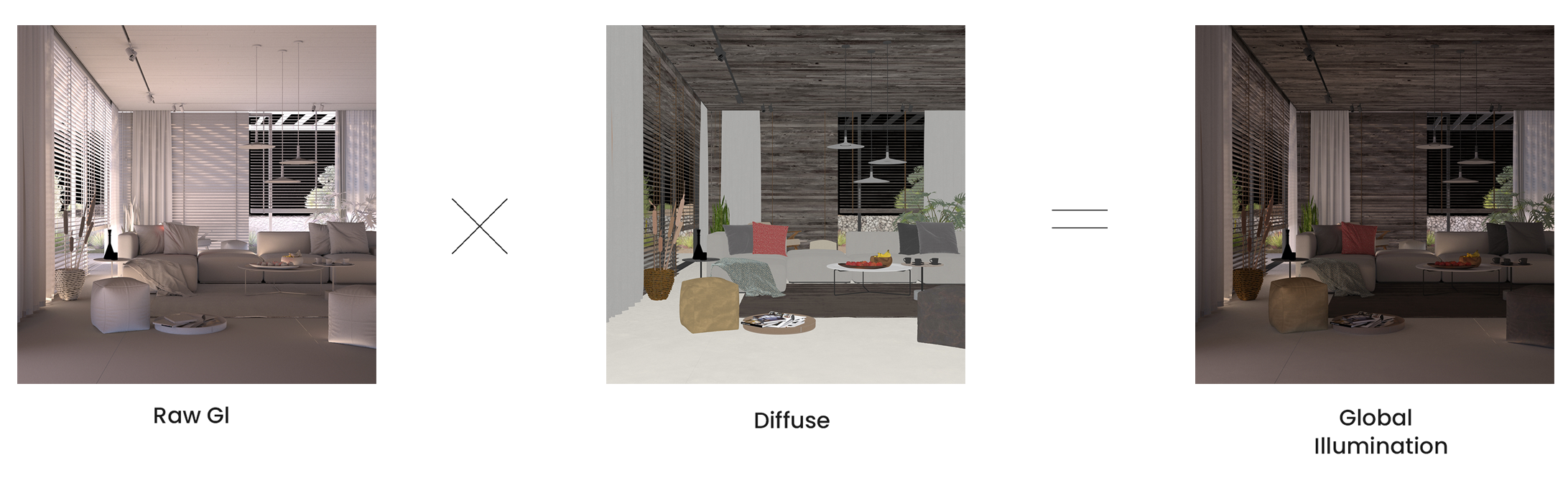

Raw GI x Diffuse = Global Illumination
