Raw Reflection

This page provides information about the Raw Reflection render element in V-Ray for Rhino.

Overview

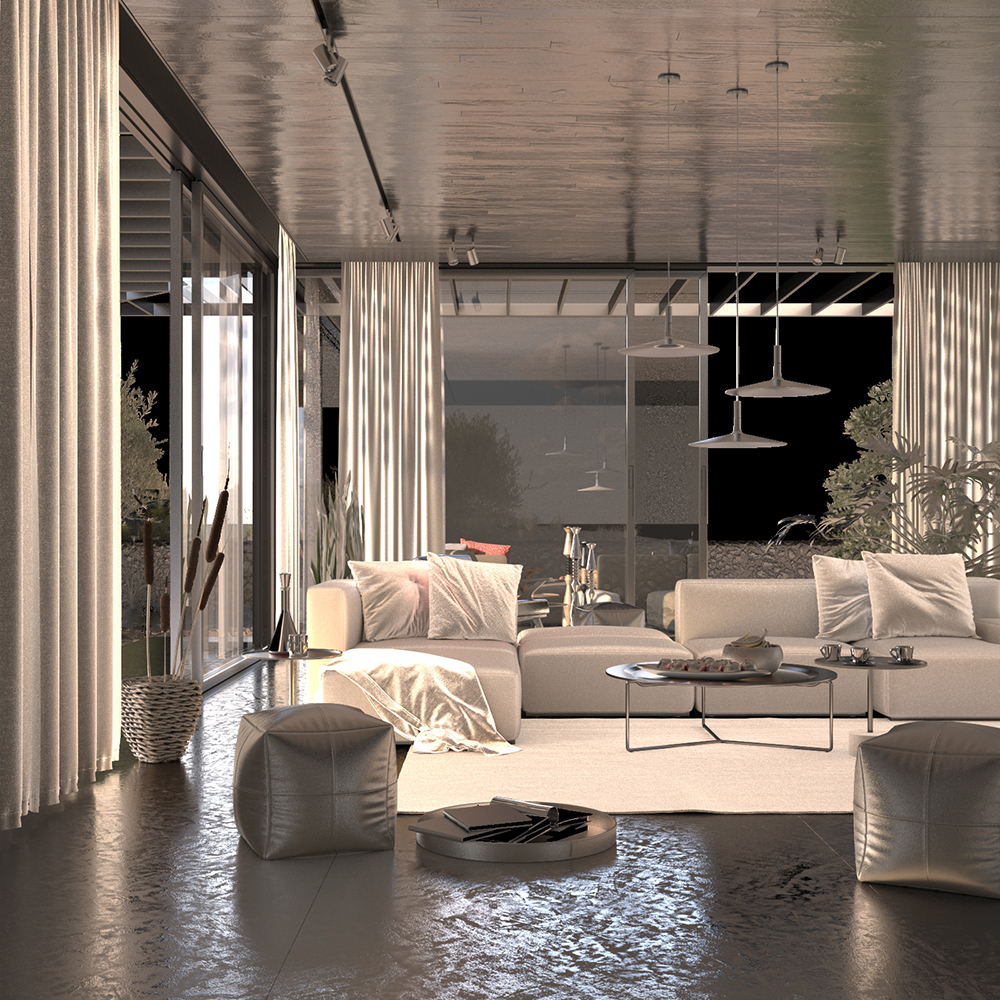

Stores reflection amount information based on the reflection color value of a material. Colorful reflection tint is ignored.

UI Paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Raw Reflection
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Raw Reflection

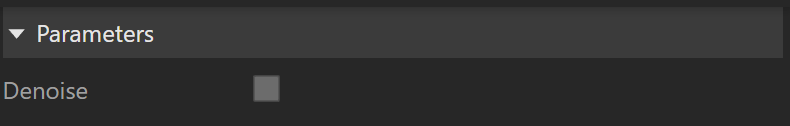

Parameters

Denoise – Specifies whether to denoise this render element.

Common Uses

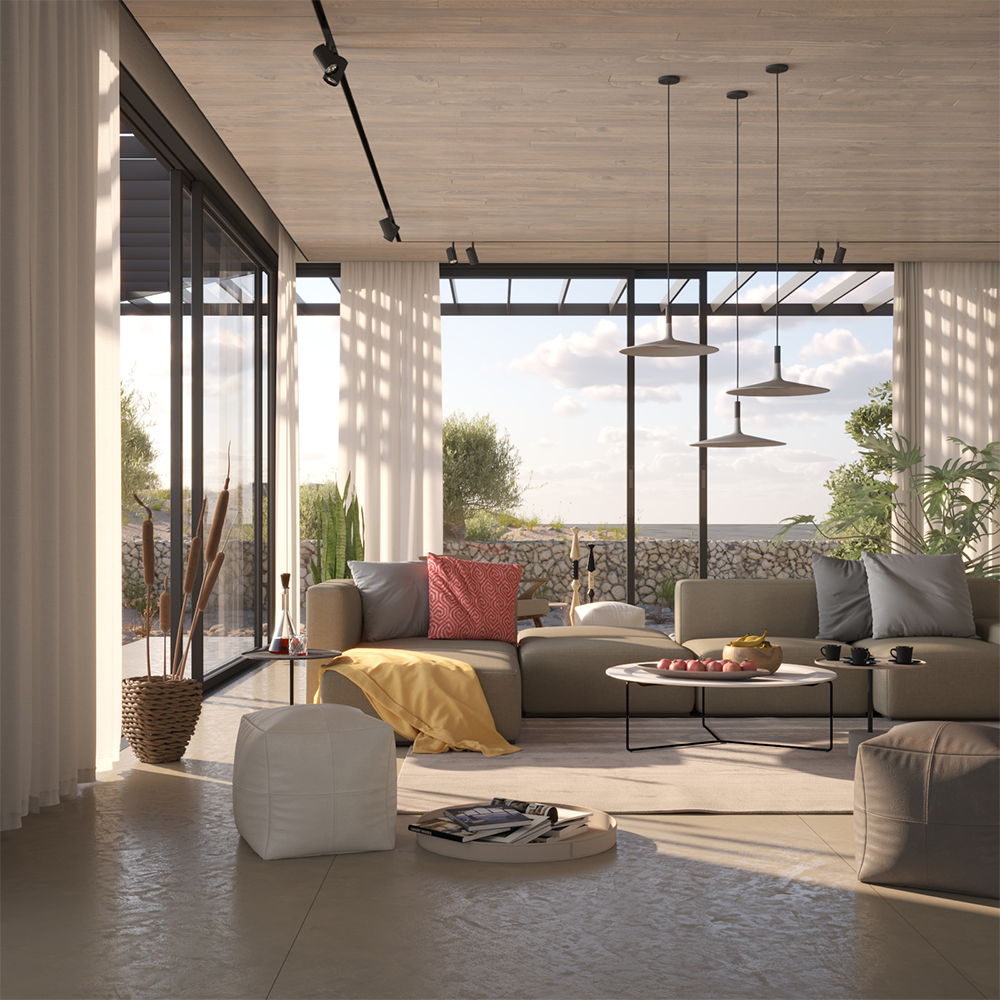

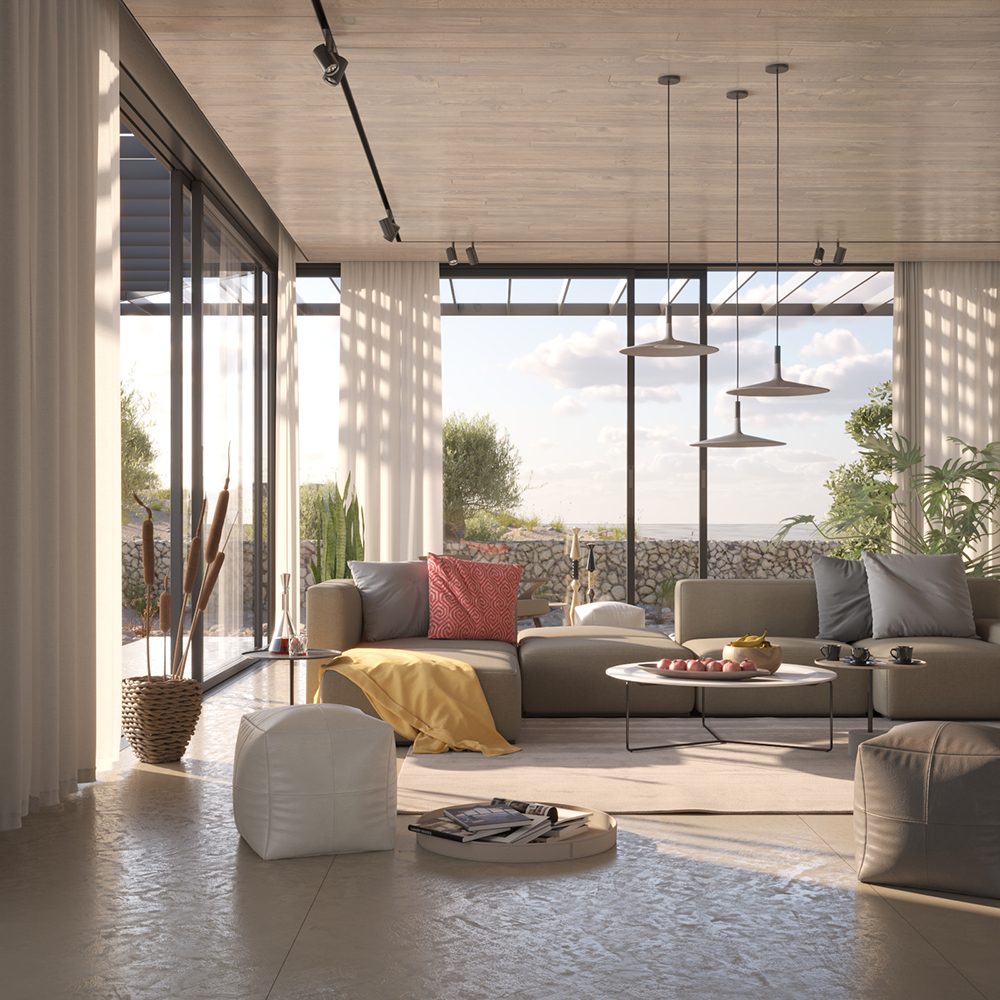

The Raw Reflection Render Element is useful for changing the appearance of reflective scene elements in compositing or image editing software after the scene is rendered. See below how a scene looks before and after post-production. The reflections are reduced by increasing the intensity of the Reflection Filter RE. The result is then multiplied by the Raw Reflection to achieve the full reflections.

Compositing

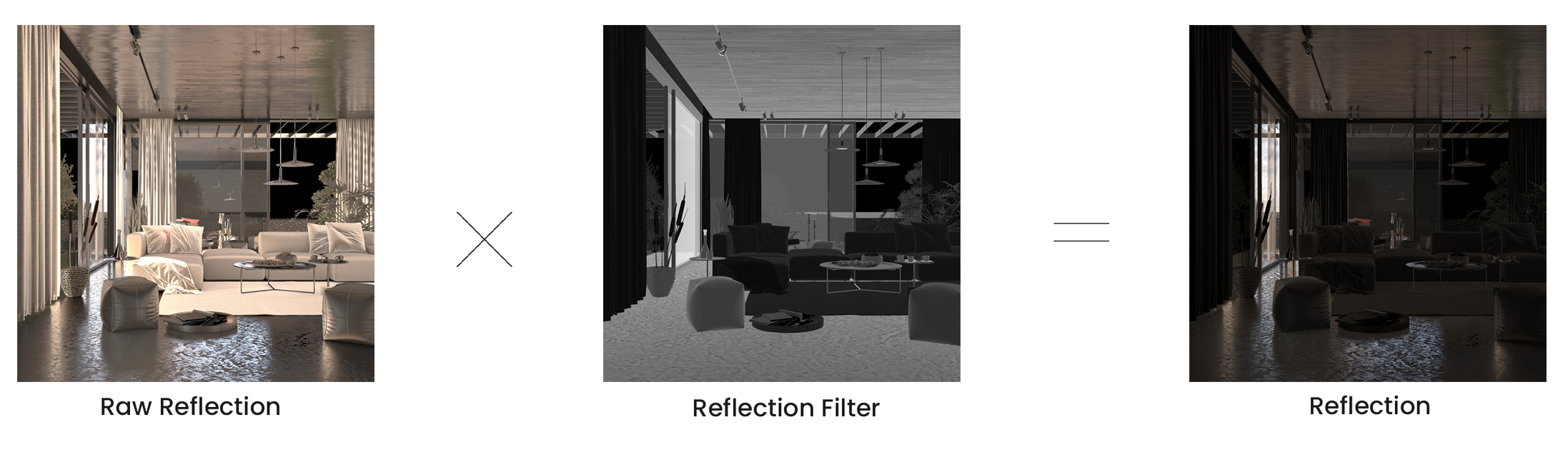

Raw Reflection x Reflection Filter = Reflection
