V-Ray Bake

This page provides information on the V-Ray light bake process with V-Ray for Unreal.

Overview

V-Ray Light Bake or just V-Ray Bake is the process of creating lightmaps with complex light interactions and diffuse interreflection using the V-Ray render engine and it's GI and Lighting calculations.

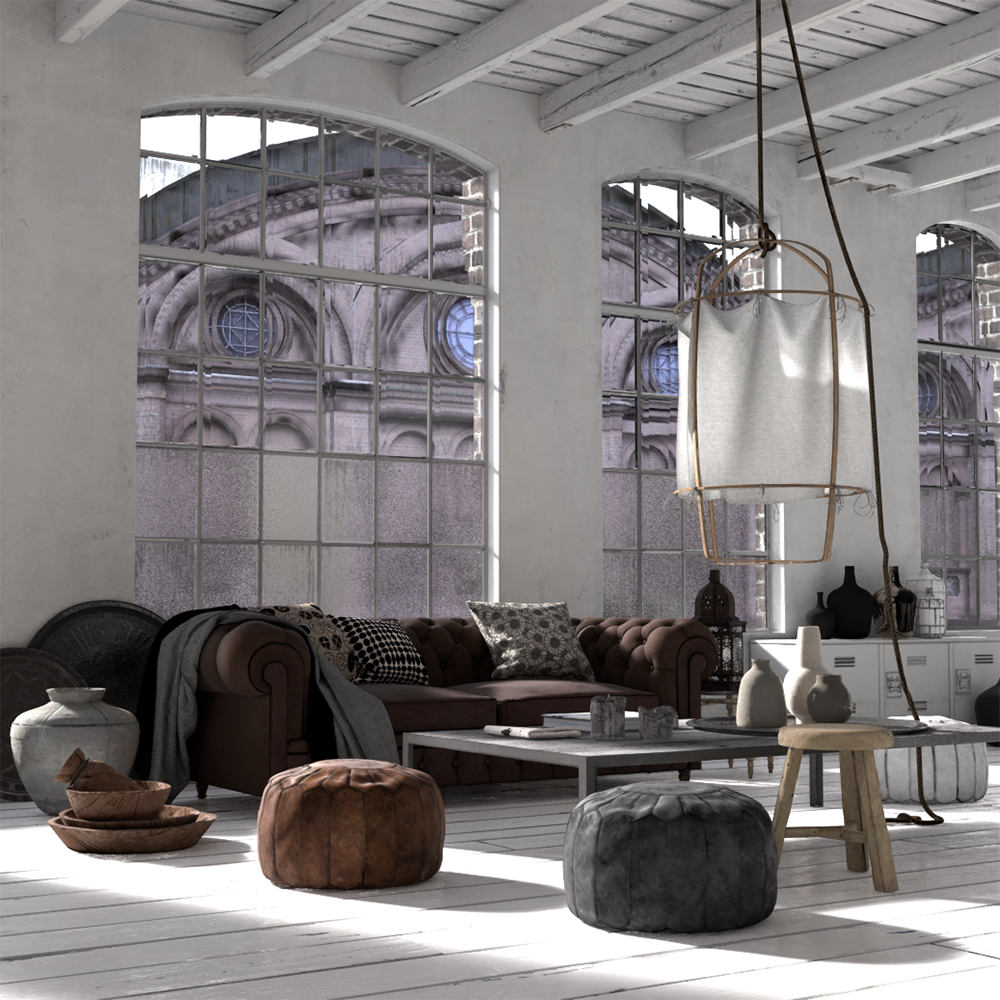

Viewport

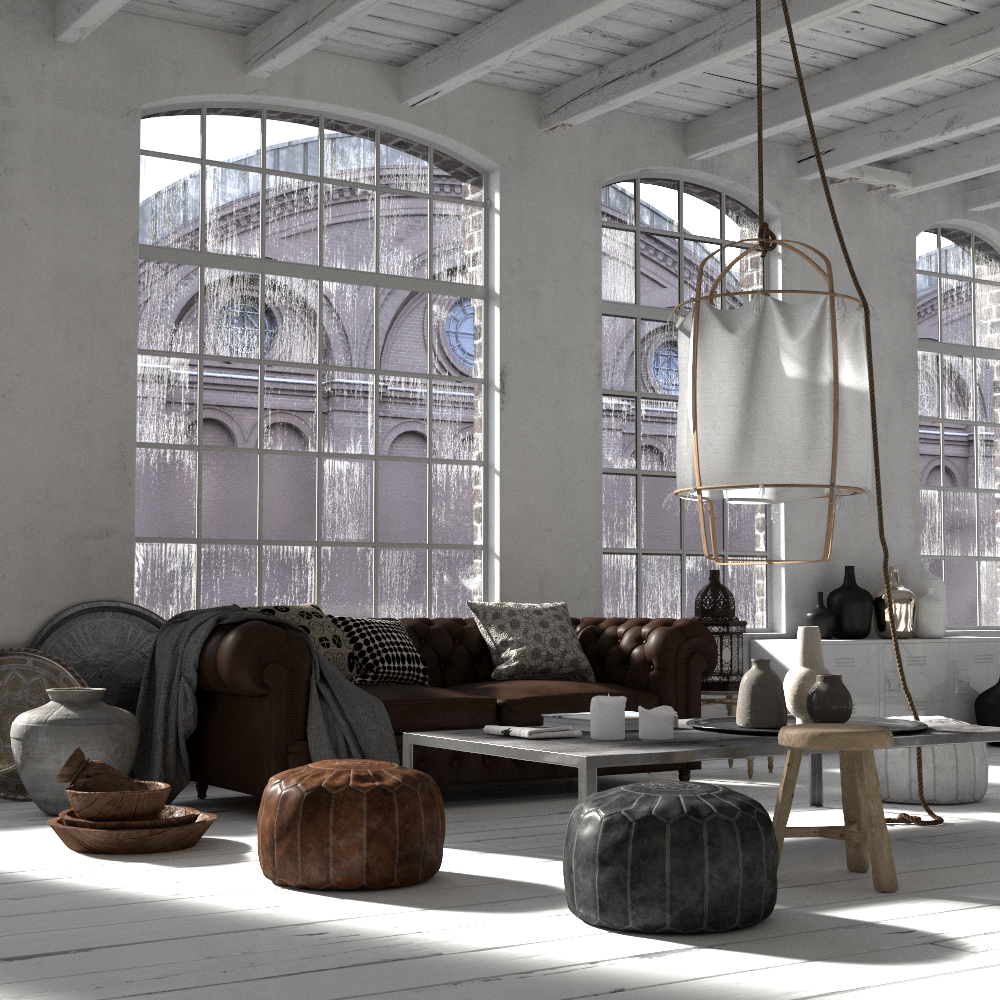

VFB

UI Paths

You can initiate a V-Ray Bake from the toolbar by clicking on the V-Ray Bake button.

||Toolbar|| > V-Ray Bake

The Process Atlases functionality is accessible through the drop down menu on the right side of the V-Ray Bake button.

||Toolbar|| > V-Ray Bake Settings dropdown > Process Atlases

The V-Ray Bake Settings tab is accessible through the drop down menu on the right side of the V-Ray Bake button.

||Toolbar|| > V-Ray Bake Settings dropdown > Settings

Bake Settings

Below are mentioned all the settings and parameters that modify the quality of the V-Ray Bake from the V-Ray Bake Settings tab and the V-Ray Settings tab.

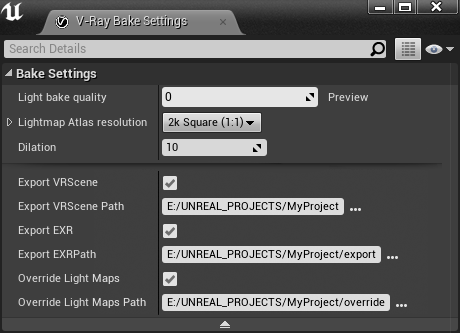

V-Ray Bake Settings Tab

Bake Settings

Light bake quality – A slider for a set of quality presets.

0 - Preview - Progressive Image Sampler; minSubdivs - 8; maxSubdivs - 32; Sample Limit - 100; Noise threshold - 0.3; Light Cache subdivs - 300; Retrace - 2; Denoiser -Strong denoising with strength 2 and radius 15
1 - Medium - Bucket Image Sampler; minSubdivs - 8; maxSubdivs - 32; Sample Limit - 1000; Noise threshold - 0.1; Light Cache subdivs - 1200; Retrace - 4; Denoiser -Default denoising with strength 1 and radius 10
2 - High - Bucket Image Sampler; minSubdivs - 8; maxSubdivs - 32; Sample Limit - 2000; Noise threshold - 0.005; Light Cache subdivs - 3000; Retrace - 8; Denoiser -Default denoising with strength 1 and radius 10

NEW - 3 - Custom

- Uses the settings from

V-Ray Setting

tab.

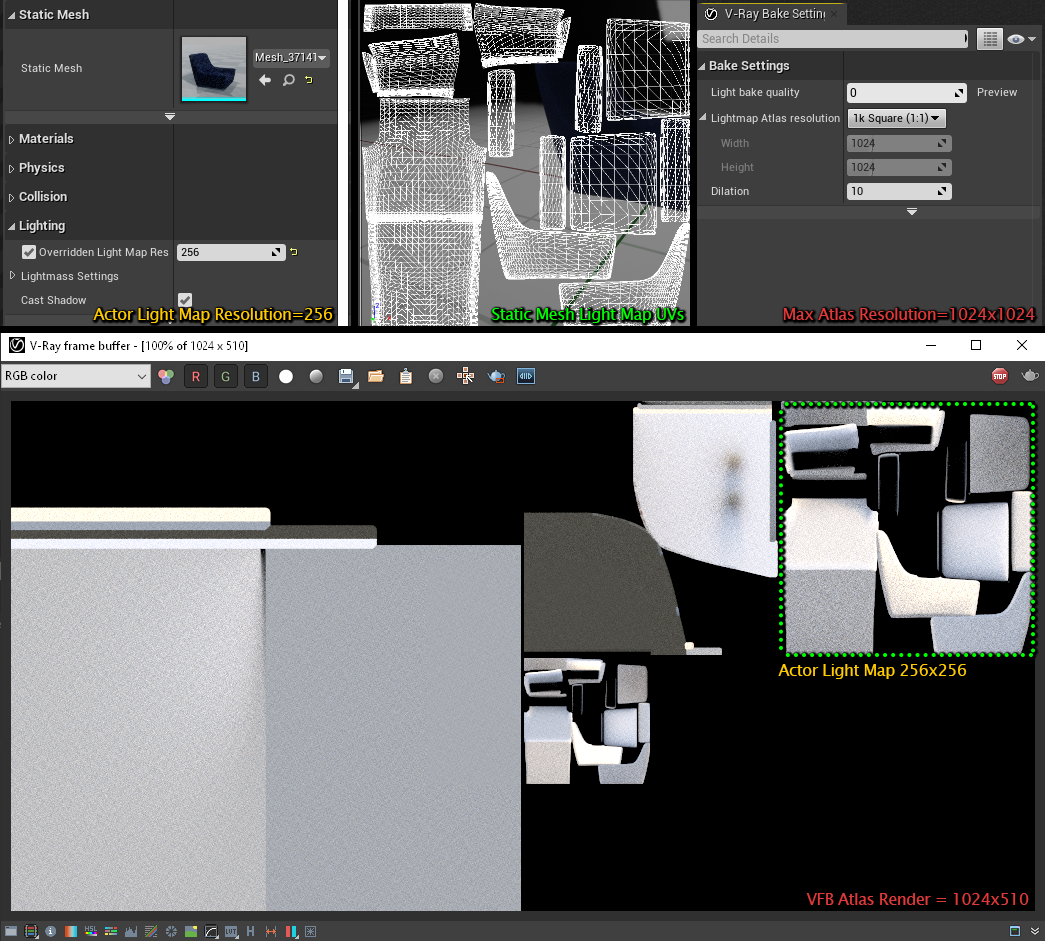

Lightmap Atlas resolution – Sets the preferred atlas resolution. Note that static meshes that have larger Light Map Res will automatically resize the atlas.

Presets: 1k Square (1:1); 2k Square (1:1); 4k Square (1:1); Custom

Dilation – The number of pixels to expand around geometry UVs.

Export VRScene – Enables the export of a .vrscene file when the V-Ray Bake button is clicked.

Export VRScene Path – Directory where the .vrscene file is saved with the file name bake#.vrscene. Default directory is <Project_Path>

Export EXR – Enables the export of a .exr file for each Static mesh Actor in the level when the V-Ray Bake button is clicked.

Export EXR Path – Directory where the .exr files are saved with the file name <StaticMeshActor_Name>.exr. Default directory is <Project_Path>/export

Override Light Maps – Enables the loading of .exr files for Static Mesh Actors in the level when the V-Ray Bake button is clicked.

Override Light Maps Path – Directory from where the .exr files are loaded when the V-Ray Bake button is clicked. Default directory is <Project_Path>/override.

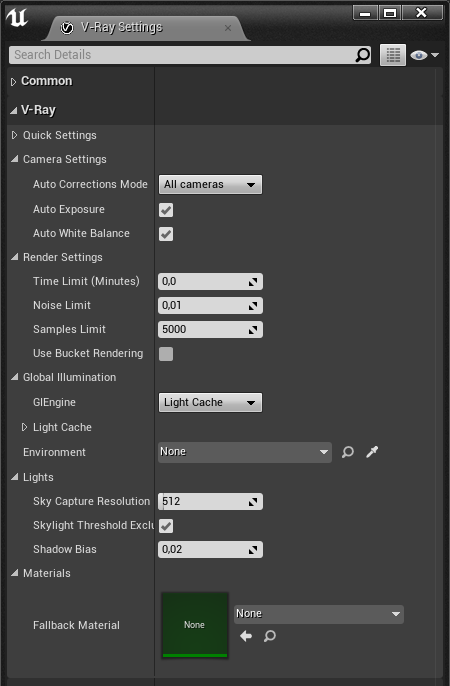

V-Ray Settings Tab

Camera Settings

Auto Correction Mode – Specifies which camera to use the automatic exposure and white balance setting.

All cameras
Cameras without exposure only

Auto Exposure – Automatically determines an appropriate exposure value for the render. It requires Light Cache to be set as a GI engine and Interactive turned off.

Auto White Balance – Automatically determines a suitable white balance value for the image. It requires Light Cache to be set as a GI engine and Interactive turned off.

Render Settings

Time Limit (Minutes) – Specifies the maximum time (in minutes) for refining the image.

Global Illumination

GI Engine – Specifies the type of secondary engine. Note that Brute force is always used as a primary engine.

Brute Force

GI Depth – The number of bounces for indirect illumination.

Light Cache

Environment – Specifies which VRaySettingsEnvironment blueprint will be used at render time for environment overrides. Blueprint must be picked from the level and assigned using either the drop-down list or the picker.

Lights

Shadow Bias – A global parameter for lights. This value moves the shadow toward or away from the shadow-casting object (or objects). Higher values move the shadow toward the object(s) while lower values move it away. If this value is too extreme, shadows can "leak" through places they shouldn't or "detach" from an object.

Materials

Fallback Material – Specifies what material to be used at render time for unsupported materials. If the slot is empty actors that have unsupported materials assigned will be rendered transparent.

Distributed Rendering

On – Enables or disables distributed rendering for V-Ray for Unreal. Use the Render Servers list to specify the machines that will be used for distributed rendering.

Use Local Host – When enabled, the client machine (the one from which the user initiates the DR render) will also take part in the rendering calculations. If disabled, the client machine only organizes the DR process, sends rendering tasks to the render servers and displays the final result.

Render Servers – Specifies the render servers. Click the + button to manually add a server by entering its IP address or network name followed by its port number (default is 20207) (e.g. 127.0.0.1:20207)

Maximum cached asset size (in GB) – This option specifies the maximum assets cache size limit in GB on the render machines. When the size of the assets on a render server exceeds the specified amount, least recently used assets are automatically deleted at the end of each render until the folder size is less than the limit.

Process Atlases

Process Atlases loads Light bake atlas .exr files and extracts the lightmaps for actor that are in that atlas. Those .exrs are a result of rendered exported .vrscene files from the V-Ray Scene Export Options dialogue using the Light Bake option.

When you click on the Process Atlases button in the V-Ray Bake Settings drop down a browse window will appear where you can select the atlas .exrs. In order for the Process Atlases to work you must first enable the Export EXR option in the V-Ray Bake Settings tab and set the Export EXR Path where the lightmaps per actor will be extracted.

Bake Progress

The V-Ray Bake button has five states depending on the process that is currently running:

Idle/Neutral

V-Ray is in idle mode, not processing or rendering the scene.

Preparing

V-Ray is preparing the scene for baking. Meshes, textures, materials and lights are cached into memory.

Rendering

V-Ray is baking the scene. Click on the button to stop rendering at any time.

Busy

V-Ray is unloading resources, exits rendering and processes lightmaps.

Finished

V-Ray has finished baking all atlases and lightmaps.

When light baking a progress bar appears in the lower right corner of the viewport. It shows which atlas is currently rendering and how much atlases are there in total.

Next Atlas – Stops the current atlas rendering, runs the denoiser and continues to the next atlas. This functionality is only available when in Preview preset.

Abort – Stops the current atlas rendering and closes the frame buffer without applying the rendered lightmaps.

Usage Examples

In this short example, a .vrscene file is loaded. Before we bake the lighting we first make sure that all lights in the scene are set to Static. Next we click on the Bake button in the V-Ray drop-down. The VFB pop up and the lightmaps begin to render. When it is done they are encoded and imported into Unreal. Finally, we start the IPR rendering and start walking around to see the parity between the lightbake and the actual render.
