Chaos Licensing, License Server Deployment

License Server settings

Adjust settings for proxy connections, diagnostics and network access in Chaos License Server.

On this page
  1. Overview
  2. Settings
  3. Configuration file
  4. Connection
  5. Diagnostics
  6. Expert mode

Adjust settings for proxy connections, diagnostics and network access in Chaos License Server.

Overview

Open the drop-down menu in the top right corner of the Chaos License Server web page to access the settings.

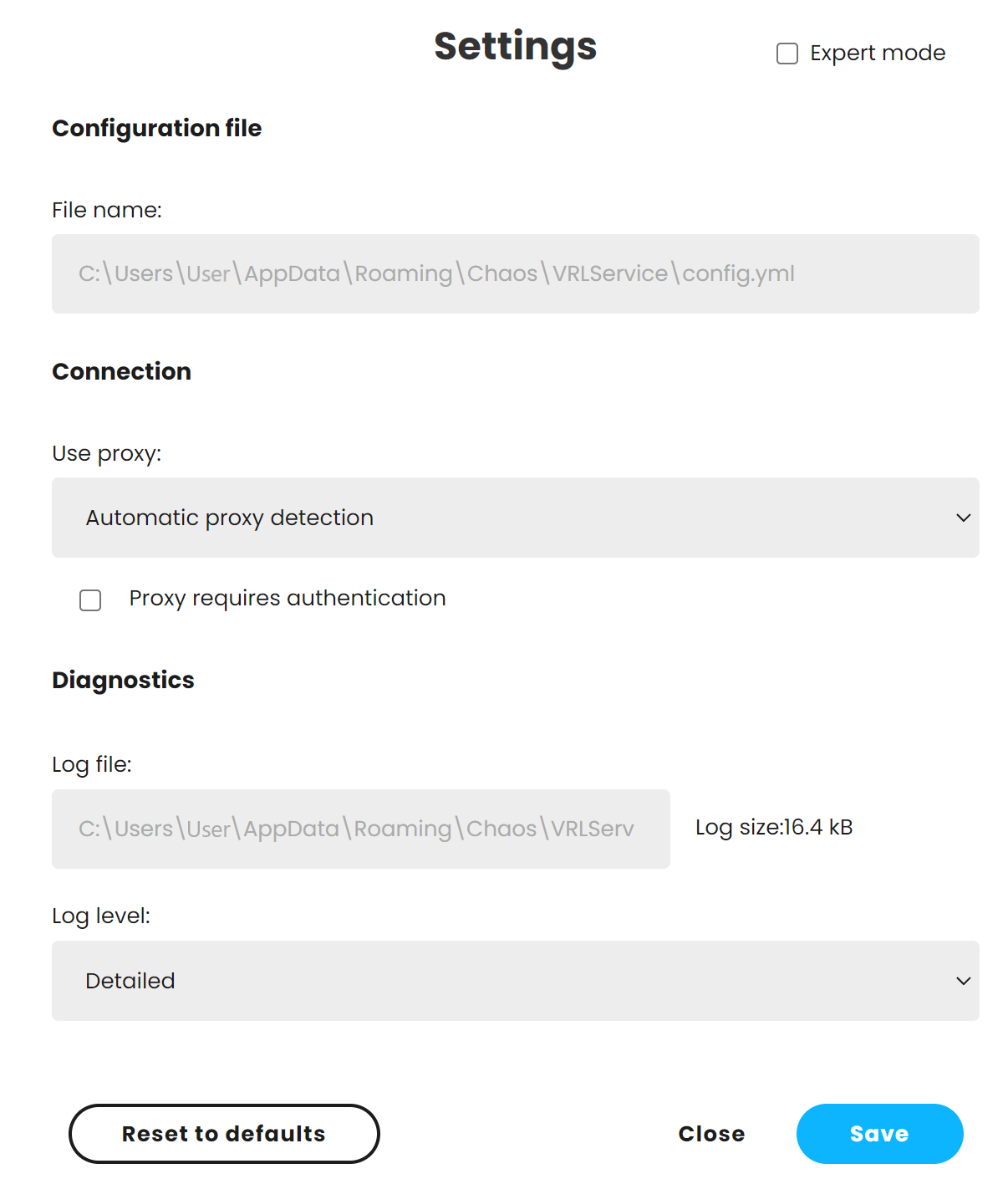

Chaos License Server Settings dialog with configuration file, proxy connection and diagnostic log options.

Settings

Configuration file

File name shows the location of the License Server configuration file.

Connection

Use Proxy lets you adjust your proxy settings.

None connects to the internet without a proxy.

HTTP Proxy uses an HTTP proxy. This does not mean the proxy cannot pass HTTP requests. Selecting this setting prompts you for a proxy address and port. Ask your network administrator for these details.

Automatic Proxy Detection lets the License Server detect the proxy type. This is the recommended setting.

Enable Proxy requires authentication if your network proxy requires authentication. Enter the authentication details so the License Server can connect to the internet.

Diagnostics

Log Directory shows the location of the diagnostics log file.

Log Level controls how much information the diagnostics log records. Errors Only records the least information. Verbose creates a full log. Higher levels record more information and create larger log files.

Log Size shows the current size of the log file.

Expert mode

License Server Network Visibility controls whether the License Server is visible to all computers on the network or only the computer running it.

Port controls which port you use to access the License Server Interface. Only change this value if necessary.
