Scene Analyzer

This page offers information about the Scene Analyzer tool in V-Ray for 3ds Max.

Overview

The Scene Analyzer is a built-in tool that checks the compatibility of your scene for rendering in Chaos Cloud Rendering before submission.

Scene Analyzer

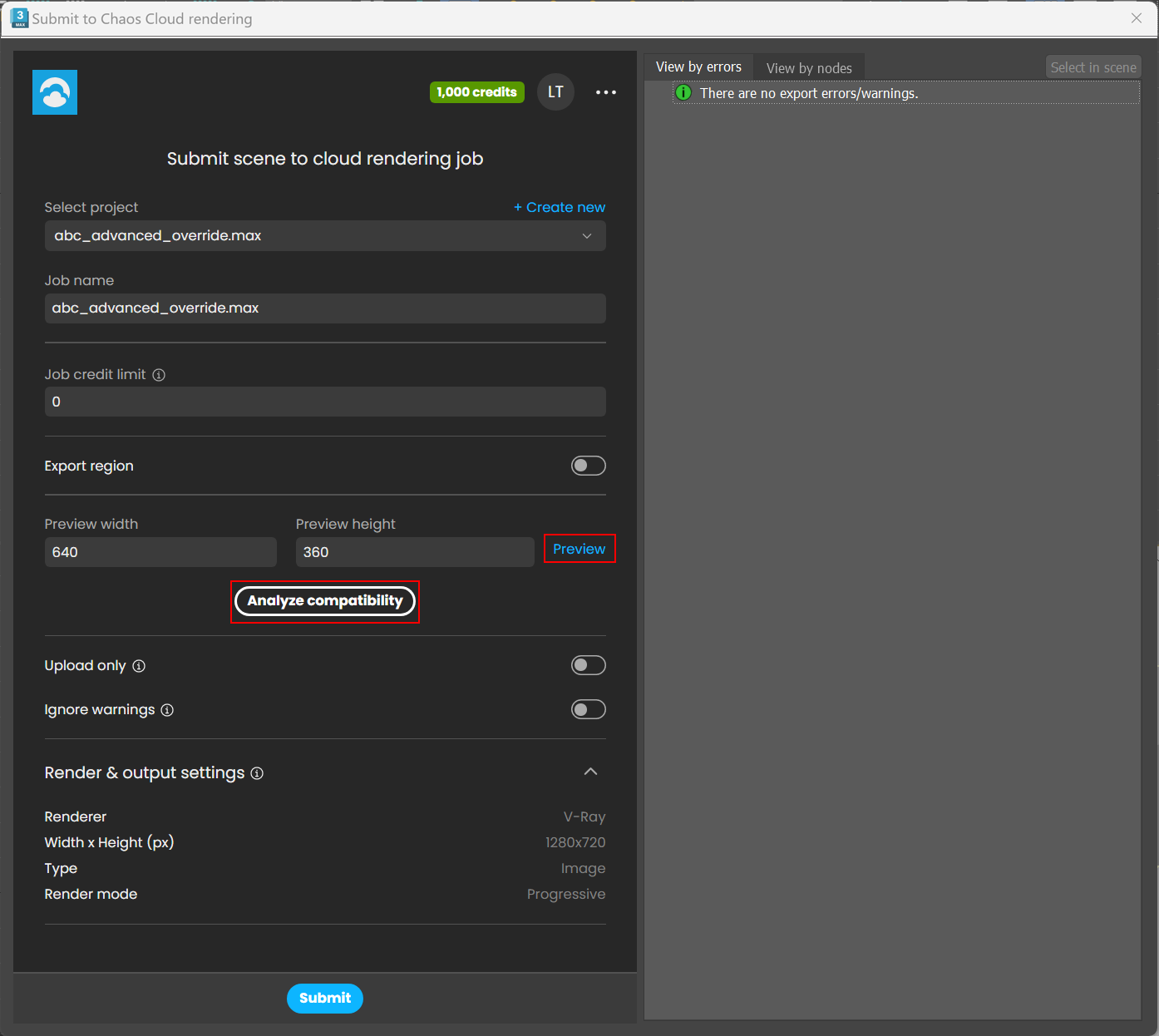

The Analyze compatibility button is located on the Submit to Chaos Cloud rendering window that appears when you submit a scene to Chaos Cloud through 3ds Max. It scans your scene and prints out information about any textures, materials, plug-ins and assets, incompatible with Chaos Cloud Rendering.

The Preview button scans your scene and runs a preview of it with V-Ray Standalone.

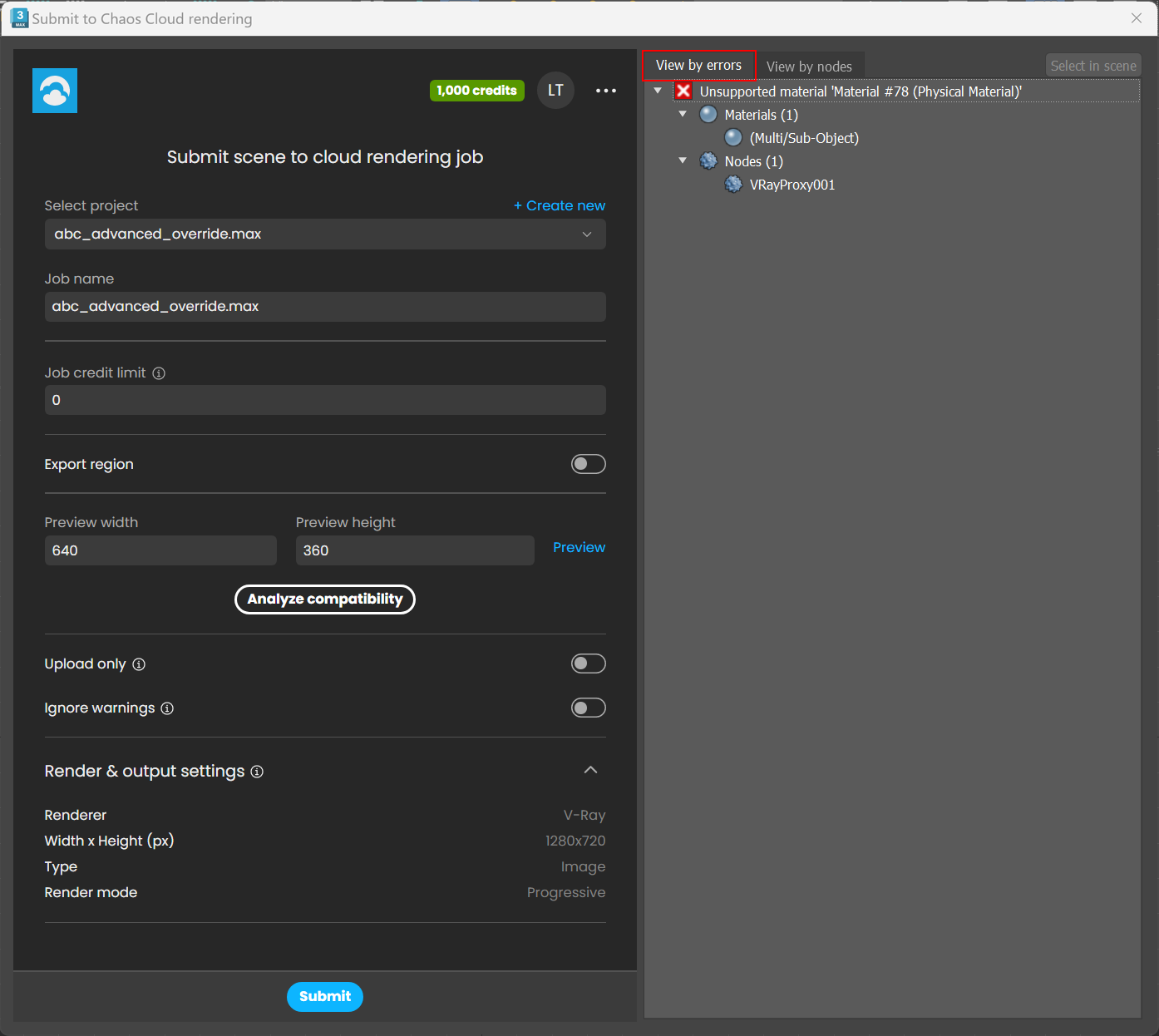

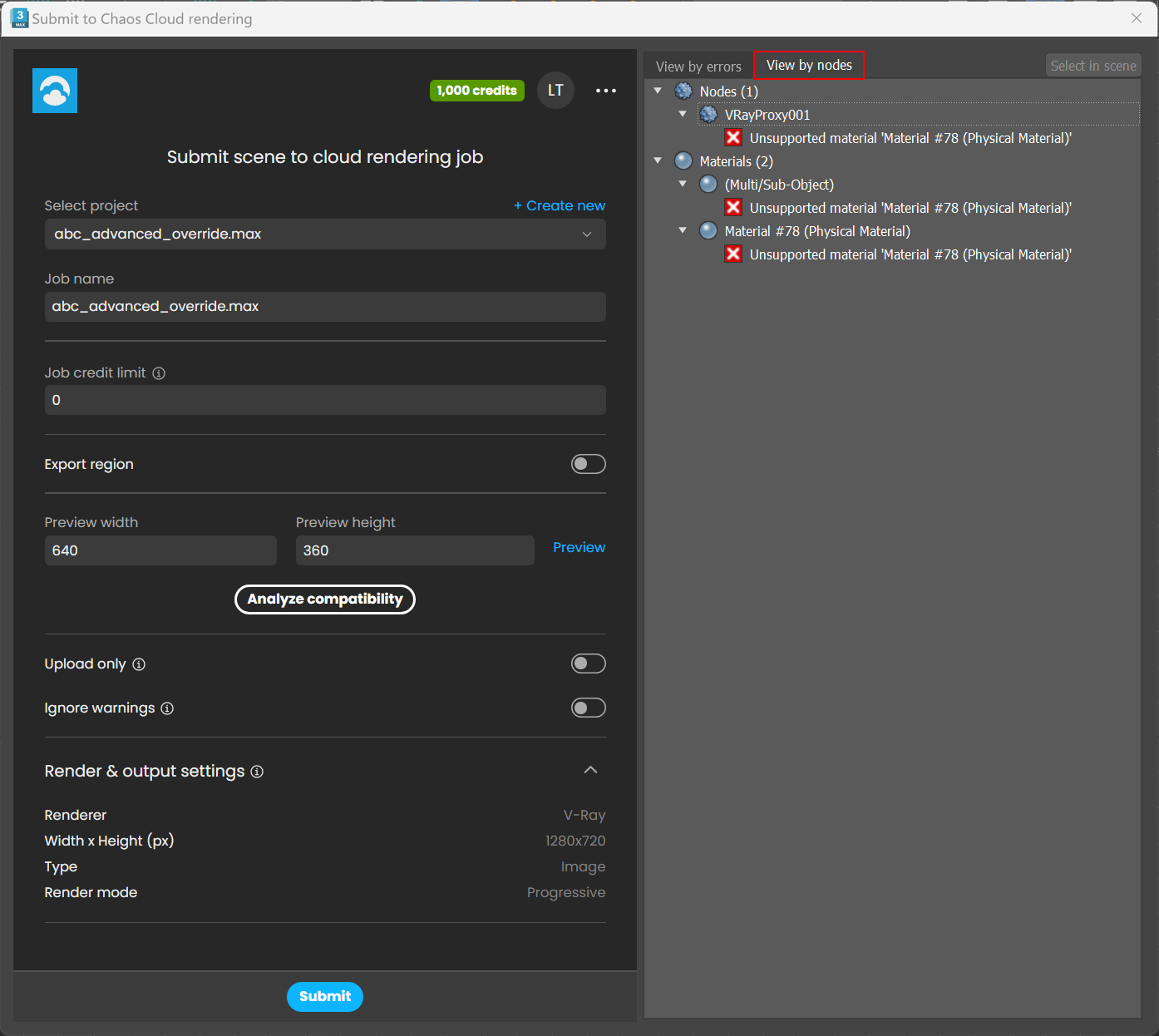

Switch the view between View by errors and View by nodes. Double-clicking on any unsupported node opens and highlights it within its corresponding window (Material Editor, Scene View, etc.).

Shortcuts and multi-selection

The Scene Analyzer also supports various multi-selection features and shortcuts that can be utilized in the following ways:

Selection related:

• Left-click – Selects a single item and deselects all previous selections.
• Shift + left-click – Selects a range of items in a single branch. The range is between the currently selected item and the previously single-selected item.
• Ctrl + left-click – Selects cumulatively. If an item is already selected, clicking on it again deselects it.
• Ctrl + Shift + left-click – Selects a range of items and adds them to the current selection.

Context menu related (right-click):

• On selected item(s) – Displays the context menu for the selected items.
• On non-selected item – Selects the item and displays the context menu for it.
• On empty area with Ctrl-down – Displays the context menu for all currently selected items.
• On an empty area – Removes the selection.

Double-left-click:

• Selects the item and opens the corresponding material or node within the material editor or the scene view(s).

Ctrl+C

• Copies the current text selection to the Windows clipboard.
