VRayOSLOutputSelector

This page provides information on the OSL Output Selector Map.

Overview

The VRayOSLOutputSelectorTex serves as a tool to select an output of a given VRayOSLTex. That way one VRayOSLTex can be used to supply multiple outputs at the same time.

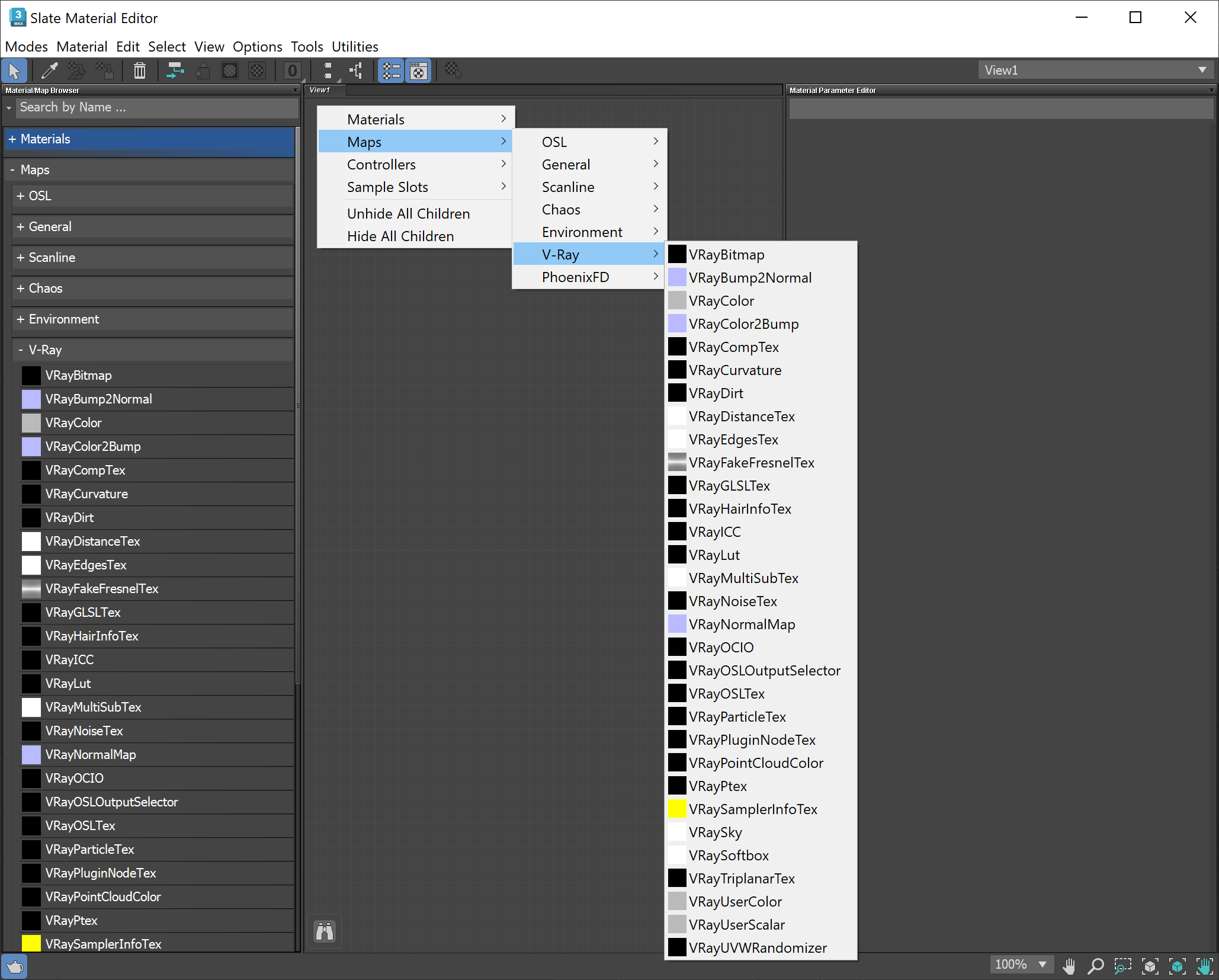

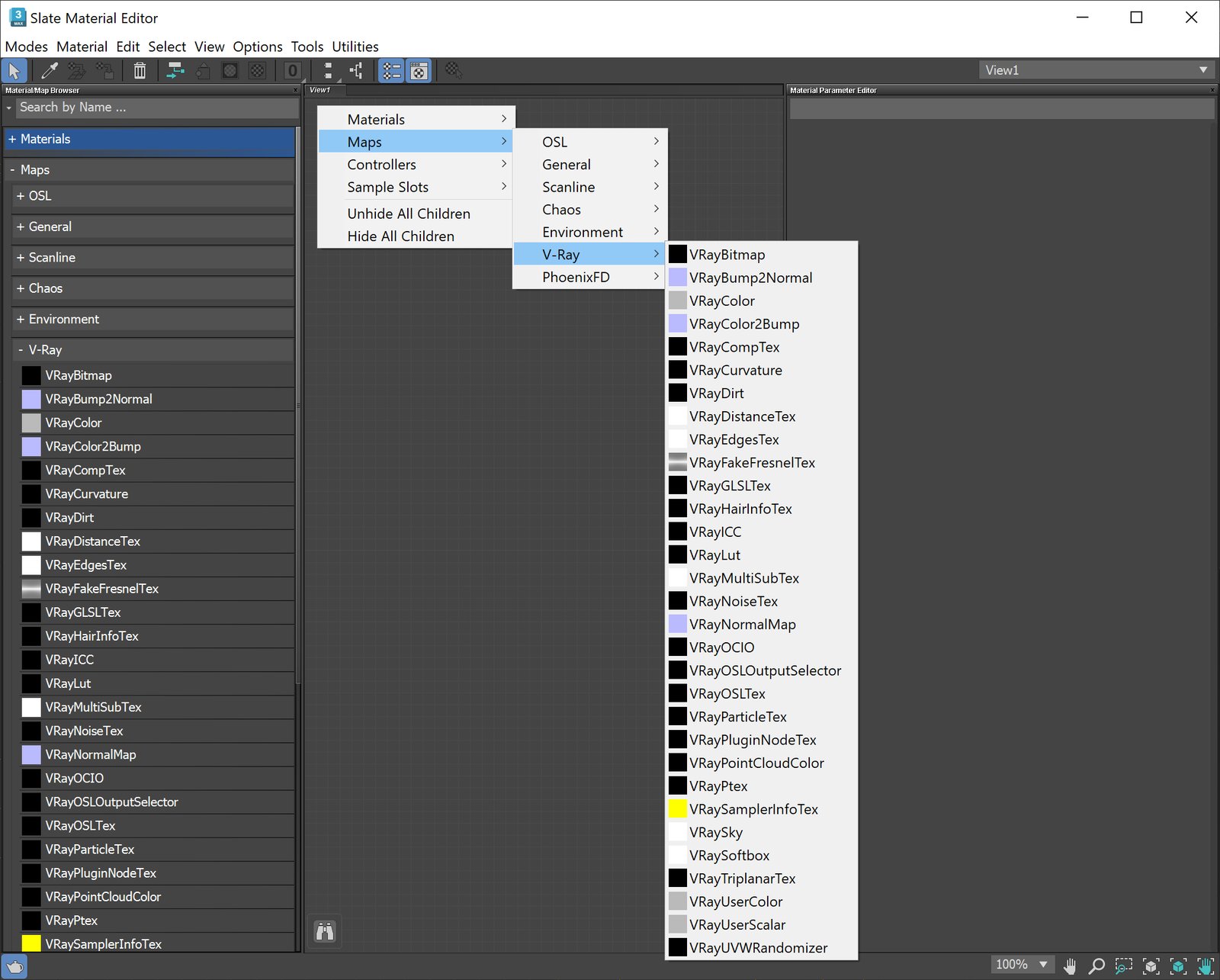

UI Path

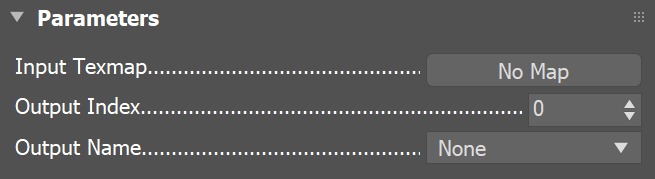

Parameters

Input Texmap – The VRayOSLTex input texmap. (Only VRayOSLTex should be used as an input.)

Output Index – The index of the output that is selected(zero based). This parameter is linked to the Output Name parameter.

Output Name – The name of the output that is selected. Change the output by choosing a different one from the drop-down list. This parameter is linked to the Output Index parameter.

Example

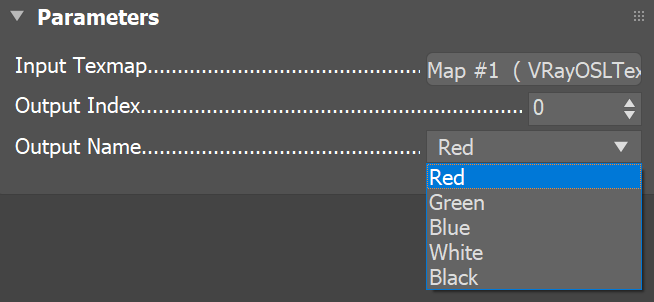

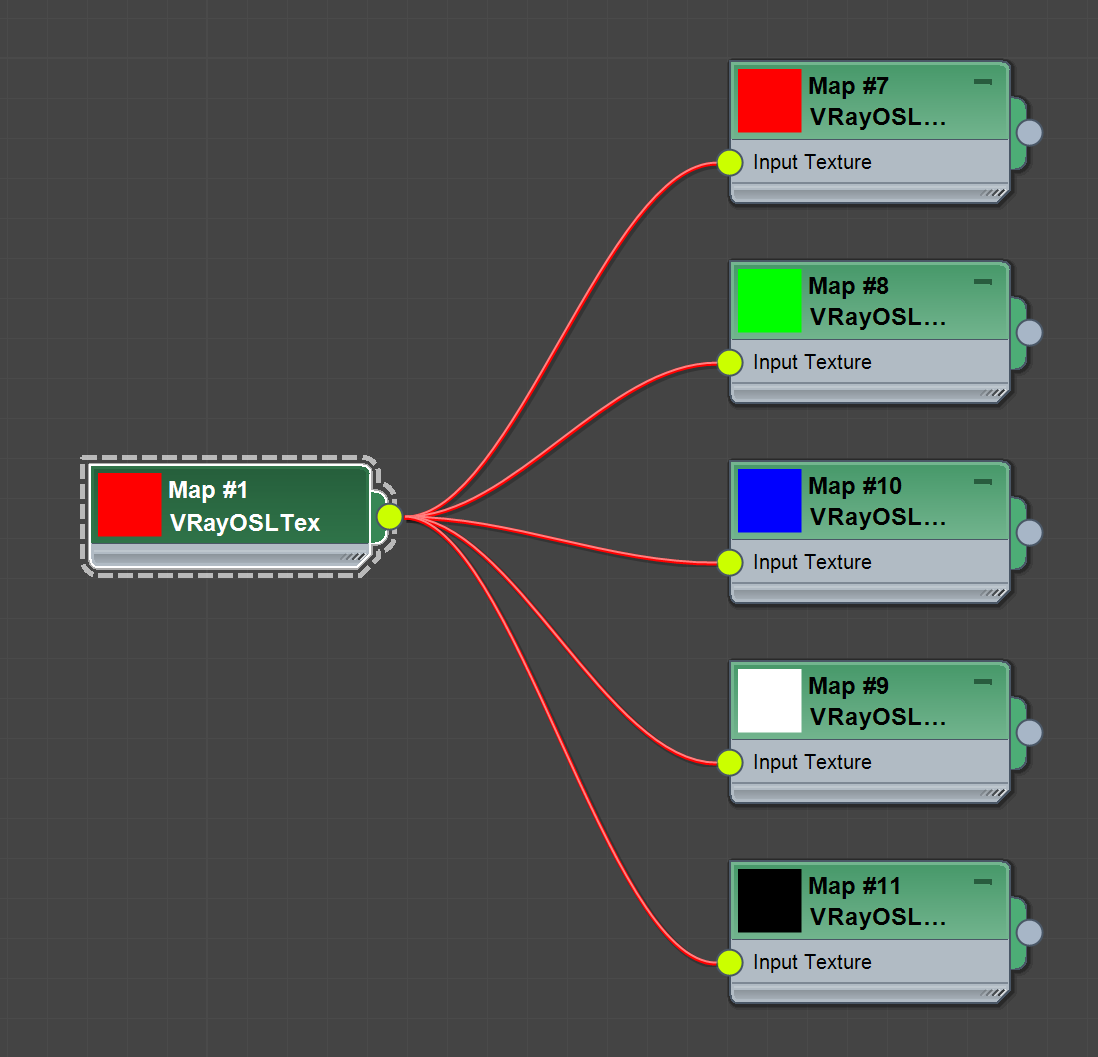

Multiple Outputs Example

<code data-v-c2b1f83f=""><span data-v-c2b1f83f="" class="line">shader</span><span data-v-c2b1f83f="" class="line">MultipleOutputsExample</span><span data-v-c2b1f83f="" class="line">(</span><span data-v-c2b1f83f="" class="line"> output color Red = color (1.0, 0.0, 0.0),</span><span data-v-c2b1f83f="" class="line"> output color Green = color (0.0, 1.0, 0.0),</span><span data-v-c2b1f83f="" class="line"> output color Blue = color (0.0, 0.0, 1.0),</span><span data-v-c2b1f83f="" class="line"> output color White = color (1.0, 1.0, 1.0),</span><span data-v-c2b1f83f="" class="line"> output color Black = color (0.0, 0.0, 0.0)</span><span data-v-c2b1f83f="" class="line">)</span><span data-v-c2b1f83f="" class="line">{ /*Empty. Does nothing.*/ }</span></code>
