V-Ray for Nuke

GI Raw

This page gives an overview of the GI Raw render element and how it may be used in compositing.

Last updated 18 September 2025

This page gives an overview of the GI Raw render element and how it may be used in compositing.

Overview

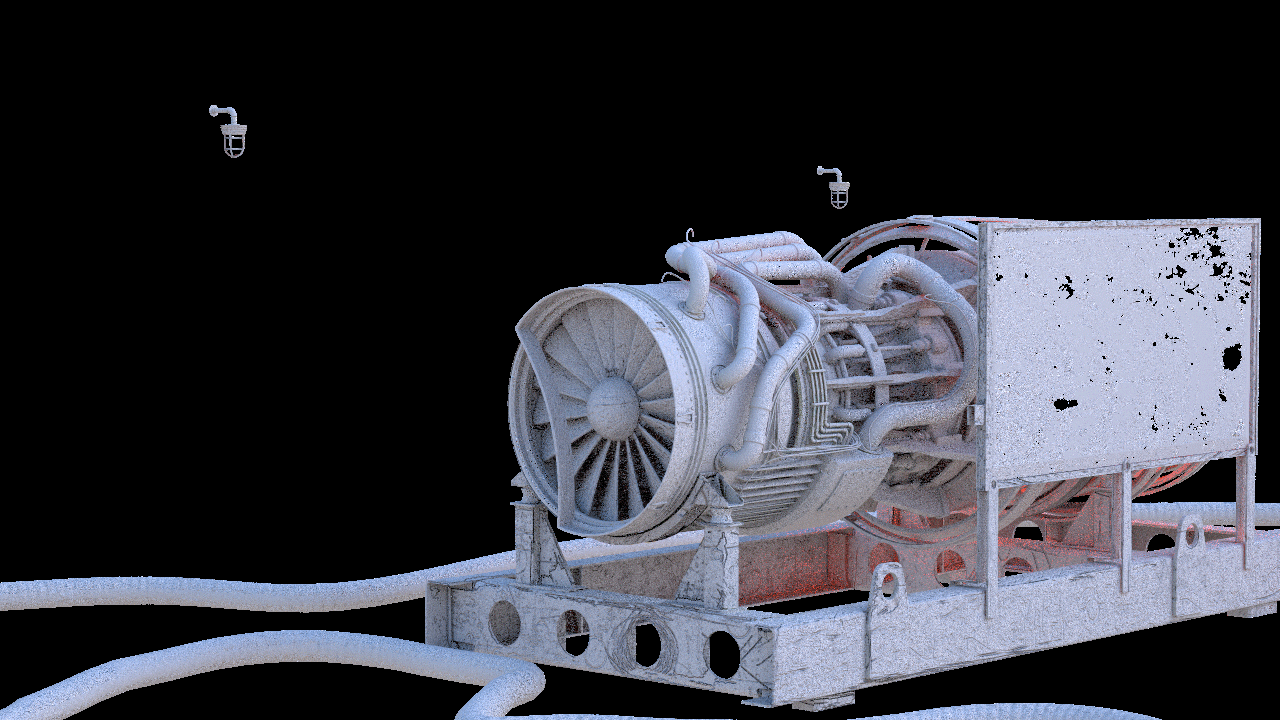

The Raw Global Illumination Render Element stores how much indirect lighting (reflected diffuse light) is received by surfaces in the scene. This raw element is useful for fine-tuning indirect lighting in the compositing process.

This pass is untouched by the diffuse colors of the scene and represents the pure indirect lighting contribution. You can use this raw element to reconstitute the GI by multiplying the Raw GI with the Diffuse.

UI Path: ||Toolbar|| > V-Ray Menu icon > Render > VRayRenderElement > Type: GI Raw

Properties

The GI Raw render element has no controllable properties.

Underlying Compositing Equation

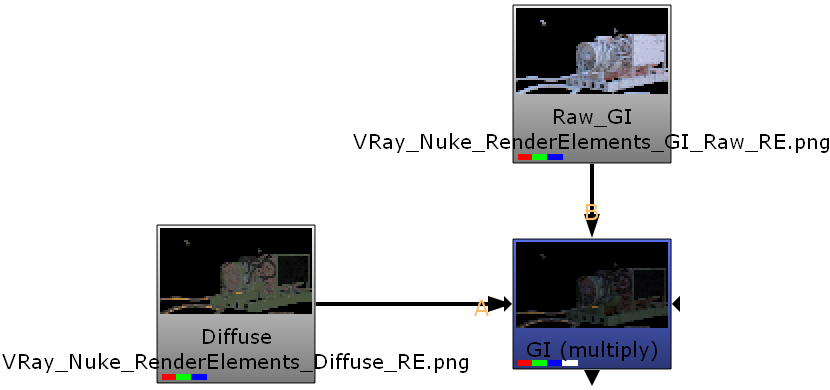

GI Raw x Diffuse = GI

Notes

  • When Raw Global Illumination is needed in a composite, please make sure to also render the Global Illumination render element (GI) as well.
