Enscape, Get Started

Control and input

Use Enscape's keyboard shortcuts, mouse input and Xbox controls to navigate and adjust your view.

On this page
  1. Overview
  2. Keyboard shortcuts
  3. Navigation
  4. Sun position
  5. Video
  6. General
  7. Input controls in Enscape
  8. Xbox controls
  9. Navigation
  10. SpaceMouse
  11. Virtual Reality

Use Enscape's keyboard shortcuts, mouse input and Xbox controls to navigate and adjust your view.

Overview

These controls are fixed and cannot be reassigned, except for the Screenshot hotkey. To customise it, open Renderer Window Settings > Input from the top toolbar in the Enscape Viewport.

Keyboard shortcuts

Control binding

Result

Control binding

Result

Scroll (Mouse wheel)

Move the camera forwards or backwards.

Press (Mouse wheel)

Move the camera sideways, up or down.

Left mouse button

Rotate the camera.

Left mouse button (double click)

Teleport to the cursor position.

Right mouse button

Hold the right mouse button to orbit around the cursor position.

Q

Move the camera down in FlyMode.

E

Move the camera up in FlyMode.

W or Up Arrow

Move the camera forwards.

S or Down Arrow

Move the camera backwards.

A or Left Arrow

Move the camera left.

D or Right Arrow

Move the camera right.

SPACE

Switch between FlyMode and WalkMode.

SHIFT

Move the camera fast.

CTRL

Move the camera faster.

SHIFT + CTRL

Move the camera very fast.

NumPad 5

Show Top View.

NumPad 2

Show Front View, facing project north.

NumPad 8

Show Back View, facing project south.

NumPad 4

Show Left View, facing project east.

NumPad 6

Show Right View, facing project west.

NumPad 0

Return to the selected Named View.

PageUp / PageDown

Show Previous View or Next View.

Sun position

Control binding

Result

Control binding

Result

SHIFT + Right mouse button, or U or I

Adjust the time of day.

SHIFT + U or I

Change the solar angle.

CTRL + U or I

Change the solar rotation.

HOME or Pos1

Reset changes to the sun position.

Video

Control binding

Result

Control binding

Result

V

Open Video Editor.

K

Add a video keyframe.

P

Start Preview from the current Keyframe.

Esc

Exit Preview, Keyframe Editor or Video Editor.

General

Control binding

Result

Control binding

Result

M

Show or hide MiniMap.

Scroll (Mouse wheel) over MiniMap

Zoom in or out in MiniMap.

R

Recentre your position in Virtual Reality.

H

Show or hide instructions in the Enscape window.

B

Show or hide the BIM information window.

C

Show or hide the Enscape Collaboration Tool.

Esc

Close most windows, including Visual Settings.

Input controls in Enscape

Open the Renderer Window Settings dialog and select Input. Here you can adjust mouse speed and movement, spectator height, width and movement speed. You can also invert the X and Y axes of the mouse or game controller.

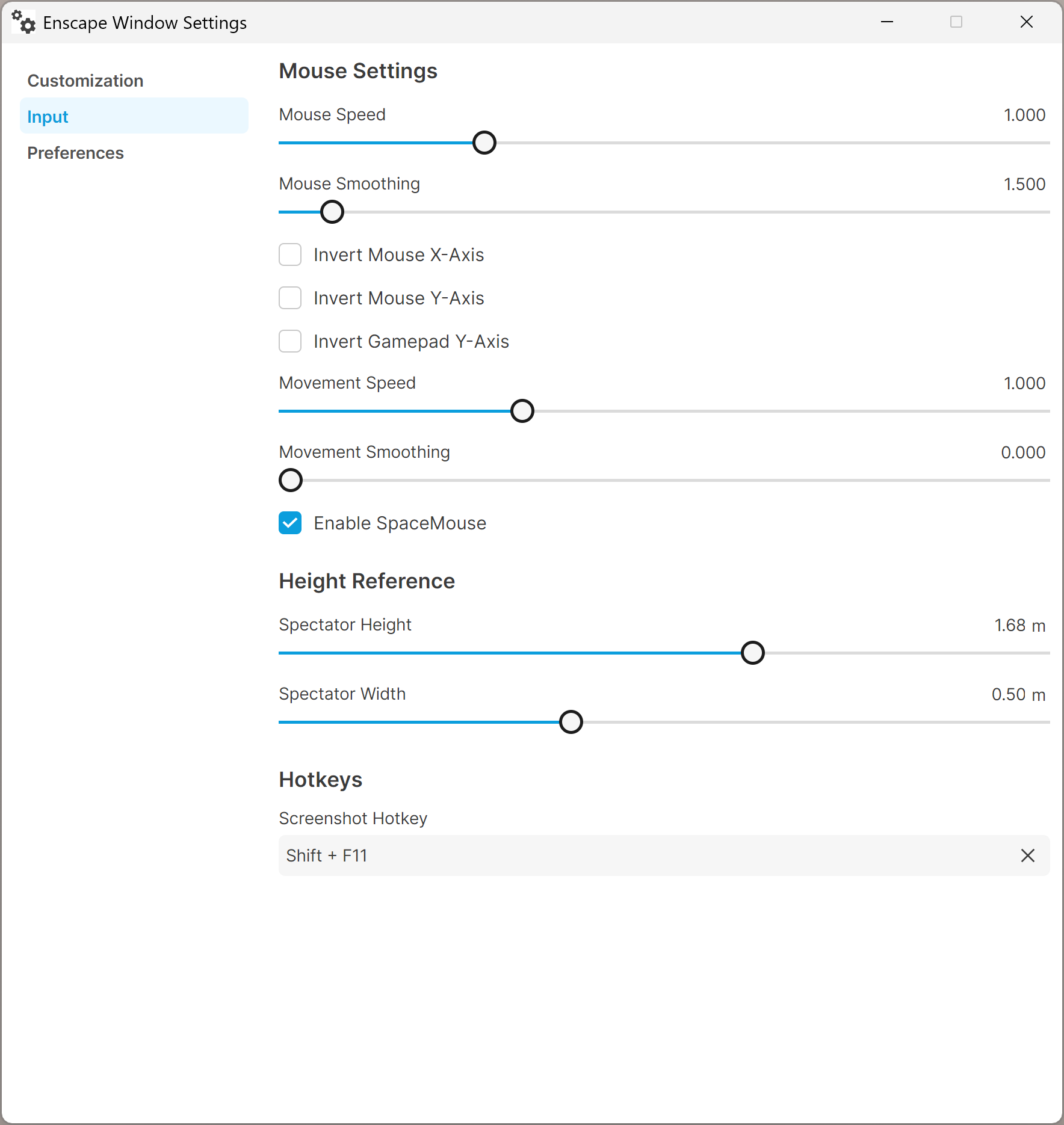

Enscape Window Settings with Input selected, showing mouse, movement, spectator height and width, and hotkey settings.

Xbox controls

Control binding

Result

Control binding

Result

Left-Thumb-Axis

Move.

Left-Thumb-Button (press)

Increase movement speed.

Right-Thumb-Axis

Look around.

Right-Thumb-Button (press)

Centre the view.

Left or Right Trigger

Fly down or up.

A

Switch between FlyMode and WalkMode.

Left or Right Shoulder

Adjust the time of day.

Y

Set the time to midday.

B

Set the time to midnight.

Start

Show or hide instructions.

Back button

Recentre your position in Virtual Reality.

D-Pad up or down

Show the next or previous view.

Unassigned buttons:

  • Button X is not assigned.
  • Button Menu is not assigned.

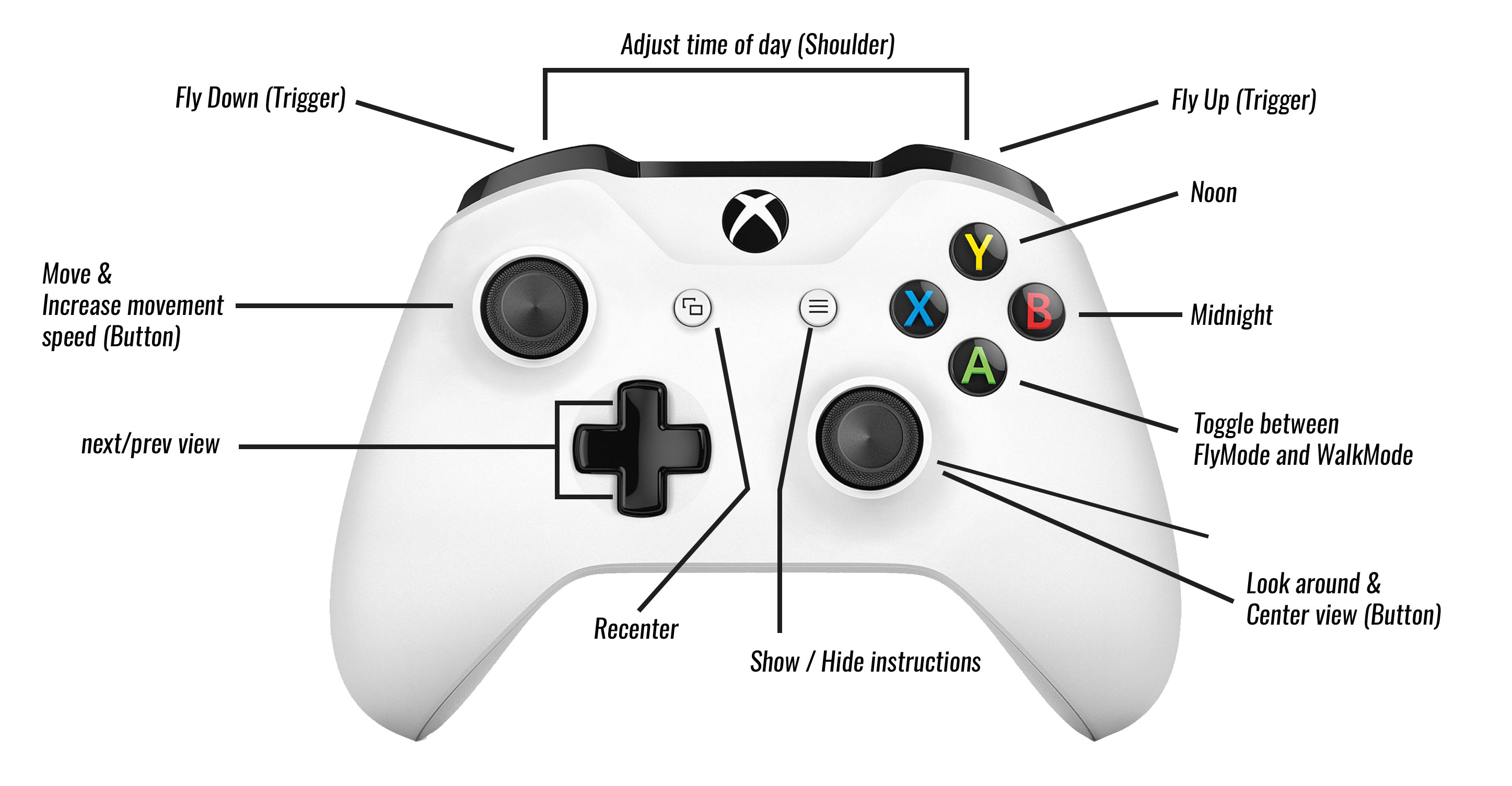

Xbox controller navigation guide showing movement, view, flight, time of day and Show / Hide instructions controls.

SpaceMouse

For help using a 3Dconnexion SpaceMouse with Enscape, see the 3dconnexion documentation.

Virtual Reality

See the Virtual Reality Headset page for virtual reality controls.
