ACEScg Workflow Setup

This page provides information about the proper ACEScg color space workflow with V-Ray for 3ds Max.

Overview

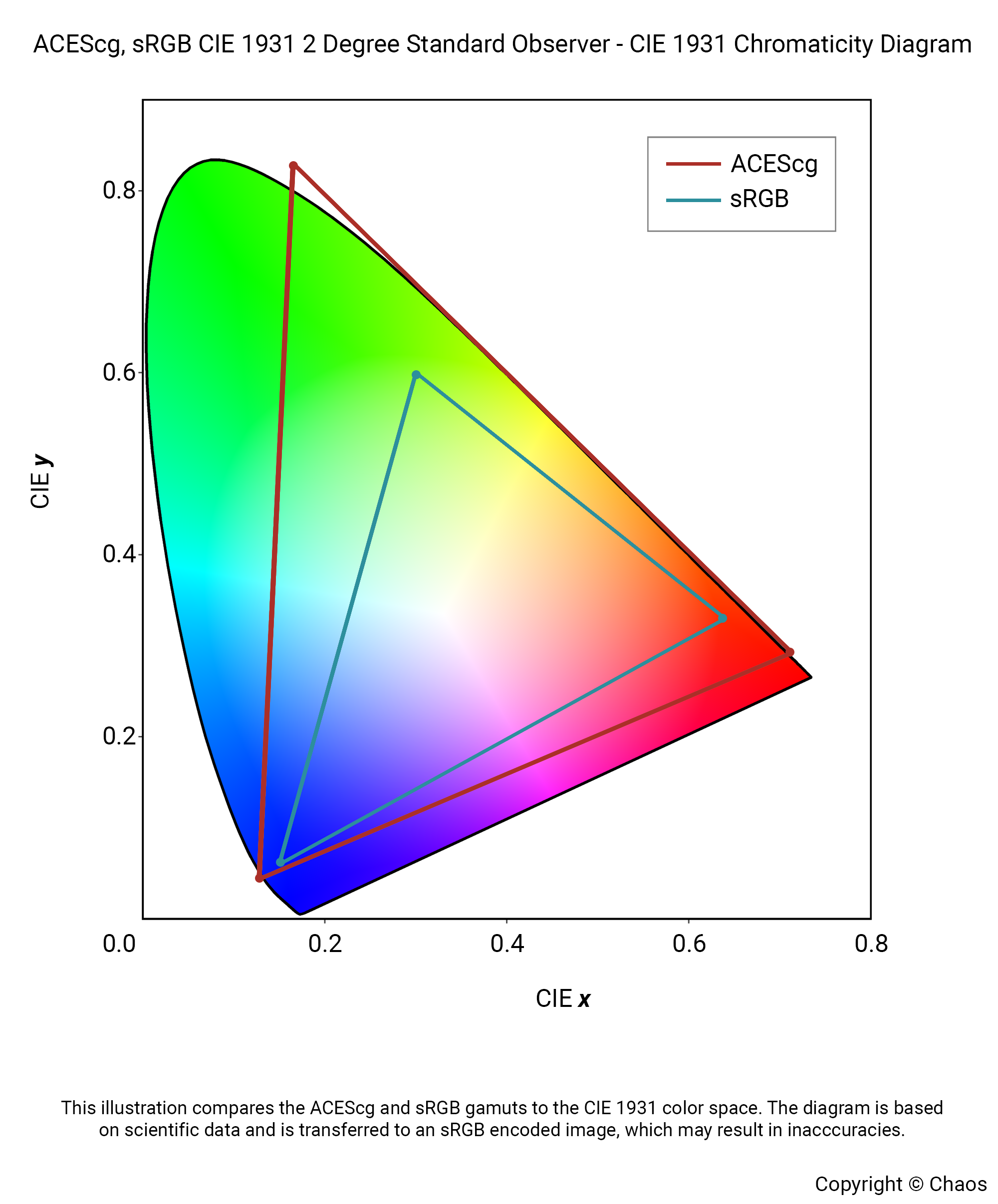

ACES is the Academy Color Encoding System and developed by the Academy of Motion Picture Arts and Sciences. ACEScg is the version of the ACES encoding system for computer graphics, widely adopted in the industry. It has become the industry standard, because compared to sRGB, ACEScg works with a lot more color information, illustrated in this gamut graph.

Starting with version 5, V-Ray comes with an implementation of the ACEScg out of the box and in this tutorial we explain the render setup in V-Ray for 3ds Max in this color space. V-Ray supports only ACEScg as the primary color space of choice in CGI.

Want to follow along but don’t have a license?

Download Free Trial

Setup

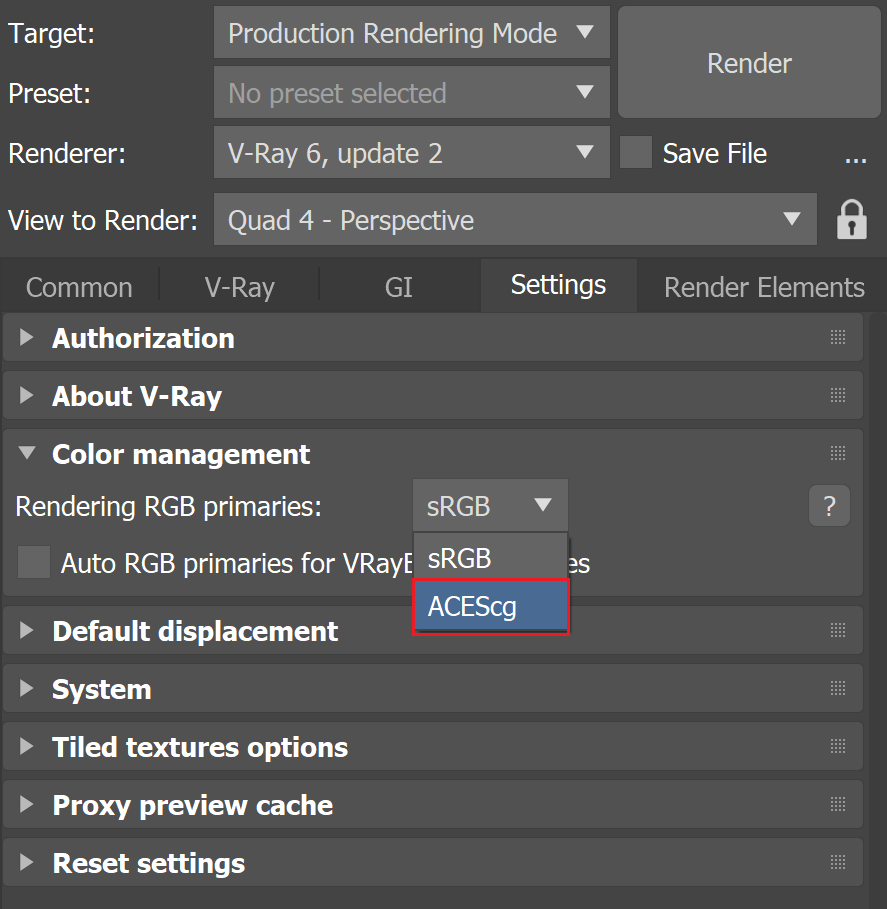

From Render Setup > Settings > Color management choose ACEScg.

For more information on the Color Management rollout, follow the link.

Any 8-bit texture map should be renamed according to the color space that they are in, using “_lin_srgb”, “_srgb” or “_acescg” suffix.

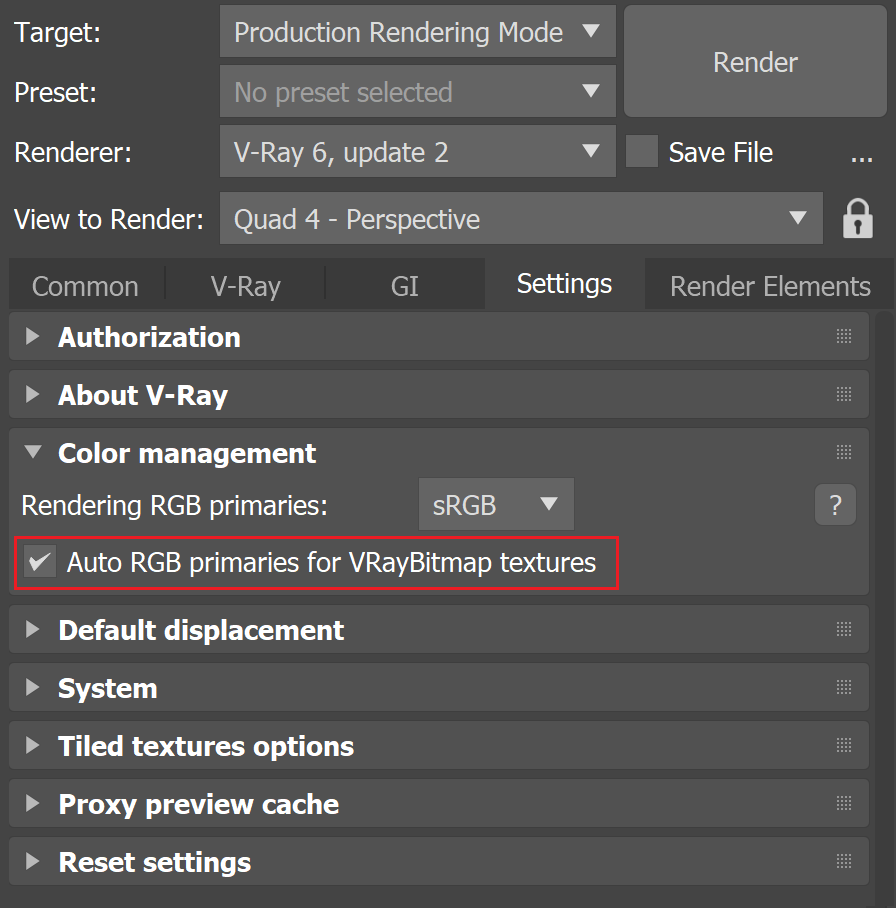

If neither is present, the map is assumed to be in the renderer color space as specified in the Color management rollout (in this setup, ACEScg). If the texture maps are properly named, auto recognition can be used by enabling the Auto RGB primaries for VRayBitmap option.

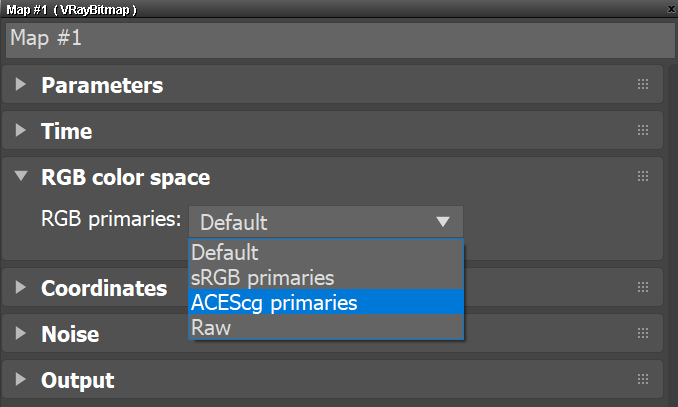

Alternatively, leave the checkbox disabled and set the RGB color space manually for each VRayBitmap texture. This can also be done if there are files that are exception to the rule-based file naming system - the settings in the VRayBitmap texture overrides the automatic algorithm.

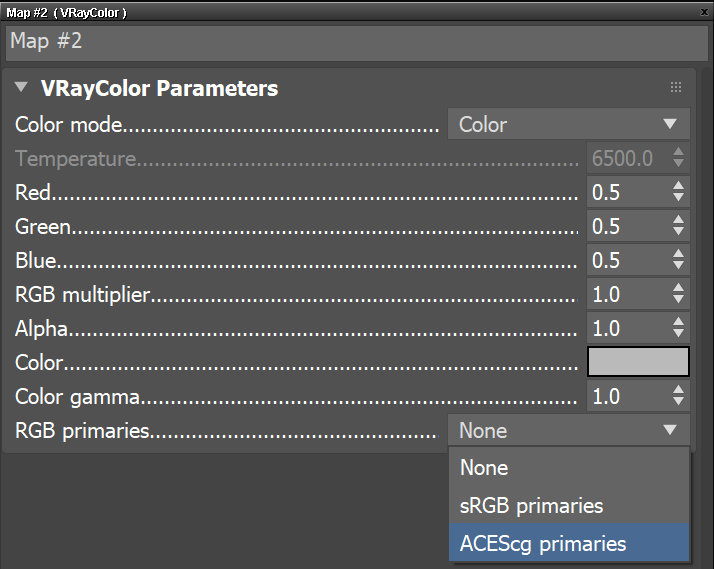

VRayColor map has its own special controls to specify what color space the red/green/blue values are in.

Using OCIO Configuration

An automated OCIO configuration can be set with the OCIO environment variable.

There are а few steps you need to follow to set this up:

1. Download the Open Color IO configuration package from GitHub: https://github.com/AcademySoftwareFoundation/OpenColorIO-Config-ACES/releases
2. Set the OCIO environment variable and point it to the config.ocio file.

For example, to set up the OCIO configuration with aces_1.3:

<code data-v-c2b1f83f=""><span data-v-c2b1f83f="" class="line">set OCIO=C:\OpenColorIO-Configs\cg-config-v1.0.0_aces-v1.3_ocio-v2.0.ocio</span></code>

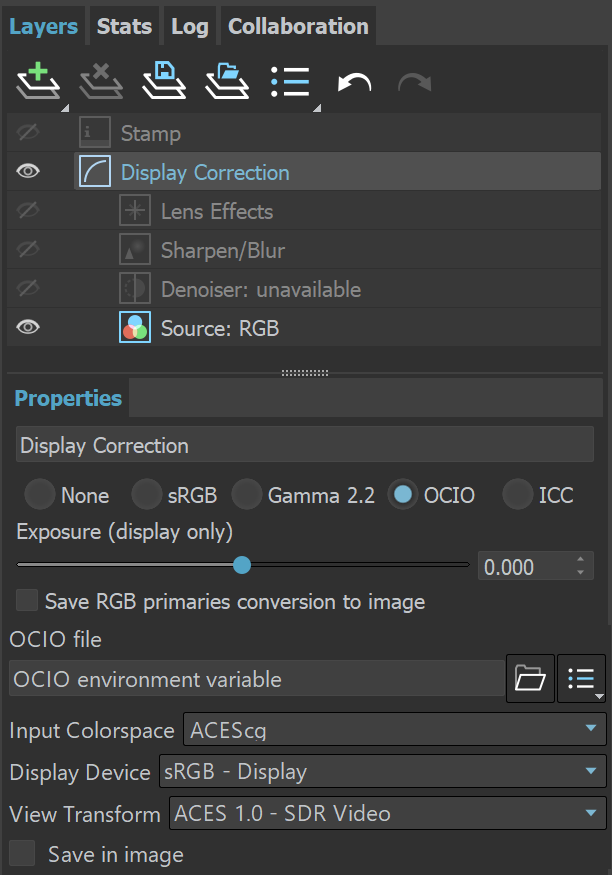

3.When the VFB Display Correction is switched to OCIO, V-Ray reads the OCIO variable and loads the configuration there as well.

See the Getting Started with Environment Variables page for more information.

The automated OCIO configuration can be further adjusted with the following VFB OCIO environment variables:

VRAY_VFB_OCIO_INPUT_COLORSPACE – Specifies default overriding OCIO input color space.

VRAY_VFB_OCIO_DISPLAY_DEVICE – Specifies default overriding OCIO display device.

VRAY_VFB_OCIO_VIEW_TRANSFORM – Specifies default overriding OCIO view transform.

VRAY_VFB_OCIO – Automatically switches the OCIO button of the V-Ray VFB on.

For example, set a default override OCIO input color space, display device, and view transform:

<code data-v-c2b1f83f=""><span data-v-c2b1f83f="" class="line">set OCIO=C:\OpenColorIO-Configs\cg-config-v1.0.0_aces-v1.3_ocio-v2.0.ocio</span><span data-v-c2b1f83f="" class="line">set VRAY_VFB_OCIO=1</span><span data-v-c2b1f83f="" class="line">set VRAY_VFB_OCIO_INPUT_COLORSPACE=ACEScg</span><span data-v-c2b1f83f="" class="line">set VRAY_VFB_OCIO_DISPLAY_DEVICE=sRGB</span><span data-v-c2b1f83f="" class="line">set VRAY_VFB_OCIO_VIEW_TRANSFORM=ACES 1.0 - SDR Video</span></code>

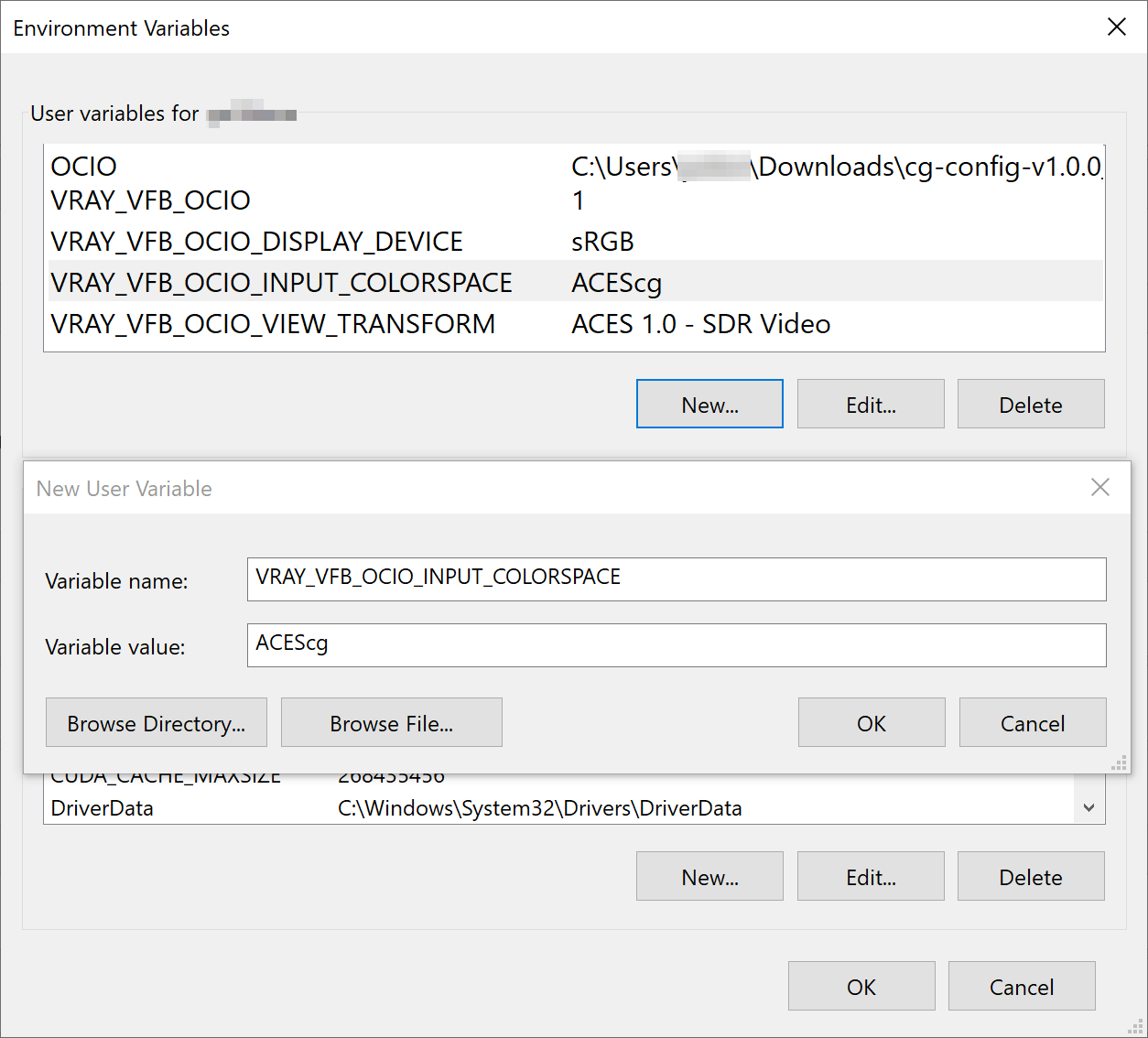

Click here to expand an image of the Environment Variables window

The values for the input color space, display device, and view transform variables need to match the settings available in the configuration file. This example may not work with OCIO configurations other than the one used in the example. For example, VRAY_VFB_OCIO_VIEW_TRANSFORM needs to match a "ACES 1.0 - SDR Video" view transform from the configuration file.

When rendering with V-Ray Standalone or using distributed rendering, the OCIO environment variables must be set accordingly on all machines used for rendering.

The OCIO configuration files used in V-Ray VFB aren't automatically collected with the rest of the scene assets when sending a job for rendering to another machine. Use the OCIO configuration files from a shared location or copy the files manually to your render nodes to avoid mismatch in render output.

See the Getting Started with Environment Variables page for more information.
