AtmosphericEffects

This page provides details about the Atmospheric Effects Render Element and how it is used in compositing.

Overview

The Atmospheric Effects Render Element stores only atmospheric or volumetric participating media such as fog or Aerial Perspective. This render element can then be used to enhance or color-correct just the atmospheric component of the image during the compositing process.

When atmospheric effects or fog is included in a scene, they will render into the Beauty (RGB color) channel, and should also be output as the atmosphere channel for compositing use.

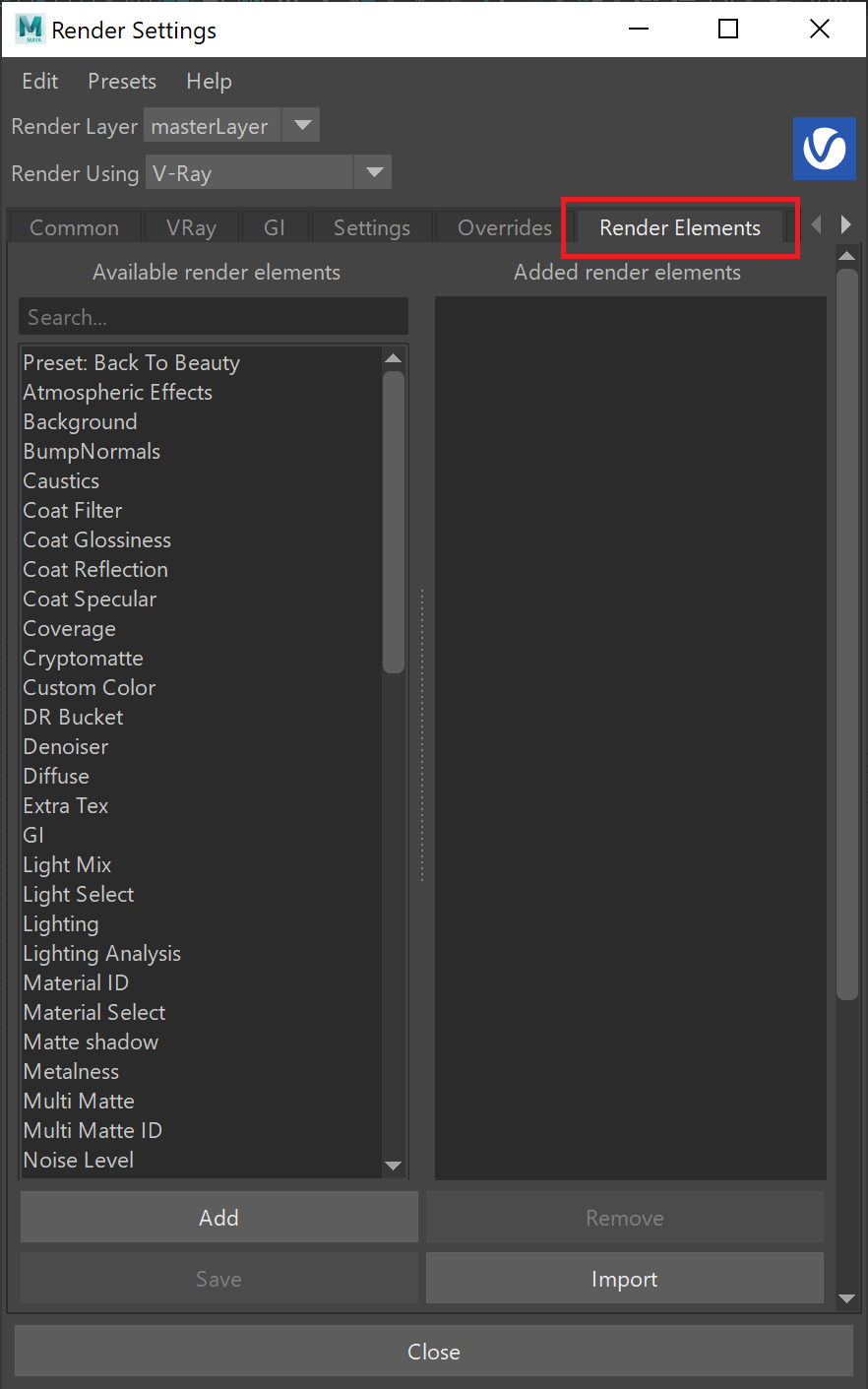

UI Path: ||Display Render Settings button|| > Render Elements tab > Atmospheric Effects

Attributes

Enable – When enabled, the render element appears in the V-Ray Virtual Frame Buffer.

Deep output – Specifies whether to include this render element in deep images.

Filename suffix – The text added to the end of the rendered file, when saved as a separate file (e.g. myrender.atmosphere.vrimg).

Apply color mapping – Applies the color mapping options specified in the Color Management rollout of the VRay tab in the Render Settings window to this render element. This option is enabled by default.

Denoise – Enables the render element's denoising, provided the Denoiser render element is present.

Common Uses

The Atmospheric Effects Render Element is useful for changing the appearance of the atmosphere and volumetric effects in a rendered image using compositing or image editing software. Below is an example of its use.

Atmosphere Render Element, with fog
generated by VRayEnvironmentFog

Original Beauty composite

Color of atmosphere changed and intensity increased

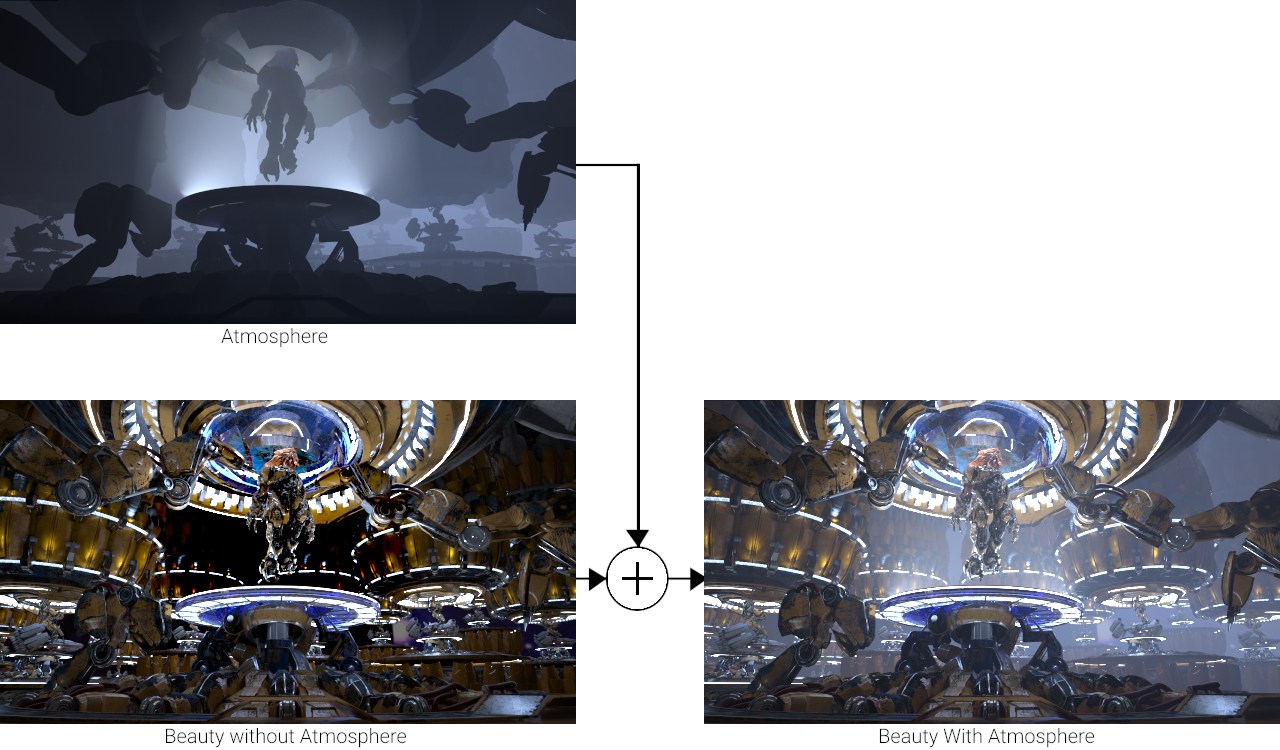

Compositing Formula

vrayRE_Atmospheric_Effects + Beauty = Final Image
