DRBucket

The Distributed Rendering Bucket Render Element shows the name of the rendering machine that rendered any particular bucket when distributed rendering is used.

Overview

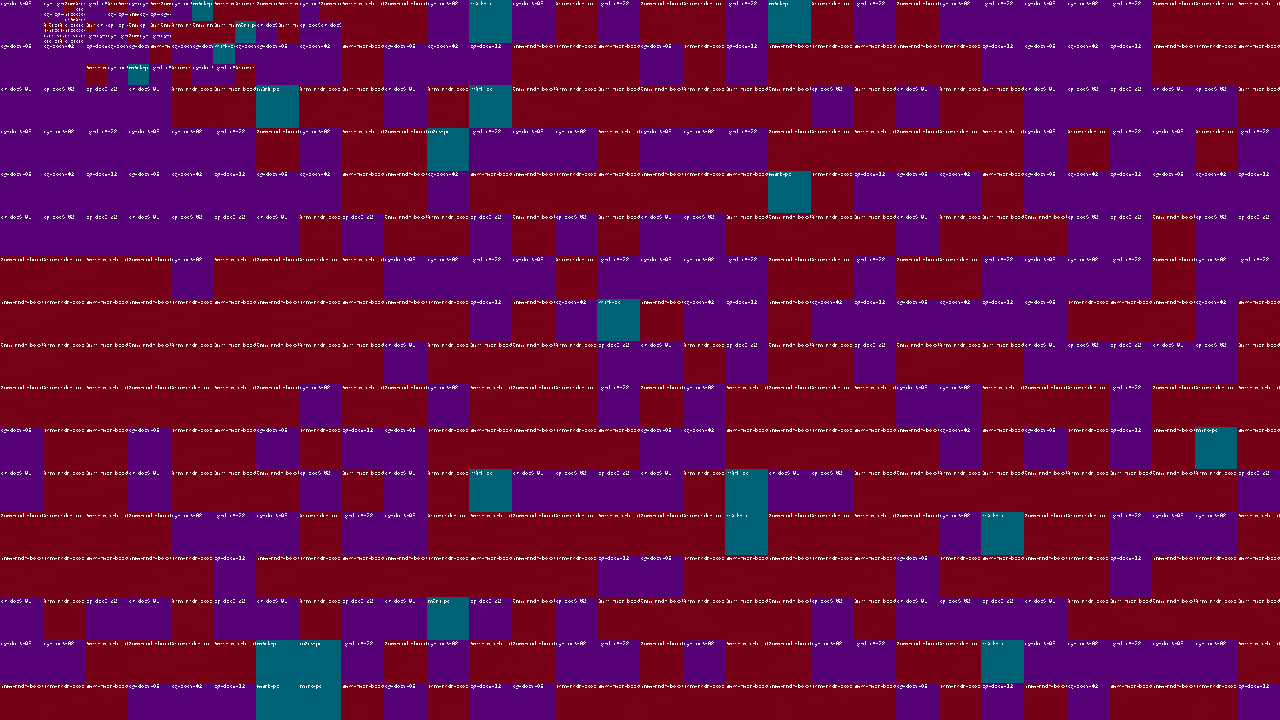

The Distributed rendering Bucket Render Element renders an image with each bucket shown in a different color, and a short text on each bucket naming the machine that rendered it. A bucket is a region of an image that is being rendered. The render setup must be set to use the Bucket image sampler, which divide the rendering process into render buckets. This render element is useful for assessing machine performance or for troubleshooting a distributed rendering process.

UI Path: ||Display Render Settings button|| > Render Elements tab > DR Bucket

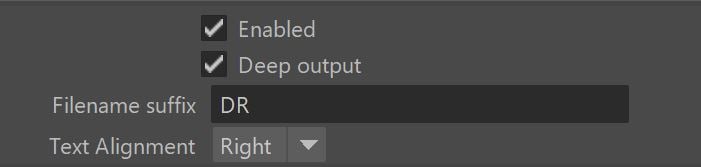

Attributes

Enabled – When checked, the render element appears in the V-Ray Virtual Frame Buffer.

Deep output – Specifies whether to include this render element in deep images.

Filename suffix – The text added to the end of the rendered file, when saved as a separate file (e.g. myrender.DR.vrimg).

Text Alignment – Sets the alignment of the machine name that displays on each bucket.
