Raw Reflection

This page gives some basic details about the Raw Reflection render element and how it is used in compositing.

Overview

The Raw Reflection Render Element stores reflection information calculated from the materials' reflection values in the scene. Surfaces with no reflection values set in their materials will contain no information in the render element, which means these areas will render as black. When the Raw Reflection Render Element is multiplied by the Reflection Filter (vrayRE_Reflection_Filter), the Reflection (vrayRE_Reflection) Render Element is produced.

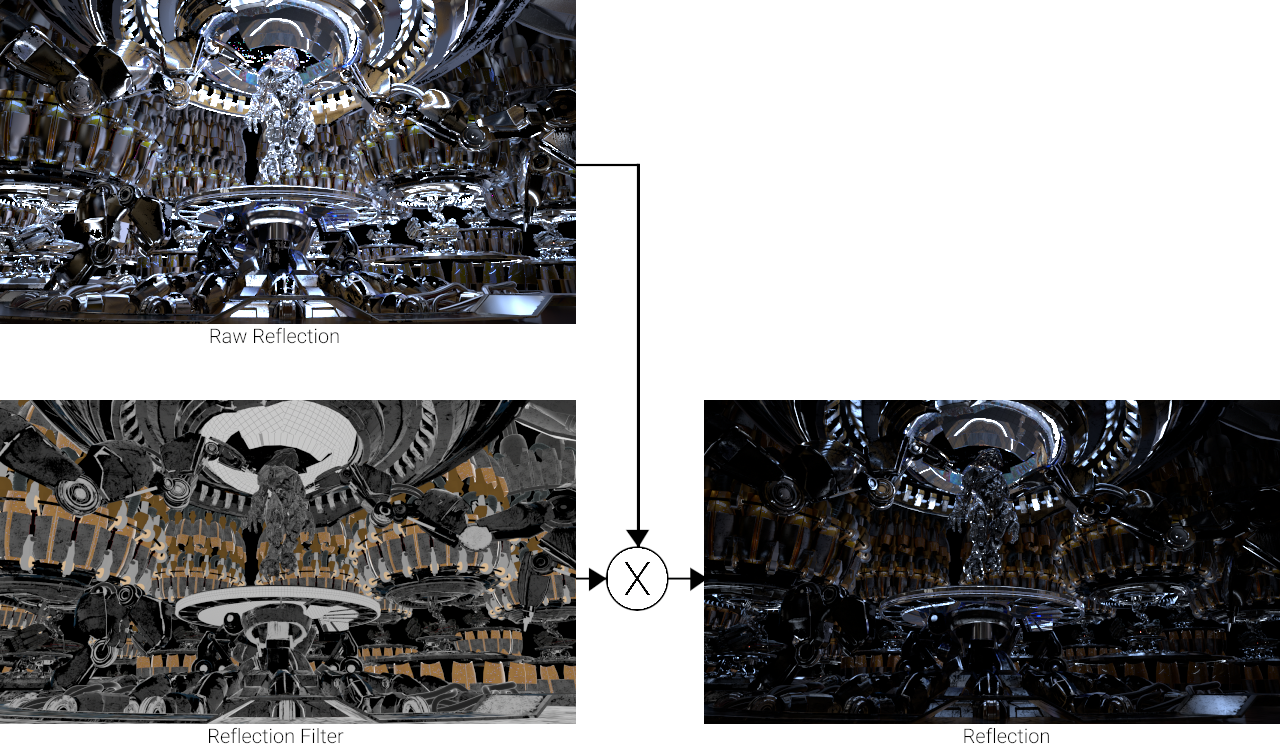

vrayRE_Raw_Reflection gives the full reflection of objects reflecting in the scene, while the reflection filter vrayRE_Reflection_Filter sets how much of that reflection should come through in the composite. In other words, the filter defines the strength of the reflection, while the raw image defines what is being reflected in the image. When these two elements are multiplied, the true level of reflection is given as the vrayRE_Reflection Render Element. By using these component parts of the reflection, you can fine-tune the reflection in your final composite.

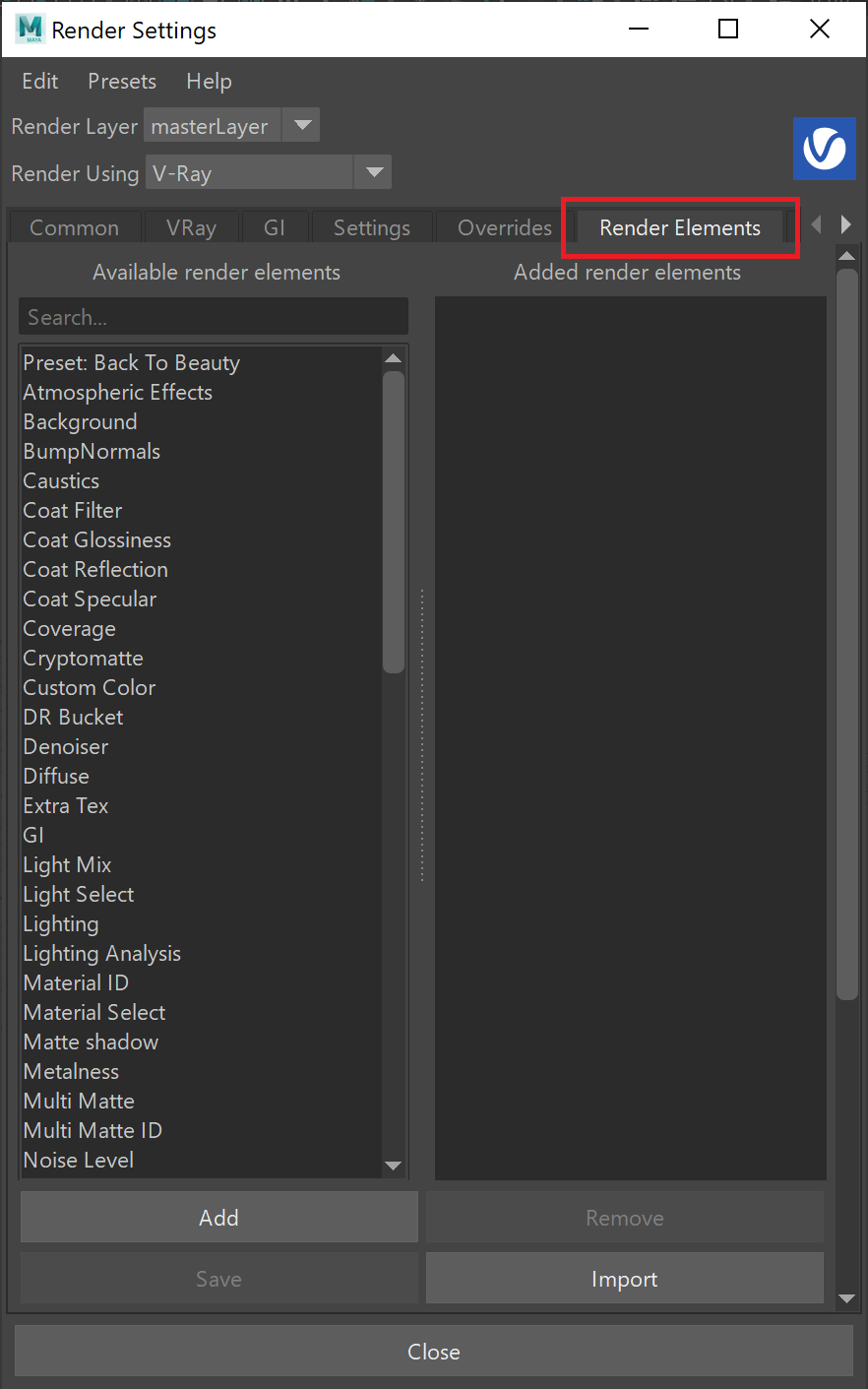

UI Path: ||Display Render Settings button|| > Render Elements tab > Raw Reflection

Attributes

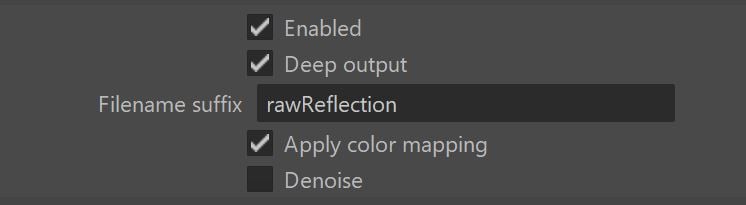

Enabled – Enables the render element inside the V-Ray frame buffer.

Deep output – Specifies whether to include this render element in deep images.

Filename suffix – The text added to the end of the rendered file, when saved as a separate file (e.g. myrender.rawReflection.vrimg).

Apply color mapping – Applies the color mapping options specified in the Color Management rollout of the VRay tab in the Render Settings window to this render element. This option is enabled by default.

Denoise – Enables the render element's denoising, provided the Denoiser render element is present.

Common uses

The Raw Reflection Render Element is useful for changing the appearance of reflective scene elements in compositing or image editing software after the scene is rendered. Below are a couple of examples of its use.

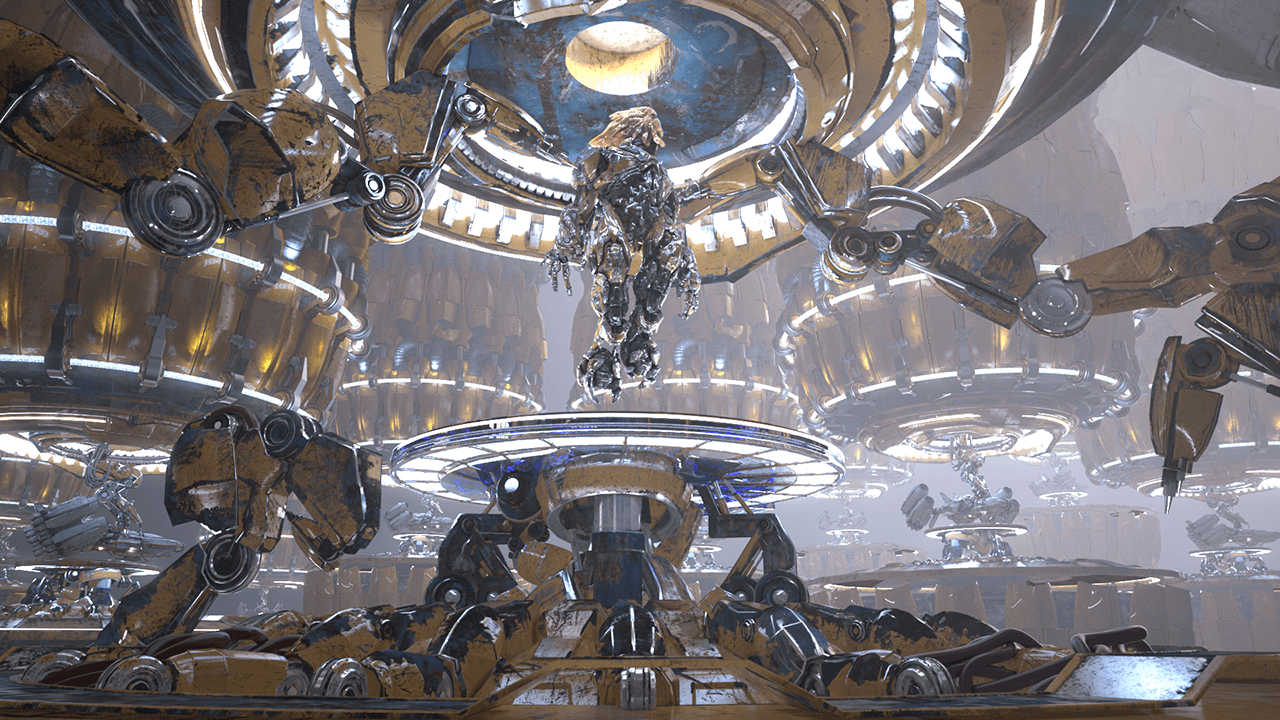

Reflection Render Element

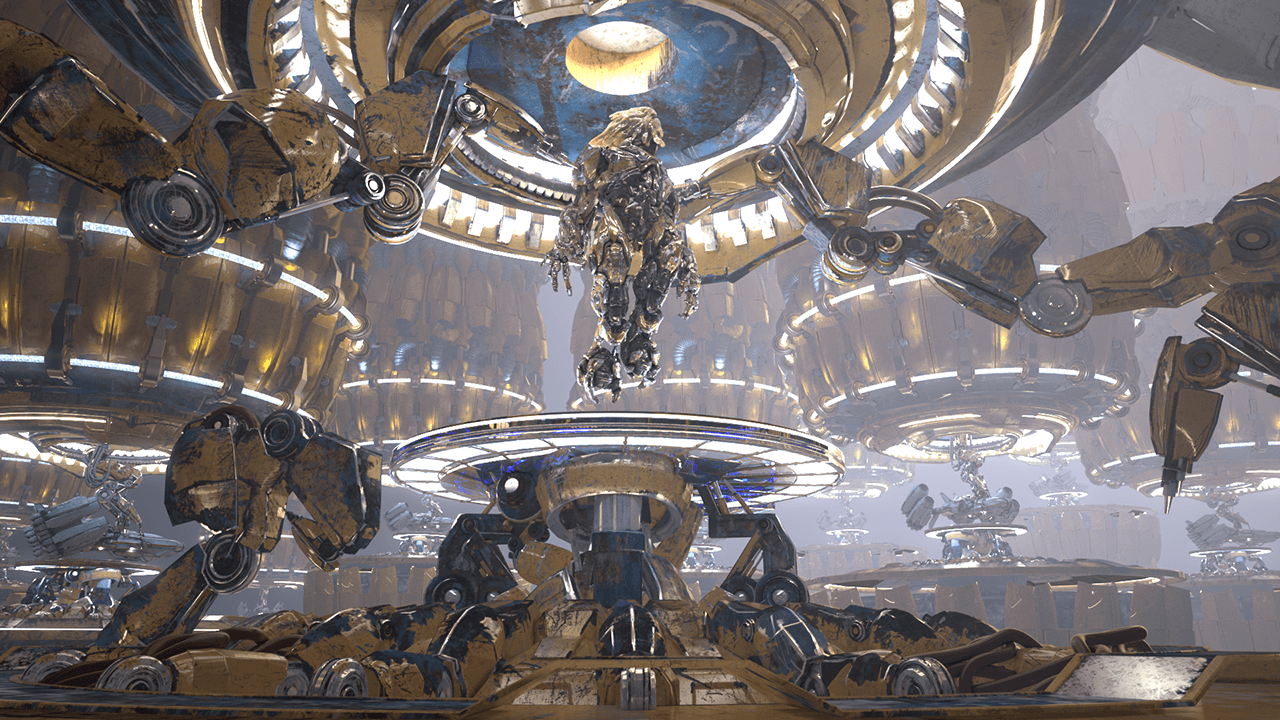

Original Beauty Composite

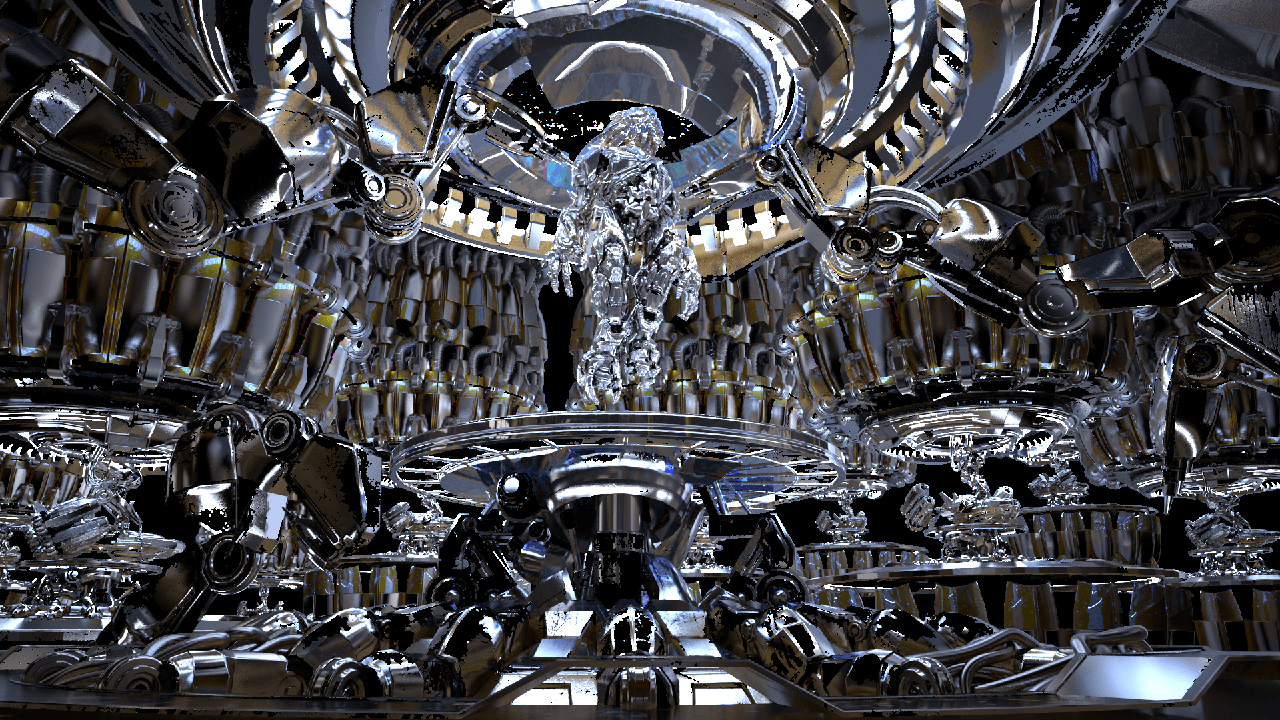

Brightened Reflection Render Element

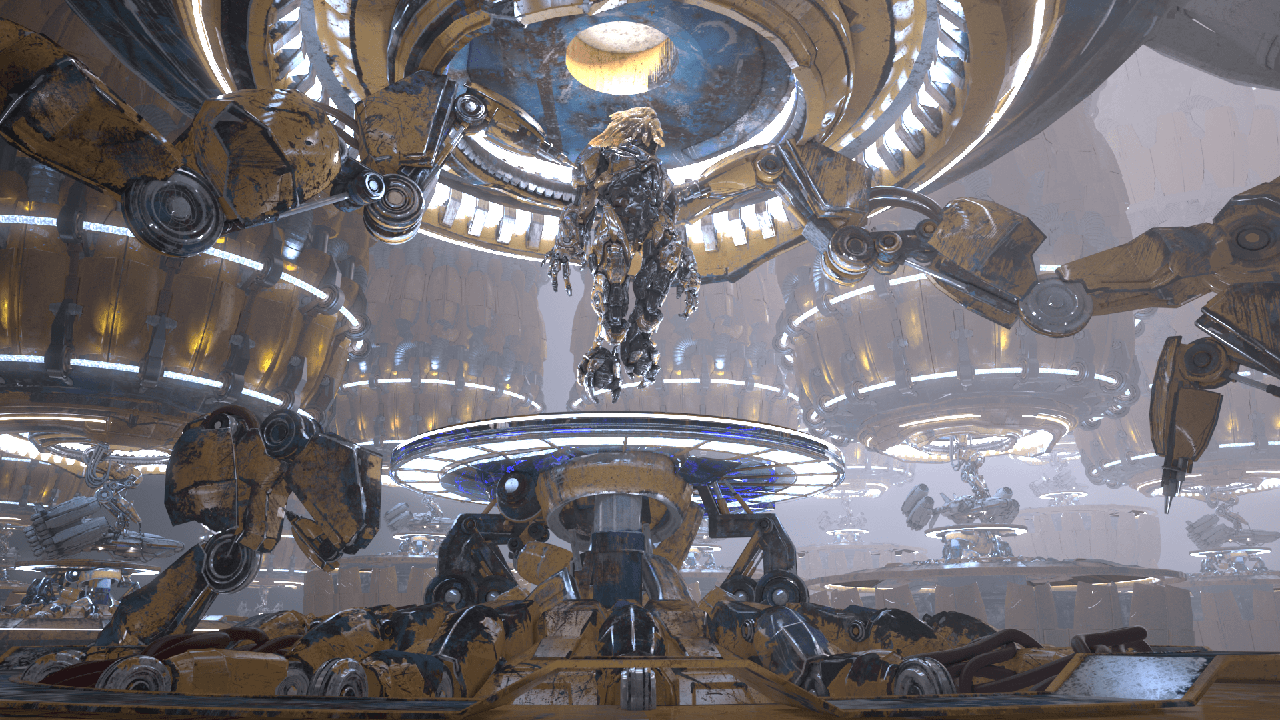

Brightened and warmed Reflection Render Element

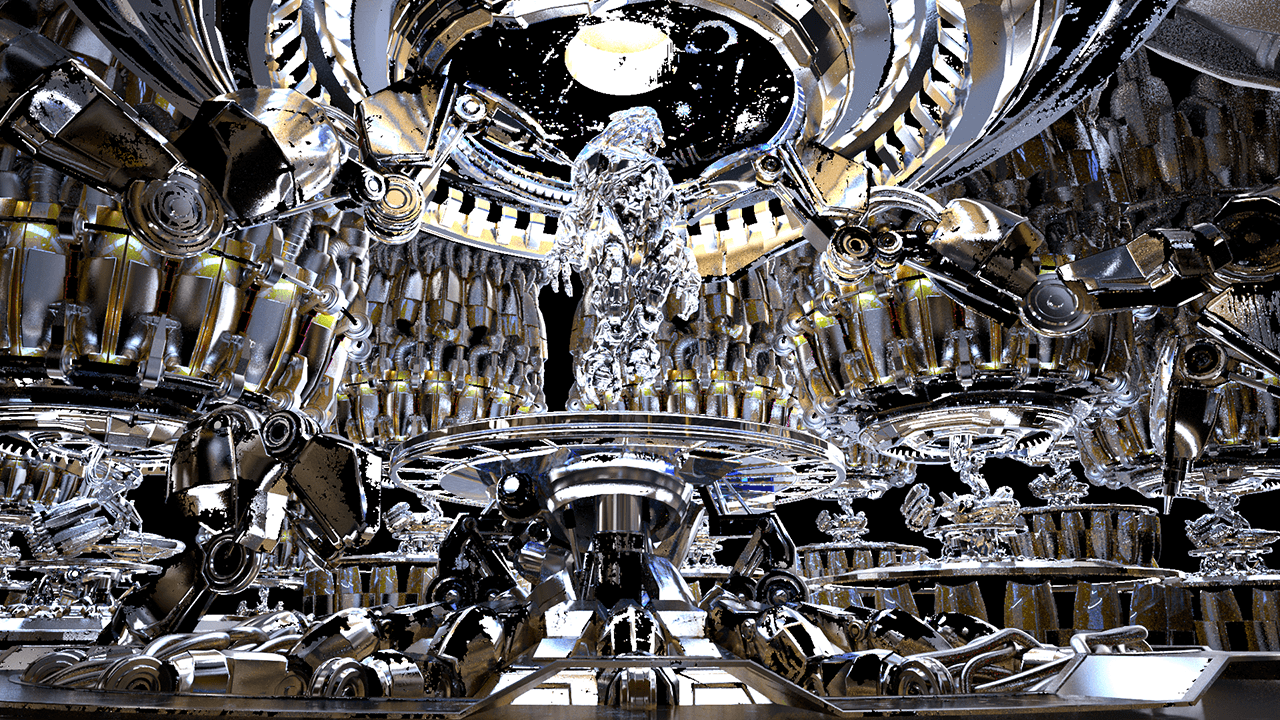

Brightened reflections

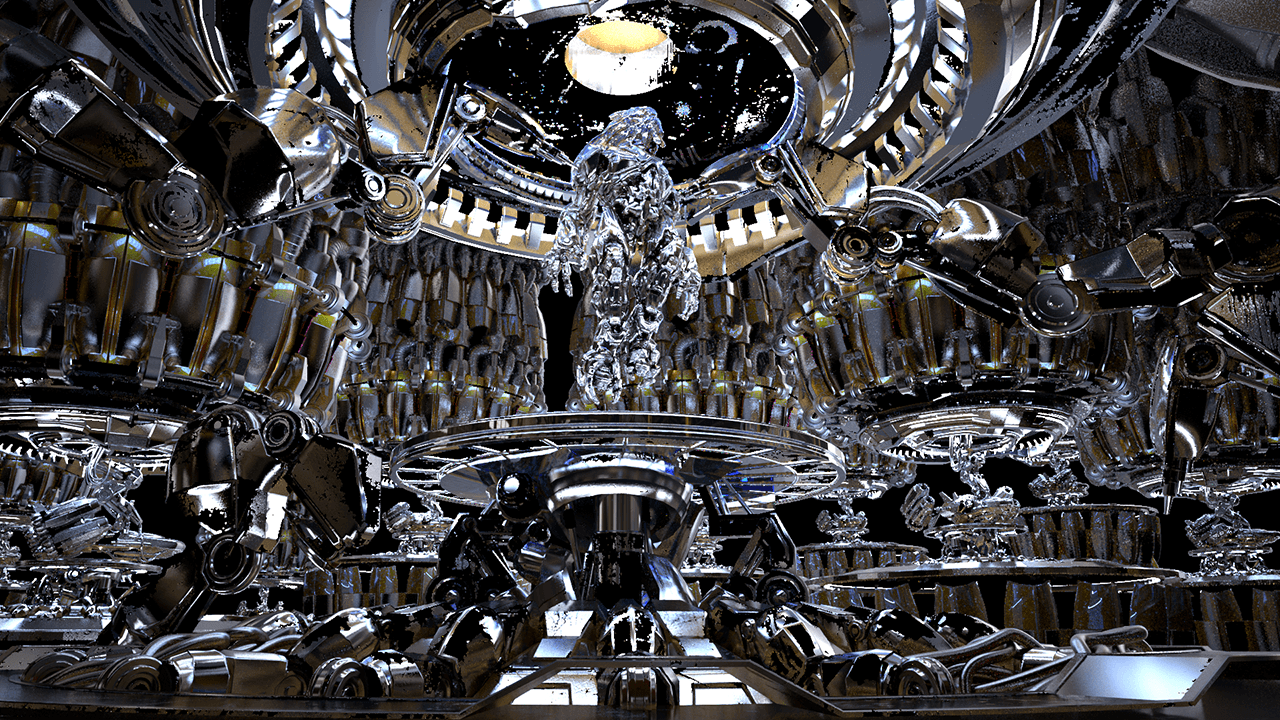

Warmed and raised reflections

Underlying Compositing Equation

vrayRE_Raw_Reflection x Reflection Filter = Reflection
