Raw Total Light

This page gives some basic details about the Raw Total Lighting Render Element and explains how it is used in compositing.

Overview

The Raw Total Lighting Render Element is the sum of all raw lighting (both direct and indirect) in the scene, without any diffuse details.

This pass is useful for changing the appearance of the scene's lighting in a compositing or image editing application.

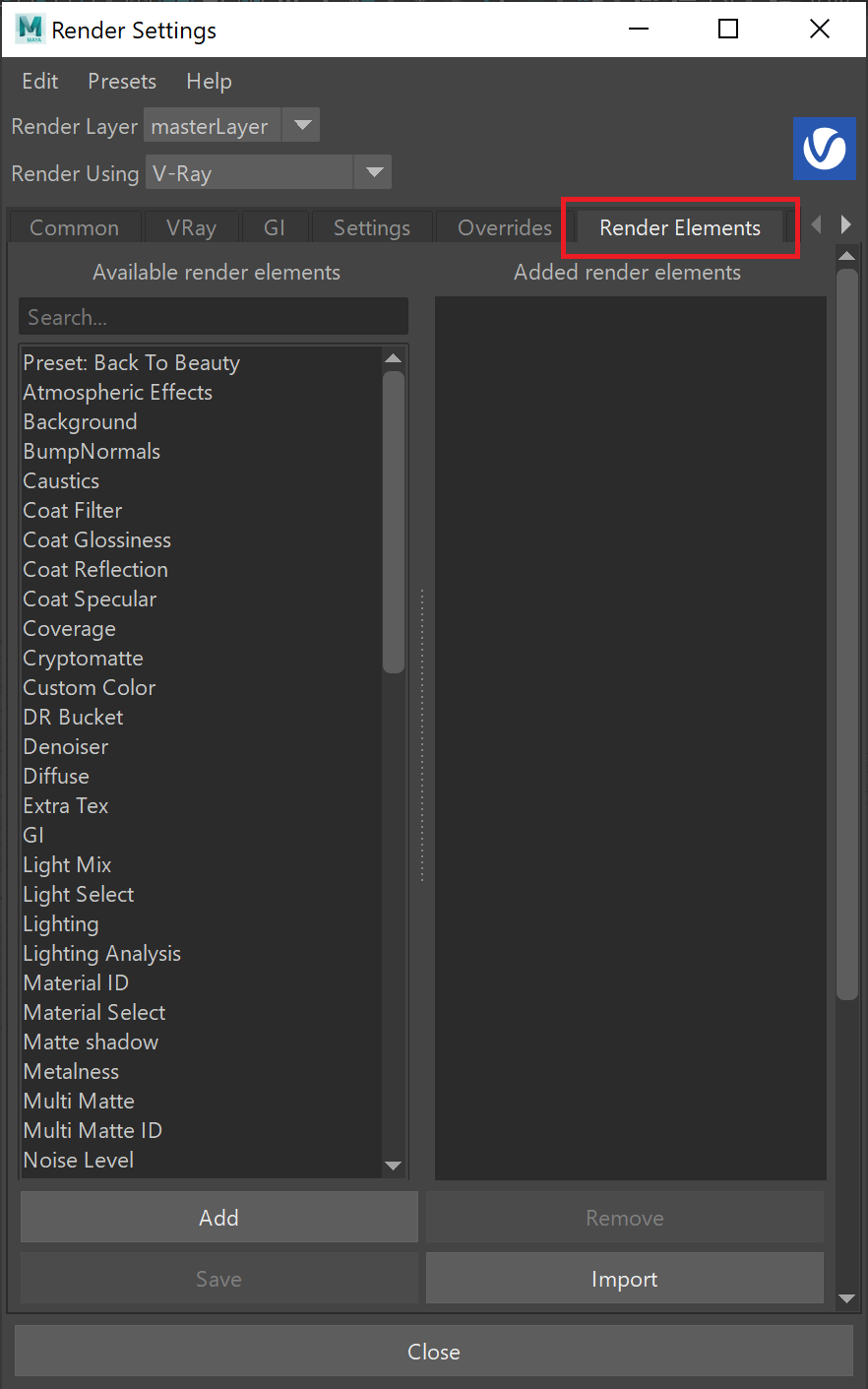

UI Path: ||Display Render Settings button|| > Render Elements tab > Raw Total Light

Attributes

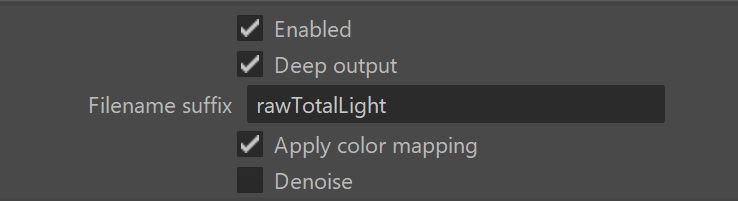

The parameters for this render element appear in the Attribute Editor under Extra V-Ray Attributes.

Enabled – When enabled, the render element appears in the V-Ray Virtual Frame Buffer.

Deep output – Specifies whether to include this render element in deep images

Filename suffix – The text added to the end of the rendered file, when saved as a separate file (e.g. myrender.specular.vrimg).

Apply color mapping – Applies the color mapping options specified in the Color Management rollout of the VRay tab in the Render Settings window to this render element. This option is enabled by default.

Denoise – Enables the render element's denoising, provided the Denoiser render element is present.

Common uses

The Raw Total Lighting Render Element is useful for changing the appearance of the entire lighting of the scene after rendering, using a compositing or image editing application. Below are a couple of examples of possible uses. The first two images show the render element itself and the Beauty render put together. The Raw Total Lighting Render Element was brightened and tinted differently to show the range of editing possible.

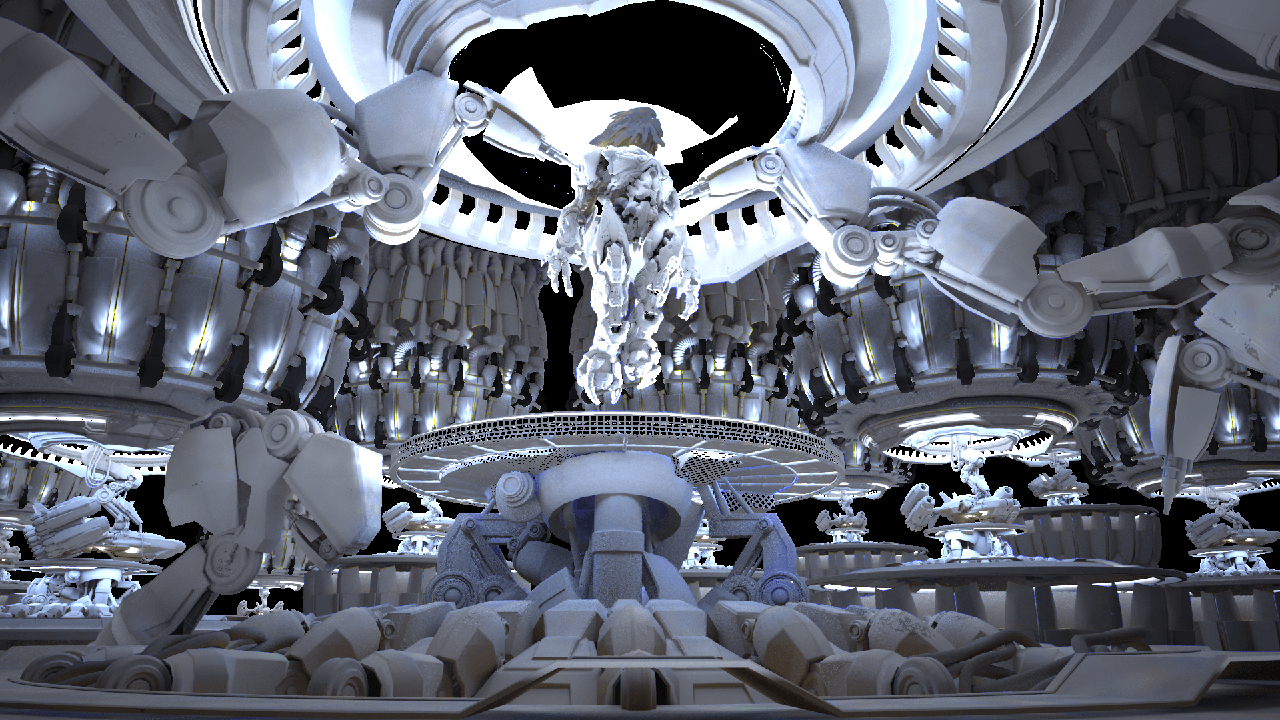

The Raw Total Lighting Render Element

The Original Beauty Composite

Brightened and tinted Raw Total Lighting Render Element

Brightened and tinted Raw Total Lighting

Underlying Compositing Equation

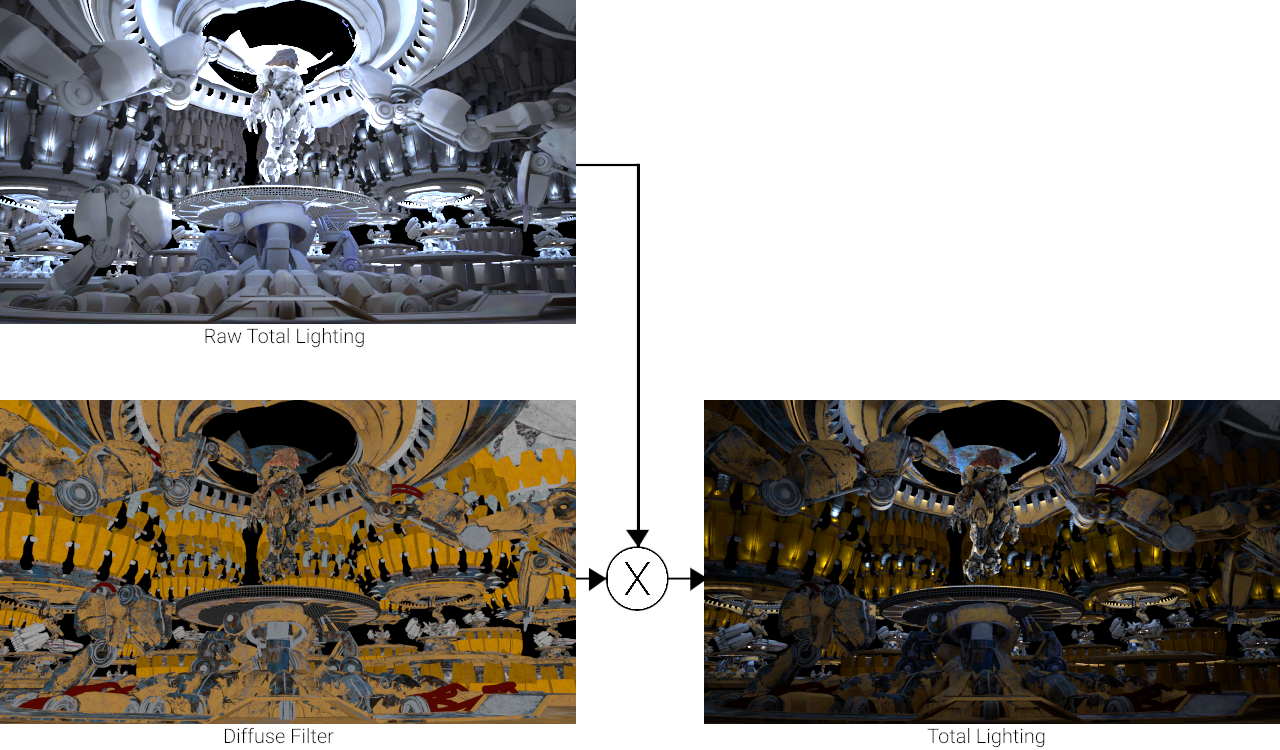

vrayRE_Raw_Total_Light x vrayRE_Diffuse = vrayRE_Total_Light

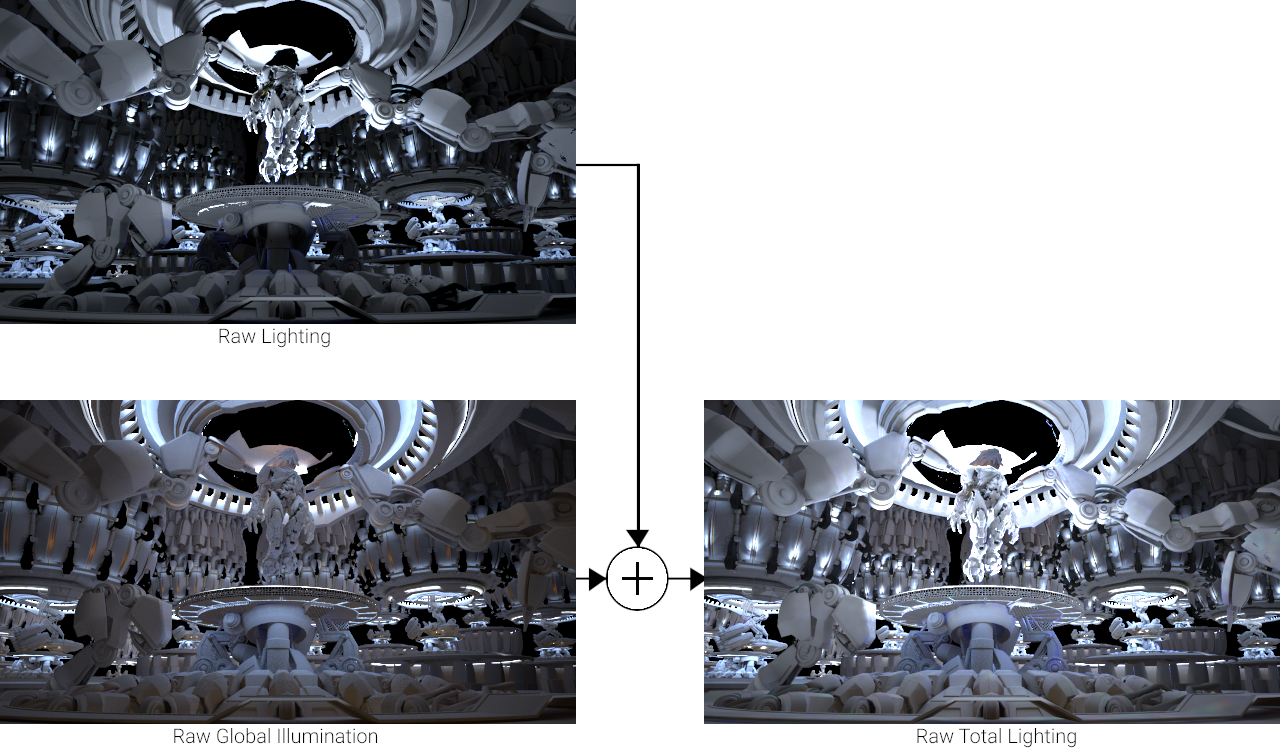

vrayRE_Raw_Light + vrayRE_Raw_GI = vrayRE_Raw_Total_Light
