V-Ray for SketchUp, Render Elements

Geometry Normals

The Geometry Normals ID render element in V-Ray for SketchUp shows surface normals in your scene.

On this page
  1. Overview
  2. UI paths
  3. Geometry Normals colour generation

Use the Geometry Normals ID render element in V-Ray for SketchUp to view surface normals in your scene.

Overview

This render element shows surface normals in the scene. It stores a camera space normal map using the geometry's surface normals. Material bump and normal maps do not affect it.

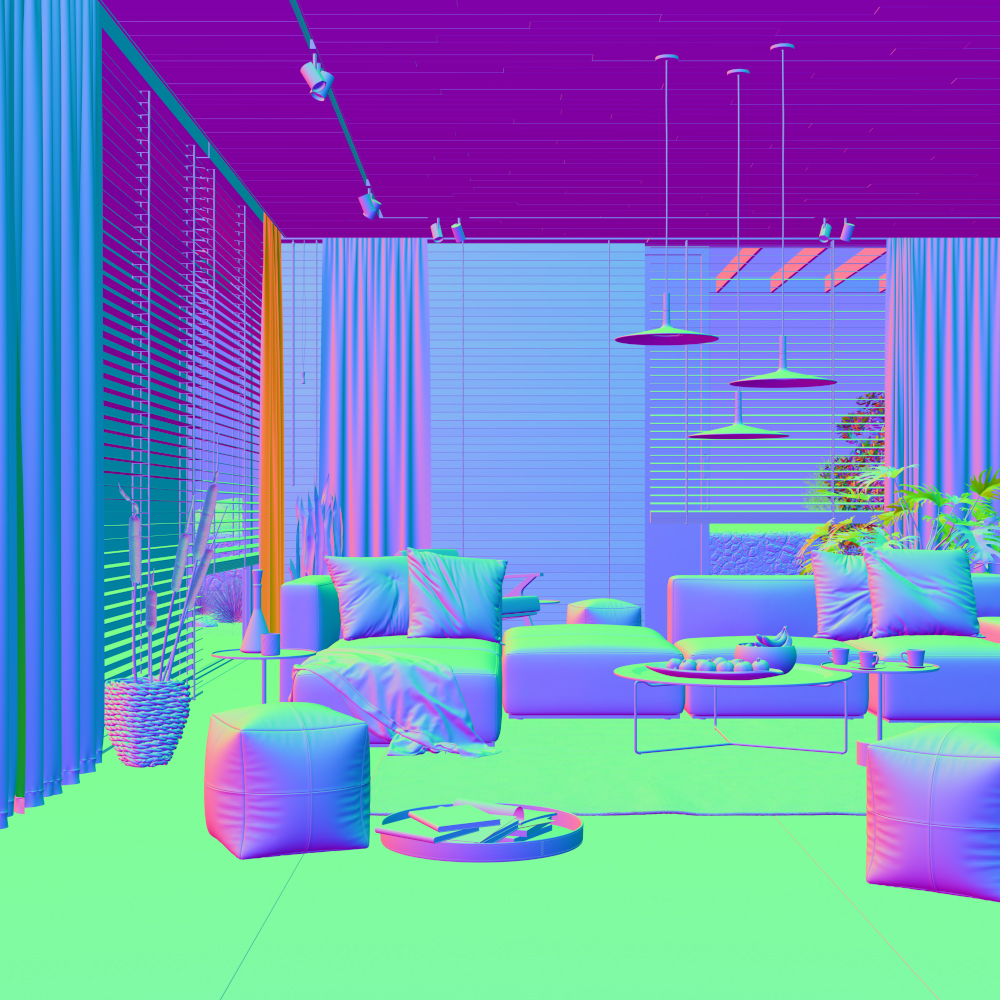

Geometry Normals render of a living room, with surface directions shown in red, green and blue.

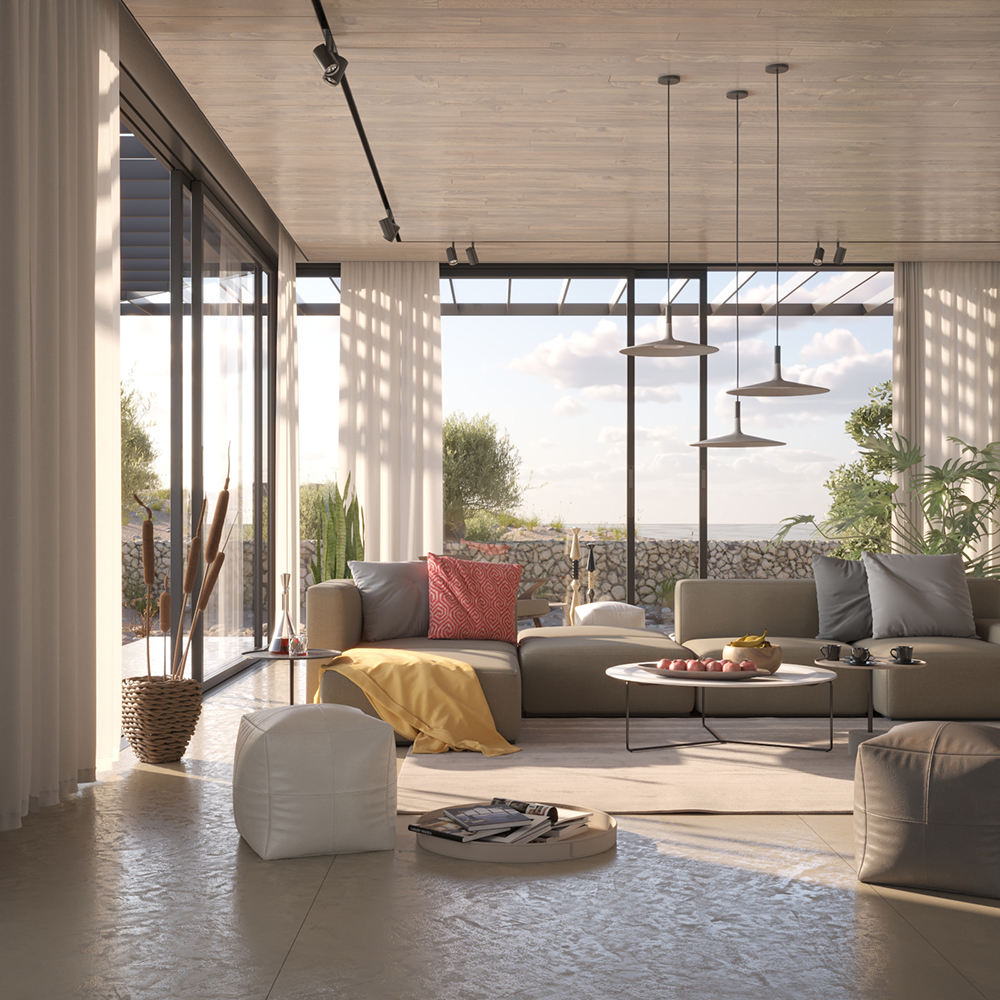

Rendered living room with materials and lighting, shown for comparison with the Geometry Normals pass.

UI paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Geometry Normals
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Geometry Normals

Geometry Normals colour generation

The Geometry Normals render element uses screen space to determine its colours. In the camera view, the axes and colour channels work as follows.

The X axis runs left to right, perpendicular to the camera viewing angle. The Red channel of Geometry Normals represents this axis: 1 means left-facing geometry and 0 means right-facing geometry.

The Y axis runs up and down, perpendicular to the viewing angle. The Green channel of Geometry Normals represents this axis: 1 means up-facing geometry and 0 means down-facing geometry.

The Z axis runs forwards and backwards relative to the viewing angle. The Blue channel of Geometry Normals represents this axis: 1 means forward-facing geometry and 0 means back-facing geometry.

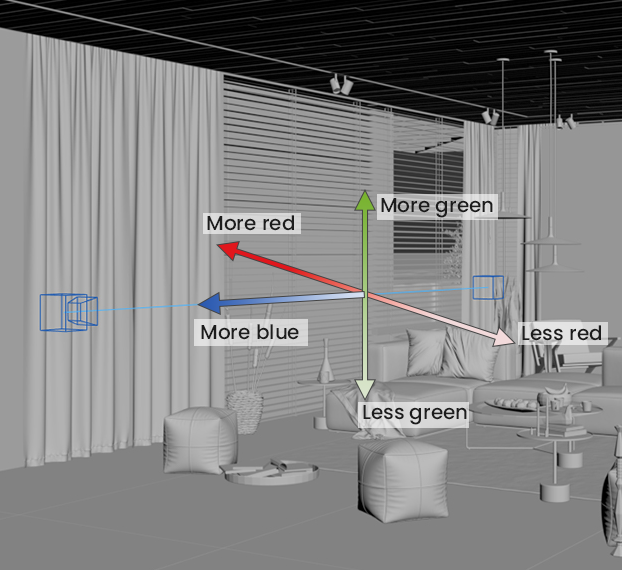

Camera-relative Geometry Normals axes labelled 'More red', 'Less red', 'More green', 'Less green' and 'More blue'.
