V-Ray for SketchUp, Render Elements

Global Illumination render element

Use the Global Illumination render element in V-Ray for SketchUp to adjust indirect lighting after rendering.

On this page
  1. Overview
  2. UI paths
  3. Parameters
  4. Common uses
  5. Compositing

Use the Global Illumination render element in V-Ray for SketchUp to adjust indirect lighting after rendering.

Overview

This render element stores indirect lighting (GI) information. Direct light, reflections and other effects do not affect it.

Global Illumination render element showing only indirect lighting in a living room.
Full living room render showing direct and indirect lighting, reflections and shadows.

UI paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Global Illumination
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Global Illumination

Parameters

Denoise controls whether this render element is denoised.

Parameters panel with the Denoise checkbox cleared.

Common uses

Use the Global Illumination render element to adjust indirect lighting after rendering in compositing or image editing software. Compare the scene before and after compositing.

Living room render before adjusting indirect lighting in compositing.
Living room render after compositing, with brighter indirect lighting.

Compositing

Raw GI x Diffuse = Global Illumination

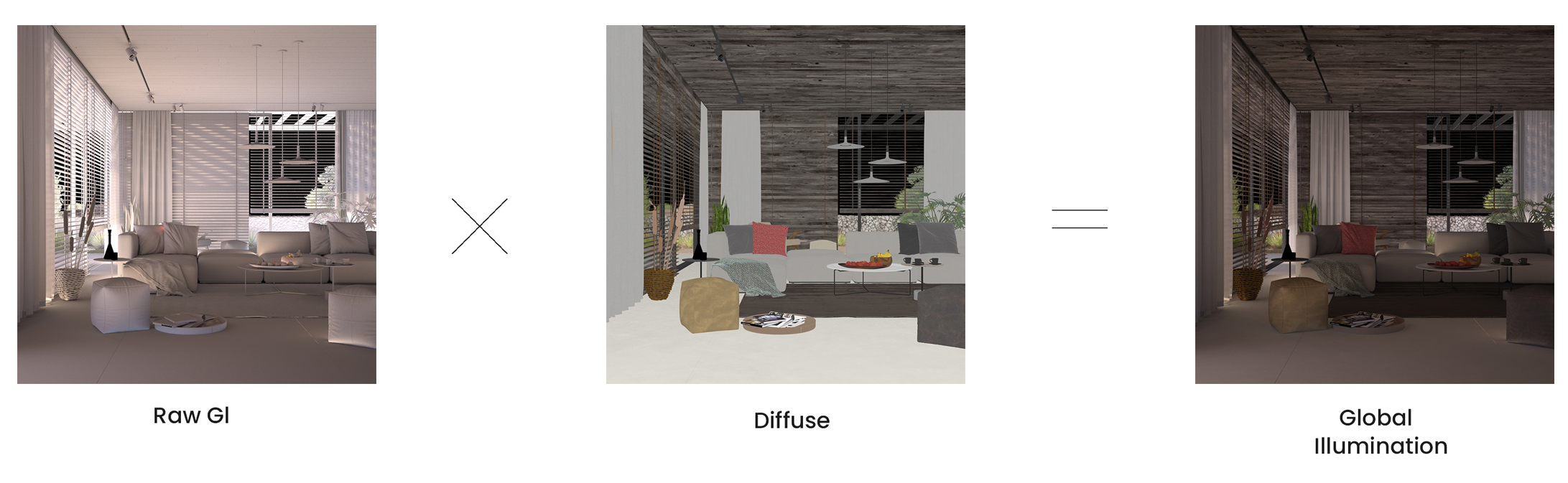

Compositing diagram showing Raw GI multiplied by Diffuse to produce Global Illumination.
