V-Ray for SketchUp, Render Elements

Raw GI

Learn about the Raw GI render element in V-Ray for SketchUp and how to use it in compositing.

On this page
  1. Overview
  2. UI paths
  3. Parameters
  4. Common uses
  5. Compositing

Use the Raw GI render element in V-Ray for SketchUp to work with indirect lighting without the diffuse component.

Overview

Raw GI stores indirect lighting without the diffuse component.

Raw GI render of a living room showing indirect lighting without the diffuse component.

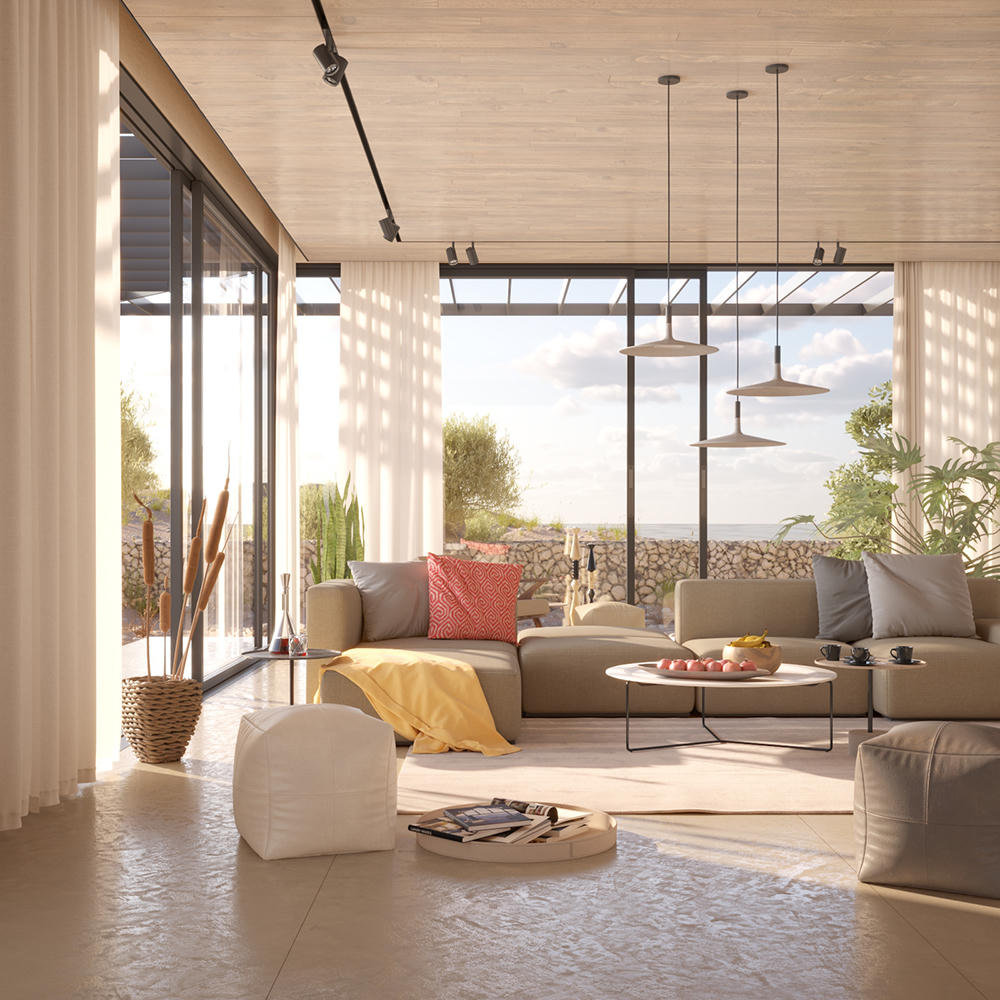

Full-colour living room render showing surface materials, daylight and the outdoor sky.

UI paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Raw GI
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Raw GI

Parameters

Denoise controls whether this render element is denoised.

Parameters panel with the Denoise checkbox unticked.

Common uses

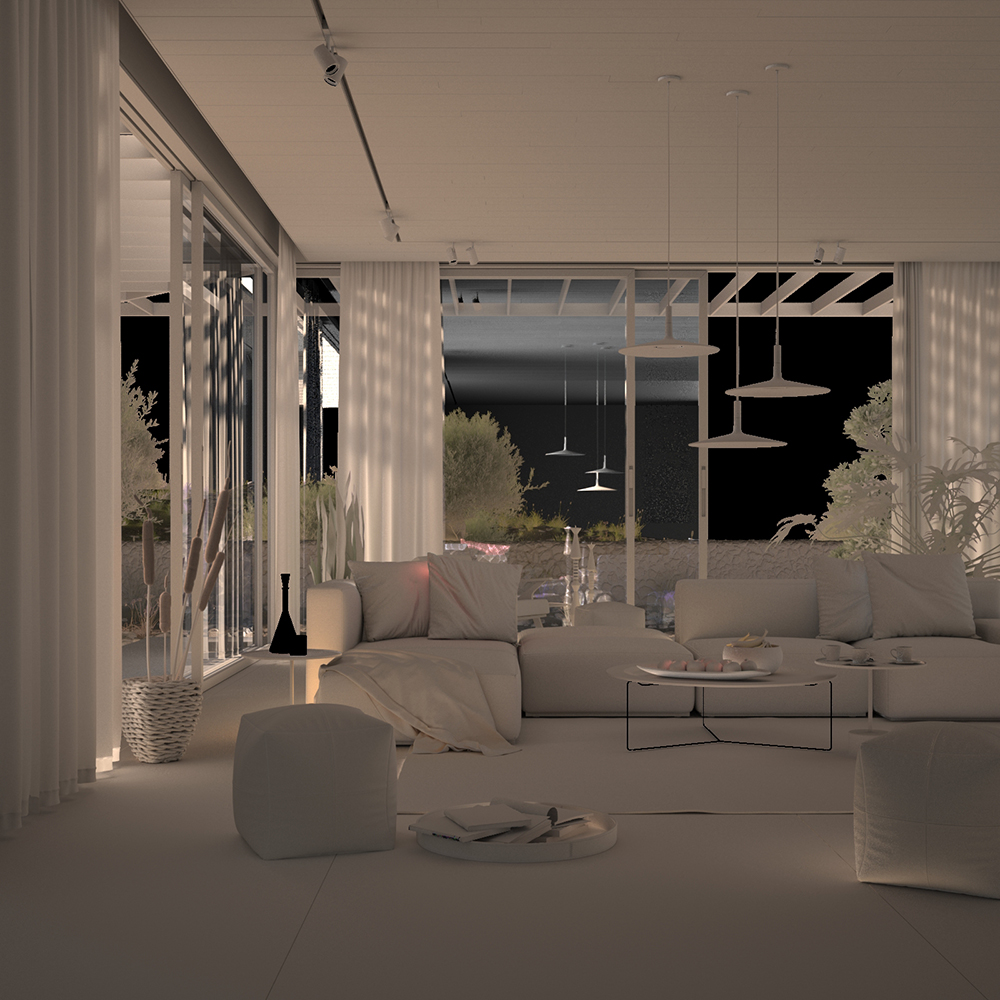

Raw GI render of a living room showing indirect lighting without the diffuse component.

V-Ray Raw Global Illumination

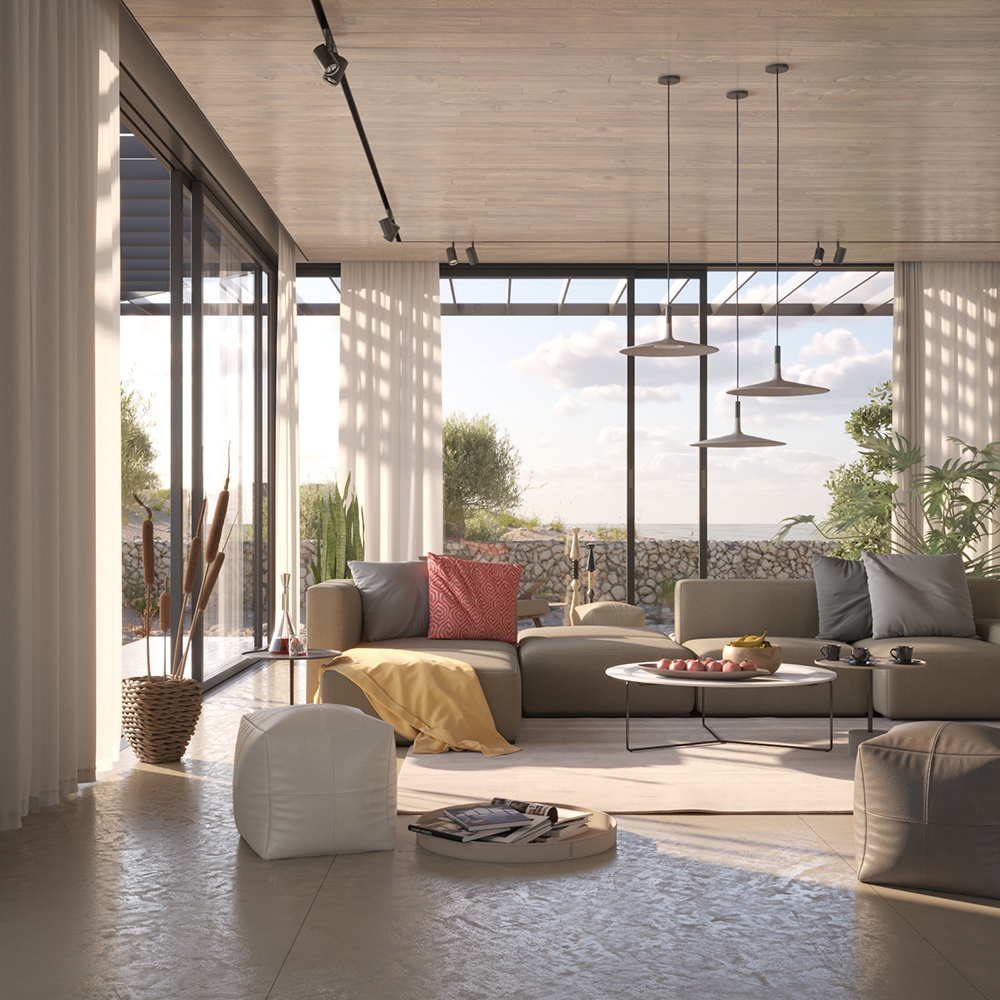

Full-colour living room render showing surface materials, daylight and the outdoor sky.

Original Beauty composite

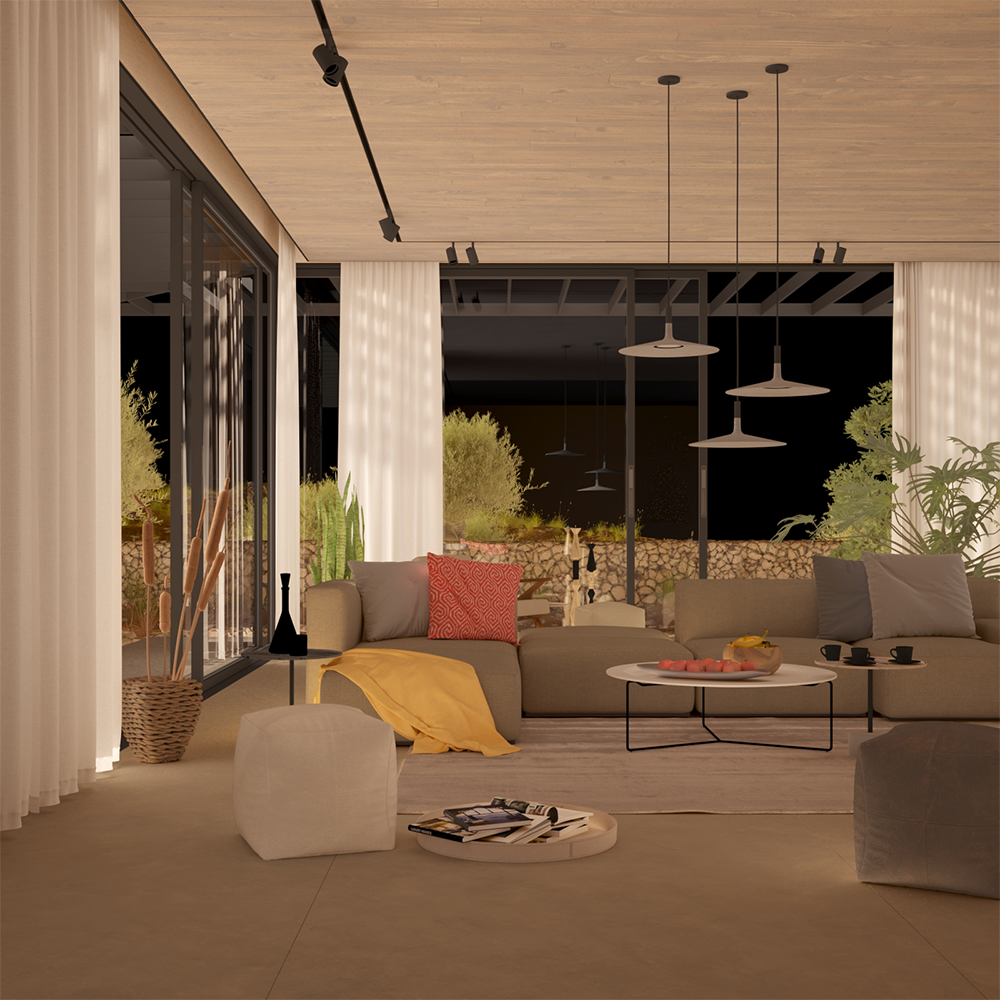

Original Beauty composite showing a warmly lit living room with black areas beyond the windows.

Edited V-Ray Raw Global Illumination

Living room composite with edited V-Ray Raw Global Illumination, brighter lighting and a visible sky.

Edited Beauty composite

Compositing

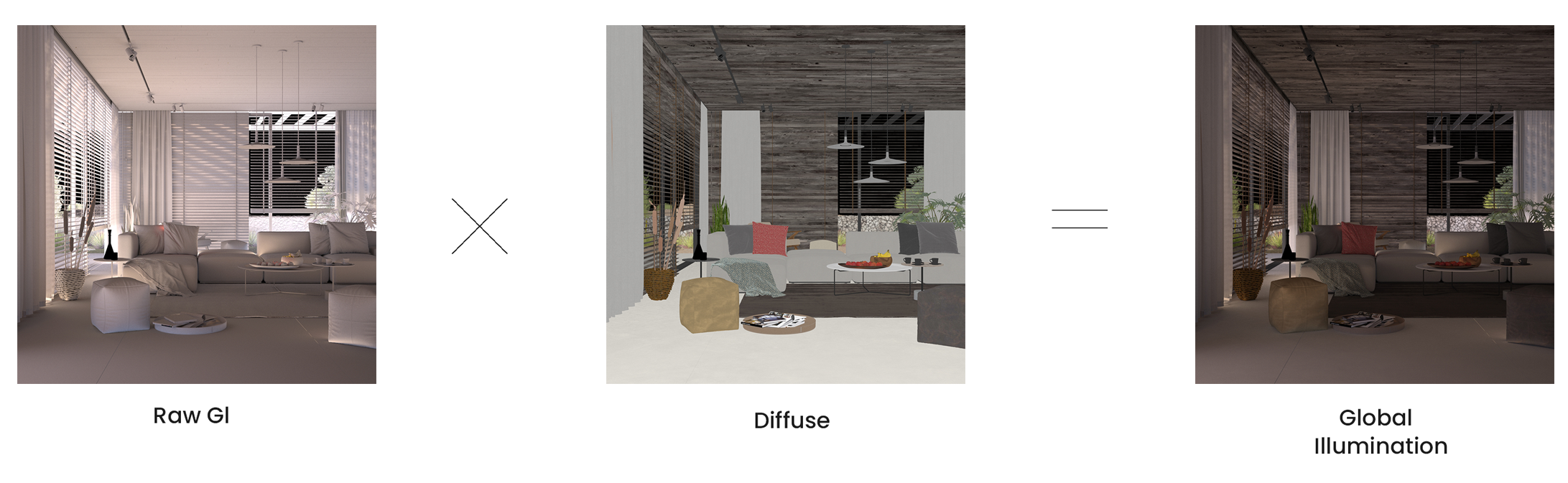

Raw GI x Diffuse = Global Illumination

Compositing diagram showing Raw GI multiplied by Diffuse to produce Global Illumination.
Adapted from Chaos documentation: Raw GI. © 2026 Chaos Software EOOD
