Raw Light

This page provides information about the Raw Light render element in V-Ray for SketchUp.

Overview

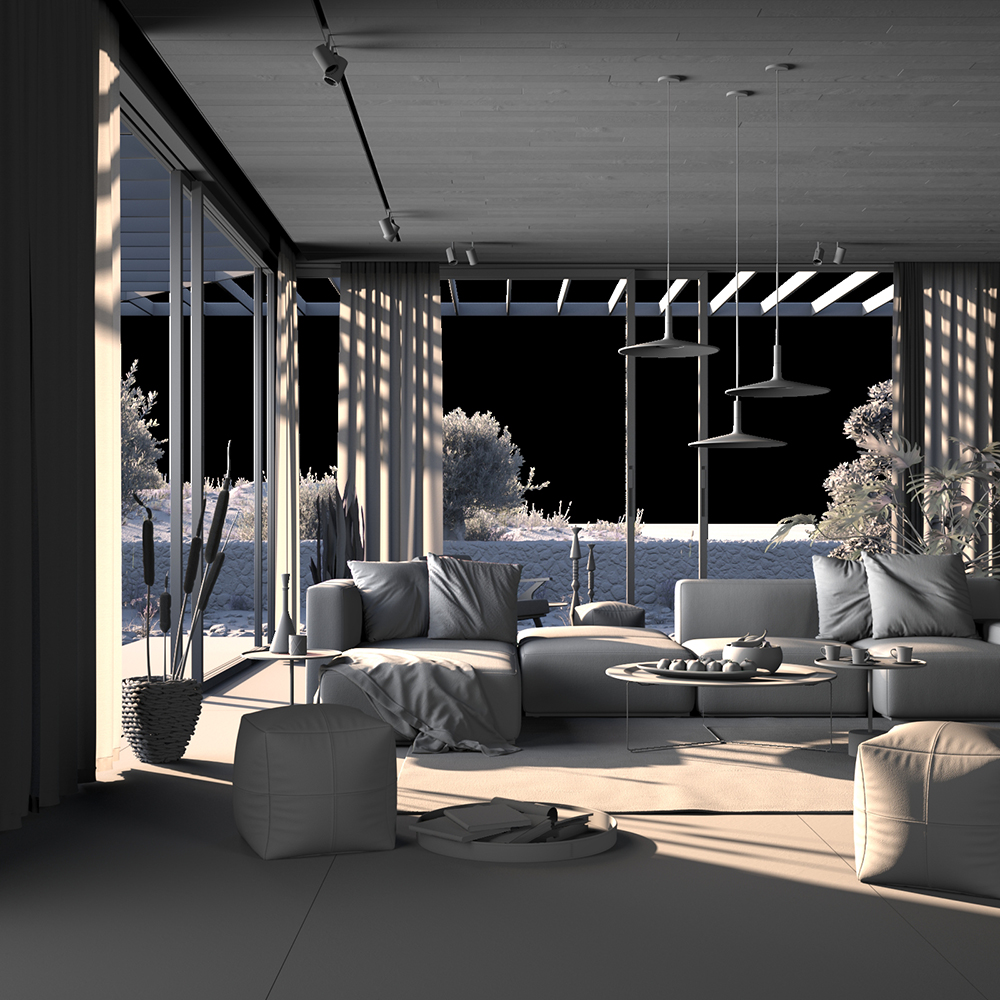

Stores only direct lighting information with no diffuse component.

UI Paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Raw Light
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Raw Light

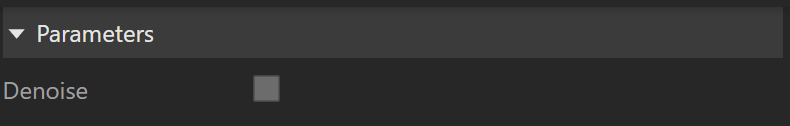

Parameters

Denoise – Specifies whether to denoise this render element.

Common Uses

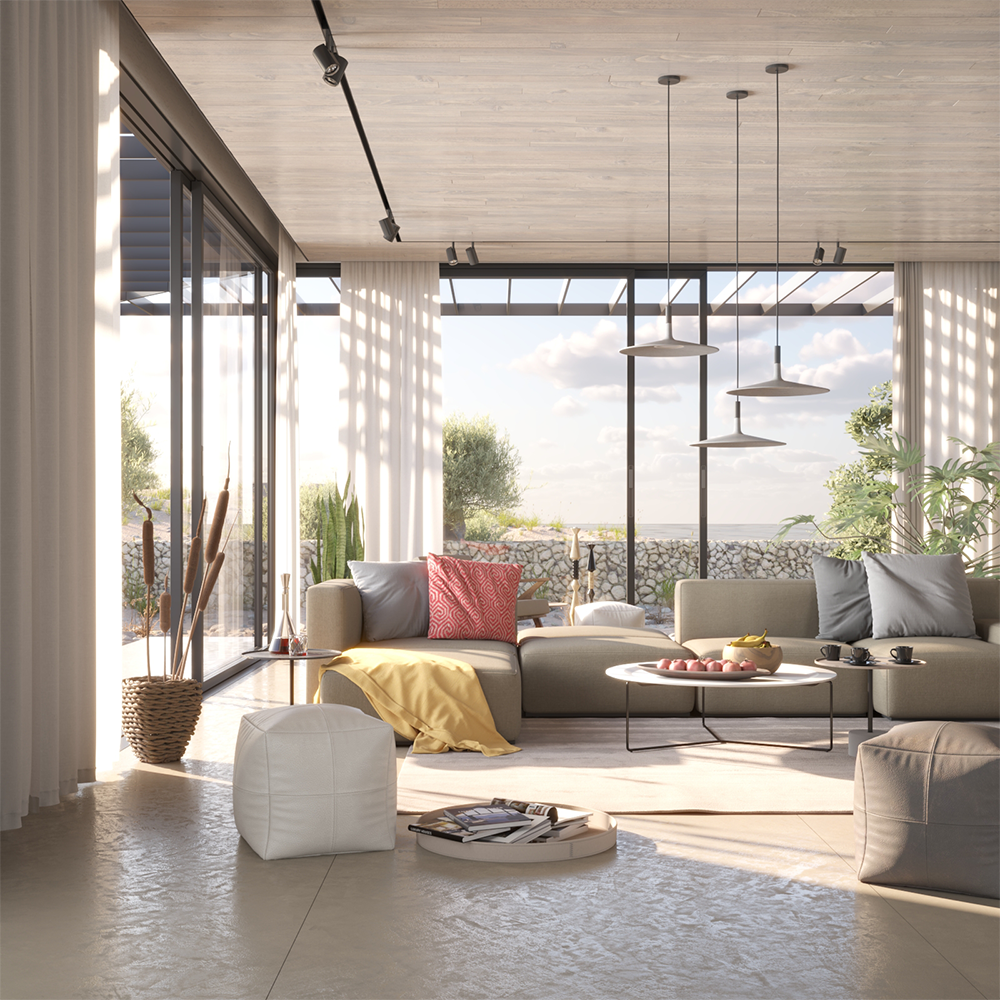

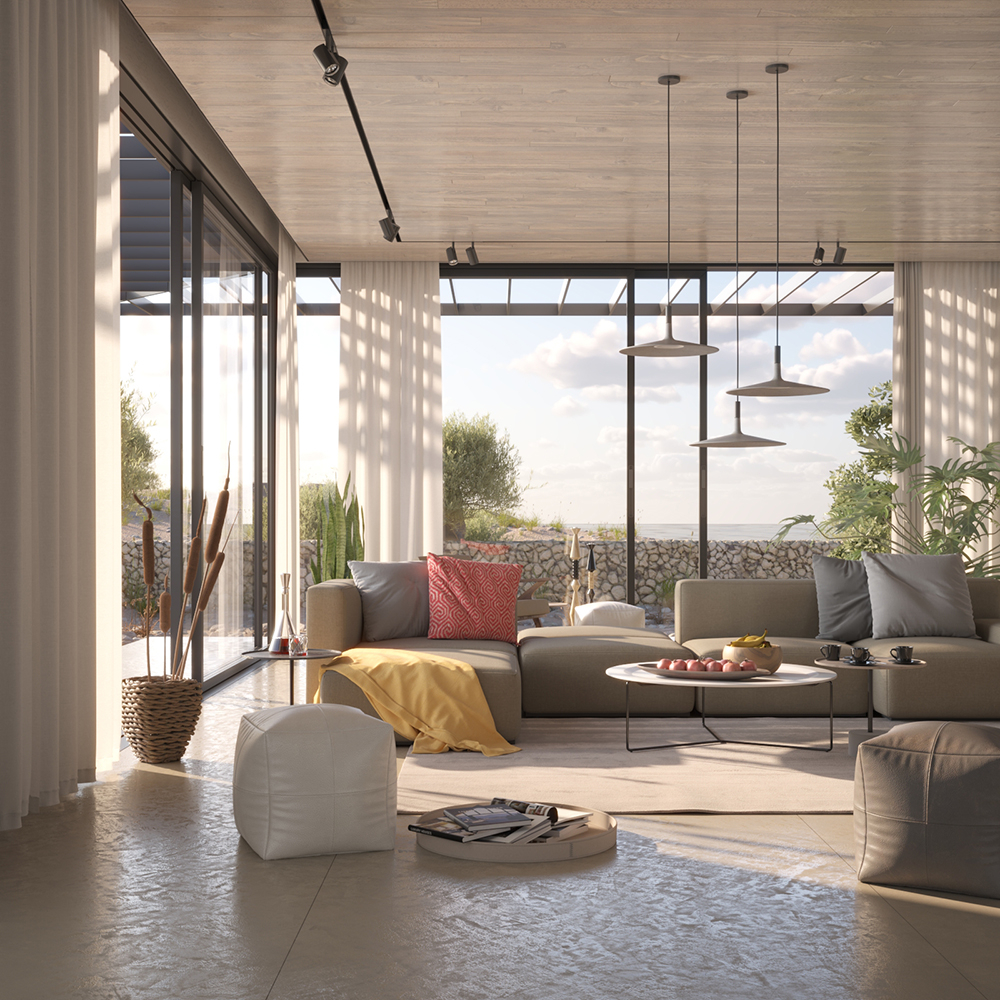

The Raw Lighting Render Element is useful for changing the appearance of direct lighting in a compositing or image editing software. In this example, you can see how the image looks before and after post-production.

Compositing

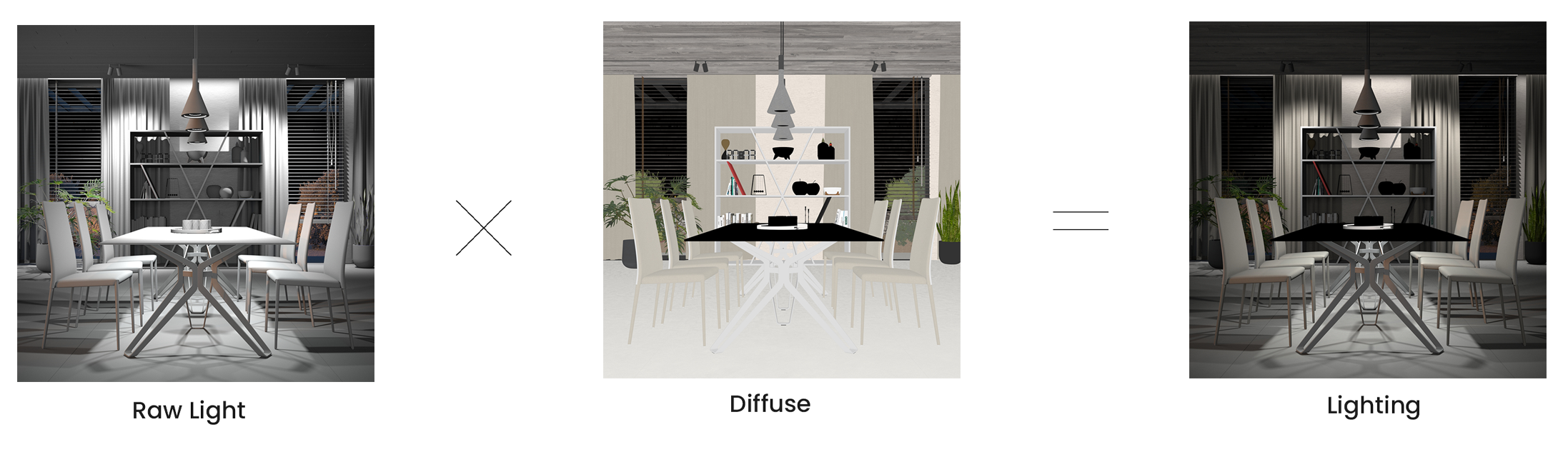

Raw Light x Diffuse = Lighting
