V-Ray for SketchUp, Render Elements

Raw Total Light

Use the Raw Total Light render element in V-Ray for SketchUp to adjust scene lighting after rendering.

On this page
  1. Overview
  2. UI paths
  3. Parameters
  4. Common uses
  5. Compositing

Use the Raw Total Light render element in V-Ray for SketchUp to adjust scene lighting after rendering.

Overview

Raw Total Light shows the sum of direct and indirect raw lighting in the scene, without diffuse details.

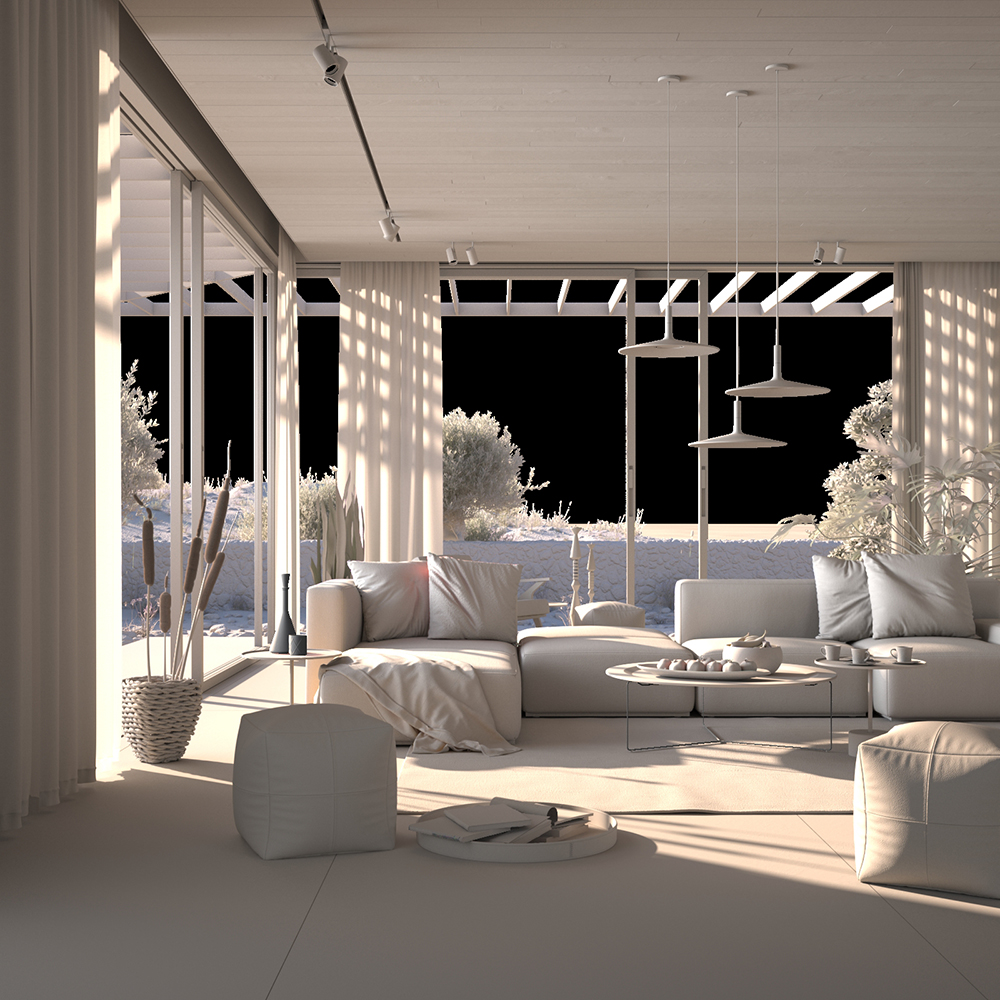

Raw Total Light render showing direct and indirect lighting in a lounge without diffuse colour or texture details.

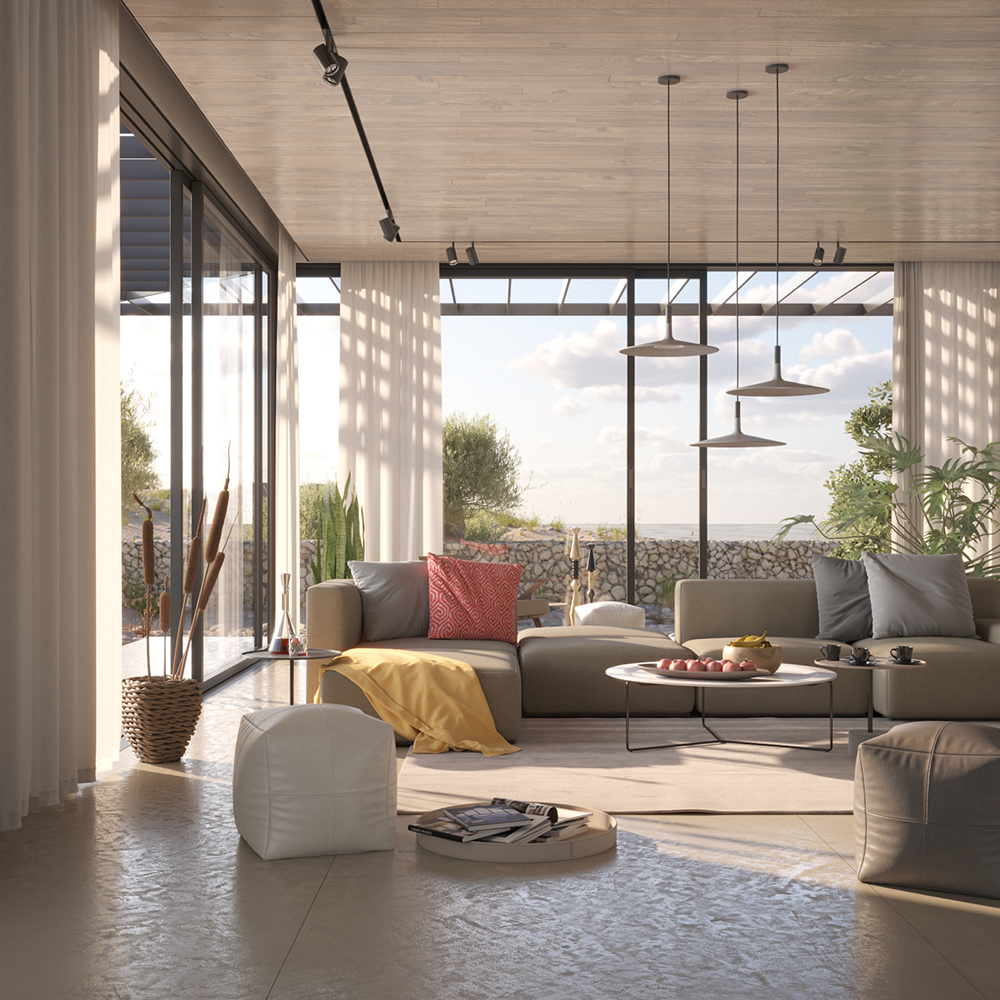

Full-colour lounge render showing material colours, textures and reflections for comparison with Raw Total Light.

UI paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Raw Total Light
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Raw Total Light

Parameters

Denoise controls whether this render element is denoised.

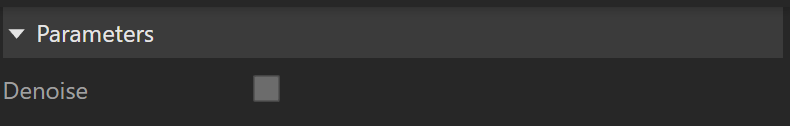

Parameters panel with the Denoise checkbox unticked.

Common uses

Use the Raw Total Light Render Element to adjust the scene's lighting after rendering in a compositing or image editing application. In this example, a Cryptomatte Render Element isolates the floor, windows, curtains, stone fence and ceiling. Raw Total Light is then brightened and tinted differently for each element to show the available adjustments. Compare the render before and after compositing.

Lounge render before lighting adjustments to the floor, windows, curtains, stone fence and ceiling.

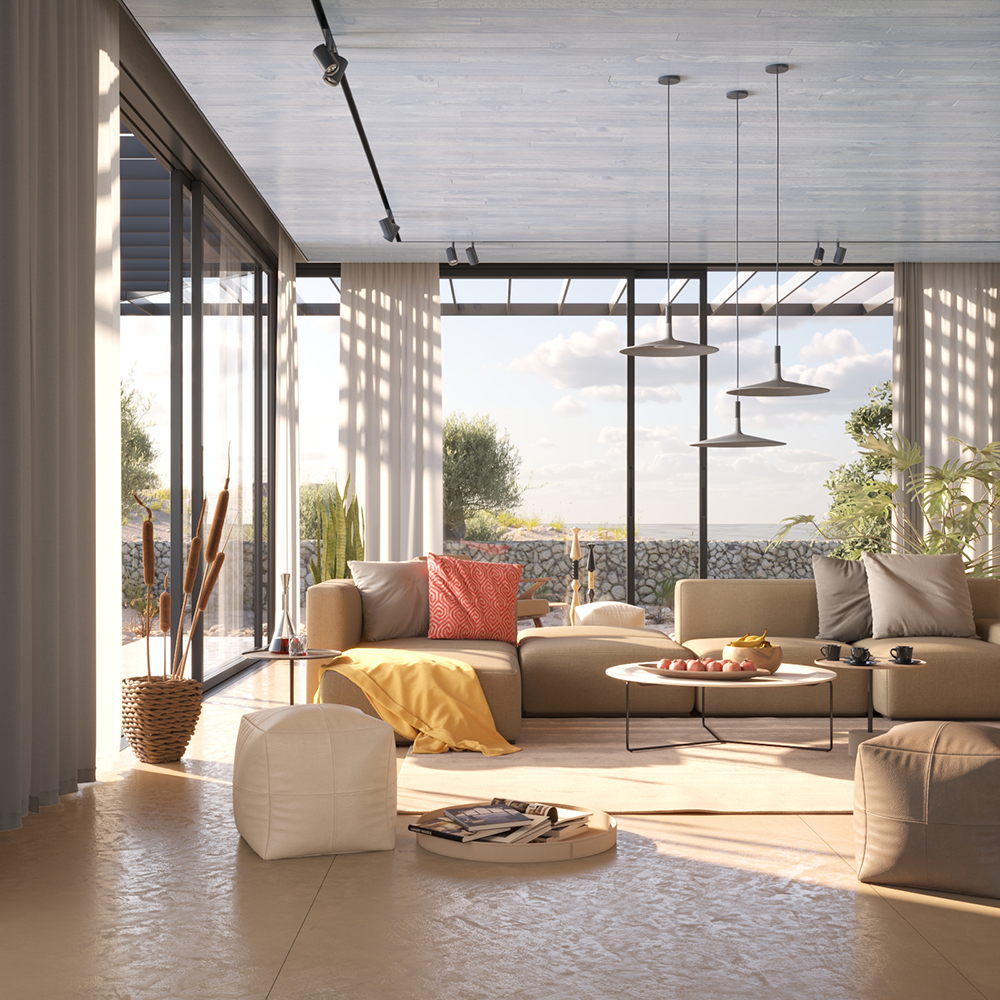

Lounge render after compositing, with brighter lighting and a cooler tint on the ceiling.

Compositing

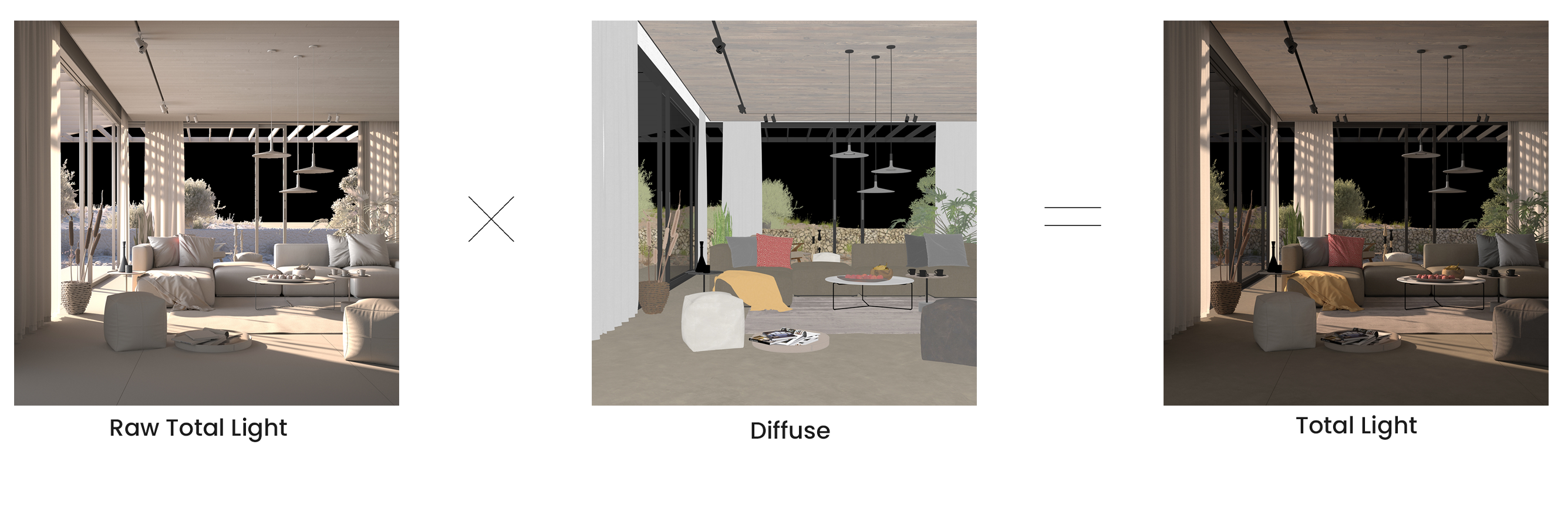

Raw Total Light x Diffuse = Total Light

Compositing diagram showing Raw Total Light multiplied by Diffuse to produce Total Light.

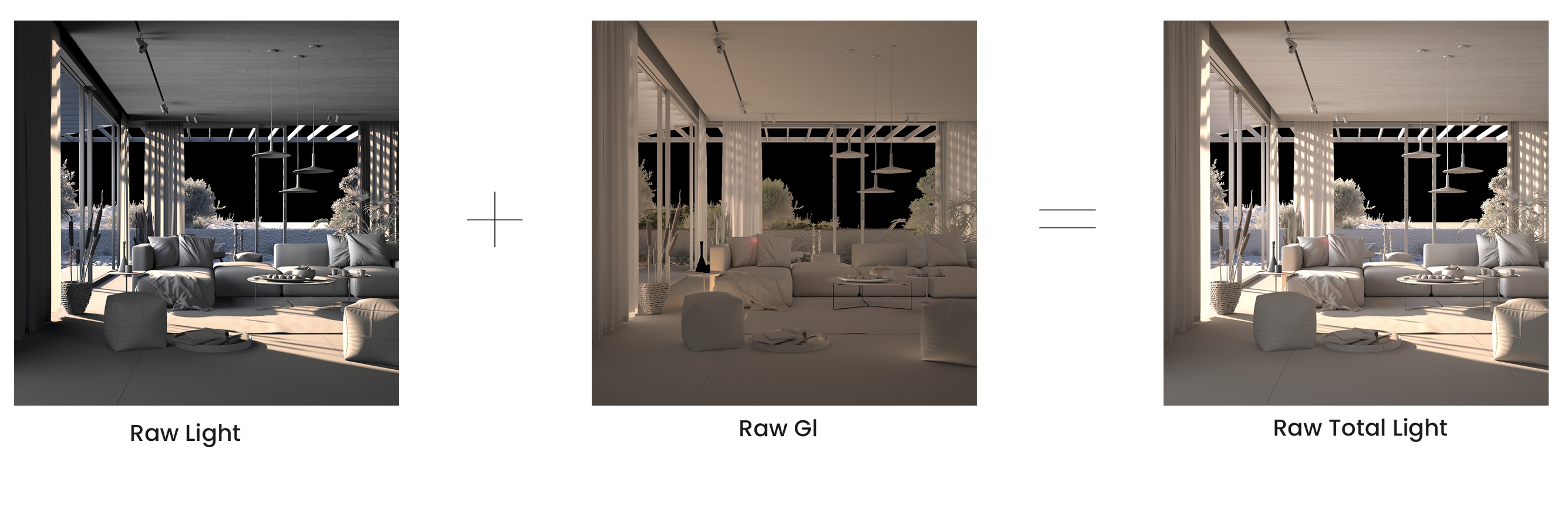

Raw Light + Raw GI = Raw Total Light

Room renders show Raw Light plus Raw GI combining to produce Raw Total Light.
Adapted from Chaos documentation: Raw Total Light. © 2026 Chaos Software EOOD
